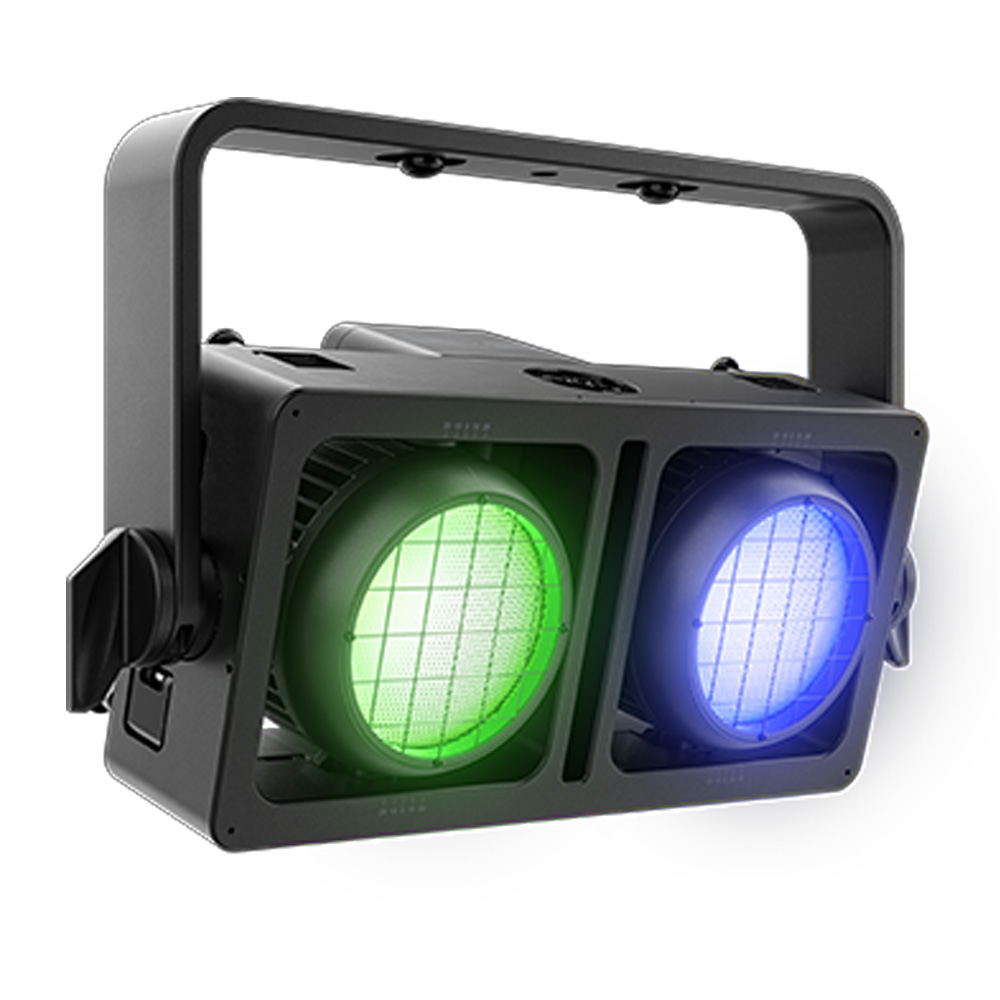

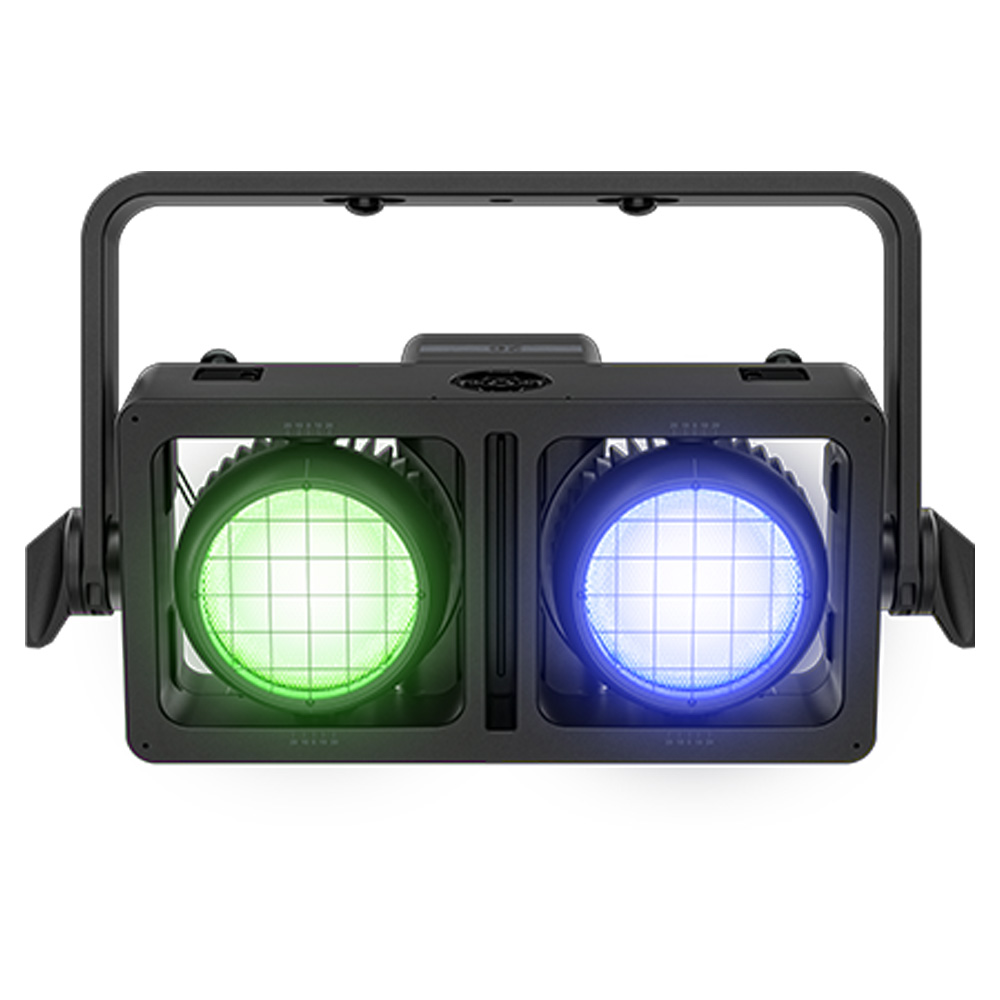

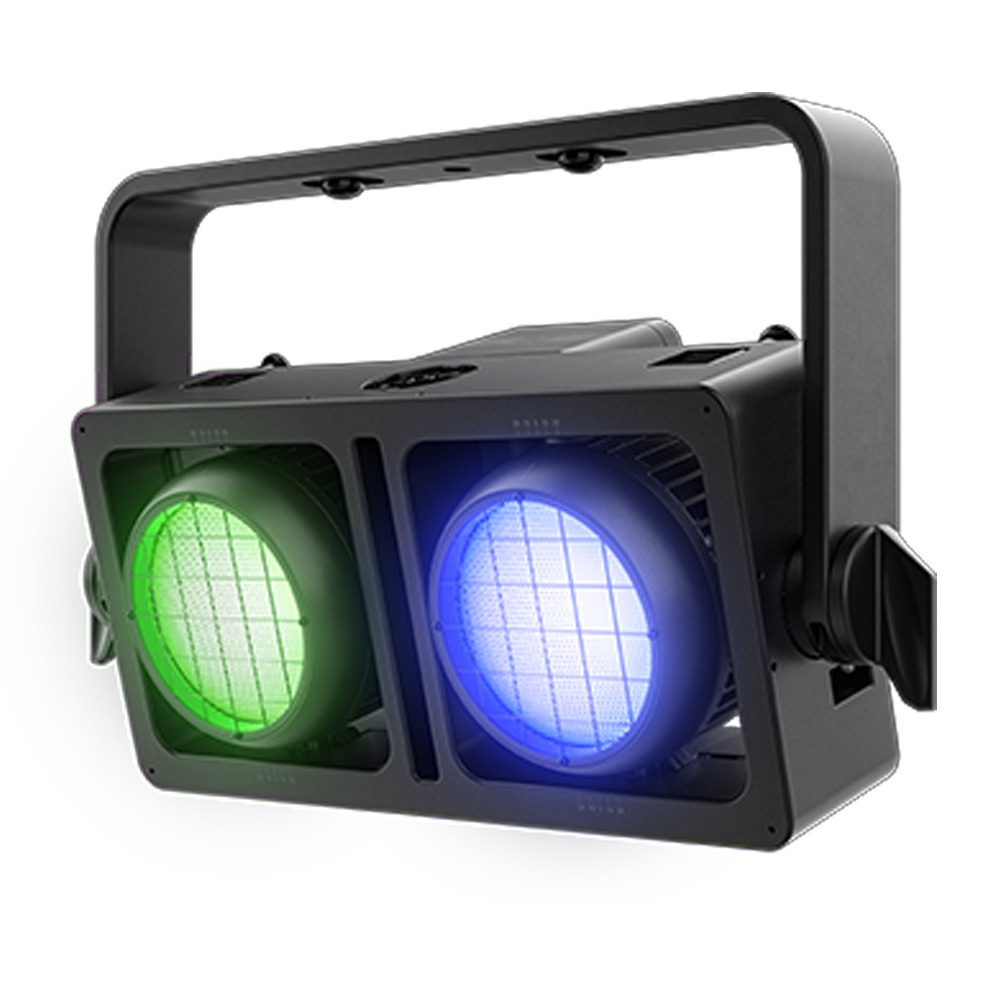

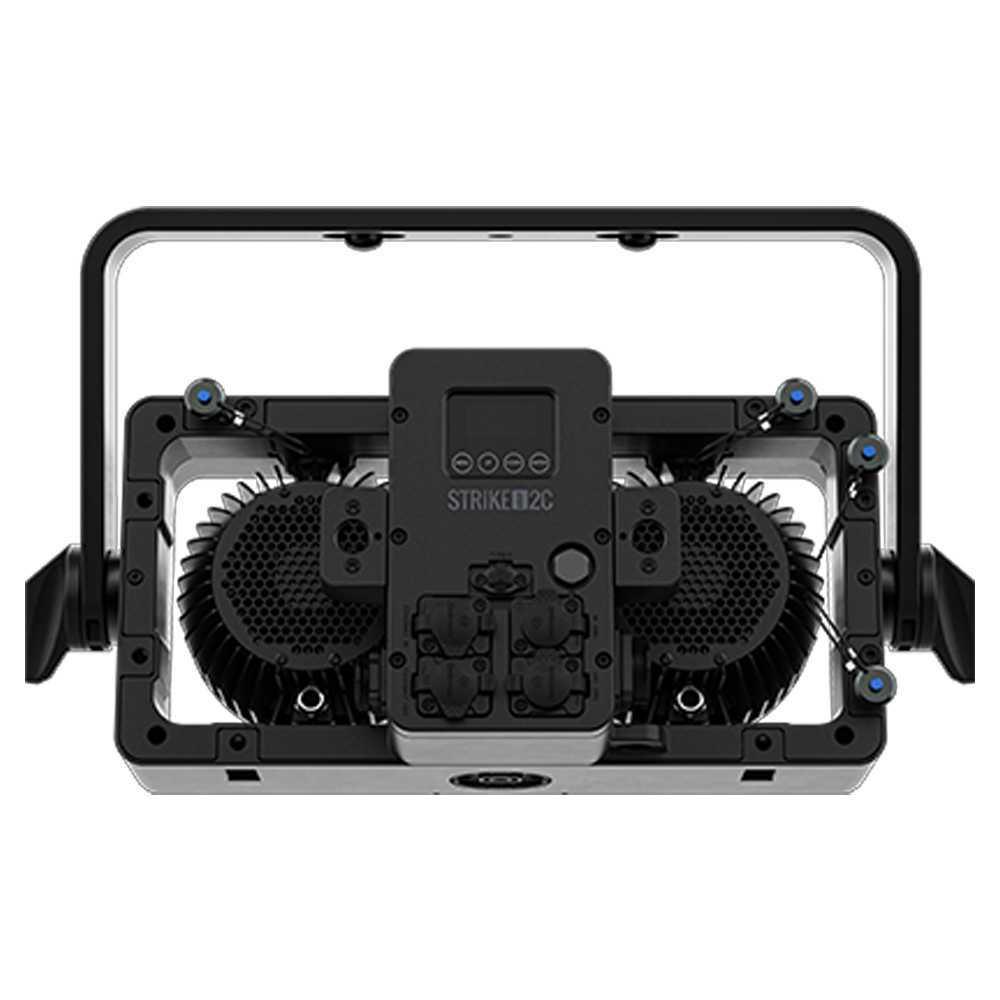

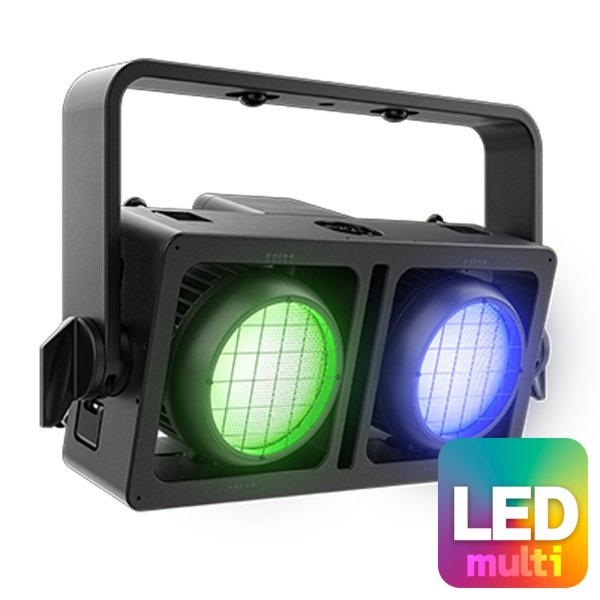

Chauvet Professional STRIKE Array 2C（ストライク アレイ 2C）

概要

STRIKE Array 2C is an IP65-rated audience blinder with two independently focusable pods. Intense RGBA-WW LED output delivers a full range of color as well as a wide choice of white color temperatures with exceptional color rendering. Offering the industry leading low end dimming performance our STRIKE Array fixtures are known for as well as Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make this the ideal blinder for broadcast applications. Its proprietary Tool-Free interlocking system enables STRIKE Array 2C to be easily interconnected with multiple Array units for scalable configurations. Omega-Bracket locks are also installed on both the yoke and the rear of the fixture to streamline the truss mounting process.

特徴

Intense 2 pod color blinder/strobe rated IP65 for all-weather use

Full range of color and excellent rendition of any color temperature of white

Emulated “red shift” to mimic incandescent fixtures perfectly.

Individual pan (or tilt depending on mount orientation) of each head to allow for directional adjustment of light output.

Innovative interlocking system to connect multiple STRIKE Array family fixtures together.

Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options

Independent pod control and strobe functionality for high-impact effects on the fly

Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.

仕様

Optical
Light Source: 134 LEDs (56 quad-color RGBA, 78 WW) 2.7 to 4.32 W, (871 mA), 50,000 hours life expectancy.Color Temperature (range): 2800 to 6500 KColor Temperature (at full): 6528 KCRI: 94.4CRI (@3200K): 94.4Beam Angle: 59.1°Field Angle: 102.1°Lumens: 25,917Illuminance (total): 979 lux @ 5 mSelectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: ElectronicShutter/Strobe: ElectronicStrobe Rate: 0 to 30 HzStandalone Color Mixing: YesColor Temperature Presets: YesDim Modes: 4Dim Curves: 4Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 19.13 x 7.45 x 10.37 in (486 x 189.3 x 263.5 mm)Weight: 20.6 lb (9.4 kg)Exterior Color: BlackHousing Material: Aluminum alloy
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65Power Output: Seetronic Powerkon IP65Data Connectors: 5-pin Seetronic IP65 XLR or Seetronic IP65 etherCONCable Length (power): 5 ft (1.5 m)Software Update: USB-C
Control
Control Protocol: Art-Net, sACN, DMX, RDMModes/Personalities: 10 personalities (1ch, 3ch, 5ch, 7ch, 10ch, 12ch1, 12ch2 13ch, 16ch, HSV)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 VPower and Current: 600 W, 5.000 A @ 120 V, 60 HzPower and Current: 583 W, 2.780 A @ 208 V, 60 HzPower and Current: 581 W, 2.491 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, ETL, cULusIP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valveTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
STRIKE Array 2CSeetronic Powerkon IP65Omega bracket with mounting hardware
Optional Accessories
STRIKE Array Flush BracketProfessional Clamps: CTC-50HC, CTC-50HCNSafety Cable: SC-08IP Rated Seetronic® Powerkon ExtensionsIP Rated DMX cablesIP Rated EtherCon CablesUPLOAD 03 software uploader
ORDERING INFO
Item Code: 781462224141

■メーカーサイト
https://www.chauvetprofessional.com/products/strike-array-2c/
