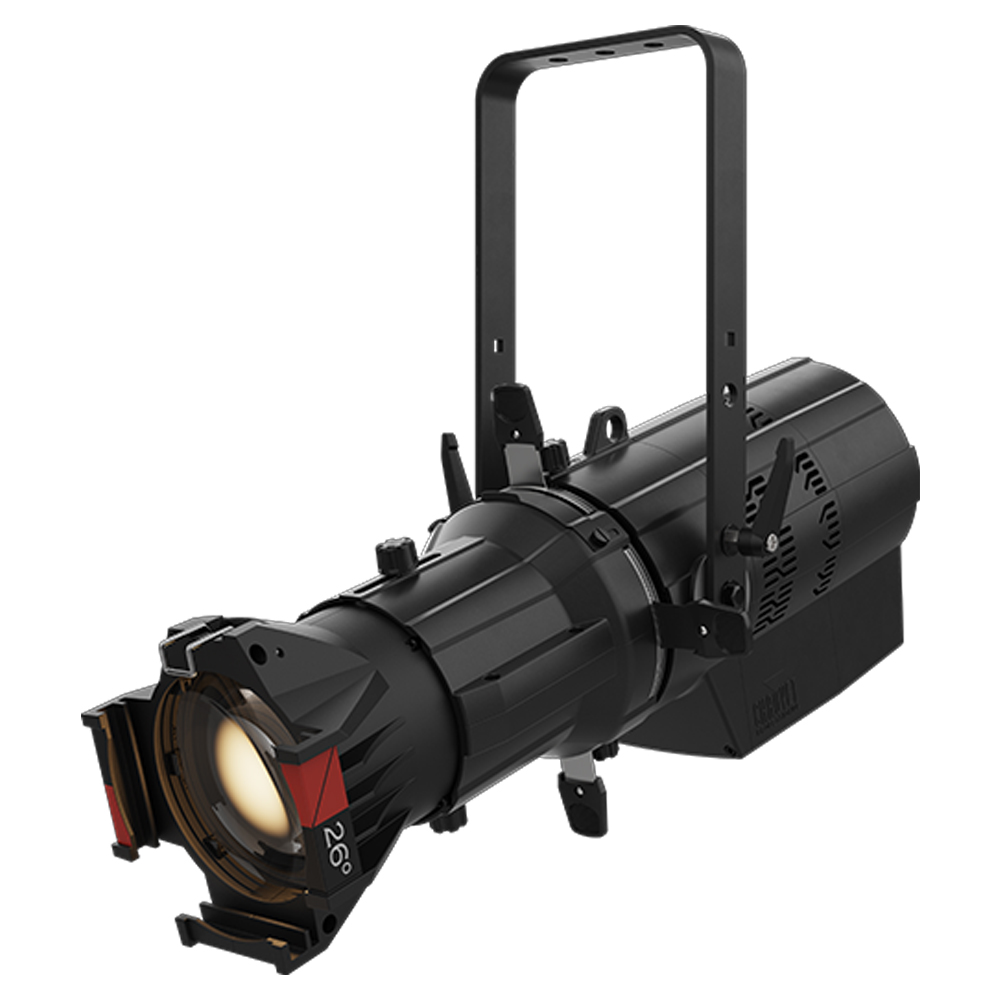

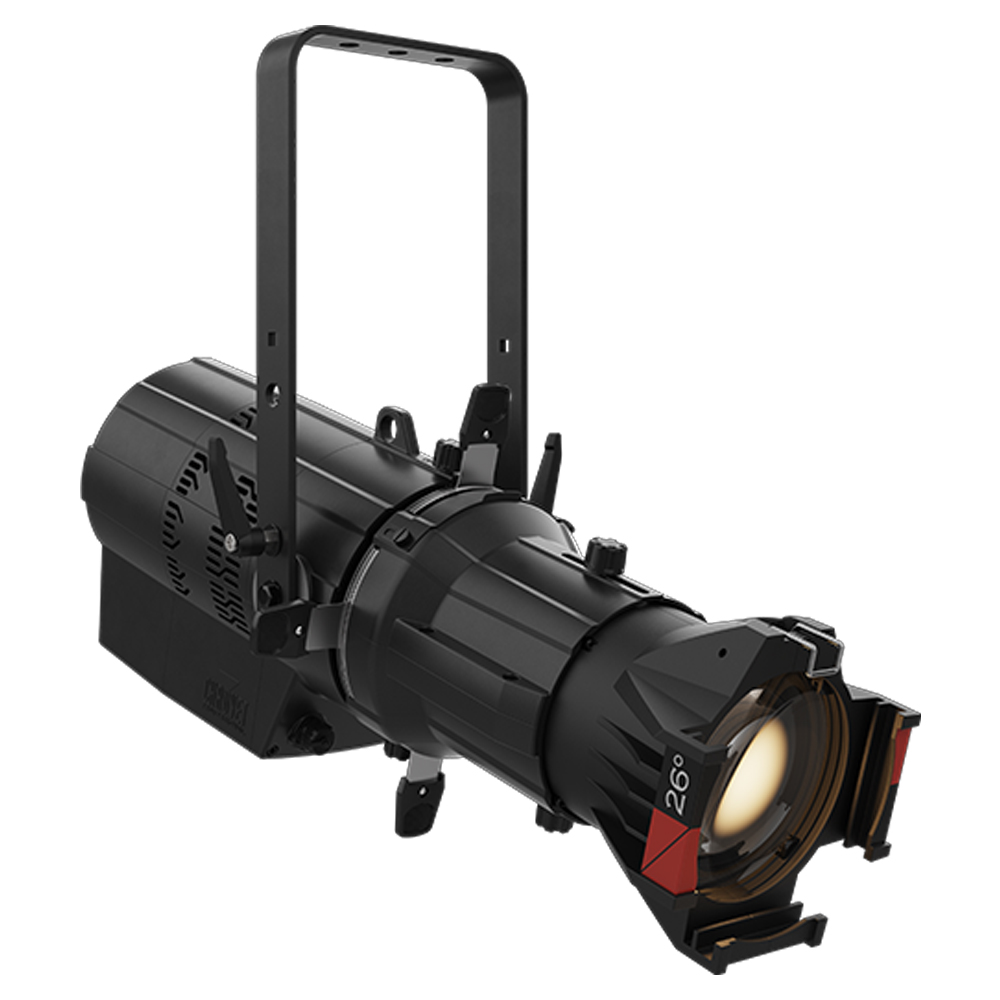

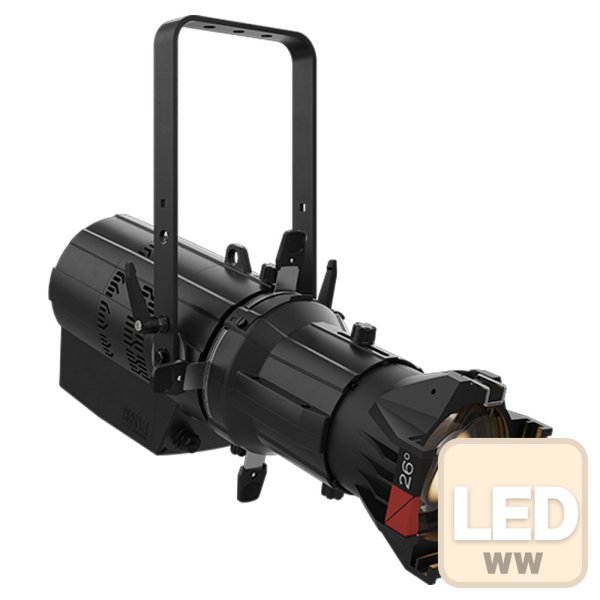

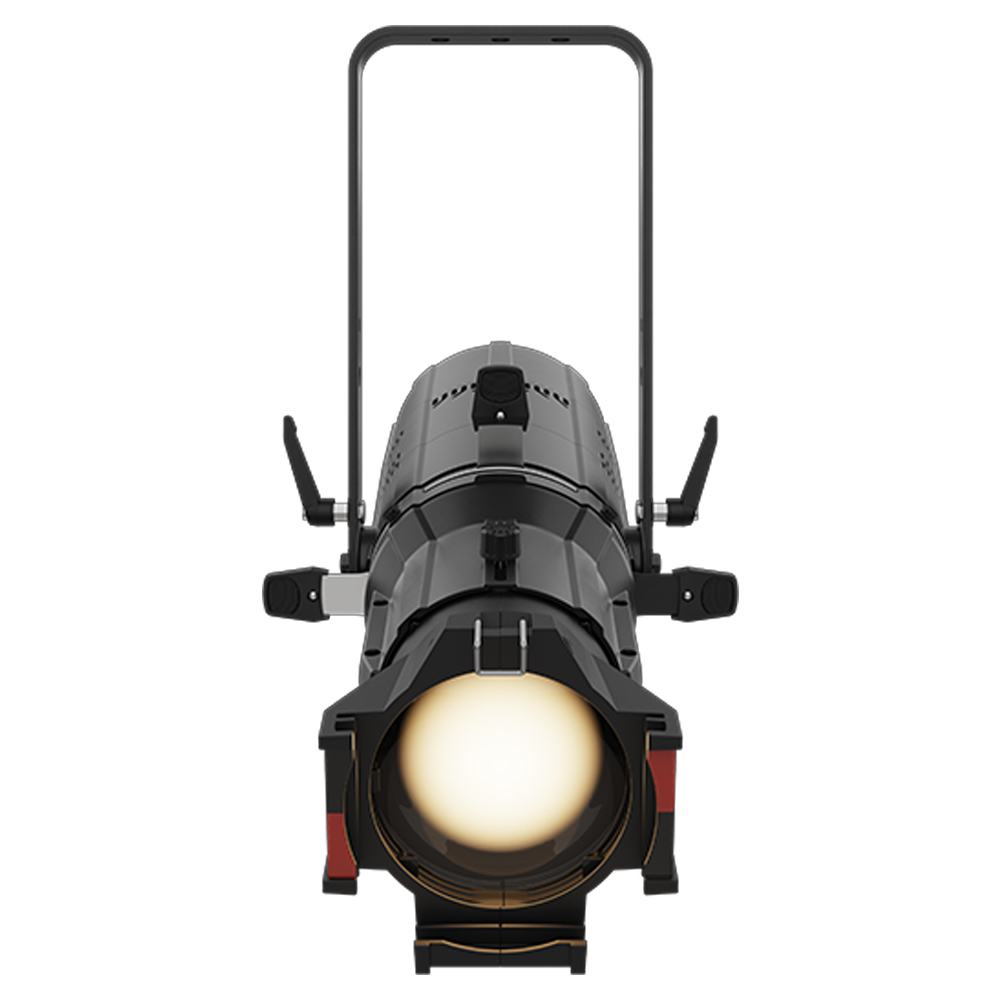

Chauvet Professional Ovation E-4WW IP（オベーション E-4WW IP）

概要

Designed to perform as the brightest outdoor-rated LED ellipsoidal fixture available anywhere, capable of projecting an even field of high CRI light for superior gobo projection with exceptionally long reach. Compatibility with standard Ovation lenses, integrated GR-1 Gobo Rotator power/data port, and dedicated Focus Mode button make for convenient operation. 3000K Warm White output with smooth 16-bit dimming to the very bottom of selectable dimming curves along with selectable PWM ensure brilliant performance both live and on camera.

特徴

Warm white ERS-style fixture with exceedingly bright output

Fully IP65 rated for seasonal use indoors or out

Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture

Ultra-smooth 18-bit dimming, and 8-bit dimming curves to complement any lighting scheme.

Flat, even field of light for superior gobo projection with tremendous color rendering

Dedicated power/data port for Ovation GR-1 Gobo Rotator

仕様

Optical
Light Source: 1 LED (WW) 400W, 50,000 hours life expectancyColor Temperature (at full): 3200 KCRI: 97.8Beam Angle (w/5° lens): 6.9°Beam Angle (w/10° lens): 9.9°Beam Angle (w/14° lens): 13.6°Beam Angle (w/19° lens): 17°Beam Angle (w/26° lens): 18.9°Beam Angle (w/36° lens): 25.2°Beam Angle (w/50° lens): 38.7°Beam Angle (w/15°–30° lens)(Narrow): 12.3°Beam Angle (w/15°–30° lens)(Wide): 20.1°Beam Angle (w/25°–50° lens)(Narrow): 21.2°Beam Angle (w/25°–50° lens)(Wide): 29.2°Field Angle (w/5° lens): 9.3°Field Angle (w/10° lens): 12.5°Field Angle (w/14° lens): 16.6°Field Angle (w/19° lens): 21°Field Angle (w/26° lens): 27.1°Field Angle (w/36° lens): 36.1°Field Angle (w/50° lens): 53.1°Field Angle (w/15°–30° lens)(Narrow): 17.1°Field Angle (w/15°–30° lens)(Wide): 30.4°Field Angle (w/25°–50° lens)(Narrow): 28.1°Field Angle (w/25°–50° lens)(Wide): 41.4°Dimming Modes: 4Lumens (w/5° lens): 13,989Lumens (w/10° lens): 16,250Lumens (w/14° lens): 17,524Lumens (w/19° lens): 16,766Lumens (w/26° lens): 21,213Lumens (w/36° lens): 21,219Lumens (w/50° lens): 20,831Lumens (w/15°–30° lens)(Narrow): 15,302Lumens (w/15°–30° lens)(Wide): 19,171Lumens (w/25°–50° lens)(Narrow): 21,049Lumens (w/25°–50° lens)(Wide): 20,936Illuminance (w/5° lens): 45,552 lux @ 5 mIlluminance (w/10° lens): 25,479 lux @ 5 mIlluminance (w/14° lens): 15,080 lux @ 5 mIlluminance (w/19° lens): 9,627 lux @ 5 mIlluminance (w/26° lens): 8,883 lux @ 5 mIlluminance (w/36° lens): 4,983 lux @ 5 mIlluminance (w/50° lens): 2,199 lux @ 5 mIlluminance (w/15°–30° lens)(Narrow): 15,632 lux @ 5 mIlluminance (w/15°–30° lens)(Wide): 6,829 lux @ 5 mIlluminance (w/25°–50° lens)(Narrow): 7,668 lux @ 5 mIlluminance (w/25°–50° lens)(Wide): 3,733 lux @ 5 mSelectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25KHz
Dynamic Effects
Dimmer: ElectronicShutter/ElectronicStrobe Rate: 0 to 30 HzColor Temperature Presets: NoDim Modes: 4Dim Curves: 4Built-in Automated Programs: Yes
Construction / Physical
Dimensions (fixture only): 19.5 x 11.2 x 19.2 in (496 x 284.9 x 487 mm)Dimensions (w/5° lens extended): 40.4 x 14.5 x 19.2 in (1026 x 368 x 487 mm)Dimensions (w/10° lens extended): 32.2 x 12.4 x 19.2 in (817 x 314 x 487 mm)Dimensions (w/14° lens extended): 28.9 x 11.9 x 19.2 in (734 x 302 x 487 mm)Dimensions (w/19° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)Dimensions (w/26° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)Dimensions (w/36° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)Dimensions (w/50° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)Dimensions (w/15°–30° lens): 32.3 x 11.9 x 19.2 in (820 x 302 x 487 mm)Dimensions (w/25°–50° lens): 25.1 x 11.9 x 19.2 in (637 x 302 x 487 mm)Weight (fixture only): 21.6 lb (9.79 kg)Weight (w/5° lens): 26.4 lb (11.9 kg)Weight (w/10° lens): 24.8 lb (11.2 kg)Weight (w/14° lens): 26.8 lb (12.1kg)Weight (w/19° lens): 25.6 lb (12.1kg)Weight (w/26° lens): 25.6 lb (12.1kg)Weight (w/36° lens): 25.6 lb (12.1kg)Weight (w/50° lens): 25.6 lb (12.1kg)Weight (w/15°–30° lens): 30.4 lb (13.7kg)Weight (w/25°–50° lens): 27.4 lb (12.4kg)Exterior Color: BlackHousing Material: Aluminum die-castGobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)
Connections

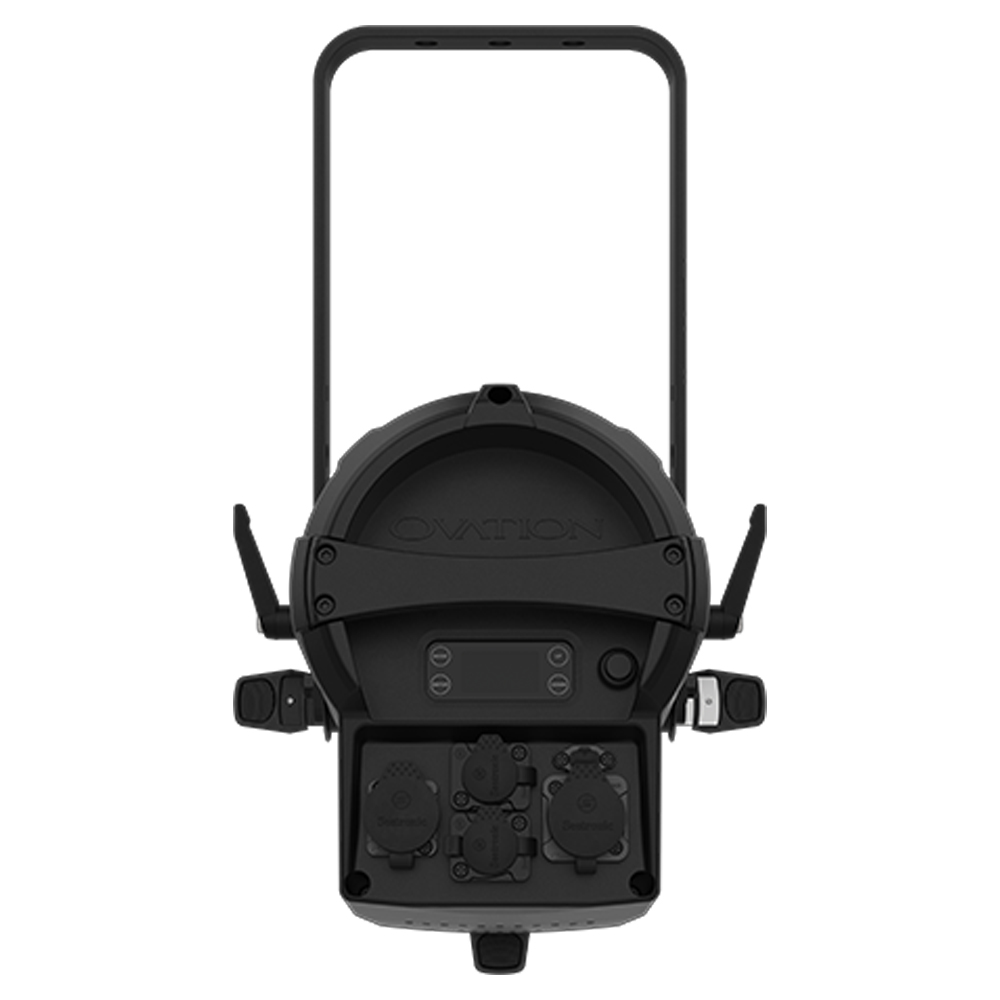

Power Connection: Edison (local) plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65Power Output: Seetronic Powerkon IP65Data Connectors: 5-pin XLRCable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDMDMX Channels: 2, 3, 4, or 7Modes/Personalities: 4 personalities (2, 3, 4, 7)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 2 units @ 100 V; 3 units @ 120 V; 6 units @ 208 V; 6 units @ 230 V; 7 units @ 240 VPower and Current: 433 W, 4.34 A @ 100 V, 60 HzPower and Current: 428 W, 3.57 A @ 120 V, 60 HzPower and Current: 416 W, 2.0 A @ 208 V, 60 Hz [Power and Current: 416 W, 1.81 A @ 230 V, 50 HzPower and Current: 413 W, 1.73 A @ 240 V, 60 Hz
Certifications / Qualifications
CE, MET, UKCA, RoHSIP Rating: IP65, temporary outdoor/wet useNoise Level (Idle): 21.1 dB(A) @ 1 mNoise Level (Auto): 31.2 dB(A) @ 1 mNoise Level (On): 33.1 dB(A) @ 1 mNoise Level (Off): 13.2 dB(A) @ 1 mNoise Level (Silent): 21.6 dB(A) @ 1 m
What's Included
Ovation E-4WW IPSeetronic Powerkon IP65
Required Accessories
Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCNSafety Cable: SC-07TRUE1 Style Power Extension Cables5-pin IP65 DMX CablesRDM2goOvation Glass Gobo HolderOvation Metal Gobo HolderOvation IrisOvation GR-1 IP Gobo Rotator

■メーカーサイト
https://www.chauvetprofessional.com/products/ovation-e-4ww-ip/
