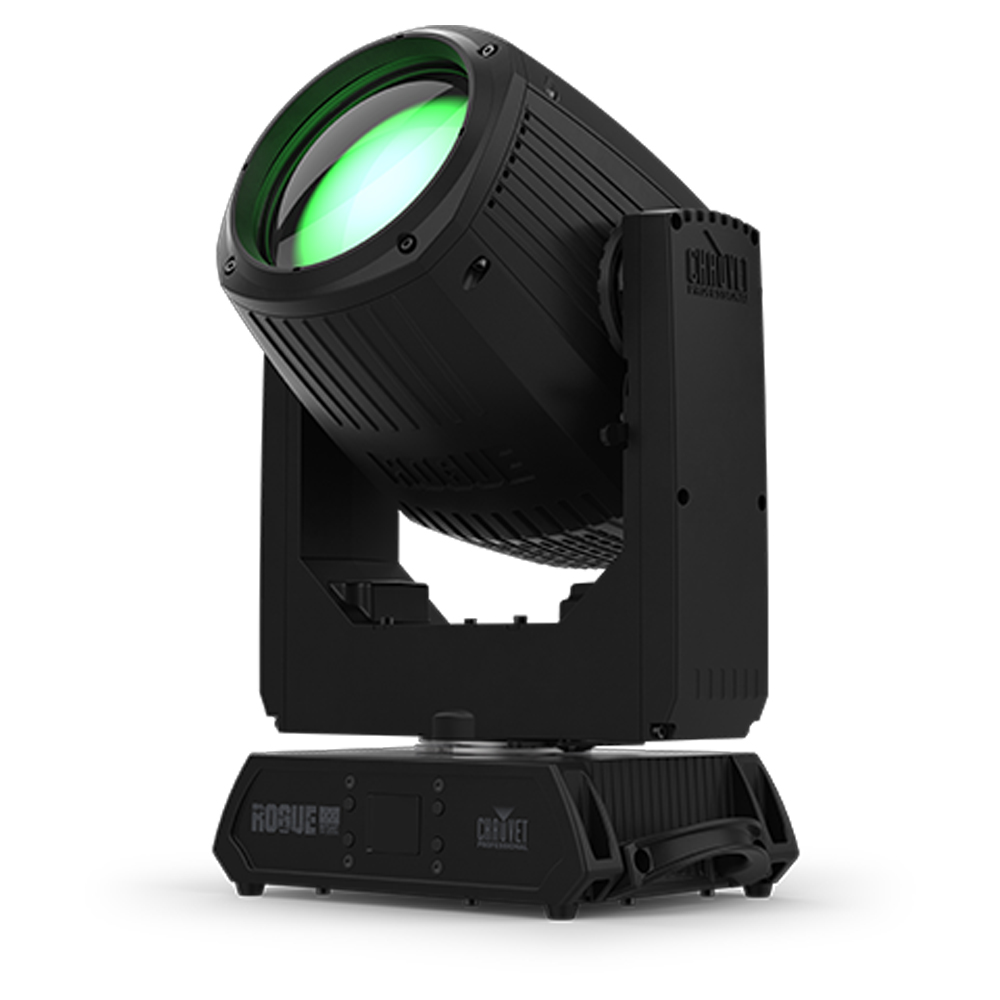

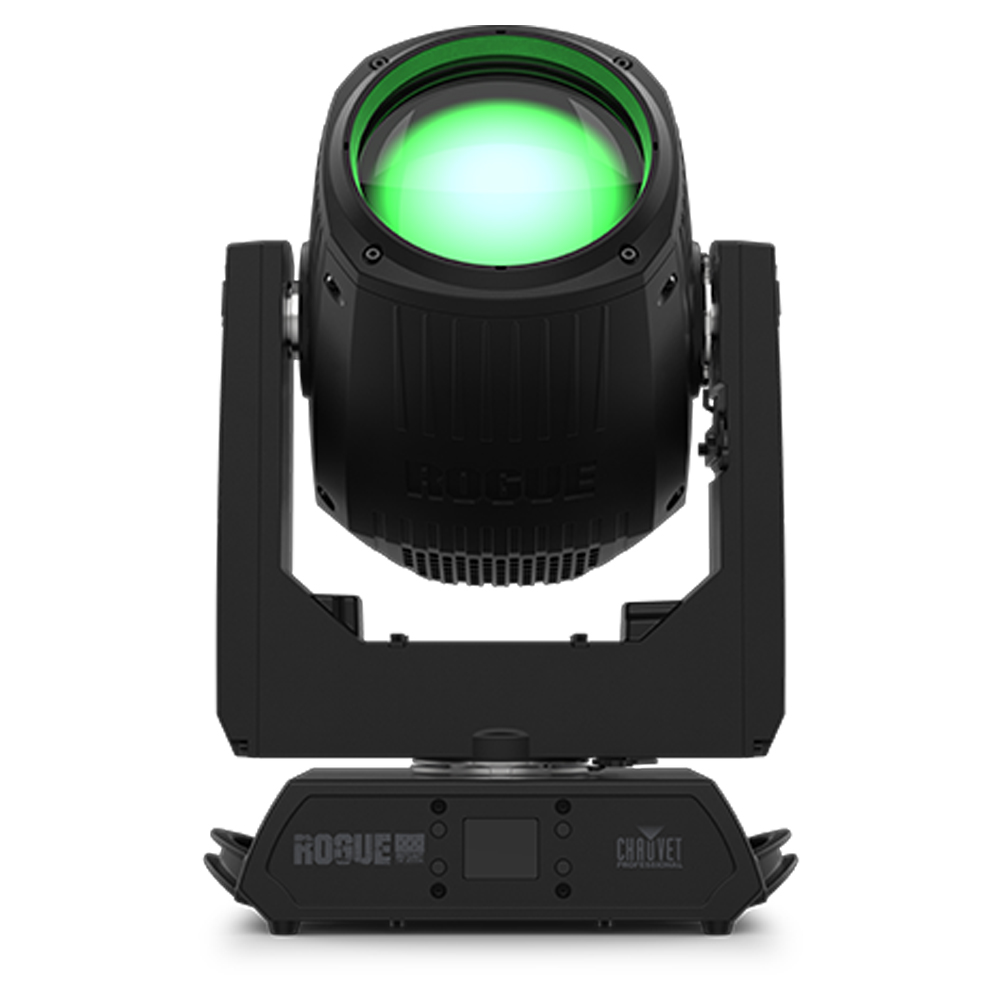

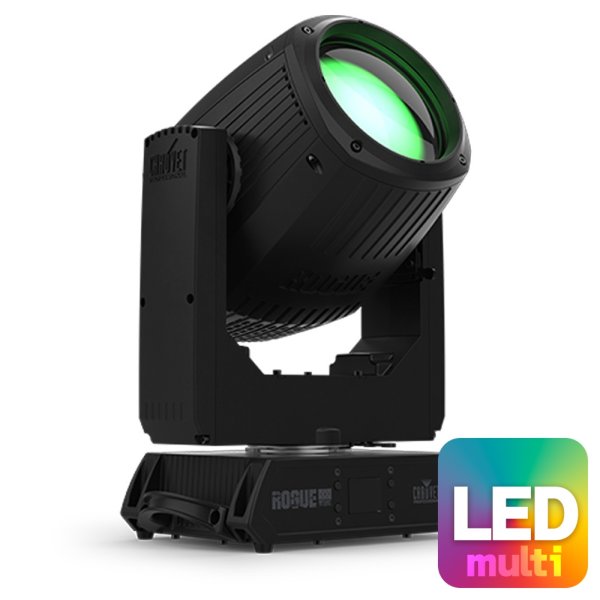

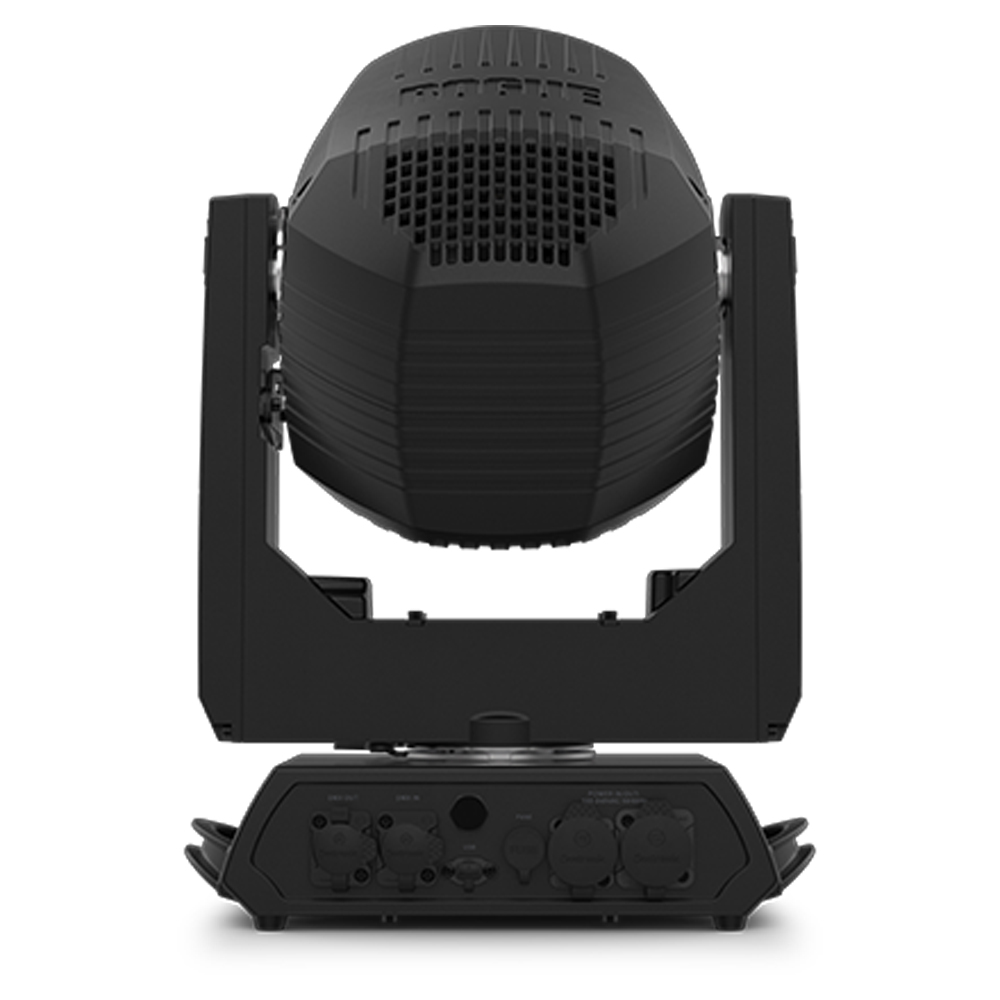

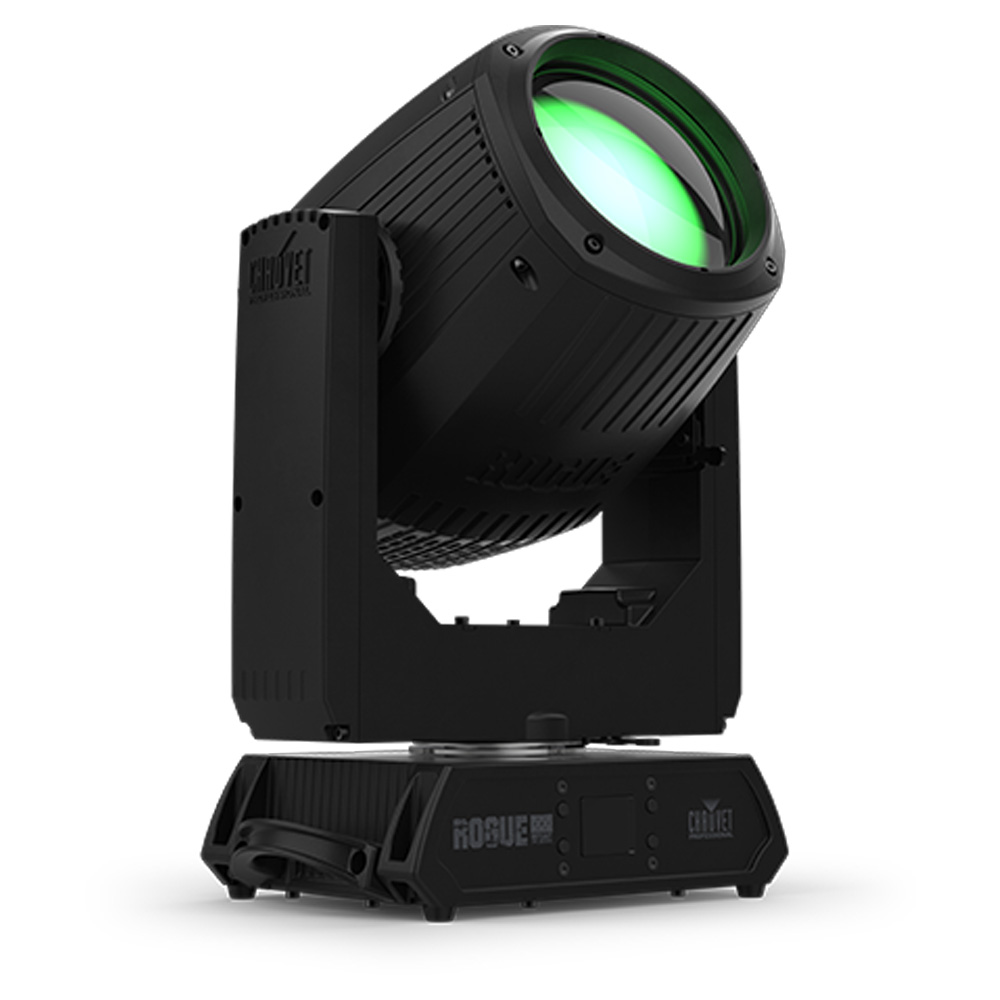

Chauvet Professional Rogue Outcast 1M Beam（ローグ アウトキャスト 1M ビーム）

概要

Spin out with continuous 360 degree rotation. Stand out with a Mint-powered RMB light engine that sets Rogue Outcast 1M Beam apart from the rest of the pack by offering a multi-color LED solution and great optics to produce sharp beams of the highest quality white light and your choice of color. A compact beam fixture that weighs in under thirty pounds, designed to deliver fast and precise performance as well as easy event setups. Create stunning aerial effects with dual overlapping prisms or instantly punch up pencil-thin beams with a selection of aperture gobos. IP65-rated and ready to go anywhere, Rogue Outcast 1M Beam handles outdoor use as well as it handles haze, dust, confetti and other elements in permanent indoor installations with minimum need for upkeep.

特徴

Fully featured, high powered IP65 rated beam fixture with a Red, Mint and Blue LED, single gobo wheel with static gobos, layerable prisms in a lightweight and durable aluminum / magnesium casing

Full color mixing from the LED source for a wide spectrum of color variations. No color wheel needed

360° pan and tilt movement for endless movement effects

Fast and precise movement of pan and tilt functions

Individually controllable and layerable 6- and 8-facet prisms

Frost for even light distribution

5-pin DMX input/output connections

Tight 1.9° beam for extremely focused aerial effects

RDM enabled for remote addressing and troubleshooting

17 static gobos on one wheel for dynamic gobo effects

Easy to read OLED display with simple, effective menu options

Simple and complex DMX channel profiles for programming versatility

USB-C port for uploading software

仕様

Optical
Light Source: 1 LEDs (Red,Mint,Blue) 120 W, (3.34A), 50,000 hours life expectancyColor Temperature (at full): 10,398 KFront lens diameter: 140 mmCRI: 80.8Beam Angle: 1.9°Field Angle: 2.7°Cutoff Angle: 3.4°Lumens (Output): 4,488Illuminance (total): 117,690 lux @ 5 mSelectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Dynamic Effects
Pan and Tilt: 360°/360° total movementPan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tiltGobos (1): 17 + open (metal), continuous scroll at variable speedsGobo Size: Gobo Wheel (rotating): 6 mm (outside), .6 mm (max. thickness)Dimmer: ElectronicShutter/Strobe: ElectronicFocus: MotorizedFrost: MotorizedPrism: 6 Facets, motorized, linear, rotatingPrism: 8 Facets, motorized, round, rotatingStrobe Rate: 0 to 30 HzDim Curves: 4
Construction / Physical
Dimensions: 11.9 x 7.56 x 17.9 in (302 x 192 x 455 mm)Weight: 27.2 lb (12.34 kg)Exterior Color: BlackHousing Material: Aluminum/Magnesium diecast
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65Power Output: Seetronic Powerkon IP65Data Connectors: 5-pin IP65 XLRCable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDMDMX Channels: 21 or 25Modes/Personalities: 2 personalities (21, 25)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking:; 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 VPower and Current: 232 W, 1.95 A @ 120 V, 60 HzPower and Current: 223 W, 1.11 A @ 208 V, 60 HzPower and Current: 220 W, .990 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, UKCAIP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valveTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
Rogue Outcast 1M BeamSeetronic Powerkon IP65 power cord105mm Omega bracket with mounting hardware
Optional Accessories
ClampsSeetronic PowerKON cablesDMX CablesFlight CasesCP RackPowerStream 4 IP

■メーカーサイト
https://www.chauvetprofessional.com/products/rogue-outcast-1m-beam/
