Chauvet Professional WELL POD 3×4（ウェルポッド 3×4）

概要

WELL POD 3 is a fully-accessorized addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability.

特徴

A fully realized kit of (4) Battery operated black IP65 rated par style fixture with (19) RGB Warm White LEDs and a beam angle of 12.7 degrees

Battery run time selections of 5, 8, 12, and 18 hours of operation at full output

Built in battery charger allows fixture to operate while charging

Built in IP65 5 pin DMX in/out allows for wired data

Built in Seetronic IP65 PowerKon input/output

Control over DMX, CRMX, RDM, or RF

Easy connection to WELL CONNECT box and CHAUVET CONNECT for app control

USB-C port for convenient software updates

Removable split yoke for both hanging and floor standing

Pressure equalizing M6 Gore valve

Built in safety cable attachment point

Easy to read OLED display

Built in theft alarm (audio and visual notification)

Built in PWM Adjustment

Included RF remote

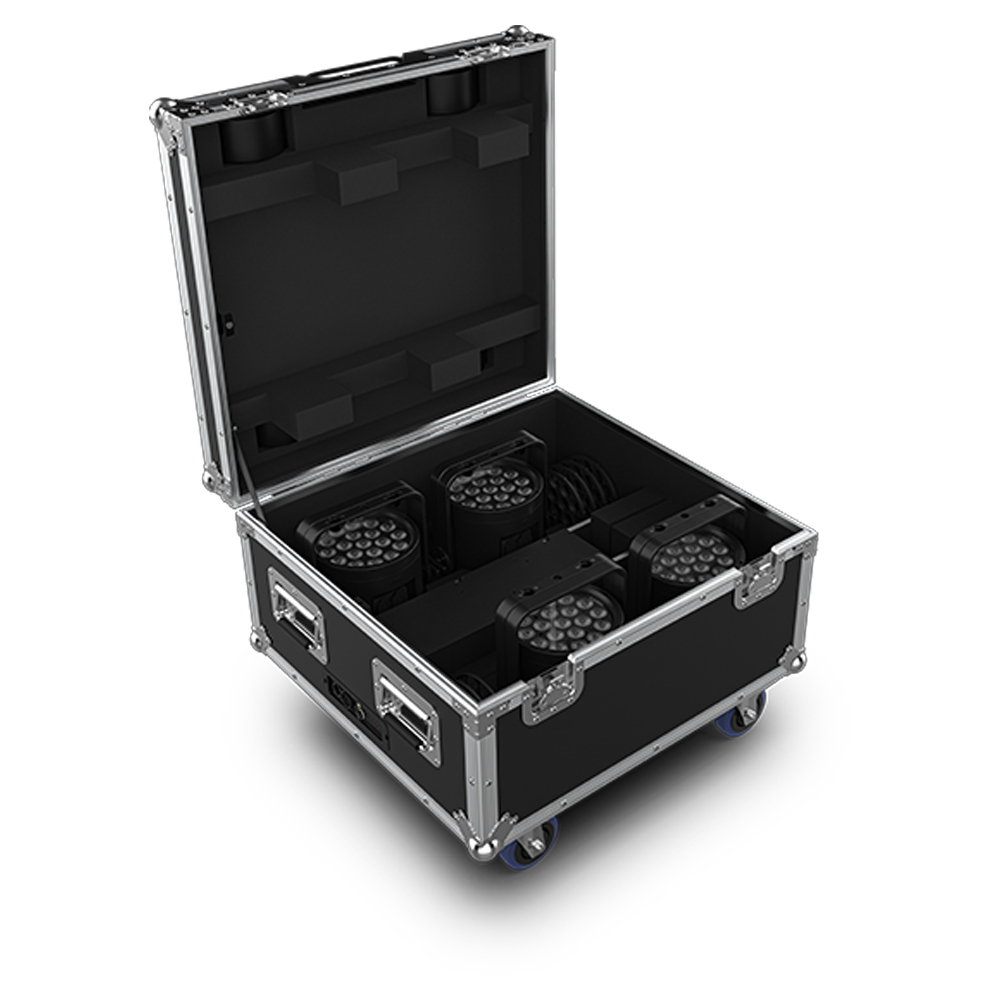

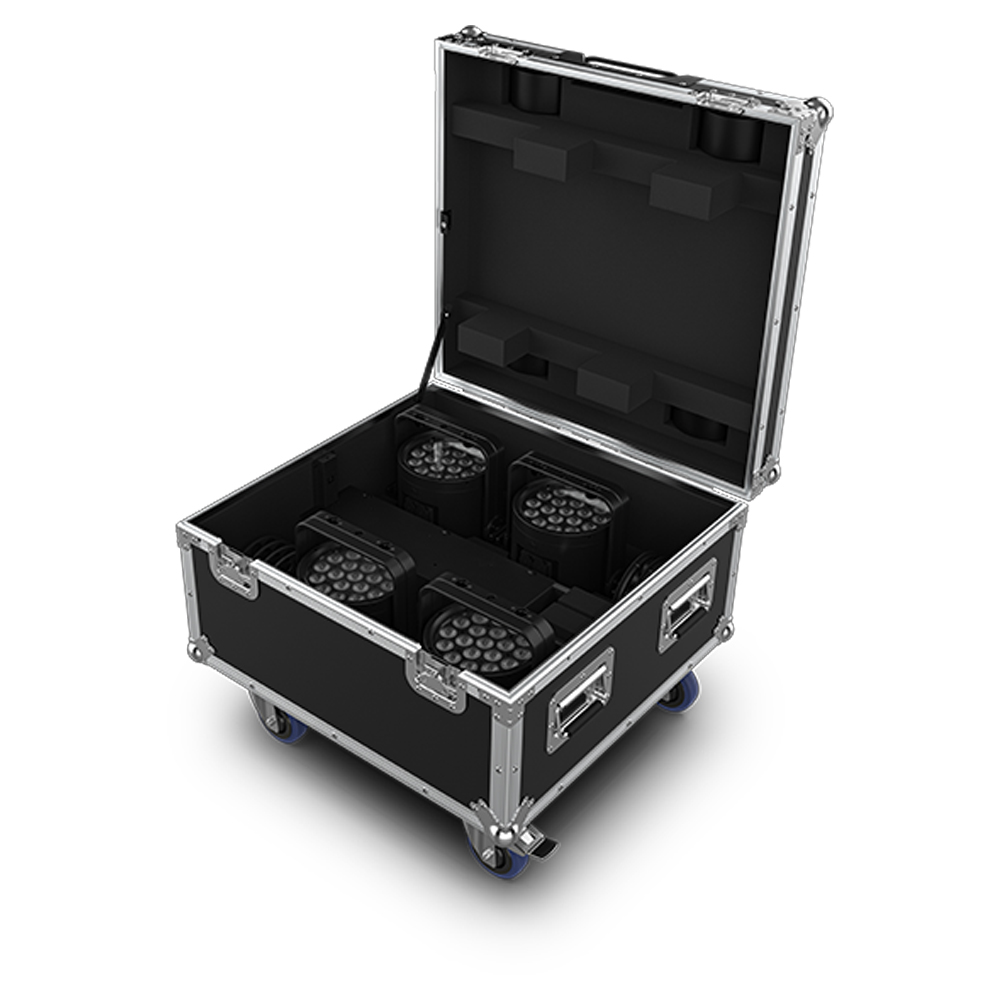

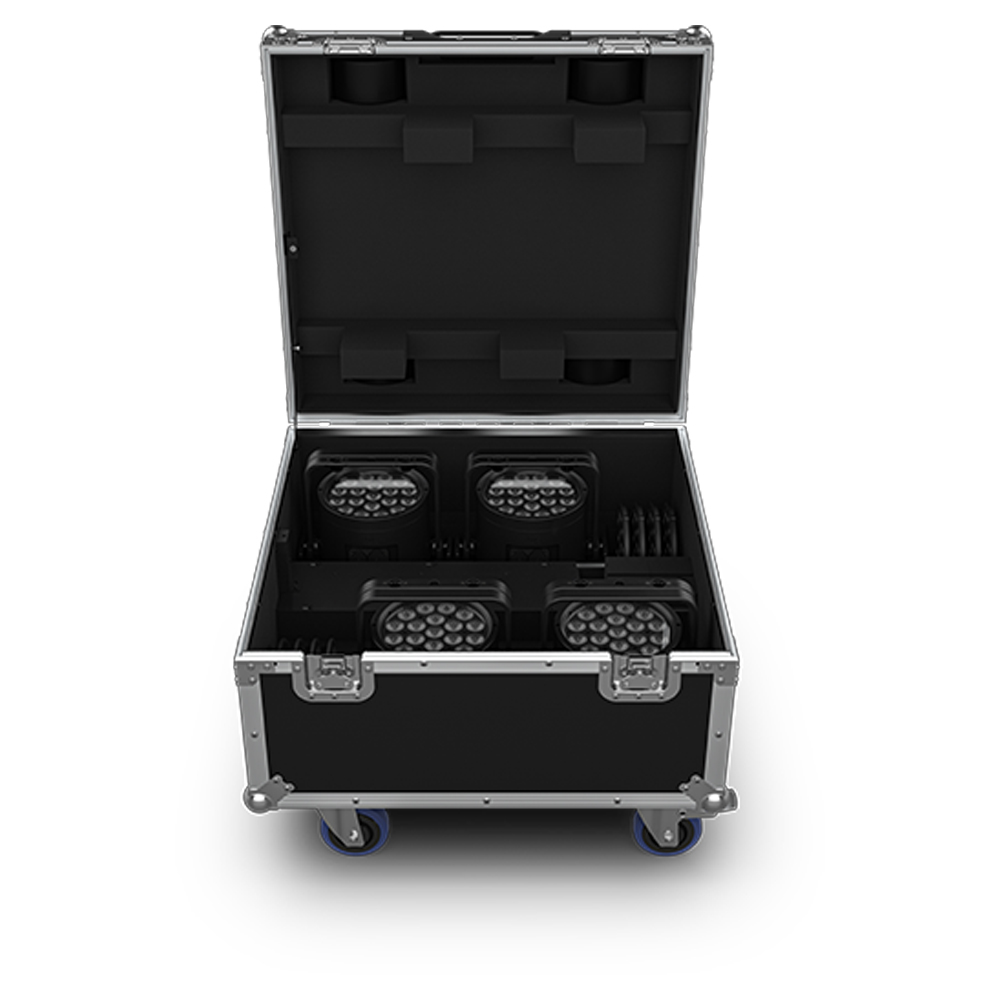

Included 4 pack charging case

仕様

Optical
Light Source: 19 LEDs (RGBWW), 13.4W, (960mA) 50,000 hours lifeColor Temperature (range): 2800 to 6500 KBeam Angle: 12.7°Field Angle: 25.4°Cutoff Angle: 47.2°Lumens: 3557 lm (AC power)Illuminance: 1692 lux @ 5 m (AC power)Lumens: 1994 lm (OFF battery setting)Illuminance: 946 lux @ 5 m (OFF battery setting)Lumens: 2177 lm (5-hour battery setting)Illuminance: 1033 lux @ 5 m (5-hour battery setting)Lumens: 1379 lm (8-hour battery setting)Illuminance: 655 lux @ 5 m (8-hour battery setting)Lumens: 845 lm (12-hour battery setting)Illuminance: 398 lux @ 5 m (12-hour battery setting)Lumens: 555 lm (18-hour battery setting)Illuminance: 261 lux @ 5 m (18-hour battery setting)Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: ElectronicShutter/Strobe: ElectronicStrobe Rate: 1 to 30 HzStandalone Color Mixing: YesColor Temperature Presets: YesDim Modes: 4Dim Curves: 4Built-in Automated Programs: YesCustomizable Programs: NoRecall Custom Programs: No
Construction / Physical
Dimensions: 9.76 x 7 x 10.86 in (248 x 178 x 276 mm)Dimensions (w/o bracket): 9.76 x 7 x 7 in (248 x 178 x 178 mm)Dimensions case: 27 x 25.6 x 15 in (685 x 650 x 380 mm)Weight: 11.2 lbs (5.1 kg)Exterior Color: BlackHousing Material: Aluminum die-cast
Connections
Power Connection: Edison (local) plug to Seetronic Powerkon IP65Power Input (fixture and charging case): Seetronic Powerkon IP65Power Output(fixture and charging case): Seetronic Powerkon IP65Data Connectors: 5-pin XLRCable Length (power): 5 ft (1.5 m)Software Connection: USB-C
Control
Control Protocol: RDM, CRMX, NFC, RFDMX Channels: 4, 8, or 13Modes/Personalities: 3 personalities (4Ch, 8Ch, 13Ch)Wireless WDMX “G” Compatibility: G4SWireless Lumen Radio Compatibility: CRMX
Electrical
Single UnitInput Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 16 units @ 120 V; 27 units @ 208 V; 30 units @ 230 V;Power and Current: 79 W, 0.74 A @ 120 V, 60 HzPower and Current: 56 W, 0.43 A @ 208 V, 60 HzPower and Current: 56 W, 0.39 A @ 230 V, 50 Hz4 Pack CasePower Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V;Power and Current: 306 W, 4.11 A @ 120 V, 60 HzPower and Current: 306 W, 2.37 A @ 208 V, 60 HzPower and Current: 305 W, 2.2 A @ 230 V, 50 Hz4 Pack case fuse: T5A, 250V
Battery
Battery type: Lithium IonRechargeable: YesBattery Charge Time: 2.53 hoursBattery Life: 3hr, 5hr, 8hr, 12hrBattery Power: 25.9V, 6.6 Ah
Certifications / Qualifications
CE, UKCA, FCC, ROHSIP Rating: IP65, temporary outdoor/wet useTemperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
What's Included
(4) WELL POD 3(1) Charging case(4) Omega brackets(4) Detachable split yokes(1) RF controller(1) Quick Reference Guide
Optional Accessories
Clamps15°Lens pack60°x10° Lens packWhite metal coverPowerKon Extension cables5 pin DMX Cables
