ACME PIXEL LINE IP 500（ピクセルラインIP 500）バージョン2／固定折りたたみ式クランプ

概要

The ACME PIXEL LINE IP 500 is an remarkable fixture equipped with 336 0.5-Watt RGB LEDs and 112 6-Watt cool white LEDs, all divided into 16 controllable sections. The RGB LEDs boast a beam angle of 102° and a field angle of 149°, while the cool white LEDs boast a beam angle of 108° and a field angle of 150°.

With its outstanding color mixing effects, high output strobe effects, and patented Smart Glass Technology for frost effects, the PIXEL LINE IP 500 delivers a stunning visual effect that will leave you in awe. It is also designed for durability with an IP66 rating, making it suitable for both indoor and outdoor use.

Furthermore, it can be mounted horizontally or vertically, further increasing its versatility. Whether you're looking to create a dynamic lighting atmosphere or simply add some visual flair to your space, the PIXEL LINE IP 500 is the perfect choice.

仕様

Model
Model Name: PIXEL LINE IP 500
Model Code: STROBE 1 IP
Version
Version 1: STROBE 1 IP (Omega Bracket Mounting)

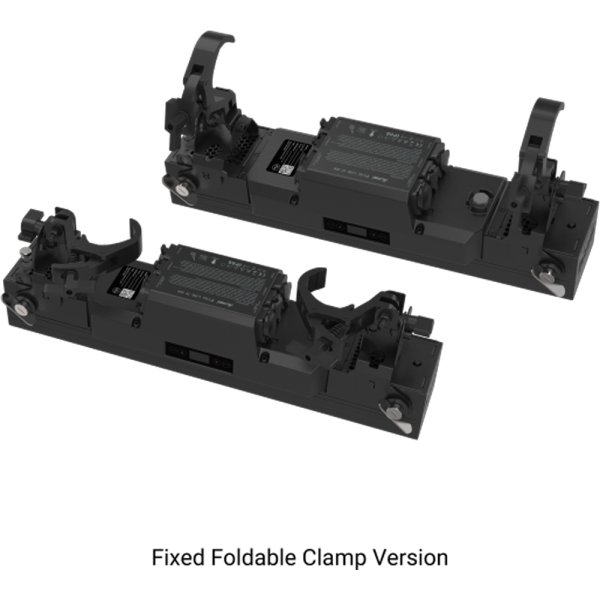

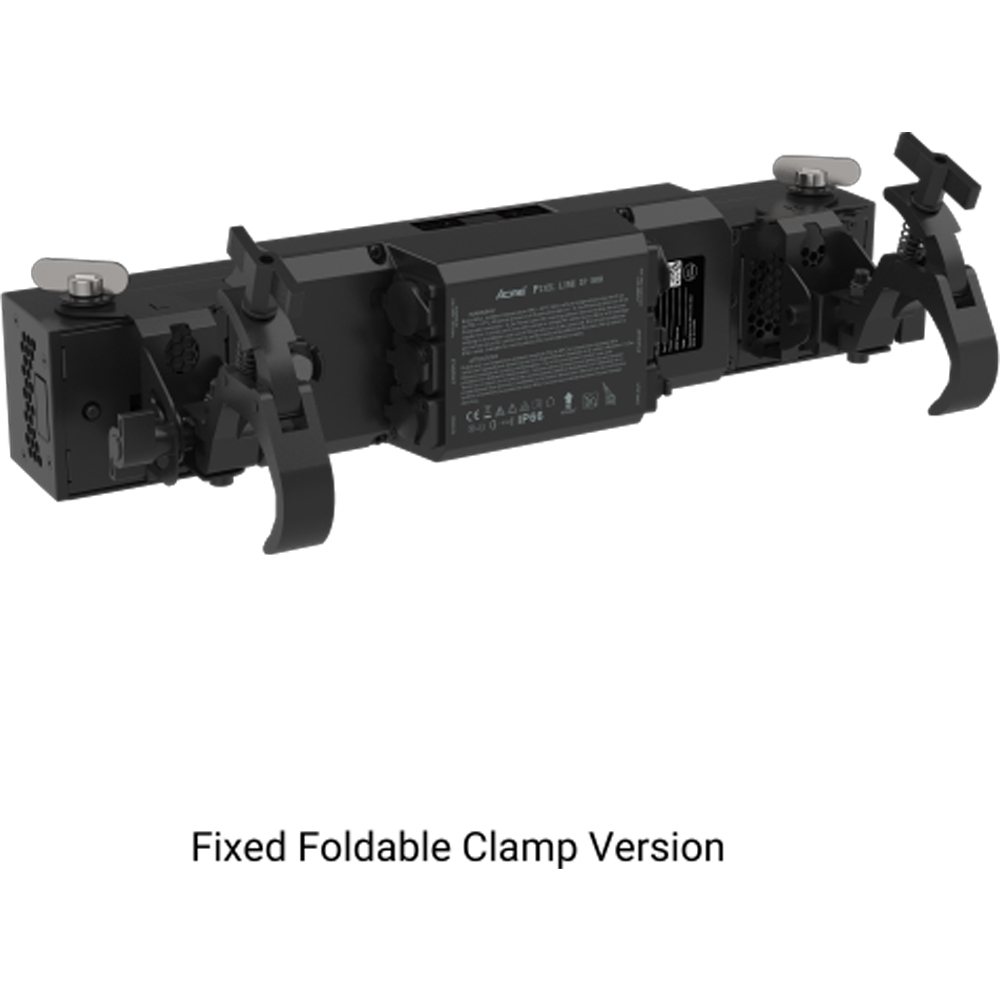

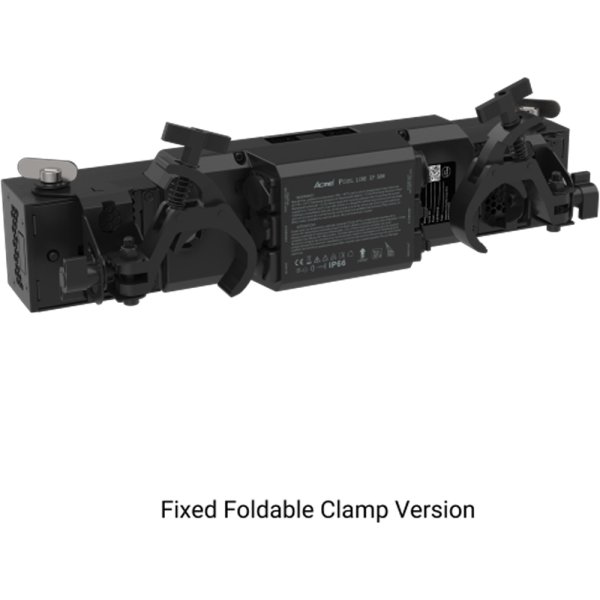

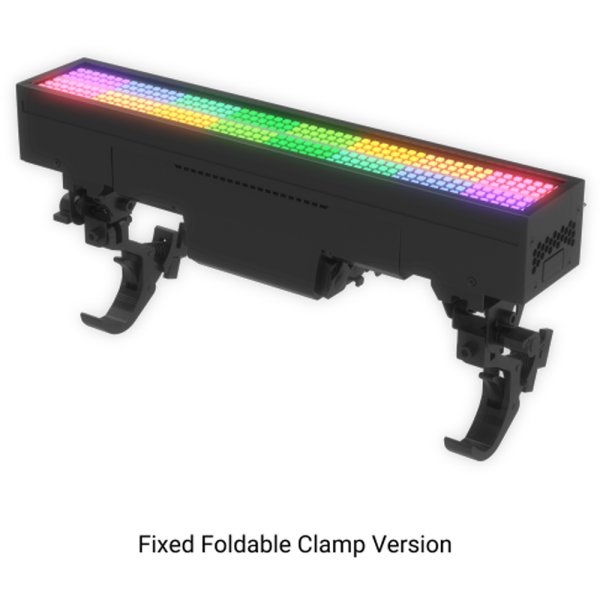

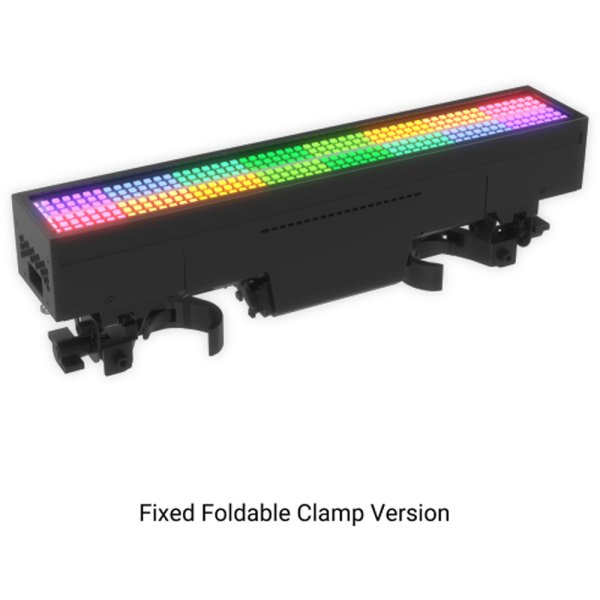

Version 2: STROBE 1 IP (Fixed Foldable Clamp)
Note: Different vesions cannot be connected together
Light Source
Light Source :
336 x 0.5W RGB LEDs (divided into 16 controllable sections)
112 x 6W CW LEDs (divided into 16 controllable sections)
Total Lumen Output of Fixture: 56,500 lumens
Color Temperature Output of Fixture: 7,000K-7,500K
Life Expectancy: 30,000 hours*
*Source manufacturer specification
Optical System
Beam Angle :
RGB: 102°
CW: 108°
Field Angle :
RGB: 149°
CW: 152°
DMX Controllable Smart Glass technology:
Patent No. :
CN216010577U
US11698183B1
DE202023101966U1
FR3134870B3
Control
4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 11
Control Channels: 8/10/16/18/22/26/34/37/39/56/62
Firmware Upgrade: Upgrade via DMX link
Other Effects
Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Outstanding color mixing
One Linear Strobe Bar, Two Modes At Your Hand
Powerful Mode (16 RGB sections plus 16 CW sections): High output, high brightness
Splicing Mode (16 RGB sections plus 8 CW sections): Same output as Pixel Line IP
Electrical and Connectors
Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 875W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector
Physical Information
Fixture Dimensions :
Width : 500 mm (19.7")
Depth : 113 mm (4.5")
Height : 124 mm (4.9")
Weight :
5.1 kg (11.2 lbs) - vesion 1 with omega brackets
5.8 kg (12.8 lbs) - vesion 2 with fixed foldable clamps
Packing Information
Flight Case Dimensions 1:
Width : 1,170 mm (46.1")
Depth : 580 mm (22.8")
Height : 580 mm (22.8")
Weight :
Standard : G.W.: 100 kg (220.5 lbs) (eight-pack loader case)
Flight Case Dimensions 2:
Width : 1,220 mm (48.0")
Depth : 610 mm (24.0")
Height : 810 mm (31.9")
Weight :
North American Standard : G.W.: 125 kg (275.6 lbs) (ten-pack loader case)
Carton Dimensions:
Width : 595 mm (23.4")
Depth : 215 mm (8.5")
Height : 220 mm (8.7")
Weight :
G.W.: 6.5 kg (14.3 lbs) (one-pack loader carton)
Work Environment
Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66
Approvals
CE compliant
UKCA compliant
cETLus compliant
IP Class Test Verification
Installation
Horizontal or vertical mounting
Universal working position
2 omega brackets
Safety cable attachment point
Included Items
Digital user manual
Power cable
2 omega brackets (63583242)
Optional Accessories (With Order Code)
Flight Case 1:
Standard : Eight-pack loader case (63583441)
Flight Case 2:
Standard : Ten-pack loader case (63583205)
Clamp : C-150B (2060001625)
Safety Cable: SW-02 (2060000200)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Customized Foldable Clamps in Omega Bracket (63583101)
Customized Floor Stand w/o Omega Bracket (63582554)
