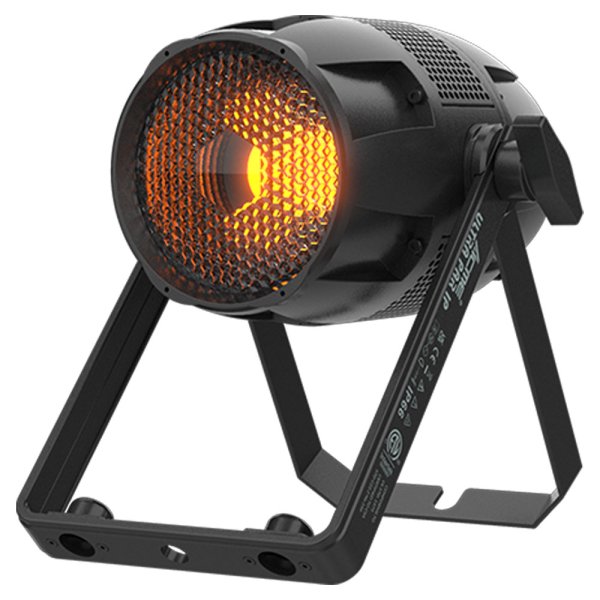

ACME ULTRA PAR IP（ウルトラパー IP）

概要

The ACME ULTRA PAR IP redefines brightness in stage lighting. Featuring a 260-Watt RGBA+WW LED light source, the fixture delivers an impressive 7,600 lumens of output, surpassing traditional audience lights.

Designed with a 50° beam angle and an 84° field angle, the ULTRA PAR IP ensures broad coverage, enhanced by its adjustable head for precise positioning. The fixture offers 4 smooth dimming curves, a tungsten lighting effect and strobe effect with variable speed for all your lighting production needs.

Compact, portable, and multiple installation options, the ULTRA PAR IP is designed for easy integration. With its exceptional heat dissipation and IP66, it’s suitable for indoor and outdoor use, such as conference centers, exhibition halls, large and medium-scale concerts, TV productions and more.

仕様

Model
Model Name: ULTRA PAR IP
Model Code: BL 100 IP
Light Source
Light Source: 260W RGBA+WW LED
Total Lumen Output of Fixture: 7,600 lumens
Color Temperature Output of Fixture: 2,600K-2,750K
Life Expectancy: 20,000 hours*
*Source manufacturer specification
Optical System
Beam Angle : 50°
Field Angle : 84°

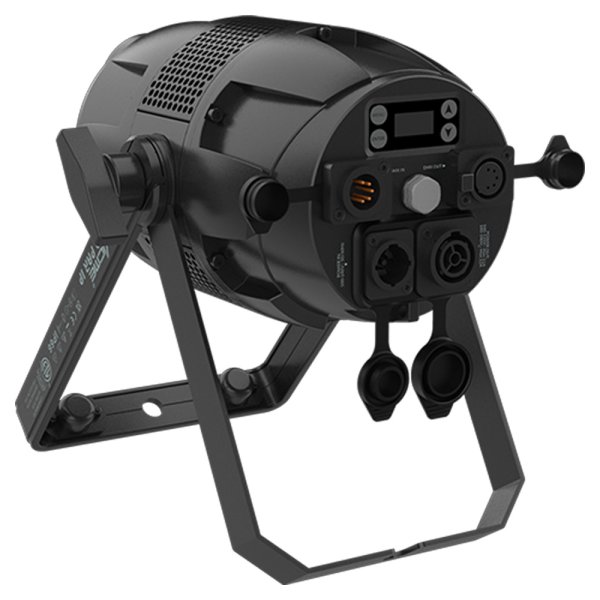

Control
4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol Modes: 8
Control Channels: 1/2/4/4/6/7/9/11
Firmware Upgrade: Upgrade via DMX link
Other Effects
Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Tungsten emulation during dimming
Outstanding color mixing
Multiple head rotation angles with easy positioning
Electrical and Connectors
Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 120W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR
Maximum Quantity of Connections:
230V, 50Hz: 24 units
120V, 60Hz: 13 units
Power supply with electronic auto-ranging
Physical Information
Fixture Dimensions:
Width: 234 mm (9.2")
Depth: 251 mm (9.9")
Height: 307 mm (12.1")
Weight: 3.5 kg (7.7 lbs)
Packing Information
Flight Case Dimensions:
Width : 1,220 mm (48.0")
Depth : 610 mm (24.0")
Height : 595 mm (23.4")
Weight :
Standard: G.W.: 92.5 kg (203.9 lbs) (Ten-pack loader case)
North American Standard: G.W.: 98.8 kg (217.8 lbs) (Ten-pack loader case)
Carton Dimensions:
Width : 410 mm (16.1")
Depth : 220 mm (8.7")
Height : 325 mm (12.8")
Weight :
G.W.: 4.8 kg (10.6 lbs) (One-pack loader carton)
Work Environment
Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66
Approvals
CE compliant
UKCA compliant
cETLus compliant
Installation
Horizontal or vertical mounting
Universal working position

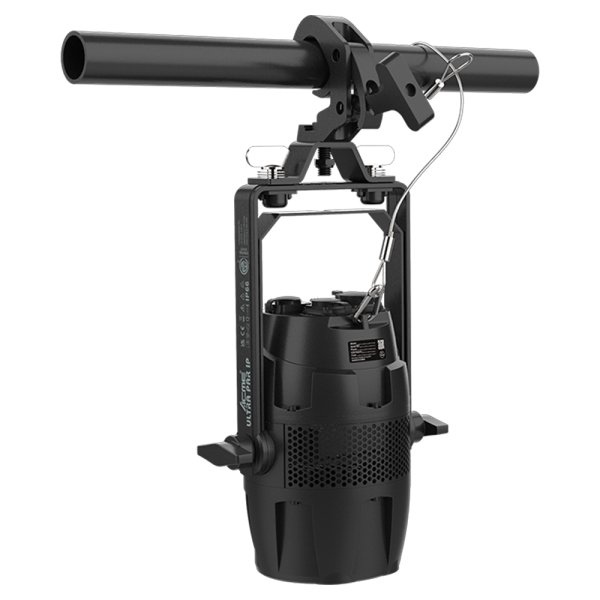

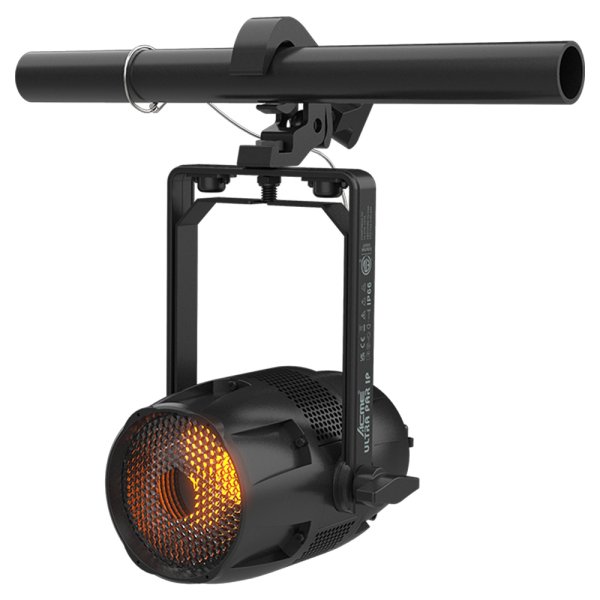

1 clamp for 50 mm truss
1 omega bracket
Double mounting bracket
Safety cable attachment point
Included Items
Digital user manual
Power cable
1 omega bracket (3002003002)
Optional Accessories (With Order Code)
Flight Case:
Standard : Ten-pack loader case (63583605)
North American Standard : Ten-pack loader case (63583606)
Clamp : C-150B (2060001625-C)
Safety Cable: SW-02 (2060000200)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Glare Shield: Barndoor: 63581327
