ACME THUNDER IP（サンダー IP）

概要

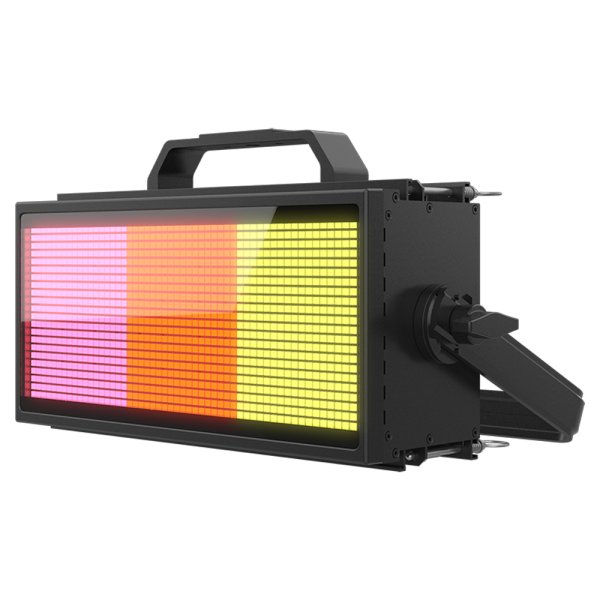

The ACME THUNDER IP LED strobe light is renowned for its extremely fast strobe with variable speed. Comprising 1,188 pcs 0.8-Watt RGBW LEDs, divided into 3 individually controllable LED zones, the fixture delivers an impressive 39,000 lumens output and exceptional color mixing effects. It features tremendous output and versatility with 4 selectable and smooth dimming curves, variable CTO, and a wide 110° field angle.

Equipped with a patented interlocking system, the THUNDER IP enables accessories-free horizontal and vertical connections, and can be easily integrated with other BL 200 series fixtures.

With its outstanding strobe effect and IP66, this fixture is suitable for large and medium-sized concerts, variety shows, and other professional stage or entertainment applications, both indoors and outdoors.

仕様

Model
Model Name: THUNDER IP
Model Code: BL 200 CP IP
Light Source
Light Source: 1,188 x 0.8W RGBW LED (divided into 3 individually controllable LED zones)
Total Lumen Output of Fixture: 39,000 lumens
Life Expectancy: 20,000 hours*
*Source manufacturer specification
Optical System
Field Angle : 110°
Control

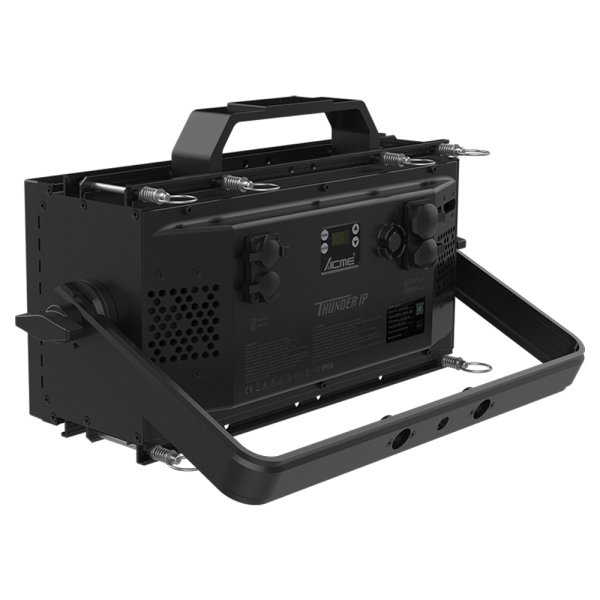

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol Modes: 5
Control Channels: 4/8/8(16 bit)/9(16 bit)/16
Firmware Upgrade: Upgrade via DMX link
Colors
Linear CTO Color Correction: 2,500K-8,000K
Other Effects
Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Excellent RGBW color mixing
Electrical and Connectors
Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 860W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR
Maximum Quantity of Connections:
230V, 50Hz: 4 units
120V, 60Hz: 3 units
Physical Information
Fixture Dimensions:
Width: 503 mm (19.8")
Depth: 183 mm (7.2")
Height: 318 mm (12.5")
Weight: 10 kg (22.0 lbs)
Packing Information
Flight Case Dimensions 1:
Width : 1,075 mm (42.3")
Depth : 565 mm (22.2")
Height : 535 mm (21.1")
Weight :
Standard : G.W.: 88 kg (194.0 lbs) (four-pack loader case)
Flight Case Dimensions 2:
Width : 1,220 mm (48.0")
Depth : 610 mm (24.0")
Height : 690 mm (27.2")
Weight :
Standard : G.W.: 141.5 kg (312.0 lbs) (eight-pack loader case)
North American Standard : G.W.: 148.7 kg (327.8 lbs) (eight-pack loader case)
Carton Dimensions:
Width : 575 mm (22.6")
Depth : 405 mm (15.9")
Height : 275 mm (10.8")
Weight :
G.W.: 13 kg (28.7 lbs) (one-pack loader carton)
Work Environment
Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66
Approvals
CE compliant
UKCA compliant
cETLus compliant
Installation
Horizontal or vertical mounting
Universal working position

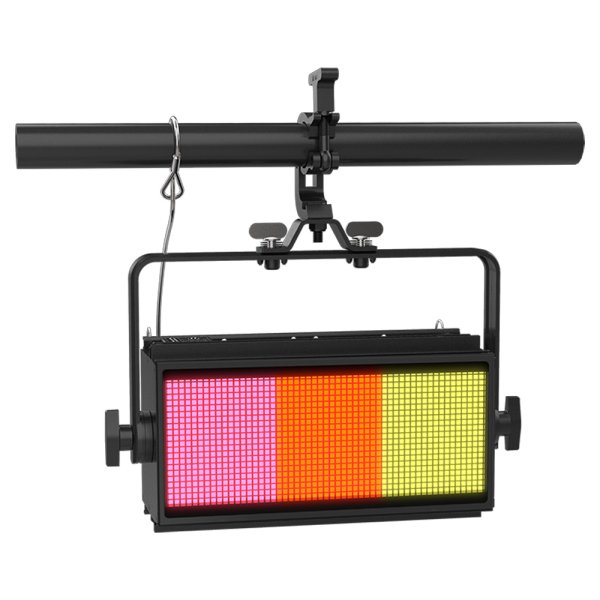

1 clamp for 50 mm truss
1 omega bracket

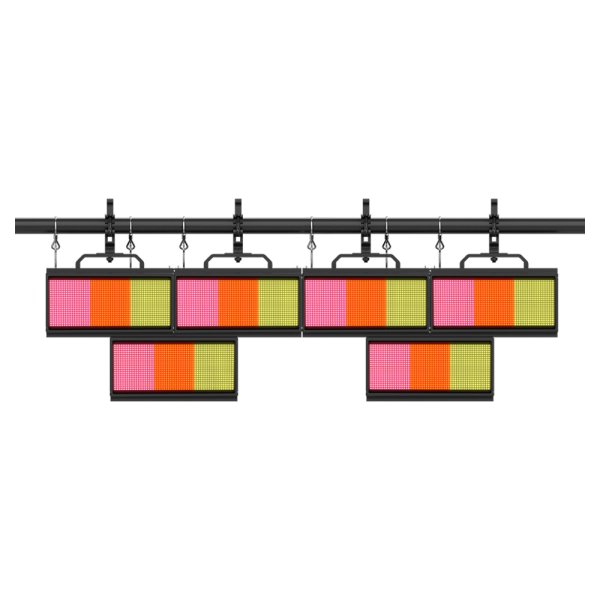

Using one or two small hanging brackets (supplied) with clamp (by others), a maximum of 2 layers (3 fixtures) may be connected

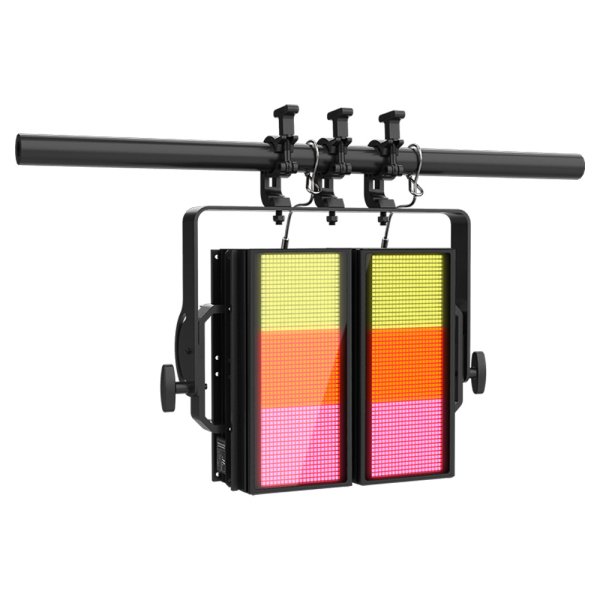

Utilizing one large double vertical hanging bracket assembly (sold separately), a maximum of 2 fixtures may be connected

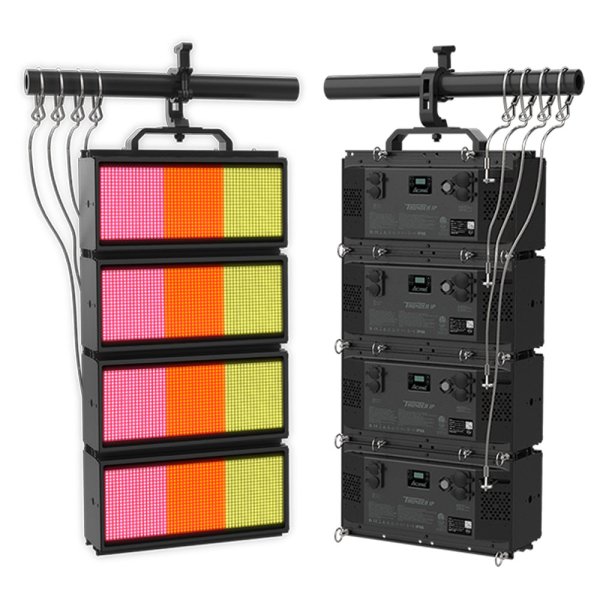

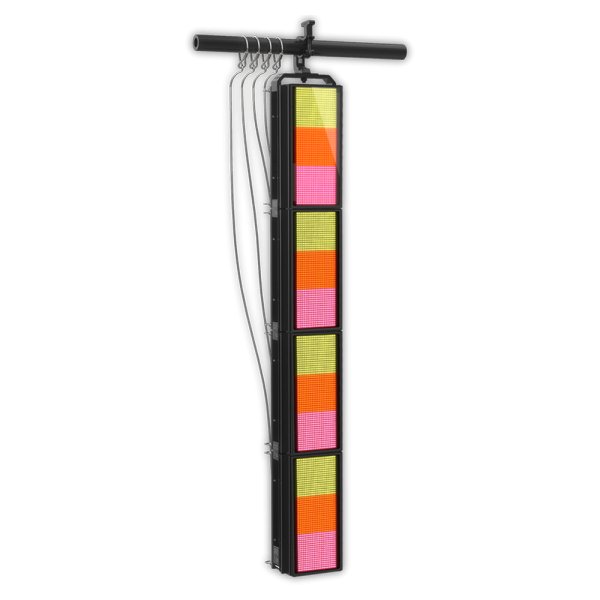

Vertical: Using one small hanging bracket (supplied) with clamp (by others), a maximum of 4 fixtures may be connected
Integrated interlocking system for combining units
Safety cable attachment point
Included Items
Digital user manual
Power cable
1 omega bracket (3002003002)
Small hanging bracket (50137301701100)
Large Hanging Bracket w/o Omega Bracket (63582342)
Optional Accessories (With Order Code)
Flight Case 1:
Standard : Four-pack loader case (63583604)
Flight Case 2:
Standard : Eight-pack loader case (63583666)
North American Standard : Eight-pack loader case (63583679)
Clamp : C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-A)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Large Double Vertical Hanging Bracket Assembly: 63580738

参照

■メーカーサイト
https://en.acmelighting.com/item/THUNDER%20IP
