ACME FLANDINA 22 IP（フランディナ 22 IP）

概要

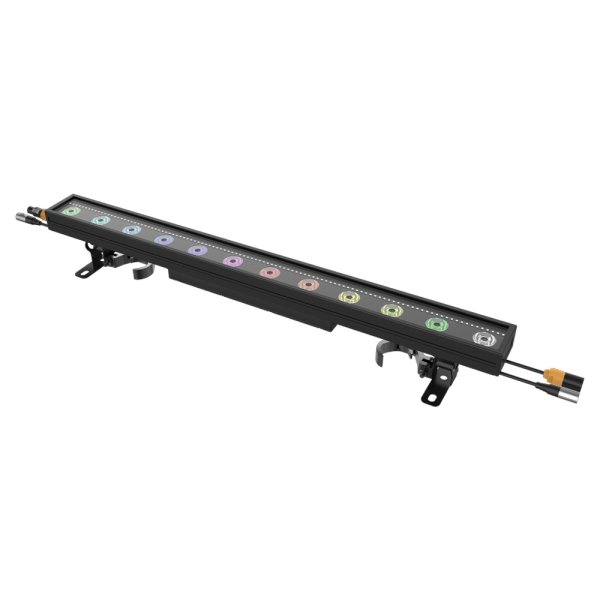

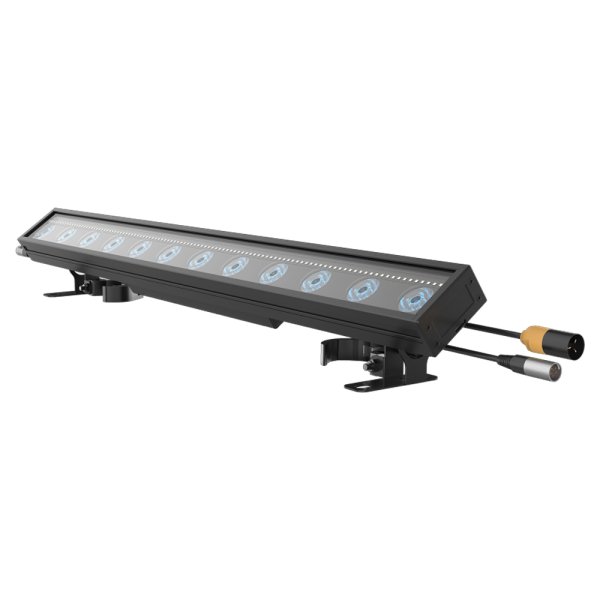

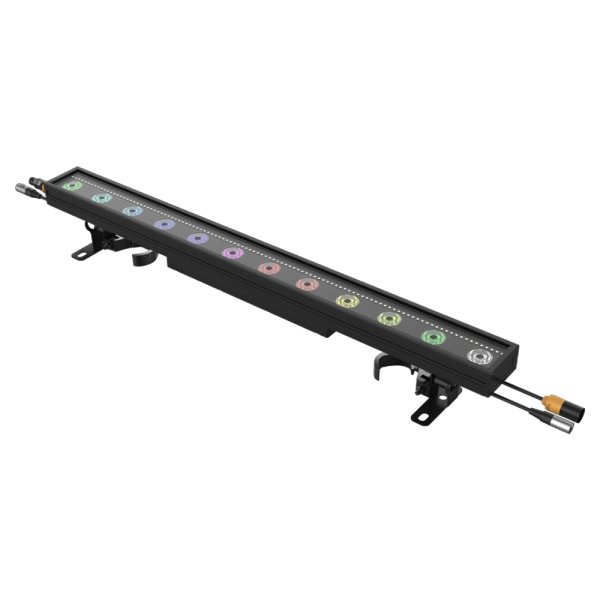

ACME brand new IP66 LED Pixel Bar -- FLANDINA 22 IP，a new member of the FLANDINA family, combining 12x10W RGBWA LEDs with pixel control and 108x 3W Cold white LEDs. It features an advanced optical design that ensures high-quality color mixing and smooth output, offering multiple color options for indoor and outdoor use.

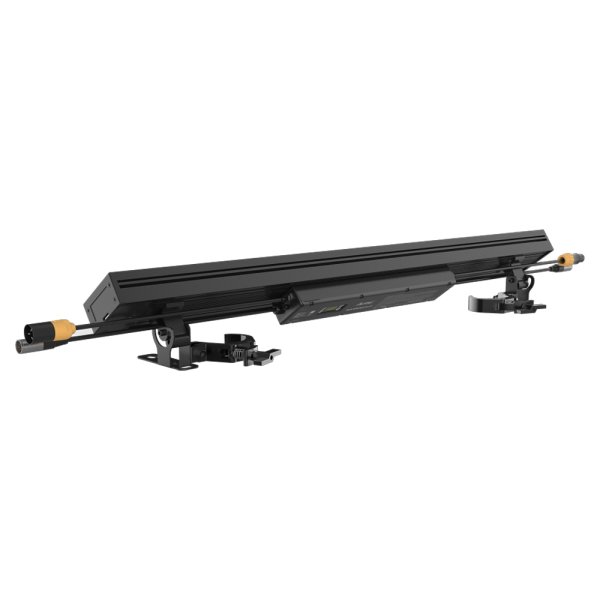

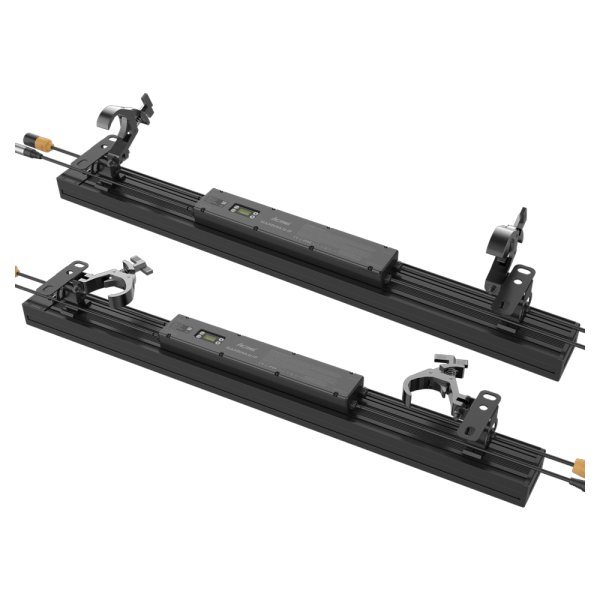

Dual mounting bracket design, the adjustable angle reaches 180° in both directions. Integrated fold down clamps for fast and easy installation.

FLANDINA 22 IP is a perfect lighting for touring, festival stage and installation.

仕様

Model
Model Name: FLANDINA 22 IP
Model Code: BAR 22 IP
Light Source
Light Source :
12 x 10 W RGBWA LED (12 pcs LED pixel control)
108 x 3 W CW LED
Life Expectancy: 20,000 hours*
*Source manufacturer specification
Optical System
Beam Angle :
RGBWA: 30°
CW: 116°
Field Angle :
RGBWA: 56°
CW: 160°
Control
4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol Modes: 7
Control Channels: 74/72/14/10/8/7/6
Firmware Upgrade: Upgrade via DMX link
Other Effects
Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Flicker-free management
Dual mounting bracket design, the adjustable angle reaches 180° in both directions. Integrated fold down clamps for fast and easy installation.
Electrical and Connectors
Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 365W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR
Power supply with electronic auto-ranging
Physical Information
Fixture Dimensions:
Width: 92 mm (3.6")
Depth: 998 mm (39.3")
Height: 185 mm (7.3")
Weight: 6.8 kg (15.0 lbs)
Packing Information
Carton Dimensions:
Width : 255 mm (10.0")
Depth : 1,095 mm (43.1")
Height : 190 mm (7.5")
Weight :
G.W.: 8.2 kg (18.1 lbs) (One-pack loader carton)
Work Environment
Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66
Approvals
CE compliant
Installation
Horizontal or vertical mounting
Universal working position
2 fixed foldable clamps for 50 mm truss
Included Items
Digital user manual
Power cable
2 fixed foldable clamps for 50 mm truss
Optional Accessories (With Order Code)
Safety Cable: SW-02 (2060000200)
Signal Cable: 3-pin or 5-pin signal cable
