ACME SNOWSTORM（スノーストーム）

概要

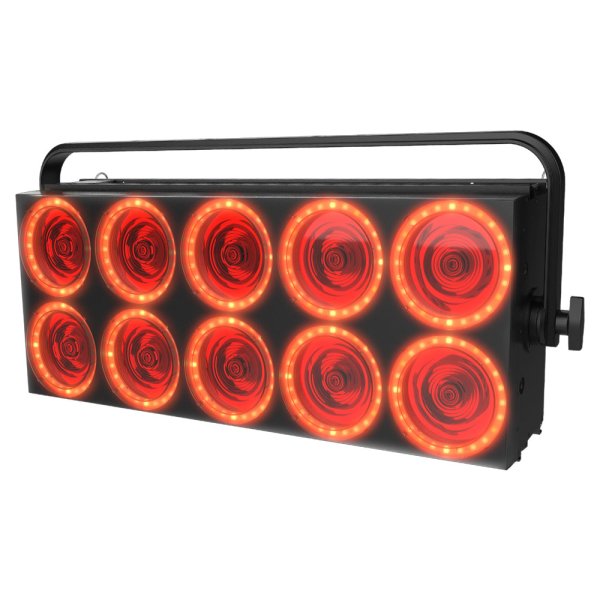

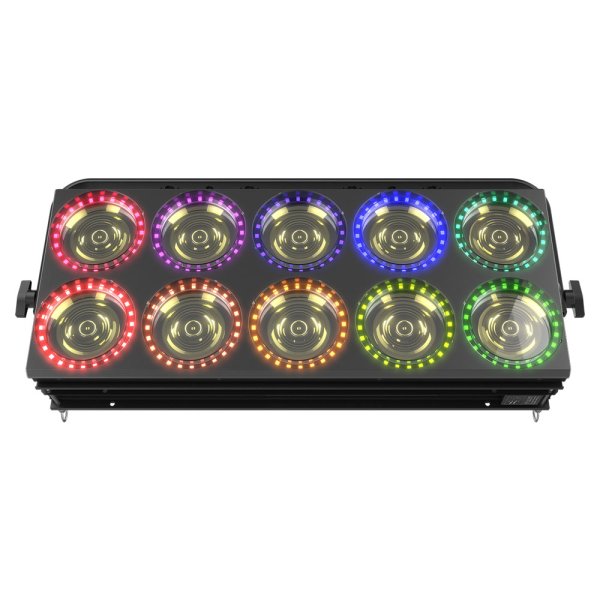

The ACME SNOWSTORM, like its companion fixture the STORM, is not like any other fixture on the market. This extremely bright combination blinder and effects light offers a wide range of effects and looks through its main section of lights and effects rings.

The main light section of the unit has 10 x 100-Watt LEDs and 12 x 1.5-Watt RGB LEDs embedded under each of the ten lenses. The outer ring for each lens in the main light section has 24 x 0.5-Watt RGB LEDs. The STORM produces over 30,000 lumens, has a fixed beam angle of 4°, offers a variable strobe and colors for endless effects. The fixture unique way is its emullated traditional tungsten lamps when dimming, which gives a soft light.

The fixture mounts in any orientation with its yoke assembly or supplied omega brackets; both accept many kinds of hooks or clamps. Also, users can connect multiple units together either top-to-bottom or side-by-side for additional applications easily and quickly throughing its tool-less connection system.

With its ten bright blinders, color mixing, effects, and more, the SNOWSTORM offers so much flexibility for your production.

仕様

Model
Model Name: SNOWSTORM
Model Code: BL 1000
Light Source
Light Source :
Main Light: 10 x 100 W LED (RAA4WW)
Inside Ring: 10 x 12 x 1.5 W LED (RGB)
Outside Ring: 10 x 24 x 0.5 W LED (RGB)
Total Lumen Output of Fixture: 30,000 lumens
Life Expectancy: 20,000 hours*
*Source manufacturer specification
Optical System
Beam Angle : 4°
Field Angle : 6°
Control
4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 4
Control Channels: 11/32/83/95
Firmware Upgrade: Upgrade via DMX link
Other Effects
Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Tungsten emulation during dimming
Multi-point surface light and multi-point back light with pixel control and rainbow effect
Excellent high output beam with sharp effect
High output, low energy consumption, good heat dissipation, long service life
Electrical and Connectors
Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 970W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin XLR,RJ45 connector
Physical Information
Fixture Dimensions:
Width: 920 mm (36.2")
Depth: 194 mm (7.6")
Height: 398 mm (15.7")
Weight: 23.5 kg (51.8 lbs)
Packing Information
Flight Case Dimensions:
Width : 985 mm (38.7")
Depth : 585 mm (23")
Height : 630 mm (24.8")
Weight :
Standard: G.W.: 87 kg (191.8 lbs) (Two-pack loader case)
Carton Dimensions:
Width : 1,020 mm (40.2")
Depth : 500 mm (19.7")
Height : 310 mm (12.2")
Weight :
G.W.: 28 kg (61.7 lbs) (One-pack loader carton)
Work Environment
Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20
Approvals
CE compliant
UKCA compliant
cETLus compliant
Installation

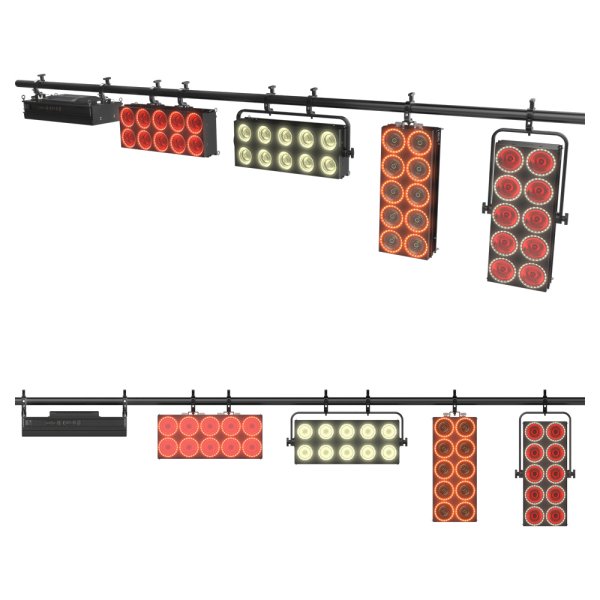

Horizontal or vertical mounting
Universal working position
2 omega brackets

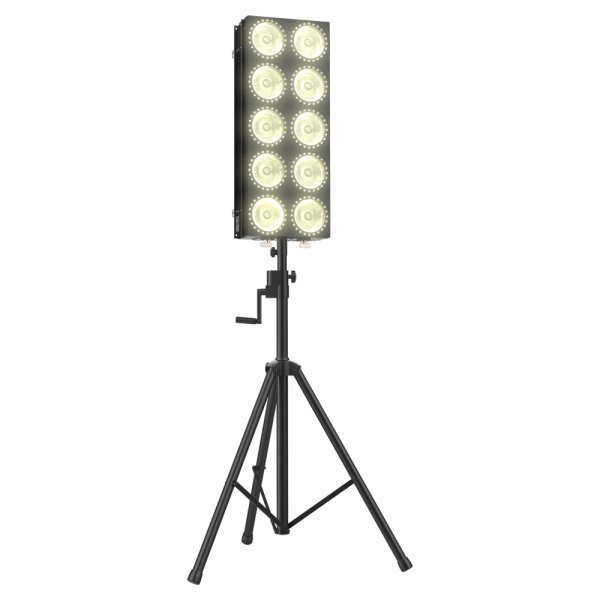

Hand-operated tripod stand

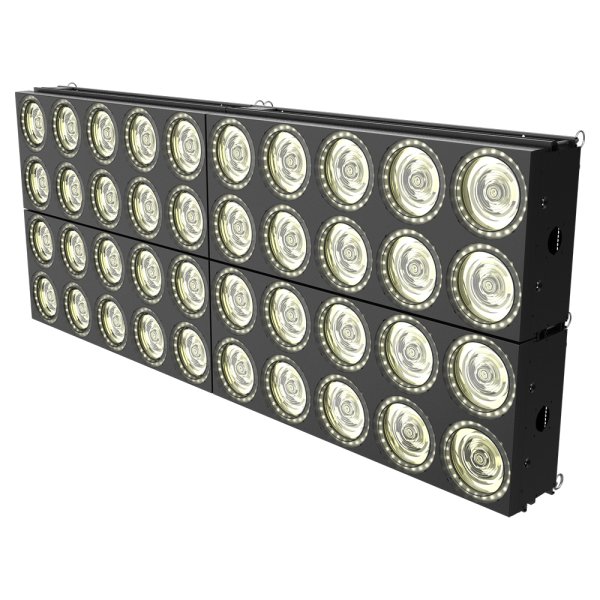

Integrated interlocking system for combining units
Safety cable attachment point
Included Items
Digital user manual
Power cable
2 omega brackets
Optional Accessories (With Order Code)
Flight Case:
Standard : Two-pack loader case (63583831)
Clamp : C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-A)
Signal Cable: 3-pin or 5-pin signal cable,RJ45
Tripod Stand: 3033002545
Various selectable angle frost filters (optional)

参照

■メーカーサイト
https://en.acmelighting.com/item/SNOWSTORM
