ACME DETONATOR（デトネーター）

概要

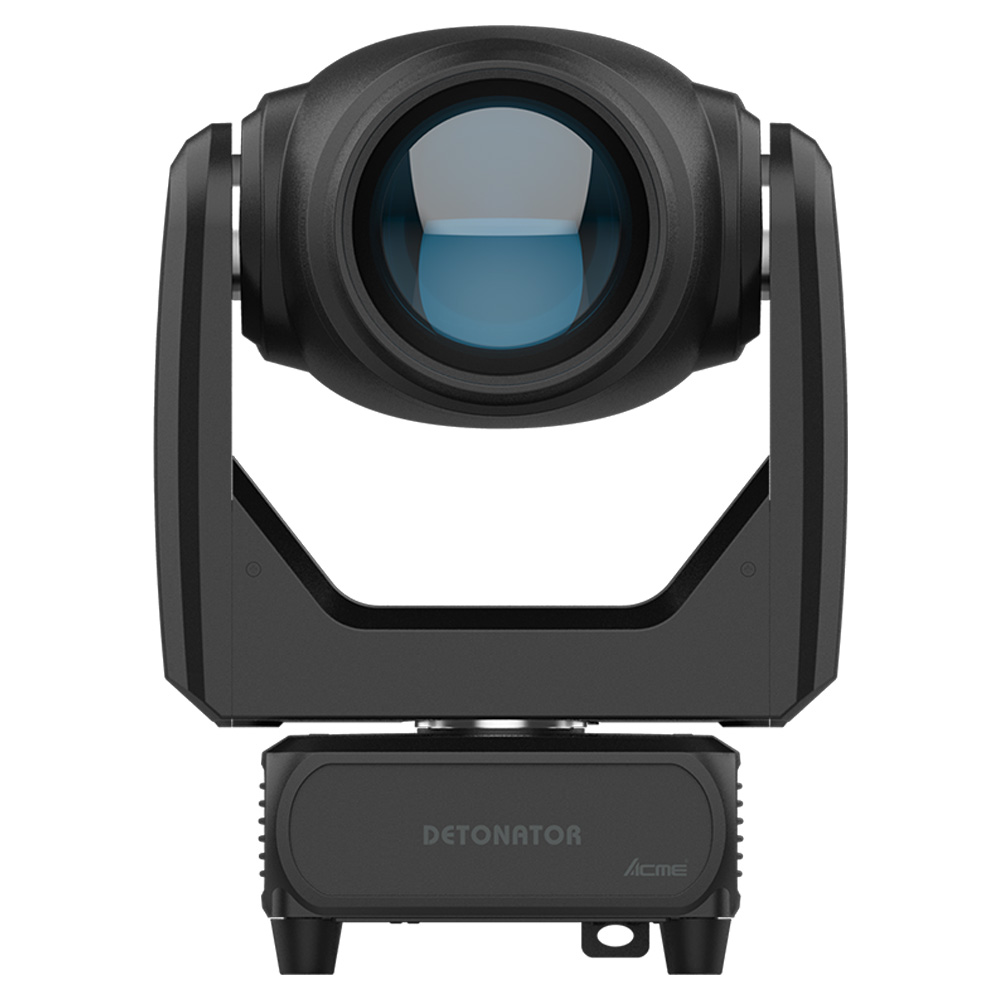

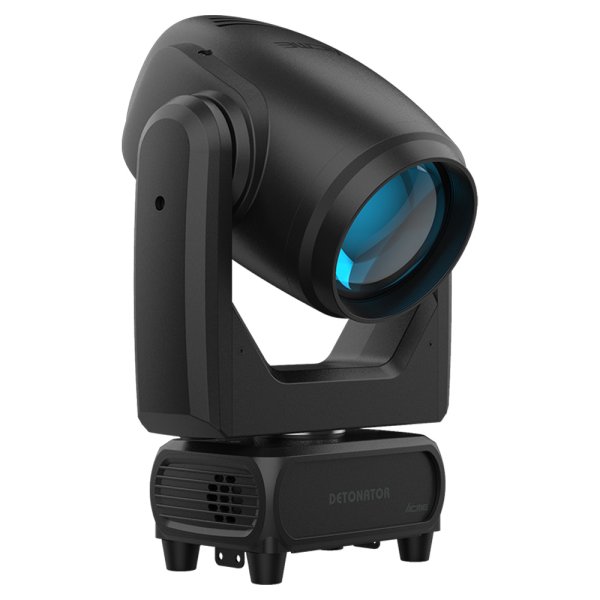

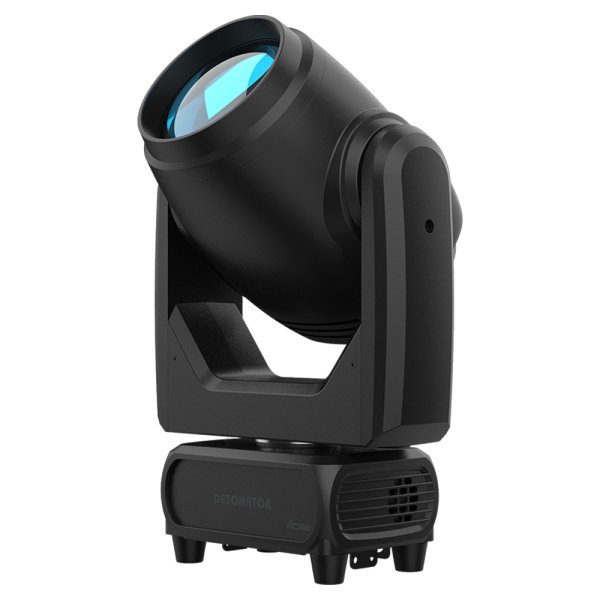

The ACME DETONATOR, a lightweight and powerful moving beam light, featuring a robust body weighing only 8.1 kg and a 200-Watt LED engine. The fixture produces a brilliant color temperature of 10,000K with an impressive output of 2,600 lumens at a tight beam angle of 2.4°.

Utilizing high-qualified optics to ensure precise effects, the fixture boasts 10 colors for a stunning rainbow effect, 10 high-precision static gobos, and 1 multi-facet circular prism, creating endless possibility for lighting design.

With its compact and lightweight design, the DETONATOR is suitable for various applications such as bars, ballrooms, and other entertainment installations.

仕様

Model
Model Name: DETONATOR
Model Code: BEAM 200
Light Source
Light Source: 200W LED engine
Total Lumen Output of Fixture: 2,600 lumens
Color Temperature Output of Fixture: 10,000K
Life Expectancy: 20,000 hours*
*Source manufacturer specification
Optical System
Beam Angle : 2.4°
Standard Mode: Ra>70
Diameter of Frontal Lens: 125 mm
Control
4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol Modes: 1
Control Channels: 16
Firmware Upgrade: Upgrade via DMX link or USB stick
Pan & Tilt
Pan Movement: 540°
Tilt Movement: 270°
Automatic Pan/Tilt position correction
Resolution: 16 bit
Fixation: Pan/Tilt lock
Colors
1 Color Wheel: 10 colors, plus open
Static Gobos
1 Static Gobo Wheel:
10 gobos, plus open
Gobo: Ф108 mm, lmage: Ф5 mm
Other Effects
Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Motorized linear iris
Motorized focus system
Electrical and Connectors
Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 160W

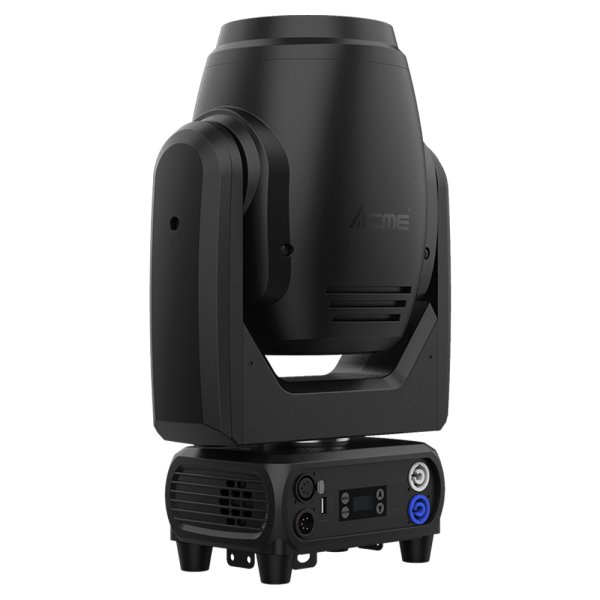

Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR
Physical Information
Fixture Dimensions:
Width: 286 mm (11.3")
Depth: 166 mm (6.6")
Height: 434 mm (17.1")
Weight: 8.1 kg (17.9 lbs)
Packing Information
Carton Dimensions:
Width : 380 mm (15.0")
Depth : 345 mm (13.6")
Height : 490 mm (19.3")
Weight :
G.W.: 10.2 kg (22.5 lbs) (One-pack loader carton)
Work Environment
Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 60°C
Protection Rating: IP20
Approvals
CE compliant
UKCA compliant
Installation
Horizontal or vertical mounting
Universal working position

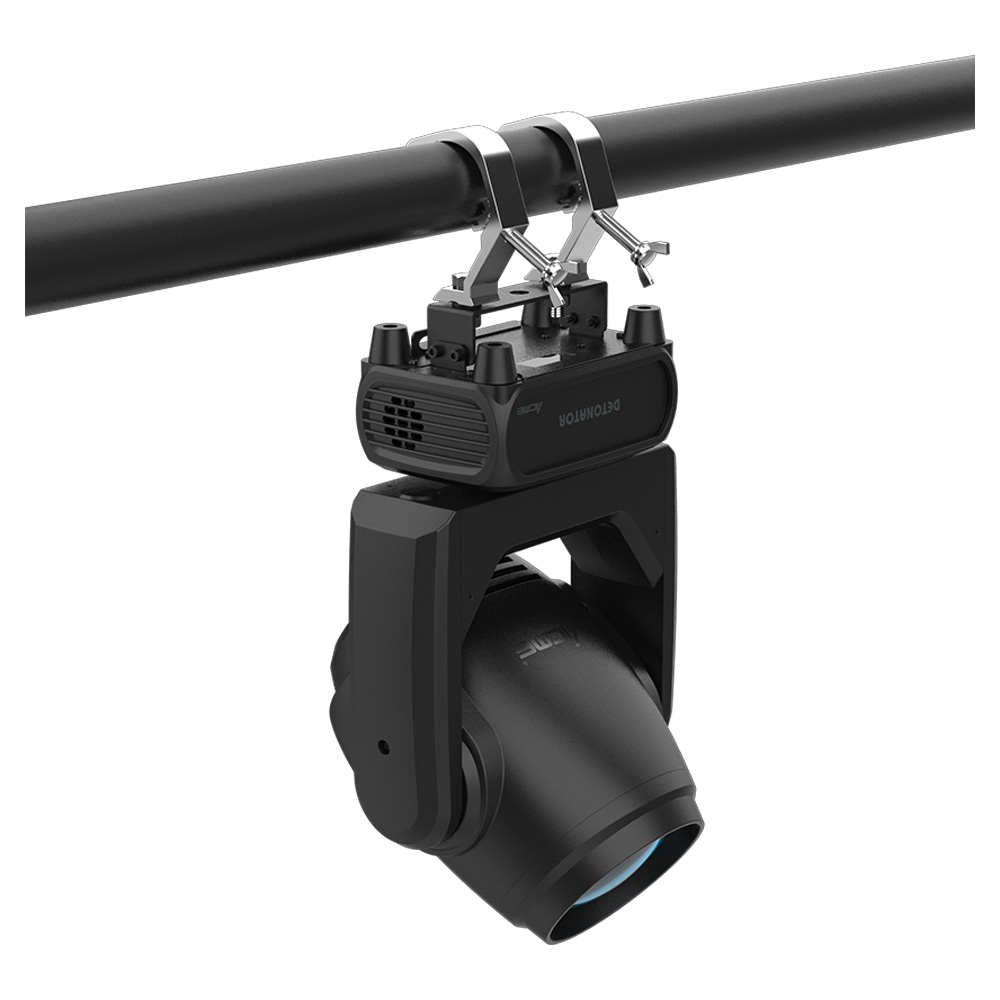

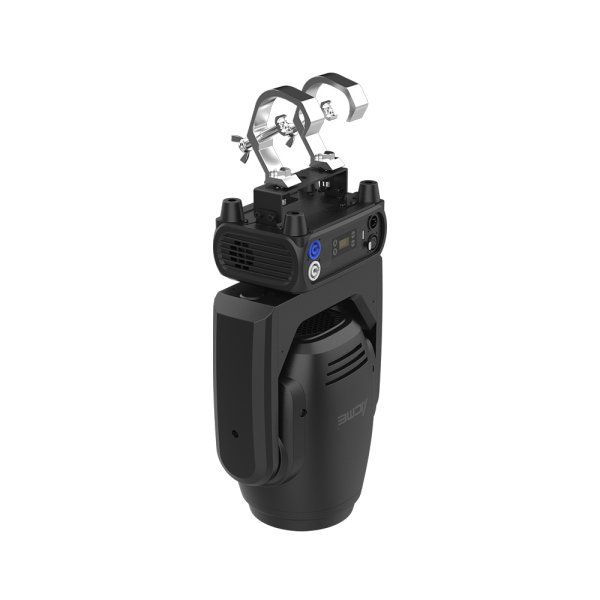

Truss hanging in two clamps
Safety cable attachment point
Included Items
Digital user manual
Power cable
Optional Accessories (With Order Code)
Clamp : C-100A (2060001635)
Safety Cable: SW-02 (2060000200)
Signal Cable: 3-pin or 5-pin signal cable

参照

■メーカーサイト
https://en.acmelighting.com/item/DETONATOR
