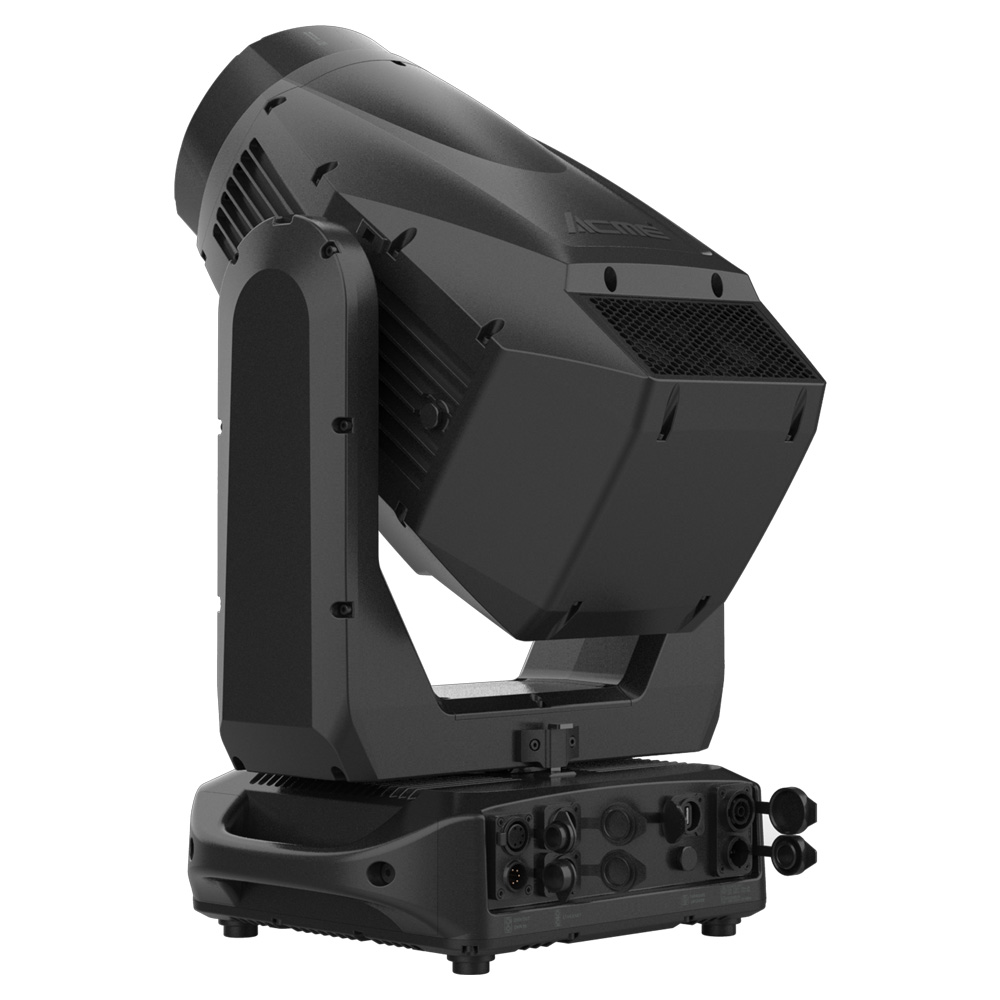

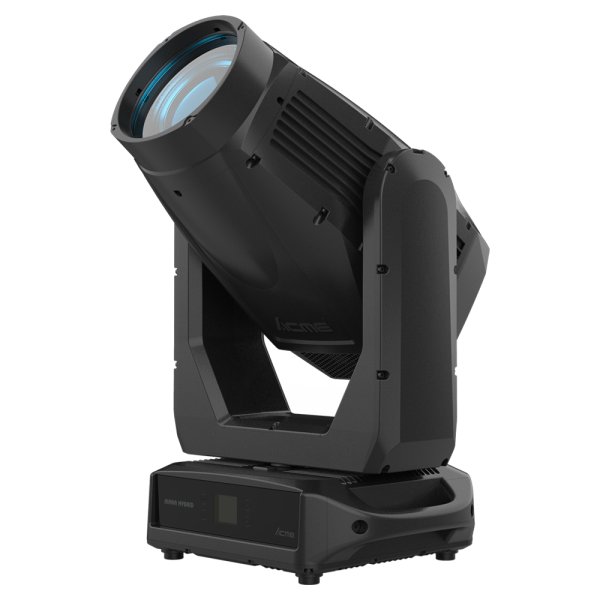

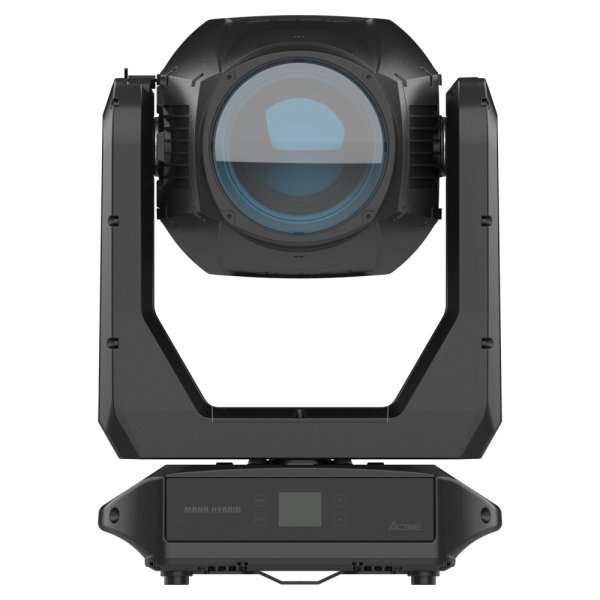

ACME MANA HYBRID（マナ ハイブリッド）

概要

MANA HYBRID is a moving hybrid fixture, it’s the source of inspiration to illuminate your innovation. Featured 600W LEDs and a 170 mm lens, it creates brilliant and vibrant light. With a unique beam angel of 2°-45° and a total lumen output of 21,000 lumens, the light can be freely manipulated. The color temperature of the fixture is 7,000K, with a standard mode Ra>70 and a HCRI mode Ra≥90, accurately reproducing every color. The linear CMY color mixing system and linear CTO color temperature adjustment range from 2,700K to 7,000K, offering unlimited color possibilities. It features multiple gobos, including 13 static gobos and 8 rotating gobos, as well as abundant colors provided by 7 colors, stimulating creativity. With a graphic animation wheel, and two combinable frost filters, it creates fantastic lighting effects. The fixture has an IP66 protection rating, making it reliable for outdoor use all year round. It offers variable light adjustment from 0 to 100% and strobe effects with variable speed, which delivers a visually stunning experience for a stage.

仕様

Model
Model Name: MANA HYBRID
Model Code: XA 600 BSW IP
Light Source
Light Source: 600W LED Engine
Total Lumen Output of Fixture: 21,000 lumens
Color Temperature Output of Fixture: 7,000K
Life Expectancy: 20,000 hours*
*Source manufacturer specification
Optical System
Zoom Range: 2°-45°
Standard Mode: Ra>70
HCRI Mode: Ra≥90
Diameter of Frontal Lens: 170 mm
Control
4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 4
Control Channels: 24/30
Firmware Upgrade: Upgrade via DMX link or USB disk
Pan & Tilt
Pan Movement: 540°
Tilt Movement: 260°
Automatic Pan/Tilt position correction
Resolution: 16 bit
Colors
Linear CMY color mixing
Linear CTO Color Correction: 2,700K-7,000K
1 Color Wheel: 7 colors, plus open
Static Gobos
1 Static Gobo Wheel:
13 gobos, plus open
Gobo: Ф17 mm, lmage: Ф13 mm
Rotating Gobos
1 Rotating Gobo Wheel:
8 gobos, plus open
Gobo Slot 1-7: Ф20 mm, lmage: Ф12 mm
Gobo Slot 8: Ф20 mm
Animation Wheel
A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave effect, and can be changed into other wheels
Prism
2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions
Frost Filter
1 combinable light frost filter and 1 combinable medium frost filter
Other Effects
Outstanding strobe effect with variable speed
Smooth dimming 0-100% (4 user selectable dimming curves)
Electrical and Connectors
Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 910W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector
Physical Information
Fixture Dimensions:
Width: 380 mm
Depth: 284 mm
Height: 658 mm
Weight: 30.5 kg
Packing Information
Flight Case Dimensions:
Width : 1,220 mm
Depth : 610 mm
Height : 805 mm
Weight :
Standard: G.W.: 125 kg (two-pack loader case)
Carton Dimensions:
Width : 610 mm
Depth : 490 mm
Height : 675 mm
Weight :
G.W.: 37.5 kg (82.7 lbs) (One-pack loader carton)
Work Environment
Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66
Approvals
CE compliant
UKCA compliant
cETLus compliant
Installation
Horizontal or vertical mounting
Universal working position
2 omega brackets
Safety cable attachment point
Included Items
Digital user manual
Power cable
2 omega brackets (3002003003)
Optional Accessories (With Order Code)
Flight Case:
Standard : Two-pack loader case (63583466)
North American Standard : Two-pack loader case (63583211)
Clamp : C-250B (2060001632-B),C-150B (2060001625-C)
Safety Cable: SW-05 (2060001603-A)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
