ACME THETA（テータ）

ACME THETA（テータ）

Functional Overview

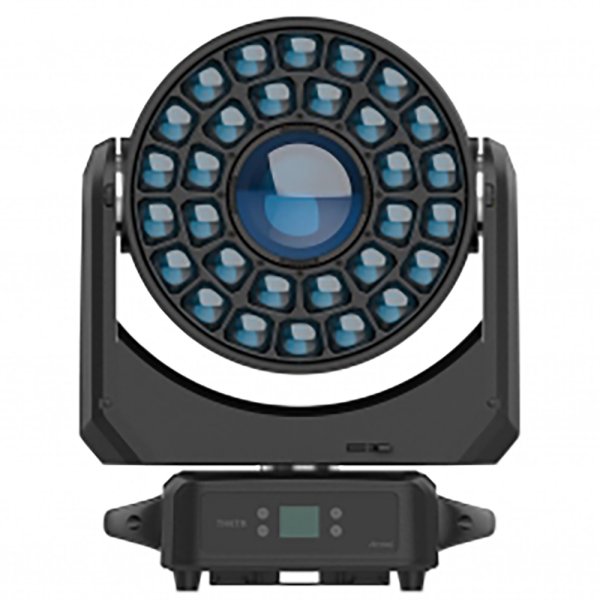

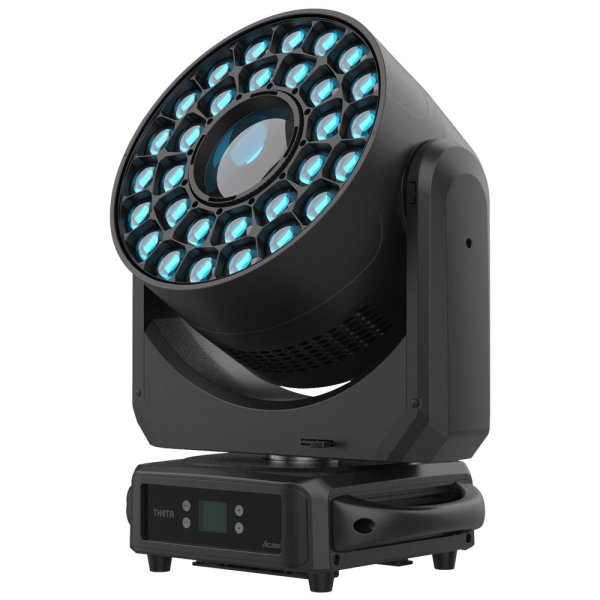

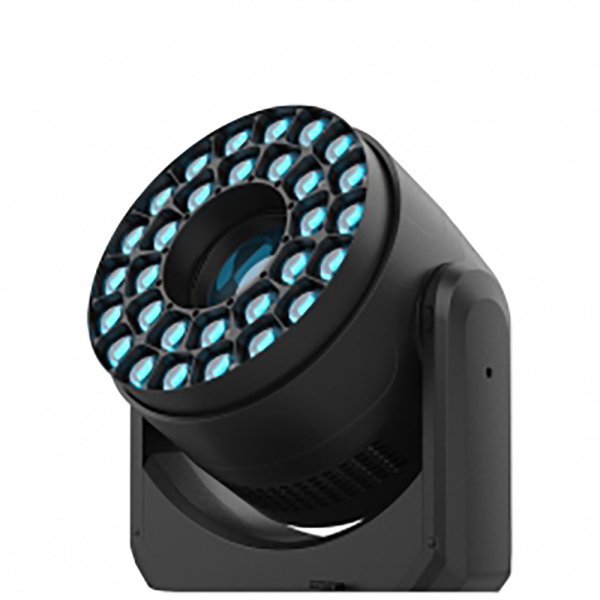

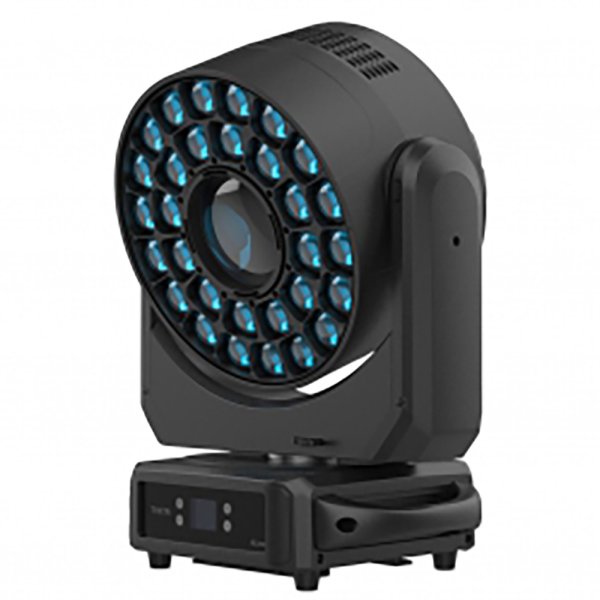

The ACME THETA combines beam and wash features into one extraordinary luminaire for powerful effects and deep color washes. The center section is powered by a 200-Watt cool white LED and the surrounding wash section has 30, 40-Watt RGBW LEDs.



The center beam portion of THETA is equipped with a color wheel with 13 colors, a static gobo wheel with 9 patterns, 8-facet and 16-facet prisms, and a frost filter. The beam is a tight 3° beam angle and has motorized focus to sharpen images. The two prisms can be overlaid and are rotatable in either direction for amazing lighting effects.



THETA's wash section delivers a wide range of rich, deep colors and includes a zoom range from 4° to 51°, individual pixel control, CTO color temperature adjustment from 2500K to 8000K, and color macro effects, providing lighting designers with a wide range of creative options and looks.



THETA adds a vibrant touch to any scene for many a wide range of productions from stage, touring, television, hospitality, and more.




Features

Light Sources:
Beam: 200W cool white LED
Wash: 30, 40W RGBW LED
Total Lumen Output: 5,000lm (200W LED)
Color Temperature Output: 7,000K (200W LED)
Variable CTO ranging from 2,500-8,000K (40W RGBW LED)
1 Static Gobo Wheel: 6 HD gobos, including 3 water effect gobos, plus open
1 Color Wheel: 13 colors, plus open
2 Prisms: one 8-facet prism, one 16-facet prism, rotatable in both directions and can be used together
1 frost filter
Zoom function on the outer ring
Individual pixel control, build-in color macro effects
Automated color correction system to ensure a consistent output
Motorized zoom and focus
Outstanding strobe effect with variable speed
Smooth dimming from 0 to 100%
Flicker free management

Model

CM 1000ZF

Light Source

Light Sources:
Beam: 200W LED
Wash: 30, 40W RGBW LED
Color Temperature Output: 7,000K (200W LED)
Total Lumen Output: 5,000lm (200W LED)
Life Expectancy: 20,000 hours

Optical System

Beam Angle: 3° (200W LED)
Zoom Range: 4°-51° (40W RGBW LED)

Control

4-Button touch panel
Display: LCD display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol Modes: 3
Control Channels: 27/139/19
Firmware Upgrade: Upgrade via DMX link

Pan & Tilt

Pan Movement: 540°
Tilt Movement: 215°
Automatic Pan/Tilt position correction
Movement is 16-bit resolution

Gobos

1 Static Gobo Wheel: 6 HD gobos, including 3 water effect gobos, plus open

Colors

1 Color Wheel: 13 complementary colors, plus open

Prisms

2 Combinable Rotating and Indexable Prisms: one 8-facet prism, one 16-facet prism, rotatable in both directions

Frost Filter

1 frost filter

Other Effects

Linear CTO Color Correction: 2,500K - 8,000K (40W RGBW LED)
Outstanding strobe effects with variable speeds
Motorized zoom and focus
Smooth dimming from 0 to 100%

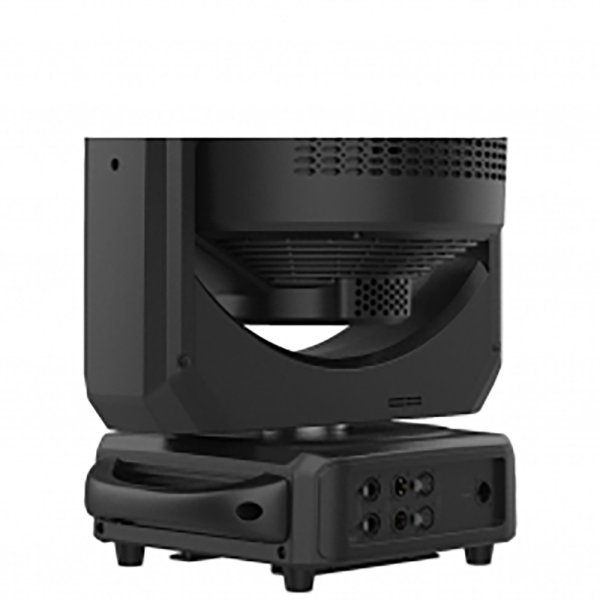

Electrical and Connectors

Input Voltage Range: 100-240VAC, 50/60Hz
Power consumption: 1,600 W
Power In/Out: Power connectors (TRUE1 type)
Data In/Out: 3-pin and 5-pin XLR, RJ45 connector

Fixture Specification

Fixture Dimensions:
Width: 454 mm (17.9")
Depth: 341 mm (13.4")
Height: 590 mm (23.2")
Weight: 33 kg (72.8 lbs.)
Flight Case Dimensions:
Width: 1,170 mm (46.1")
Depth: 710 mm (28.0")
Height: 620 mm (24.4")
Weight: 116.5 kg (256.8 lbs.) (include flight case, dual case)
Carton Specification:
Width: 560 mm (22.1")
Depth: 470 mm (18.5")
Height: 675 mm (26.6")
Weight: 40 kg (88.2 lbs.) (include carton, one per carton)

Work Environment

Maximum ambient temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

Approvals

CE compliant
UKCA compliant
cETLus compliant

Installation

Horizontal or vertical mounting
Universal working position

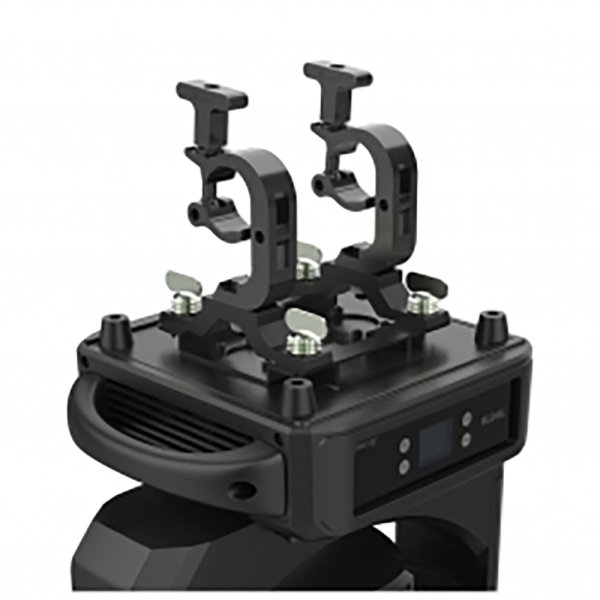

2 omega brackets (accepts most hooks or clamps)
Safety cable hole

Included Items

Digital user manual
Power cable (TRUE1 type)
2 omega brackets (accepts most hooks or clamps)

Optional Accessories (With Order Code)

Flight Case: 3205001338
Clamp: 2060001632 (C-250B)
Safety Cable: 2060001603-A (SW-05)
Signal Line: 3-pin and 5-pin signal line, RJ45 connector
