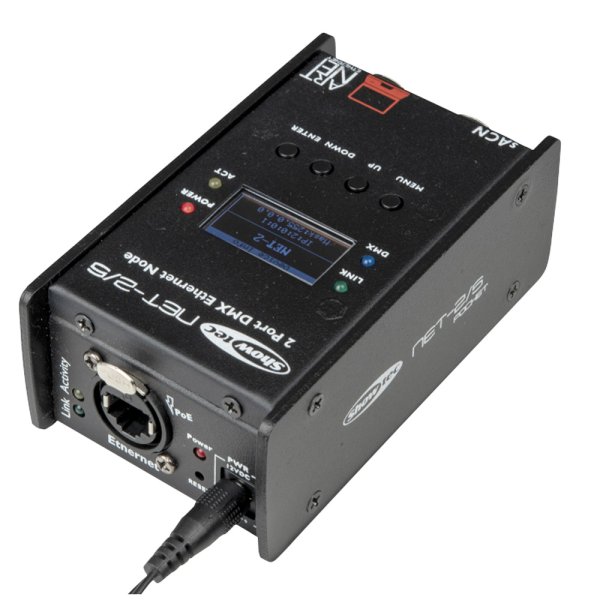

HIGHLITE NET-2/5 Pocket [50808]

Supports Art-Net and sACN protocol
2 universes DMX input or output
Remote Setup Interface
PoE (IEEE 802.3 Af)
The Showtec NET-2/3 Pocket and NET-2/5 Pocket nodes are cutting-edge network routing devices which convert Art-Net or sACN to DMX512 and back. The power input can be provided by POE which makes the 12 V power supply superfluous.
A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front.

Settings can also be arranged via the webbrowser possibility, which gives you (remote) access through your computer or laptop and your network. Default login account: Admin, password: Admin.
Product code 50808

EAN 8717748463906

Electrical Specifications and Connections
Power Supply
12 V DC
Power over Ethernet (PoE)
Yes
Power Consumption
8 W
Power Connector In
Low Voltage DC plug
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Data Connector In
etherCON
Mechanical Specifications
Length (mm)
115 mm
Width (mm)
67 mm
Height (mm)
44 mm
Weight
0.3 kg
IP Rating
IP20 (indoor use only)
Housing
Metal, Plastic
Colour
Black
Product Properties
LED Indicators
Operation mode, Power, Signal
Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Ambient Temperature
-5 °C
Included Items
Included Cables
Low voltage DC plug cables
Included Accessories
Adapter
Control and Programming
Control Mode
Art-Net, DMX, PC Software
Protocols
Art-Net, DMX, RDM, sACN, TCP-IPv4
Display
OLED
Universes
2
