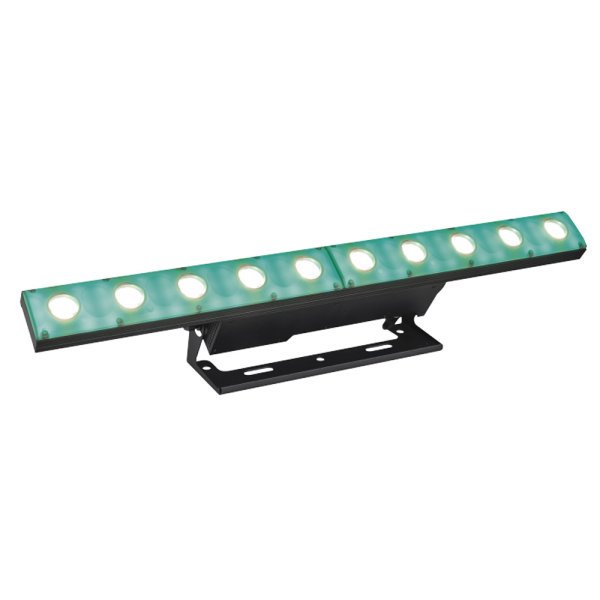

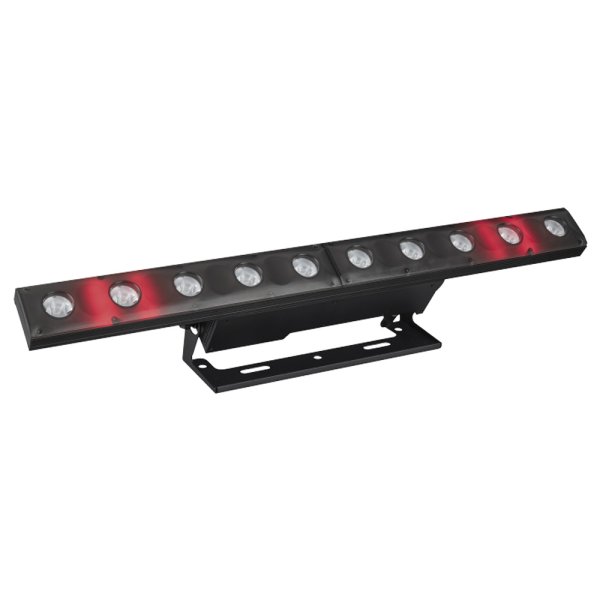

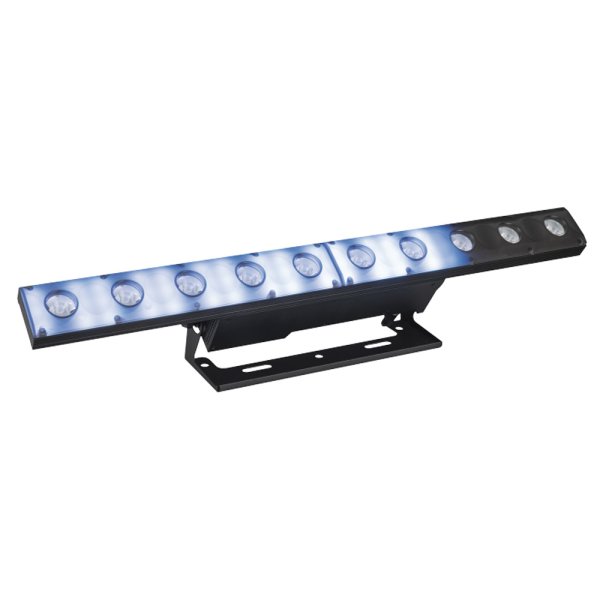

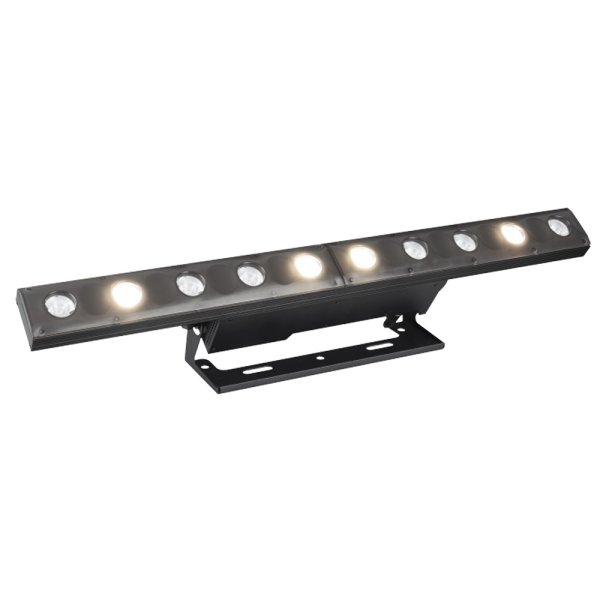

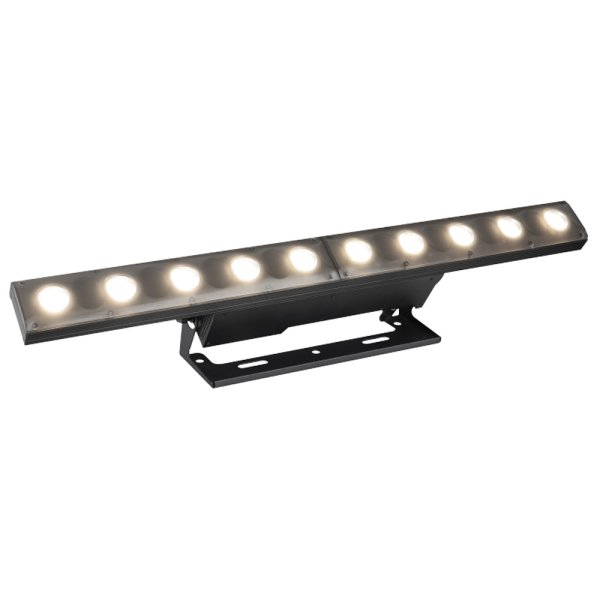

HIGHLITE Showtec Razor Blaze 10 [30746]
商品詳細
SHOWTEC Razor Blaze 12. Order code 44550. (& Razor Blaze 10. Order code 30746) from Highlite International on Vimeo.
10x 3 W Warm White high output LEDs / 4° Beam Angle
60x 0.3 W RGB LEDs
Controllable via DMX, Art-Net, Kling-Net, RDM
Full Pixel control
仕様
SourceLight Source Type
LED
Light Source Quantity
10
Light Source Power
3 W
LED Colour Type
WW, RGB
Refresh Rate
1000 Hz
Luminous Flux (Total)
1600 lm
Optical
Beam Angle (Horizontal)
4°
Beam Angle (Vertical)
4°
Control and Programming
Control Mode
Auto, DMX, Master Slave, Sound
DMX Channels
11, 20, 47, 190
Protocols
Art-Net, DMX, Kling-Net, RDM
Display
LCD
Zone Control (Sections)
10
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

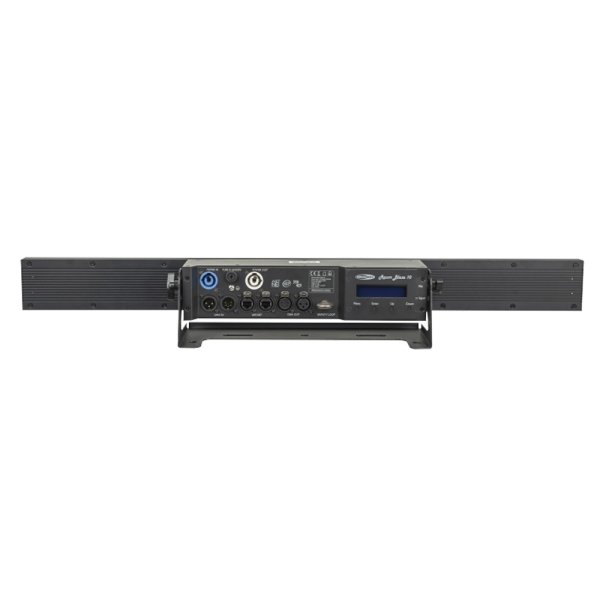

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
80 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Data Connector In
etherCON
Data Connector Out
etherCON
サイズ
Mechanical SpecificationsLength (mm)
780 mm
Width (mm)
137 mm
Height (mm)
104 mm
Weight
3.1 kg
IP Rating
IP20 (indoor use only)
Material
Metal
Housing
Metal
Colour
Black
Product Properties
Cooling
Convection/Axial fan
Rigging
Mounting Options
Clamp
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
80 °C
Included Items
Included Cables
CAT-5 Cable, powerCON cable, XLR 3P
Included Accessories
User Manual
Included Rigging
Bracket
