HIGHLITE Showtec Cameleon Flood 7/3 RGB [42689v]
商品詳細
Compact, yet powerful 7x 3 W RGB LED Flood
IP65 (dust and water resistant, fit for outdoor use)
40° fixed beam angle
DMX, IR and Master/Slave control (IR remote required)
Dimmer and strobe function

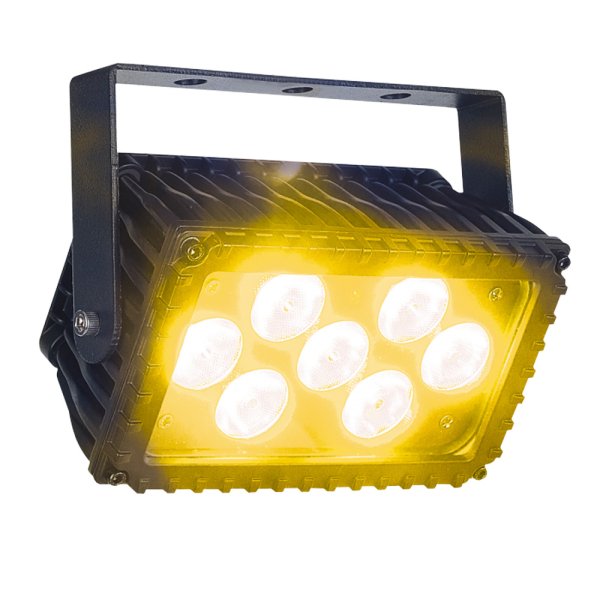

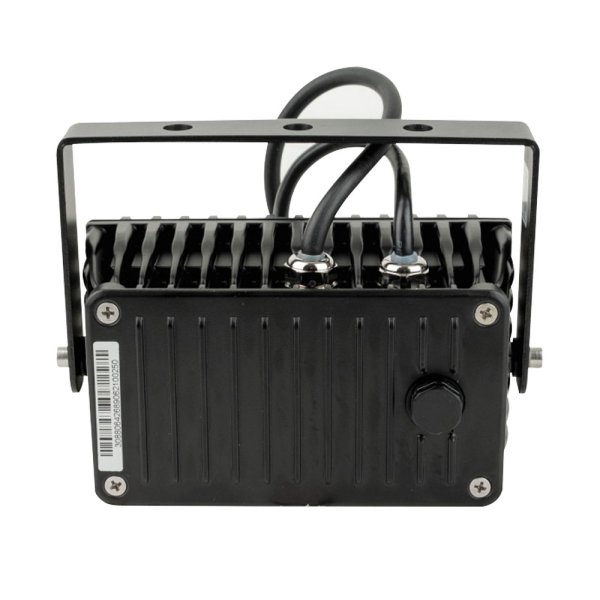

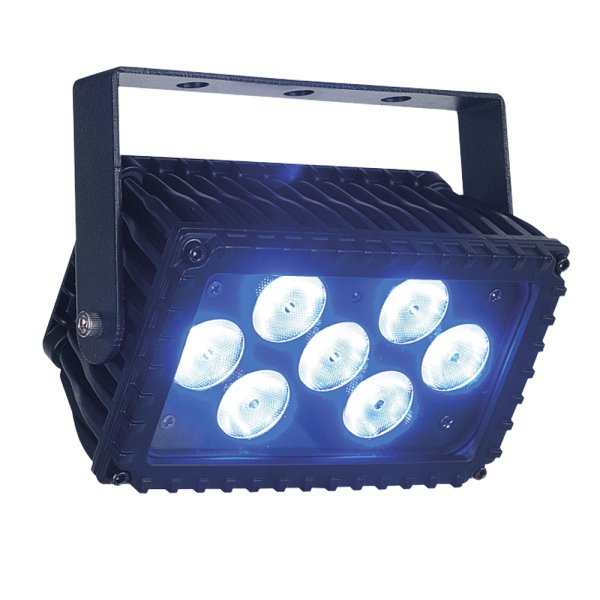

The Showtec Cameleon Flood 7/3 RGB is a compact yet powerful 7x 3 watt LED Flood with double bracket for easy floor positioning and IP65 certification, suitable for indoor and outdoor locations. It has a wide 40° beam angle and is equipped with a 0-100 % dimmer and 0-20 Hz strobe function, ideal for mixing colours on stage.

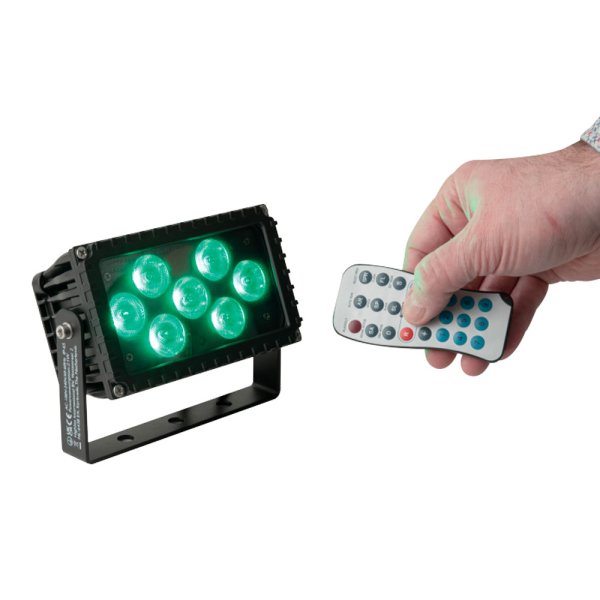

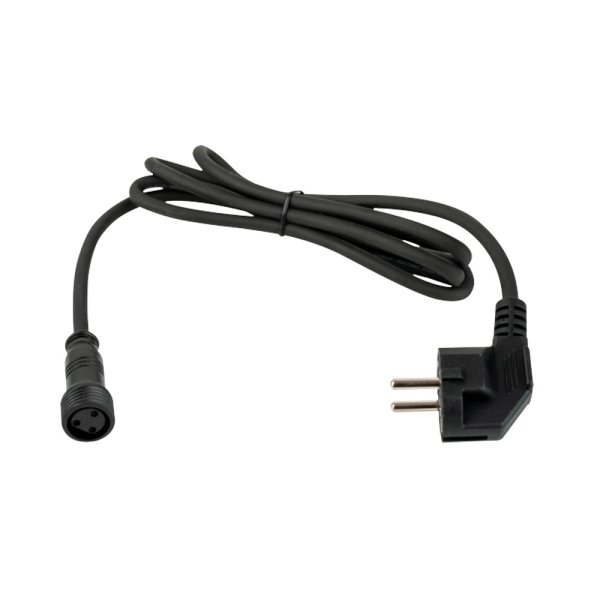

The Cameleon Flood 7/3 RGB is controllable by DMX, Master/Slave or the Showtec Infrared Remote control for Cameleon. Furthermore, it has built-in programs to create a lively atmosphere without having to constantly touch buttons. It comes with an IP65 power cable and mounting bracket.
Please note that a remote control (42704) is not included but required for controlling the Cameleon Flood 7/3 RGB. Not only for wireless control but also for DMX and Master/Slave control.
Light Source Type
LED
Light Source Quantity
7
Light Source Power
3 W
LED Colour Type
RGB
Refresh Rate
400 Hz
Luminous Flux (Total)
961 lm
Optical
Beam Angle (Horizontal)
40°
Beam Angle (Vertical)
40°
Control and Programming
Control Mode
Auto, Built-in Program, DMX, Master Slave, Remote, Stand Alone
DMX Channels
3
Protocols
DMX
Dynamic Effects
Dimmer
0-100 %
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
21 W

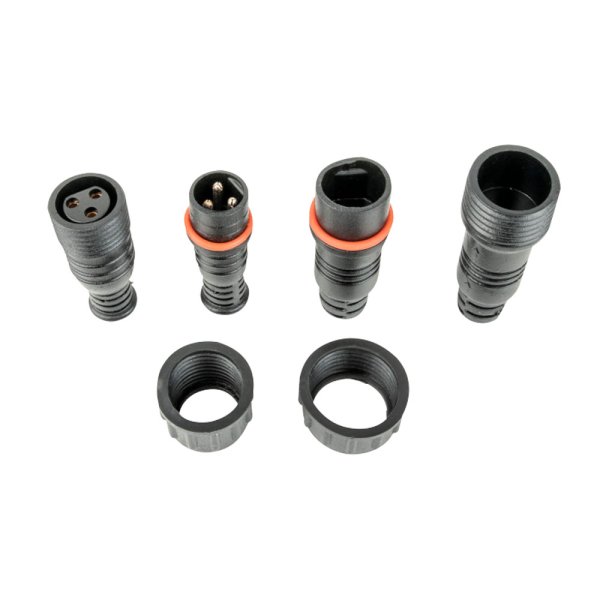

Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection
DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
Cable Length
1.5 m
Length (mm)
170 mm
Width (mm)
70 mm
Height (mm)
128 mm
Weight
1.1 kg
IP Rating
IP65
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Clamp
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
80 °C
Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
End Cap, User Manual
Included Rigging
Bracket
■メーカーサイト
https://www.highlite.com/en/42689-cameleon-flood-7-3-rgb.html
IP65 (dust and water resistant, fit for outdoor use)
40° fixed beam angle
DMX, IR and Master/Slave control (IR remote required)
Dimmer and strobe function
The Showtec Cameleon Flood 7/3 RGB is a compact yet powerful 7x 3 watt LED Flood with double bracket for easy floor positioning and IP65 certification, suitable for indoor and outdoor locations. It has a wide 40° beam angle and is equipped with a 0-100 % dimmer and 0-20 Hz strobe function, ideal for mixing colours on stage.
The Cameleon Flood 7/3 RGB is controllable by DMX, Master/Slave or the Showtec Infrared Remote control for Cameleon. Furthermore, it has built-in programs to create a lively atmosphere without having to constantly touch buttons. It comes with an IP65 power cable and mounting bracket.
Please note that a remote control (42704) is not included but required for controlling the Cameleon Flood 7/3 RGB. Not only for wireless control but also for DMX and Master/Slave control.
仕様
SourceLight Source Type
LED
Light Source Quantity
7
Light Source Power
3 W
LED Colour Type
RGB
Refresh Rate
400 Hz
Luminous Flux (Total)
961 lm
Optical
Beam Angle (Horizontal)
40°
Beam Angle (Vertical)
40°
Control and Programming
Control Mode
Auto, Built-in Program, DMX, Master Slave, Remote, Stand Alone
DMX Channels
3
Protocols
DMX
Dynamic Effects
Dimmer
0-100 %
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
21 W
Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection
DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
Cable Length
1.5 m
サイズ
Mechanical SpecificationsLength (mm)
170 mm
Width (mm)
70 mm
Height (mm)
128 mm
Weight
1.1 kg
IP Rating
IP65
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Clamp
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
80 °C
Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
End Cap, User Manual
Included Rigging
Bracket
参照
■メーカーサイト
https://www.highlite.com/en/42689-cameleon-flood-7-3-rgb.html
