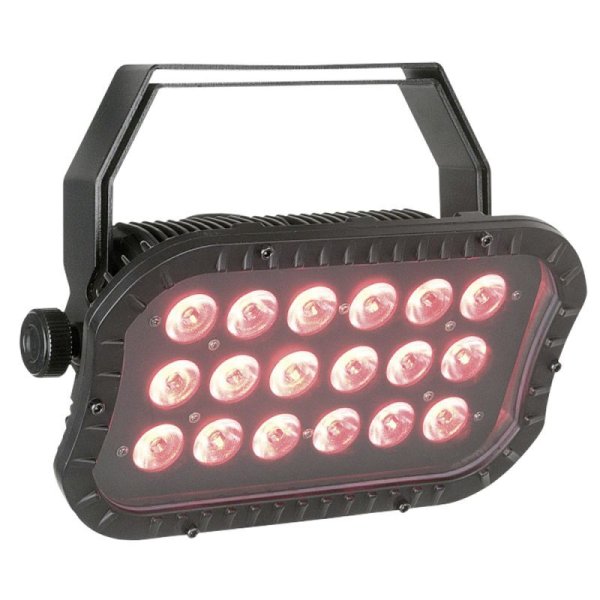

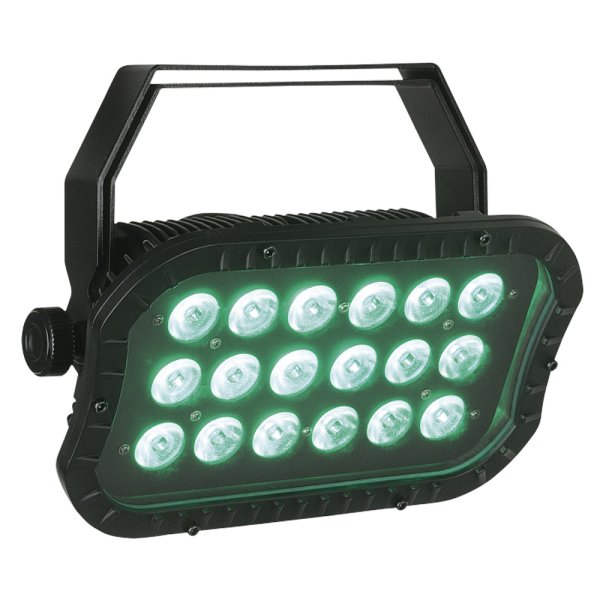

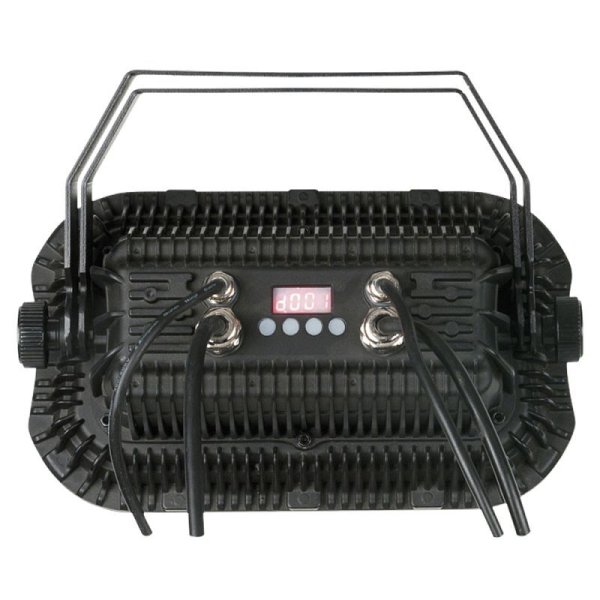

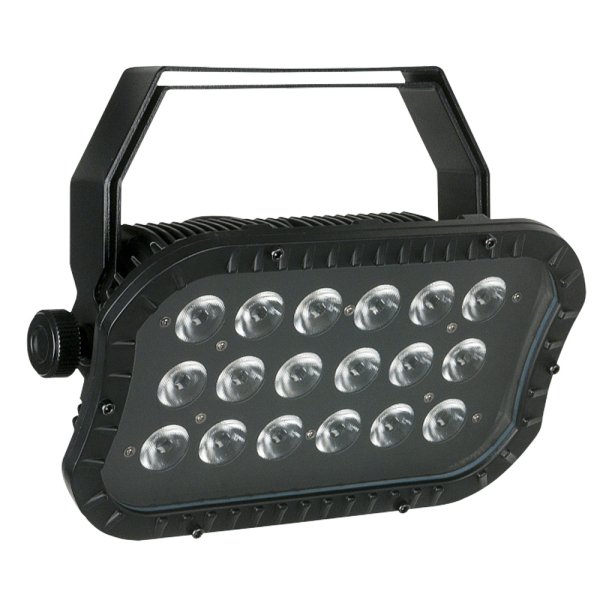

HIGHLITE Showtec Cameleon Flood 18/3 RGB [42690v]
商品詳細
IP65 protection grade
Multivoltage power supply
Excellent colour mixing
Compact design
Double bracket for easy floor positioning
The Cameleon Spot 18/3 is a compact but powerful fixture for both indoor and outdoor use. The specially designed housing has a stylish design and has the function of convection cooling which eliminates the use of fans. The Cameleon Spot 18/3 is suitable for temporary and permanent outdoor solutions.
Light Source Type
LED
Light Source Quantity
18
Light Source Power
3 W
LED Colour Type
RGB
Refresh Rate
400 Hz
Illuminance @ 2 m
4101 lx
Illuminance @ 3 m
1823 lx
Illuminance @ 5 m
656 lx
Luminous Flux (Total)
2553 lm
Luminous Flux (Red)
651 lm
Luminous Flux (Green)
1671 lm
Luminous Flux (Blue)
318 lm
Optical
Beam Angle (Horizontal)
40°
Beam Angle (Vertical)
40°
Control and Programming
Control Mode
Auto, DMX, Master Slave
DMX Channels
1, 3, 4, 6
Protocols
DMX
Display
4-segment, LED
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
70 W
Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection
DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
Length (mm)
320 mm
Width (mm)
212 mm
Height (mm)
195 mm
Weight
4.4 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Clamp
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
User Manual
Included Rigging
Bracket
■メーカーサイト
https://www.highlite.com/en/42690-cameleon-flood-18-3-rgb.html
Multivoltage power supply
Excellent colour mixing
Compact design
Double bracket for easy floor positioning
The Cameleon Spot 18/3 is a compact but powerful fixture for both indoor and outdoor use. The specially designed housing has a stylish design and has the function of convection cooling which eliminates the use of fans. The Cameleon Spot 18/3 is suitable for temporary and permanent outdoor solutions.
仕様
SourceLight Source Type
LED
Light Source Quantity
18
Light Source Power
3 W
LED Colour Type
RGB
Refresh Rate
400 Hz
Illuminance @ 2 m
4101 lx
Illuminance @ 3 m
1823 lx
Illuminance @ 5 m
656 lx
Luminous Flux (Total)
2553 lm
Luminous Flux (Red)
651 lm
Luminous Flux (Green)
1671 lm
Luminous Flux (Blue)
318 lm
Optical
Beam Angle (Horizontal)
40°
Beam Angle (Vertical)
40°
Control and Programming
Control Mode
Auto, DMX, Master Slave
DMX Channels
1, 3, 4, 6
Protocols
DMX
Display
4-segment, LED
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
70 W
Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection
DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
サイズ
Mechanical SpecificationsLength (mm)
320 mm
Width (mm)
212 mm
Height (mm)
195 mm
Weight
4.4 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Clamp
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
User Manual
Included Rigging
Bracket
