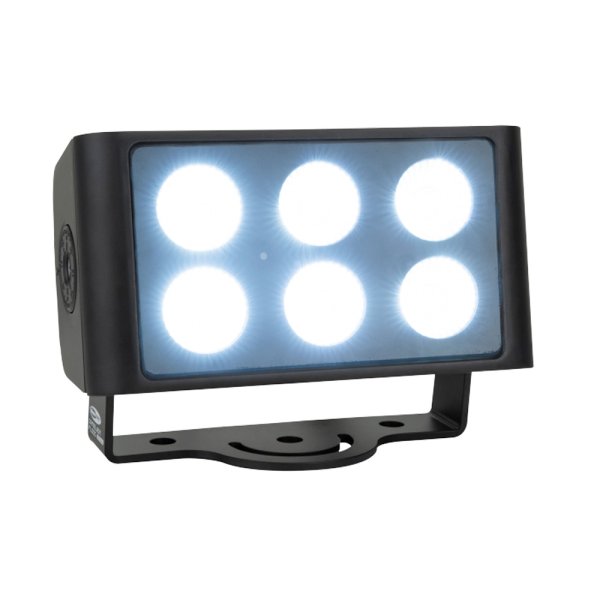

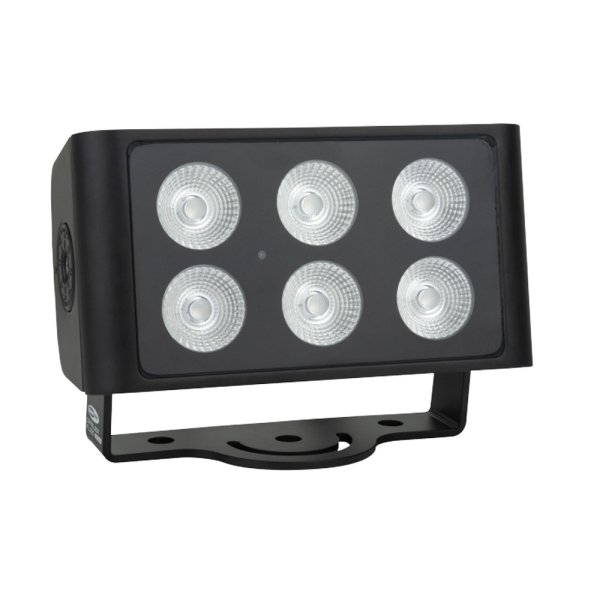

HIGHLITE Showtec Cameleon Flood 6 CW [42677v]

6x 5 W CW LED Flood
7000 K colour rendering
IP65 (dust and water resistant, fit for outdoor use)
40° fixed beam angle
Dimmer and strobe function

The Showtec Cameleon Flood 6 CW is a 6x 5-watt Cool White LED Flood with IP65 rating, suitable for indoor and outdoor applications. It has a 40° fixed beam angle and features 0–100 % dimmer and 0–15 Hz strobe effects, perfectly suitable for colour mixing on stage. The Cameleon Flood 6 CW can be controlled manually, via DMX, Master/Slave and IR Remote in either Manual and Auto run mode with many available built-in programs. It comes with a dedicated IP65 power connector and bracket. An infrared remote is optional.

仕様

Source
Light Source Type
LED
Light Source Quantity
6
Light Source Power
8 W
LED Colour Type
NW
Refresh Rate
4200 Hz
Luminous Flux (Total)
2050 lm
CCT
7000 K

Optical
Beam Angle (Horizontal)
39°
Beam Angle (Vertical)
39°

Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave, Remote
DMX Channels
1, 2
Protocols
DMX
Display
OLED, Touch
Dim Curve
Linear, Square, I-Square, S-Curve

Dynamic Effects
Dimmer
0-100 %
Strobe
0-15 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
35 W
Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection
DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
220 mm
Width (mm)
90 mm
Height (mm)
150 mm
Weight
2.6 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
80 °C

Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
User Manual
Included Rigging
Bracket
