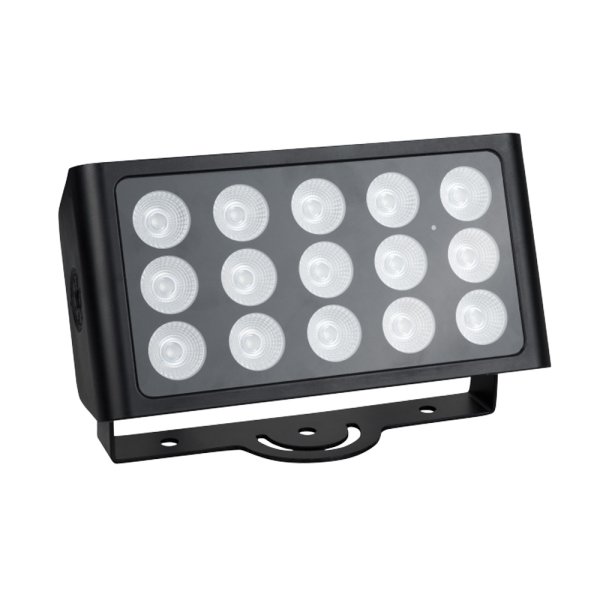

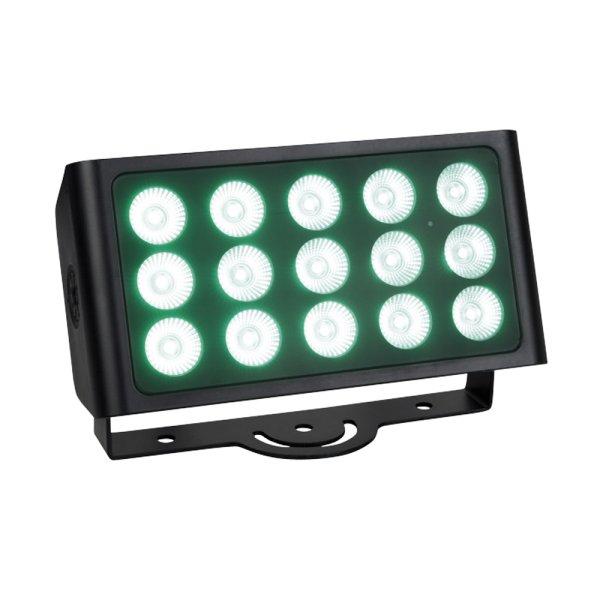

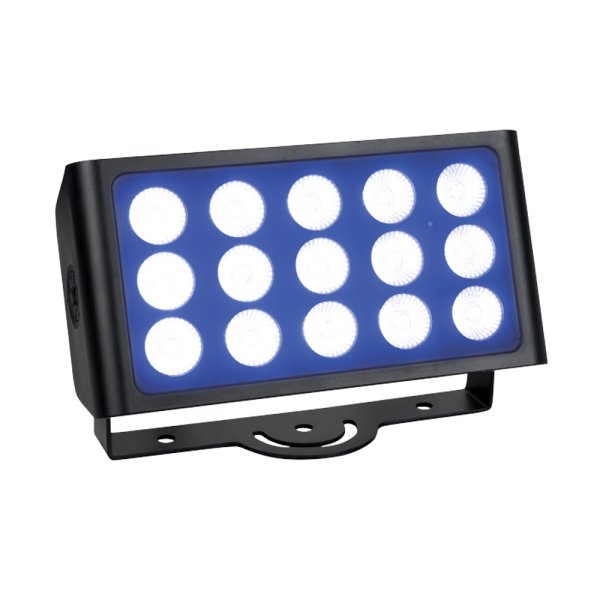

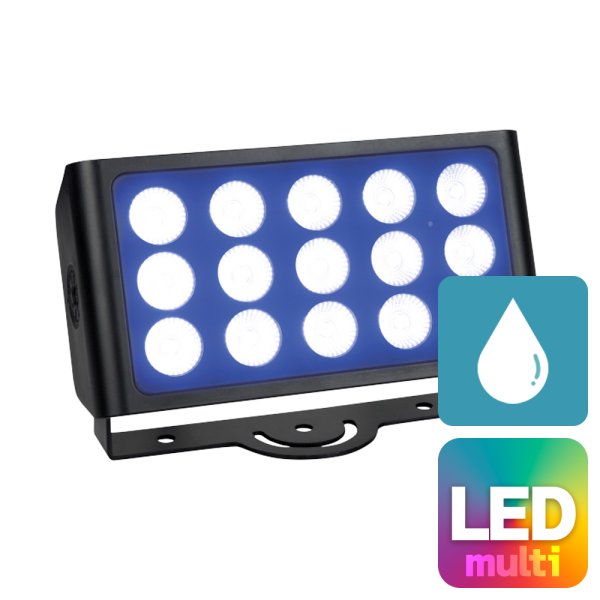

HIGHLITE Showtec Cameleon Flood 15 Q4 RGBW [42671]

Showtec Cameleon Flood 15 Q4. Productcode: 42671. from Highlite International on Vimeo.

15x 5 W RGBW LED Flood
IP65 (dust and water resistant, fit for outdoor use)
40° fixed beam angle
Dimmer and strobe function
Manual, DMX, IR and Master/Slave control

The Showtec Cameleon Flood 15 Q4 is a 15x 5 watt RGBW LED Flood with IP65 rating, suitable for indoor and outdoor applications. It has a 40° fixed beam angle and features 0 - 100 % dimmer and 0 - 15 Hz strobe effects. The Cameleon Flood 15 Q4 can be controlled manually, via DMX, Master/Slave and IR Remote in either Manual or Auto run mode with many available built-in programs. It comes with a dedicated IP65 power connector and bracket. An infrared remote is optional.

仕様

Source
Light Source Type
LED
Light Source Quantity
15
Light Source Power
5 W
LED Colour Type
RGBW
Refresh Rate
4000 Hz
Luminous Flux (Total)
3434 lm

Optical
Beam Angle (Horizontal)
40°
Beam Angle (Vertical)
40°

Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave
DMX Channels
4, 6, 10
Protocols
DMX
Display
OLED, Touch
Dim Curve
Linear, Square, I-Square, S-Curve

Dynamic Effects
Dimmer
0-100 %
Strobe
0-15 Hz

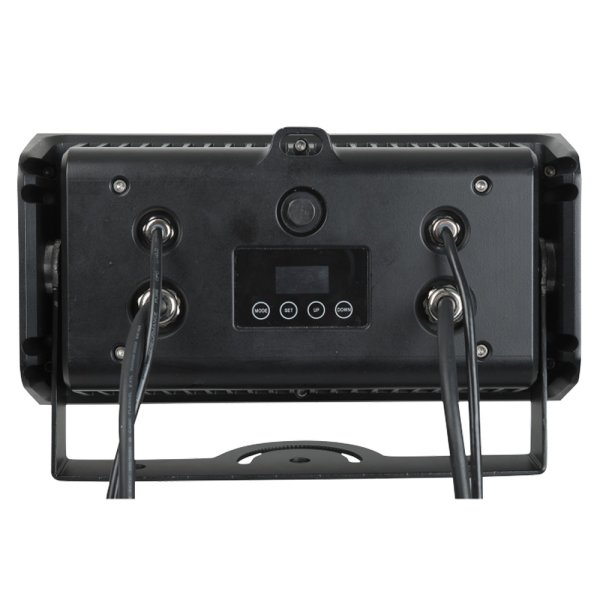

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
115 W
Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection
DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
330 mm
Width (mm)
100 mm
Height (mm)
210 mm
Weight
5.2 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
80 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
User Manual
Included Rigging
Bracket
