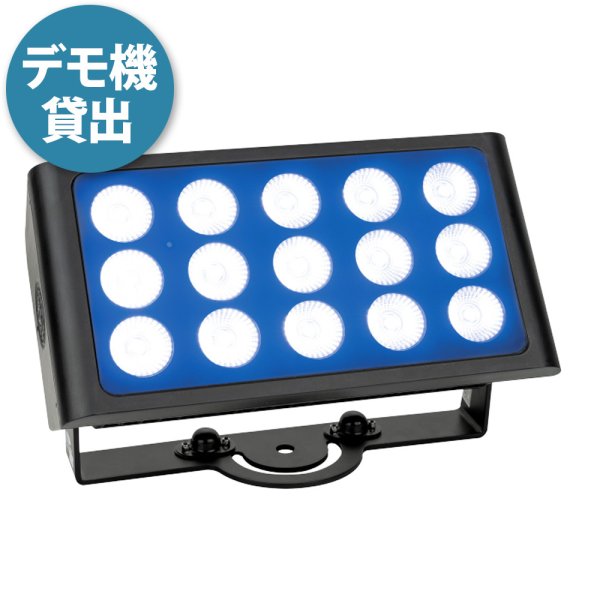

HIGHLITE Showtec Cameleon Flood 15 Q6 Tour RGBWA-UV [42684v]

15x 10 W RGBWA-UV LED Flood
Perfect for colour mixing on stage
IP65 (dust and water resistant, fit for temporary outdoor use)
40° fixed beam angle
Bracket and IP65 power connector included

The Showtec Cameleon Flood 15 Q6 Tour is a 15x 10 watt RGBWA-UV LED Flood with IP65 rating, suitable for indoor and temporary outdoor applications. It has a 40° fixed beam angle and features 0 - 100 % dimmer and 0-20 Hz strobe effects, perfectly suitable for colour mixing on stage. The Cameleon Flood 15 Q6 Tour can be controlled manually, via DMX, Master/Slave, and IR remote in either Manual or Auto-run mode with many available built-in programs. It is equipped with Seetronic Power Pro True IP65-rated power connectors, which are compatible with the leading brands. A bracket for easy fixation is included. An infrared remote is optionally available.

仕様

Source
Light Source Type
LED
Light Source Quantity
15
Light Source Power
10 W
LED Colour Type
RGBWAUV
Refresh Rate
3000 Hz
Luminous Flux (Total)
3700 lm

Optical
Beam Angle (Horizontal)
40°
Beam Angle (Vertical)
40°

Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave, Remote
DMX Channels
6, 8, 12
Protocols
DMX, RDM

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
90 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Length (mm)
330 mm
Width (mm)
170 mm
Height (mm)
210 mm
Weight
5.2 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-5 °C

Included Items
Included Cables
Power Pro True Cable

参照

■メーカーサイト
https://www.highlite.com/en/products/entertainment-lighting/wall-washers/washers-outdoor/42684-cameleon-flood-15-q6-tour.html
