HIGHLITE Showtec Helix S5000 Q4 RGBW (CRMX & WDMX) [43724v]
商品詳細
40x 10 W RGBW LED Washer
IP65 (dust and water resistant, fit for outdoor use)
10° beam angle

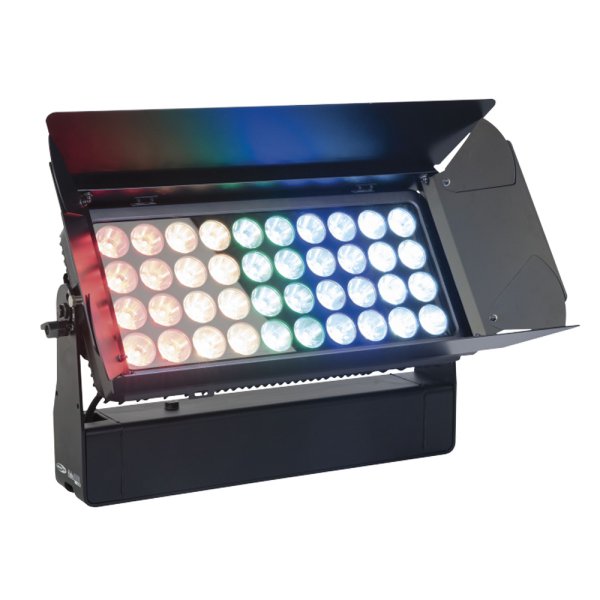

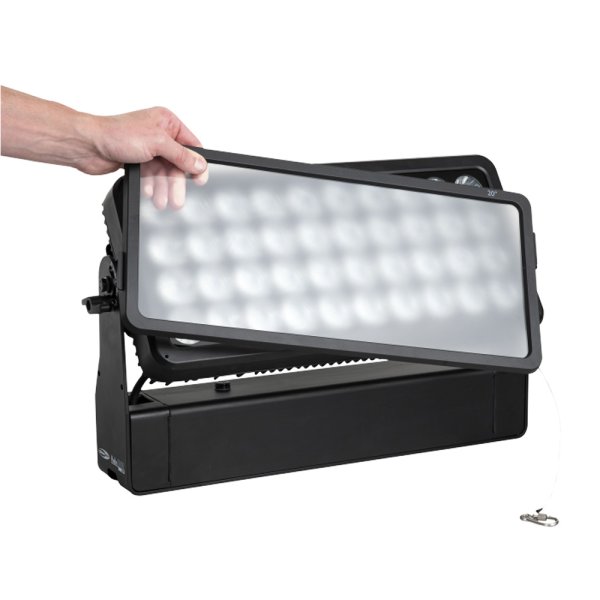

Optional beam shapers for widening beam angle
5-section control

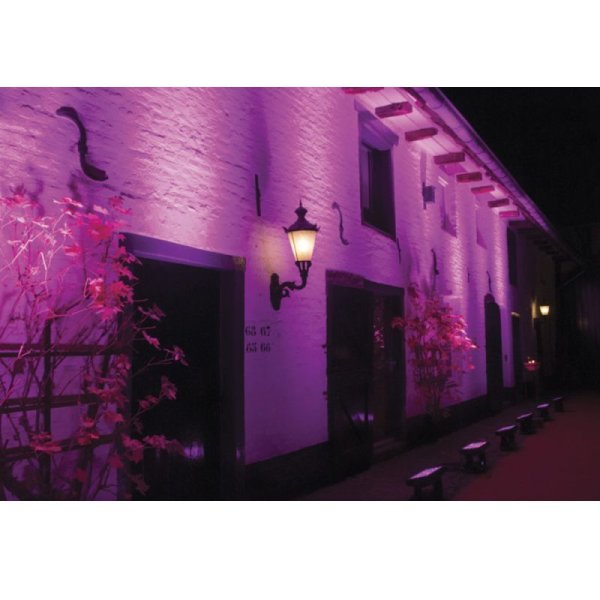

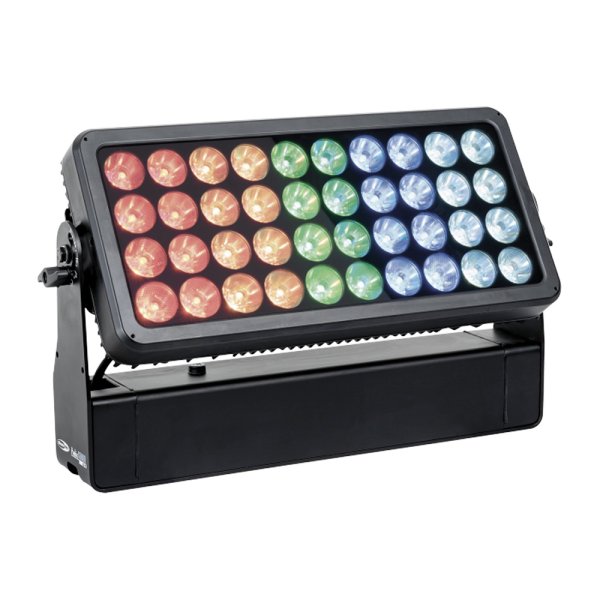

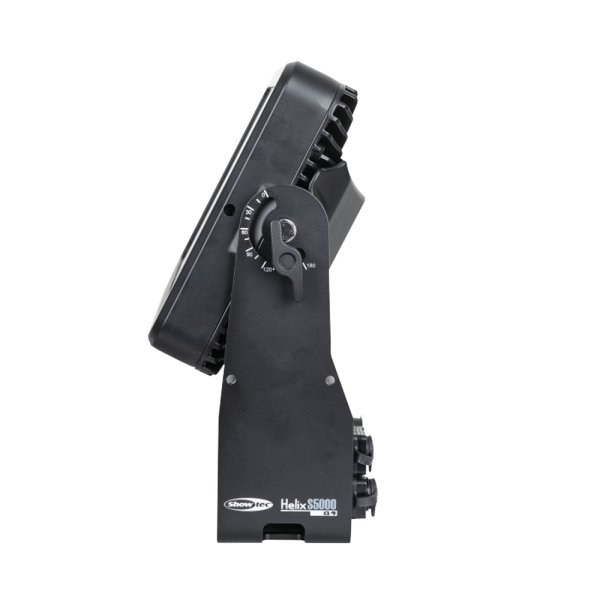

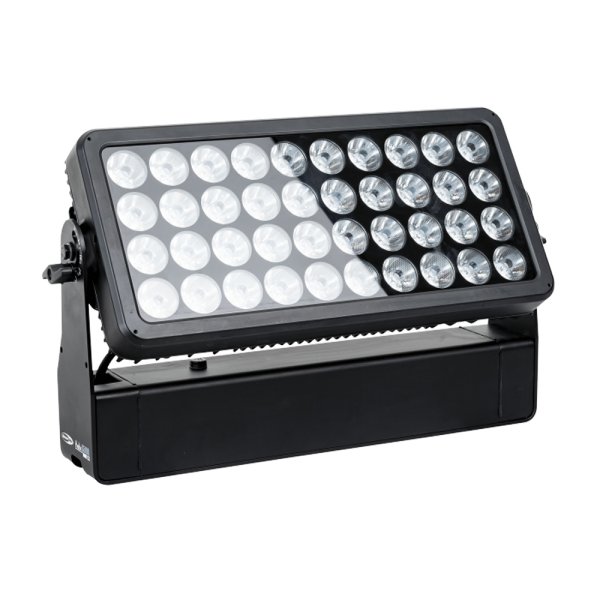

The Showtec Helix S5000 Q4 is a bright 40x 10 watt RGBW LED Washer with IP65 rating, suitable for outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60° and 90° beam angle by using a dedicated beam shaper. The Helix S5000 Q4 LEDs can be divided into 5 separate sections for creating stunning effects. The Wash can be manually flipped 180° and can be controlled via W-DMX (wireless), DMX and Master/Slave in Manual and Auto-run mode with many built-in programs. The wireless connection is compatible with older fixtures using W-DMX, provided that only one mode (G3) is used. The Helix S5000 Q4 comes with a powerCON True 1 cable, mounting panel, rubber feet and Quick-Lock bracket.
Light Source Type
LED
Light Source Quantity
40
Light Source Power
10 W
LED Colour Type
RGBW
Refresh Rate
3000 Hz
Illuminance @ 2 m
54000 lx
Luminous Flux (Total)
14560 lm
Optical
Beam Angle (Horizontal)
10°
Beam Angle (Vertical)
10°
Wireless Specifications
Wireless Mode
G3, G4, CRMX
Reaction Time
8 ms
Control and Programming
Control Mode
Auto, Built-in Program, DMX, Master Slave
DMX Channels
4, 6, 8, 20, 24
Protocols
DMX, RDM
Wireless
LumenRadio
Display

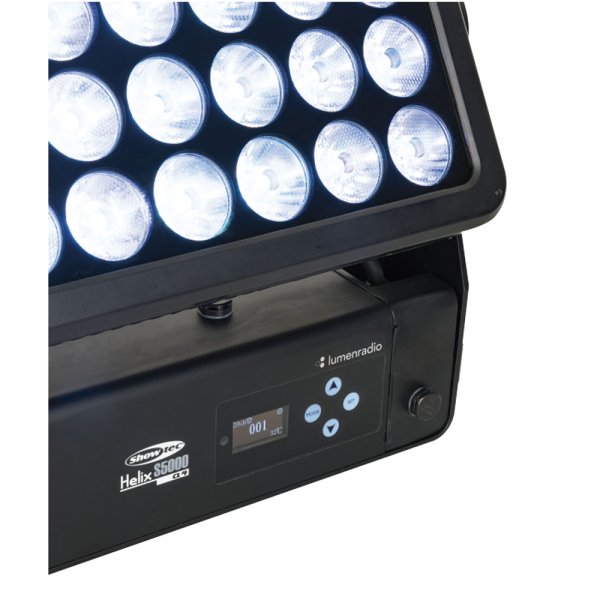

OLED, Touch
Fan mode
Yes
Dim Curve
Linear, Square, I-Square, S-Curve
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
415 W
Power Connector In
powerCON TRUE1 TOP
Power Connector Out
powerCON TRUE1 TOP
DMX Connector
Dedicated 5P IP65 In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Cable Length
1.5 m
Length (mm)
530 mm
Width (mm)
125 mm
Height (mm)
330 mm
Weight
11.5 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection/Axial fan

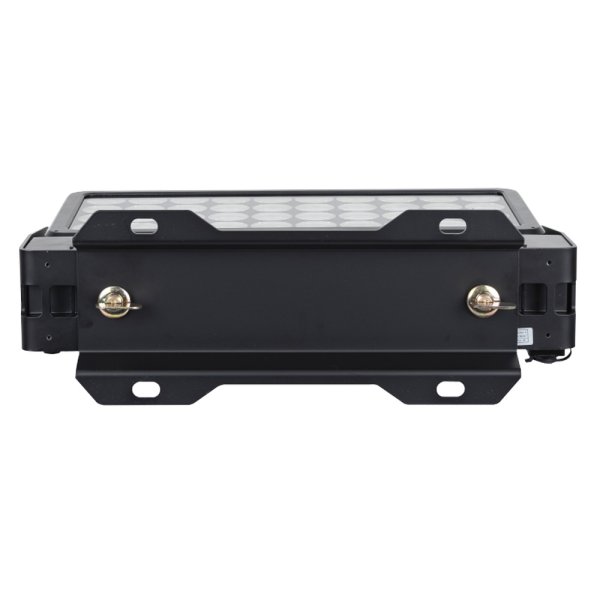

Rigging
Mounting Options
Baseplate, Clamp, Quick-Lock
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
60 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
powerCON TRUE1 cable
Included Accessories
Mounting panel, Rubber feet, User Manual
Included Rigging
Quick-Lock Bracket
■メーカーサイト
https://www.highlite.com/en/products/entertainment-lighting/wall-washers/washers-outdoor/43724-helix-s5000-q4.html
IP65 (dust and water resistant, fit for outdoor use)
10° beam angle
Optional beam shapers for widening beam angle
5-section control
The Showtec Helix S5000 Q4 is a bright 40x 10 watt RGBW LED Washer with IP65 rating, suitable for outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60° and 90° beam angle by using a dedicated beam shaper. The Helix S5000 Q4 LEDs can be divided into 5 separate sections for creating stunning effects. The Wash can be manually flipped 180° and can be controlled via W-DMX (wireless), DMX and Master/Slave in Manual and Auto-run mode with many built-in programs. The wireless connection is compatible with older fixtures using W-DMX, provided that only one mode (G3) is used. The Helix S5000 Q4 comes with a powerCON True 1 cable, mounting panel, rubber feet and Quick-Lock bracket.
仕様
SourceLight Source Type
LED
Light Source Quantity
40
Light Source Power
10 W
LED Colour Type
RGBW
Refresh Rate
3000 Hz
Illuminance @ 2 m
54000 lx
Luminous Flux (Total)
14560 lm
Optical
Beam Angle (Horizontal)
10°
Beam Angle (Vertical)
10°
Wireless Specifications
Wireless Mode
G3, G4, CRMX
Reaction Time
8 ms
Control and Programming
Control Mode
Auto, Built-in Program, DMX, Master Slave
DMX Channels
4, 6, 8, 20, 24
Protocols
DMX, RDM
Wireless
LumenRadio
Display
OLED, Touch
Fan mode
Yes
Dim Curve
Linear, Square, I-Square, S-Curve
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
415 W
Power Connector In
powerCON TRUE1 TOP
Power Connector Out
powerCON TRUE1 TOP
DMX Connector
Dedicated 5P IP65 In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Cable Length
1.5 m
サイズ
Mechanical SpecificationsLength (mm)
530 mm
Width (mm)
125 mm
Height (mm)
330 mm
Weight
11.5 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection/Axial fan
Rigging
Mounting Options
Baseplate, Clamp, Quick-Lock
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
60 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
powerCON TRUE1 cable
Included Accessories
Mounting panel, Rubber feet, User Manual
Included Rigging
Quick-Lock Bracket
参照
■メーカーサイト
https://www.highlite.com/en/products/entertainment-lighting/wall-washers/washers-outdoor/43724-helix-s5000-q4.html
