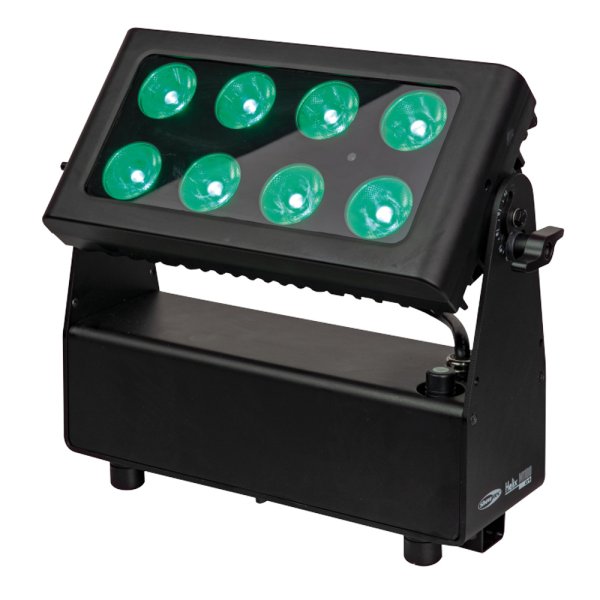

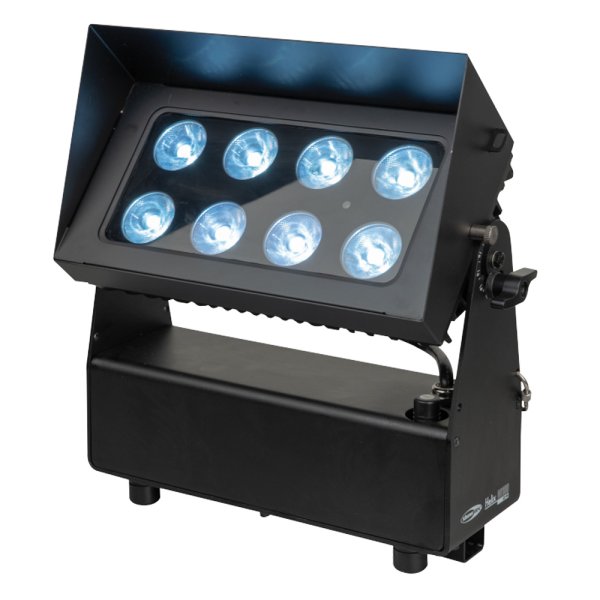

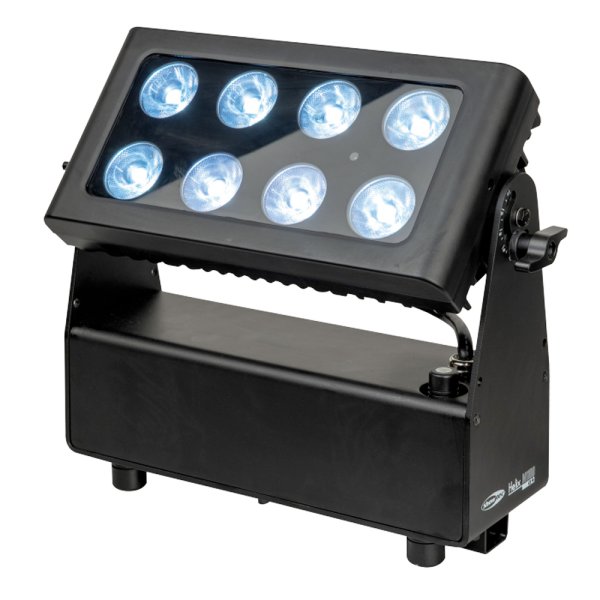

HIGHLITE Showtec Helix M1100 Q4 Mobile RGBW (CRMX & WDMX) [43749v]

Mobile 8x 10 W RGBW LED Wash for temporary outdoor use (IP65)
Operation up to 15 hours without charging
10° beam angle, optional beam shapers available
Emergency backup mode and delayed output
Tilt angle 180° adjustable

The Showtec Helix M1100 Q4 Mobile is a battery-powered, 8x 10 W RGBW LED Wash with IP65 rating, suitable for mobile indoor and temporary outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60°, or 90° beam angle by using optionally available dedicated beam shapers. Equipped with a rechargeable lithium-ion battery, the Helix M1100 Q4 Mobile will operate up to 15 hours without charging. The tilt angle can be manually adjusted over 180° and the unit can be controlled via CRMX (wireless), DMX, Master/Slave, Manual, and Auto mode, and has many built-in programs. The wireless connection uses CRMX and is compatible with older fixtures using W-DMX (G3 or G4).

It has an emergency backup function, which switches the output to 4000 K white at maximum brightness in case the mains power drops. Its delayed output function allows you to program the unit and have it start later, saving precious battery runtime. This can be very helpful when setting up mid-day and having it turn on automatically at night. The Helix M1100 Q4 comes with a 1.5-metre Power Pro True cable, Quick-Lock bracket, and Safety Cable.

仕様

Source
Light Source Type
LED
Light Source Quantity
8
Light Source Power
10 W
LED Colour Type
RGBW
Refresh Rate
1200 Hz
Luminous Flux (Total)
8800 lm

Optical
Beam Angle (Horizontal)
10°
Beam Angle (Vertical)
10°

Wireless Specifications
Wireless Mode
G3, G4, CRMX
Reaction Time
8 ms

Battery
Battery Type
Lithium ion
Battery Voltage
18.5 V
Capacity
13 Ah
Runtime @Full
8 h
Runtime Average
15 h
Charging Time
6 h

Control and Programming
Control Mode
Auto, Built-in Program, DMX, Manual, Master Slave
DMX Channels
4, 6, 10
Protocols
DMX, RDM
Wireless
LumenRadio
Display
OLED
Dim Curve
Linear, Square, I-Square, S-Curve

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Movement
Tilt Adjustment Up
180°

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
75 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
367 mm
Width (mm)
126 mm
Height (mm)
307 mm
Weight
7.9 kg
IP Rating
IP65
Housing
Aluminium
Colour
Black

Product Properties
Cooling
Passive

Rigging
Mounting Options
Bracket, Clamp
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
55 °C

Included Items
Included Cables
Power Pro True Cable
Included Rigging
Quick-Lock Bracket, Safety Cable
