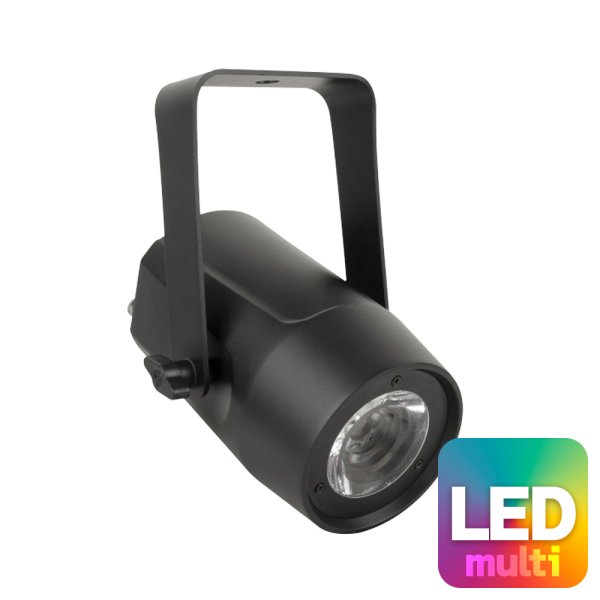

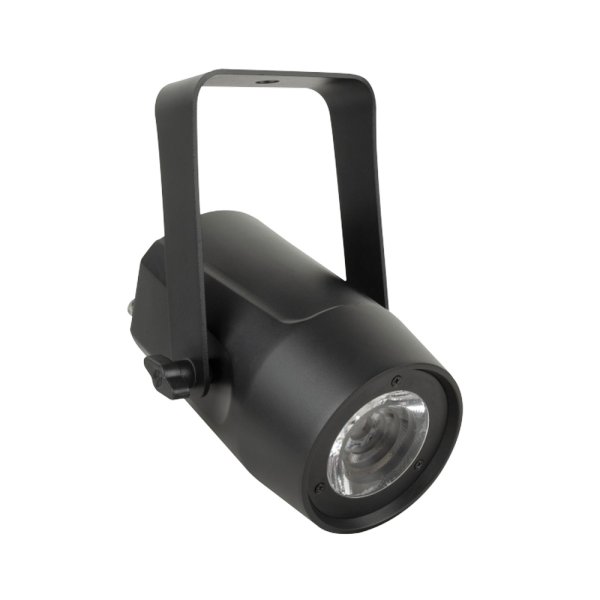

HIGHLITE Showtec Accent Spot Q4 RGBW [42541v]

25 W RGBW LED pinspot
4.5° fixed beam angle
Two diffusers included (10° and 40°)
Additional diffusers for 20° and 10° x 60° available
Power Pro connections

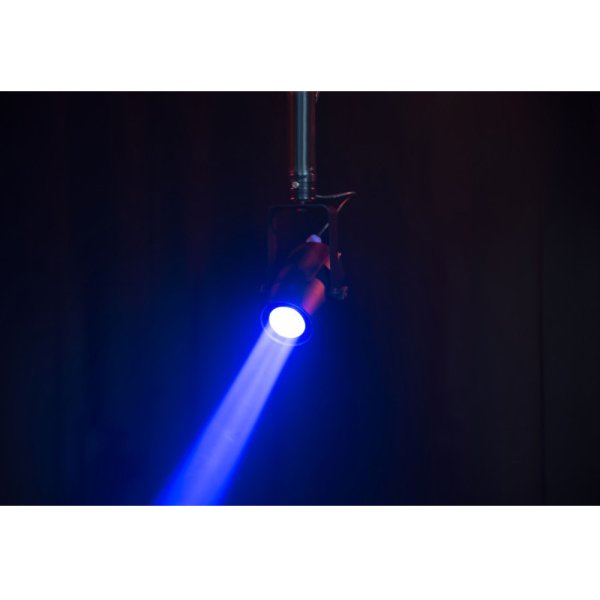

The Showtec Accent Spot Q4 is a compact fixture with great specifications. Its 4.5° beam angle allows the fixture to create a nice and tight beam for accent lighting or to point at mirror balls for example. Two diffusers are standard included and convert the beam from a 4.5° into a 10° beam, or a 40° beam for different effects. Additional diffusers for 20° and 10° x 60° are available as an accessory. The Showtec Accent Spot Q4 is a truly versatile fixture that can be used in many applications, both in rental as well as fixed installations.

仕様

Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
25 W
LED Colour Type
RGBW
Life Expectancy
50000 h
Refresh Rate (Min.)
1000 Hz
Refresh Rate (Max.)
12 kHz
Illuminance @ 2 m
15970 lx
Illuminance @ 3 m
7098 lx
Illuminance @ 5 m
2555 lx
Luminous Flux (Total)
572 lm
Luminous Flux (Red)
233 lm
Luminous Flux (Green)
245 lm
Luminous Flux (Blue)
130 lm
Luminous Flux (White)
350 lm
CRI
71

Optical
Beam Angle (Circular)
4°

Control and Programming
Control Mode
DMX, Manual, Master Slave, Static Dimmer
DMX Channels
4, 6, 12
Protocols
DMX, RDM

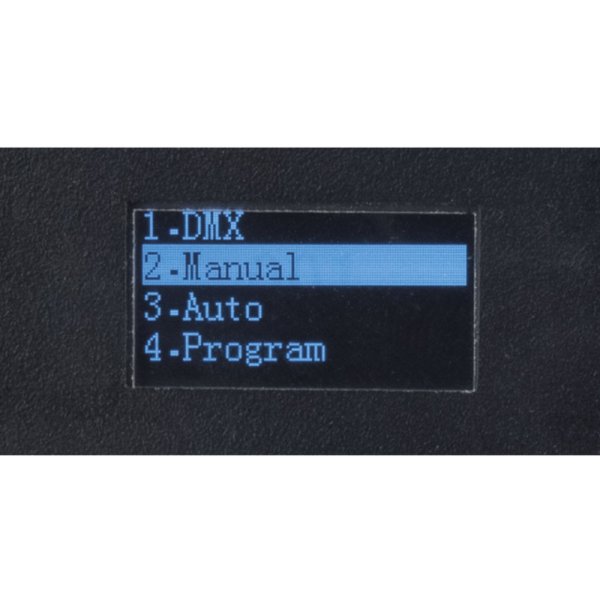

Display
OLED

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
21 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Length (mm)
245 mm
Width (mm)
160 mm
Height (mm)
105 mm
Weight
1.7 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Passive

Rigging
Mounting Options
Bracket

Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-20 °C

Included Items
Included Cables
Power Pro Cable
Included Accessories
Beam Shapers
