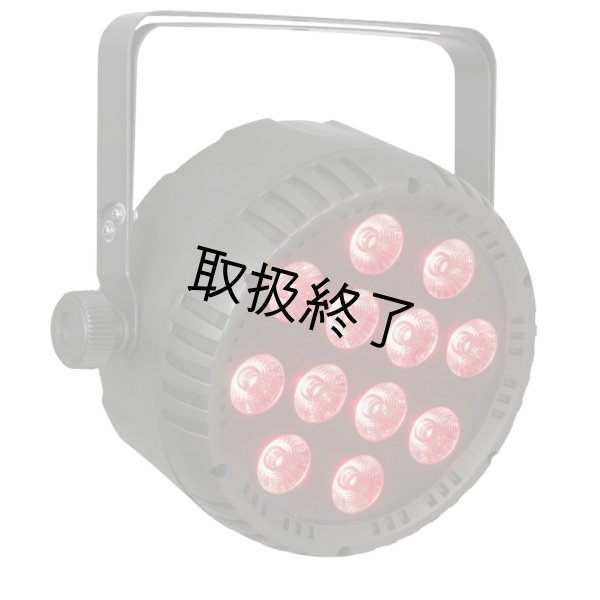

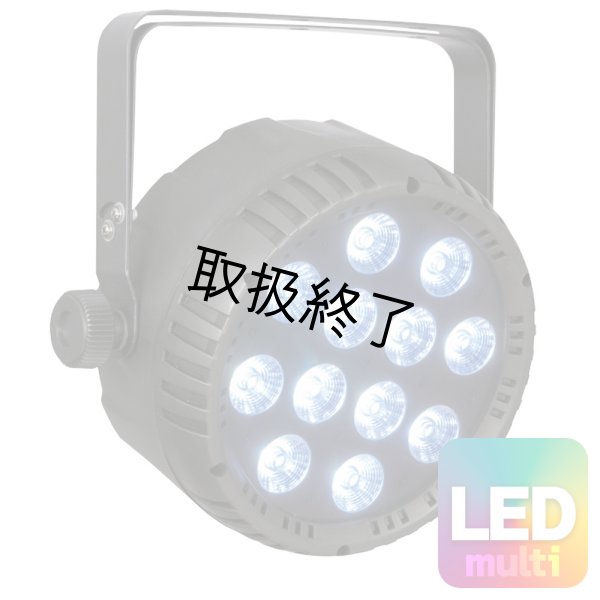

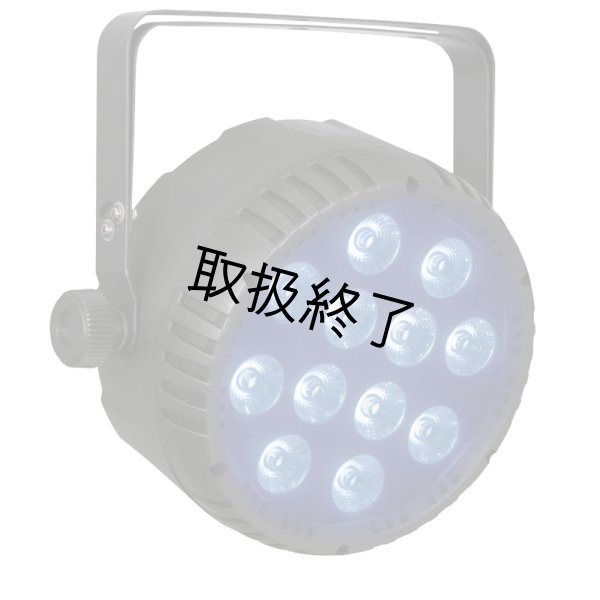

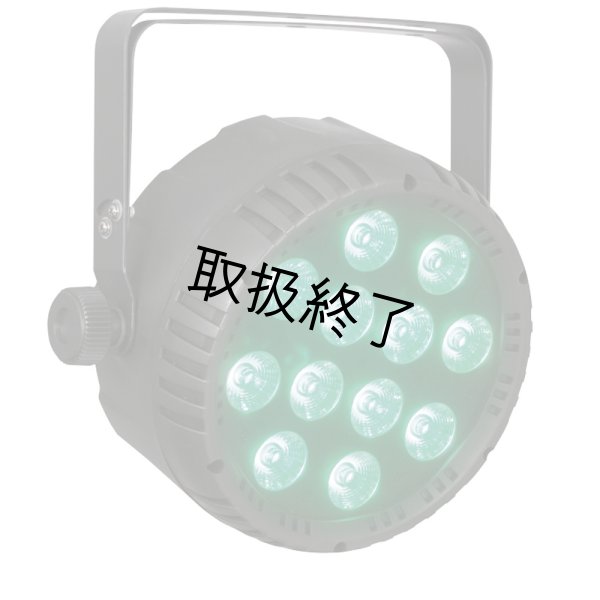

HIGHLITE Showtec Club Par 12/4 RGBW [42650v]

12x 8 W RGBW LED Par
Double bracket for easy floor positioning
25° fixed beam angle
Dimmer and strobe function
Manual, DMX, Auto run and Sound-controlled mode

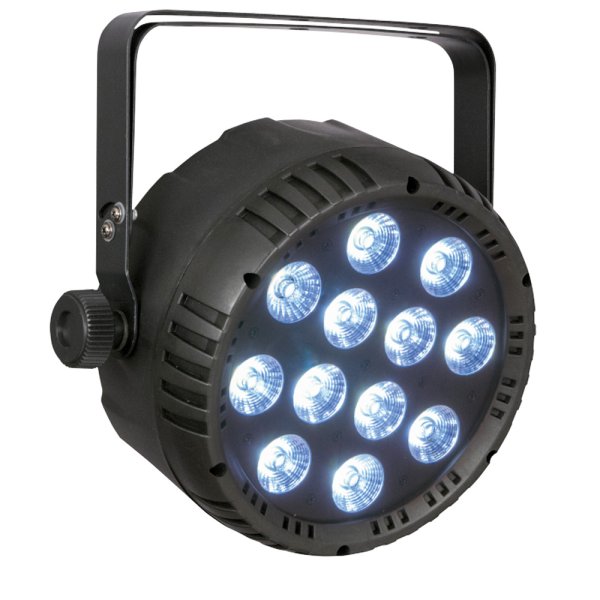

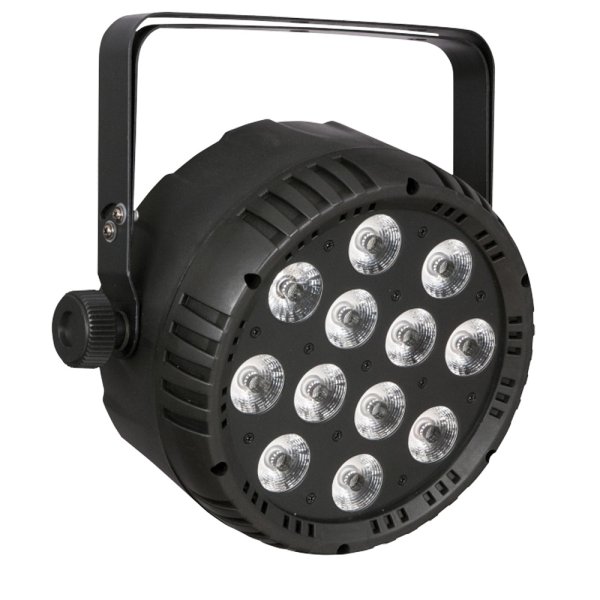

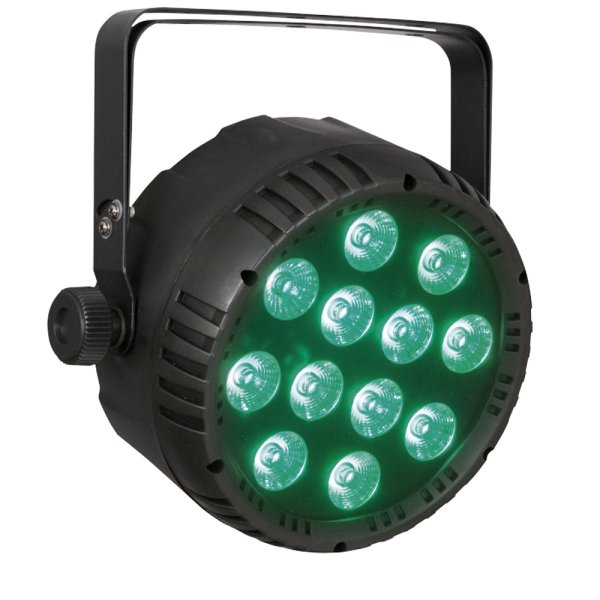

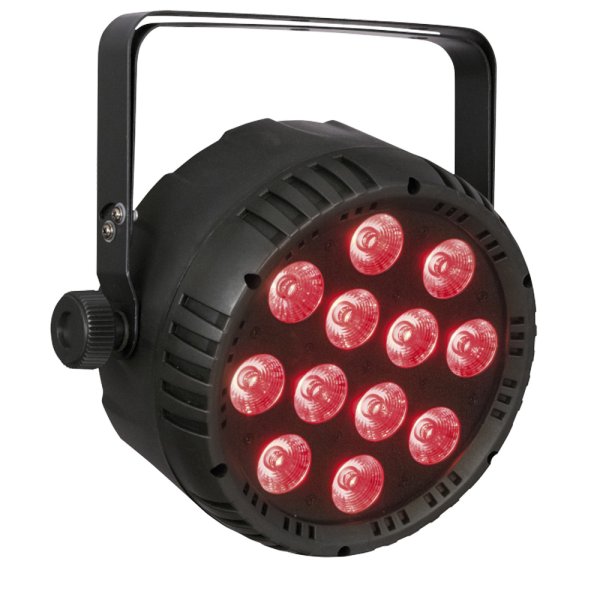

The Showtec Club Par 12/4 RGBW is a 12x 8 watt RGBW LED Par with double bracket for easy floor positioning, suitable for indoor venues. It has a 25° fixed beam angle and is equipped with 0 - 100 % dimmer and 0 - 20 Hz strobe function, perfectly suitable for colour mixing on stage. The Club Par 12/4 RGBW is manually and DMX controllable in either Manual, Auto run and Sound-controlled mode with many available built-in programs. It comes with a 1.5 m power cable.

仕様

Source
Light Source Type
LED
Light Source Quantity
12
Light Source Power
8 W
LED Colour Type
RGBW
Refresh Rate
1200 Hz
Illuminance @ 2 m
5400 lx
Luminous Flux (Total)
3200 lm

Optical
Beam Angle (Circular)
25°

Control and Programming
Control Mode
DMX, Manual, Sound, Stand Alone
DMX Channels
4, 9
Protocols
DMX
Display
7-segment

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

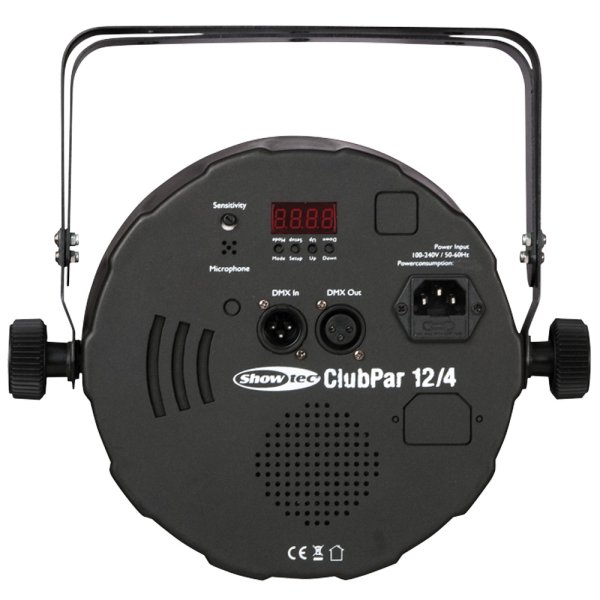

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
78 W
Power Connector In
IEC
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
290 mm
Width (mm)
270 mm
Height (mm)
110 mm
Weight
2.2 kg
IP Rating
IP20 (indoor use only)
Housing
Plastic
Colour
Black

Product Properties
Cooling
Axial fan

Rigging
Mounting Options
Clamp, Surface

Thermal Specifications
Maximum Ambient Temperature
40 °C

Included Items
Included Cables
IEC cable
Included Accessories
User Manual
Included Rigging
Bracket
