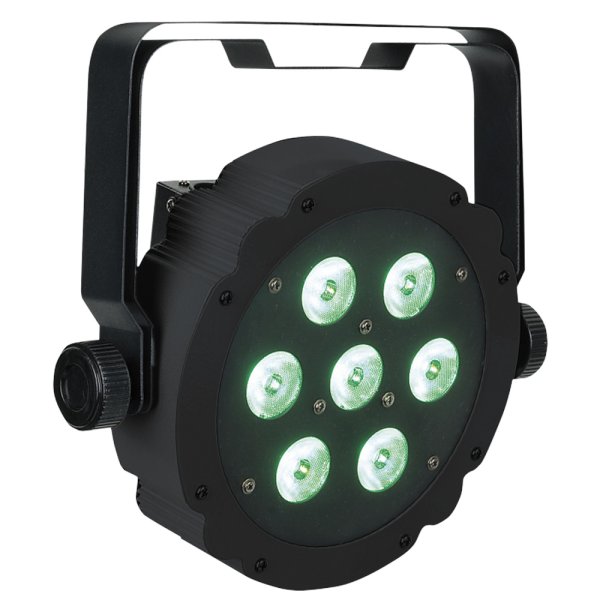

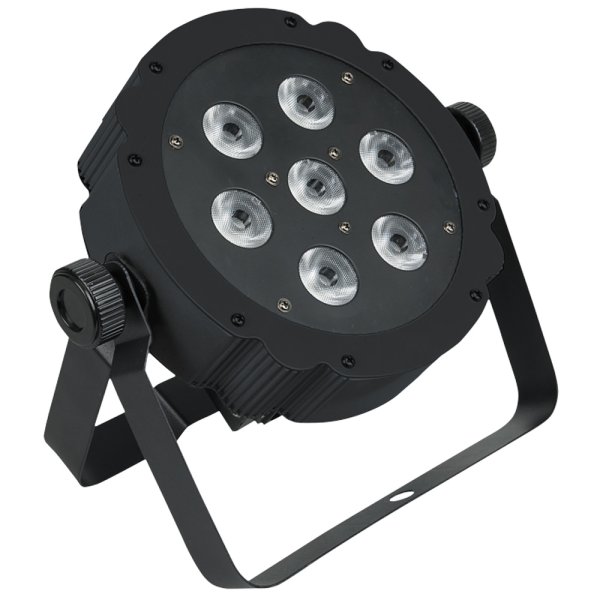

HIGHLITE Showtec Compact Par 7 Tri RGB - Black [42579v]

Compact 7x 3 W RGB LED Par
Double bracket for easy floor positioning
40° fixed beam angle
Dimmer and strobe function
Manual, DMX and Master/Slave control
The Showtec Compact Par 7 Tri is a compact 7x 3 watt RGB LED Par with double bracket for easy floor positioning, suitable for indoor venues. It has a 40° fixed beam angle and features a 0 - 100 % dimmer and 0 - 20 Hz strobe function, perfectly suitable for short-throw colour mixing. The Compact Par 7 Tri can be controlled manually, via DMX and Master/Slave in either Manual, Auto run, or Sound-controlled mode with many available built-in programs. Its design fits in every setting with either black and grey housing.

仕様

Source
Light Source Type
LED
Light Source Quantity
7
Light Source Power
3 W
LED Colour Type
RGB
Refresh Rate
3900 Hz
Illuminance @ 2 m
1772 lx
Luminous Flux (Total)
2685 lm

Optical
Beam Angle (Circular)
40°

Control and Programming
Control Mode
Auto, Built-in Program, DMX, Master Slave, Sound
DMX Channels
3, 4, 8
Protocols
DMX

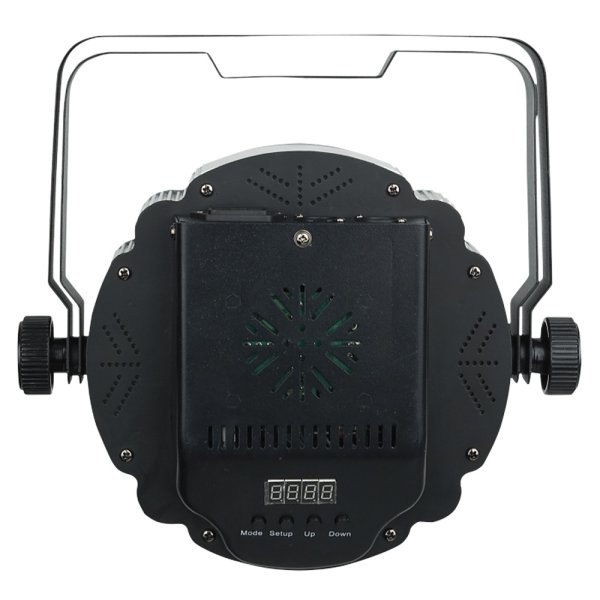

Display
7-segment

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
28 W

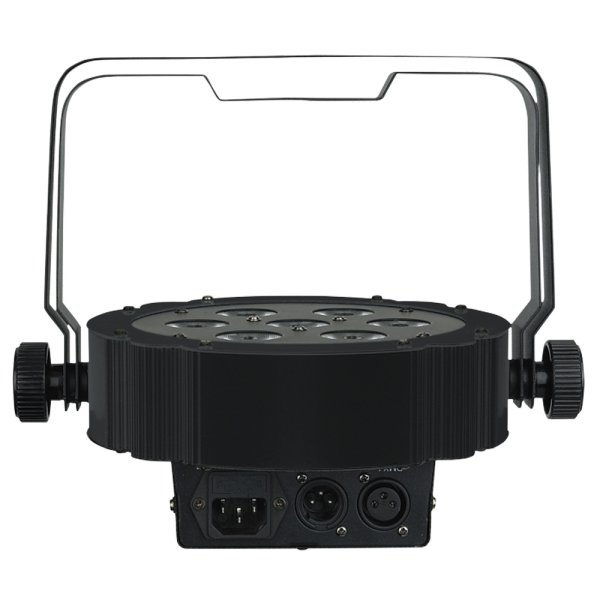

Power Connector In
IEC
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
275 mm
Width (mm)
95 mm
Height (mm)
256 mm
Weight
2.2 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
IEC cable
Included Accessories
User Manual
Included Rigging
Bracket
