HIGHLITE Showtec Compact Par 18 MKII RGB - Black [42592]

Showtec Compact Par 18 MKII. Productcode: 42592. from Highlite International on Vimeo.

Compact 18x 3 W RGB LED Par
Double bracket for easy floor positioning
Dimmer and strobe function
Manual, DMX and Master/Slave control
Auto run and Sound-controlled mode

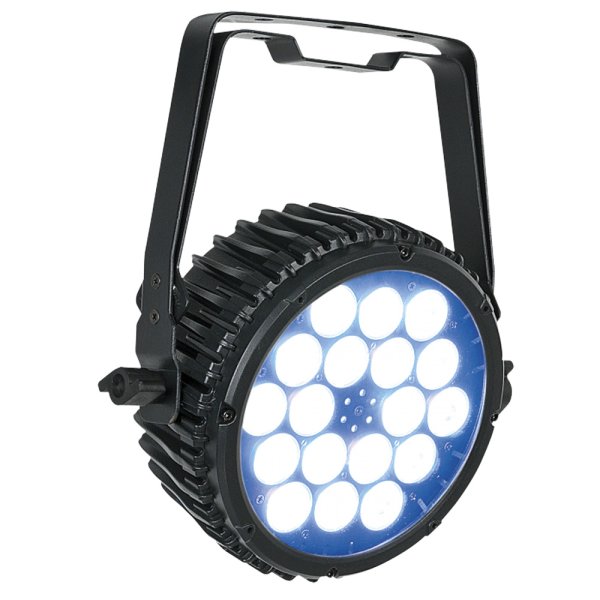

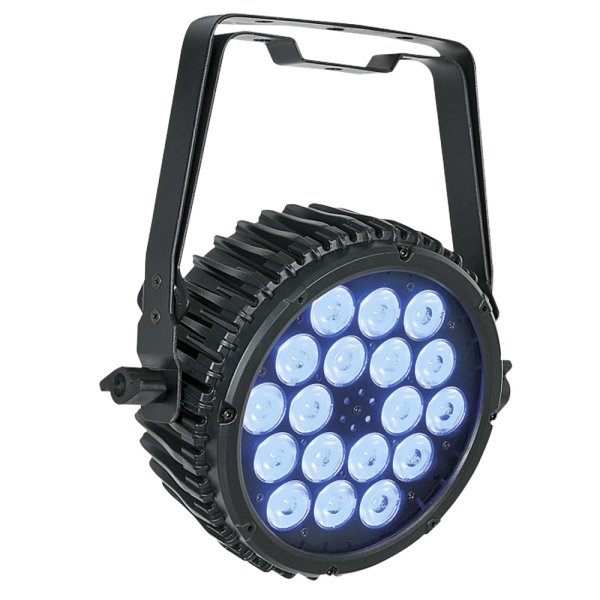

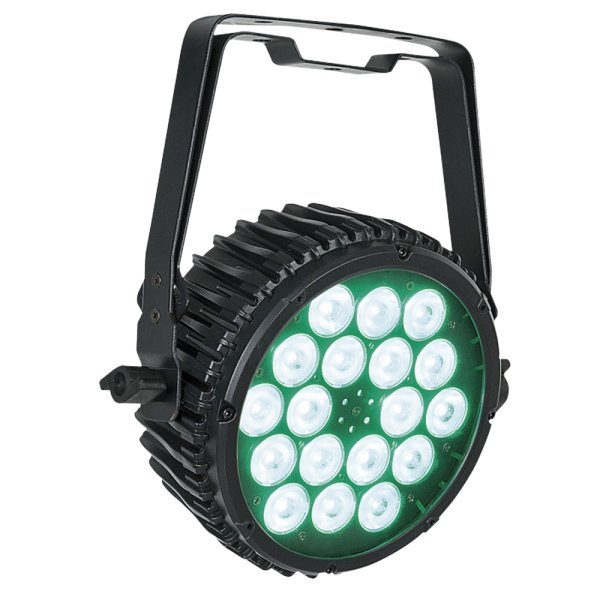

The Showtec Compact Par 18 MKII is a compact 18x 3 watt RGB LED Par with silent and flicker free operations, suitable for studio applications. It has a 28° fixed beam angle and features 0 - 100 % dimmer and 0 - 20 Hz strobe effects, perfectly suitable for short-throw colour mixing. The Compact Par 18 MKII is equipped with double bracket for easy floor positioning and fit to easily link up to 15 units. Its design fits in every setting with either black and white housing.

仕様

Source
Light Source Type
LED
Light Source Quantity
18
Light Source Power
3 W
LED Colour Type
RGB
Refresh Rate
7800 Hz
Illuminance @ 2 m
3112 lx
Luminous Flux (Total)
2323 lm

Optical
Beam Angle (Circular)
28°

Control and Programming
Control Mode
Auto, Built-in Program, DMX, Master Slave, Sound
DMX Channels
1, 3, 4, 6
Protocols
DMX
Display
7-segment

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

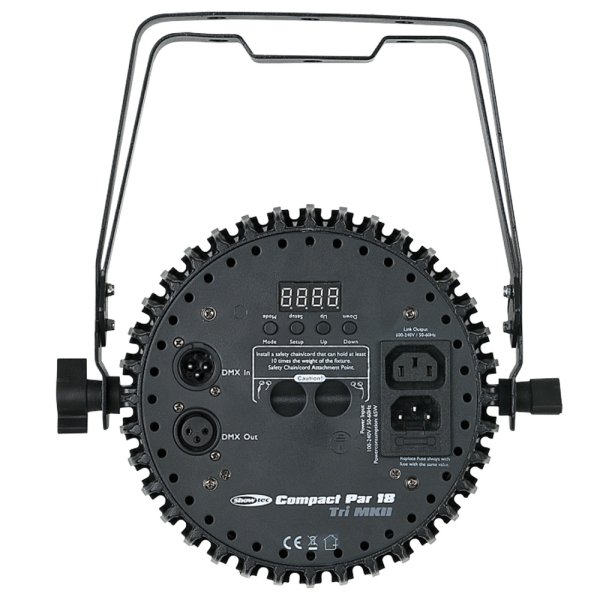

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
60 W
Power Connector In
IEC
Power Connector Out
IEC
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
250 mm
Width (mm)
290 mm
Height (mm)
96 mm
Weight
3 kg
IP Rating
IP20 (indoor use only)
Housing
Metal
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
IEC cable
Included Accessories
User Manual
Included Rigging
Bracket
