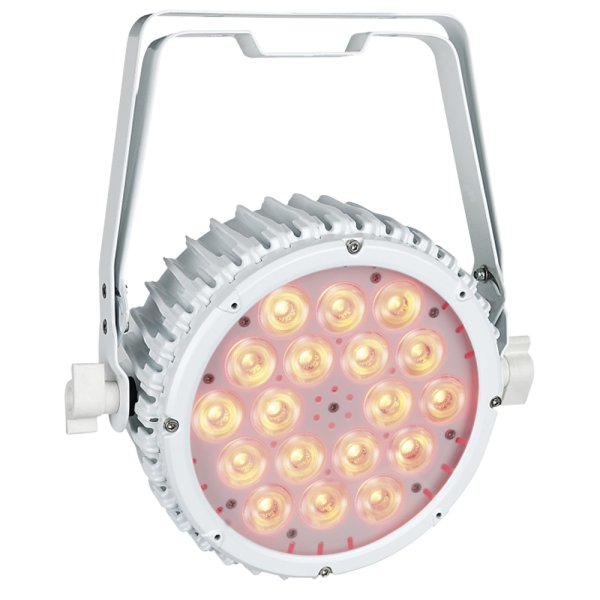

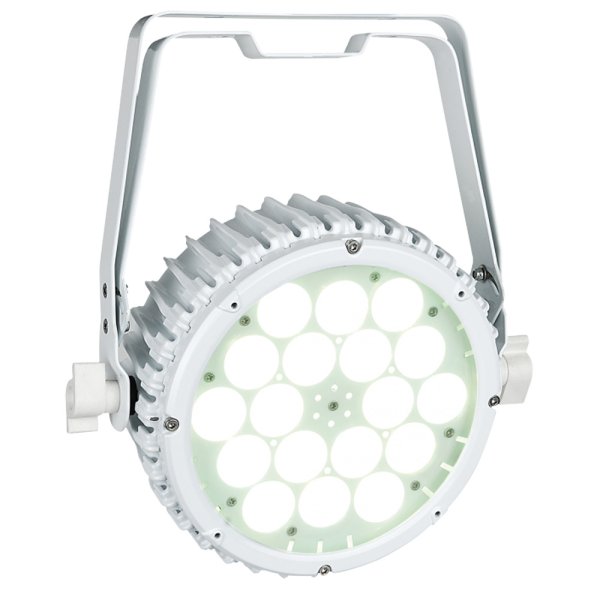

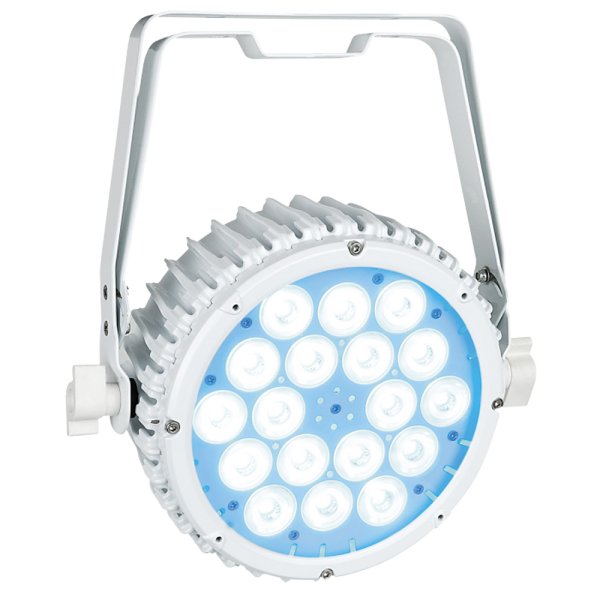

HIGHLITE Showtec Compact Par 18 MKII RGB - White [42592W]

Showtec Compact Par 18 MKII. Productcode: 42592. from Highlite International on Vimeo.

Compact 18x 3 W RGB LED Par
Double bracket for easy floor positioning
Dimmer and strobe function
Manual, DMX and Master/Slave control
Auto run and Sound-controlled mode

仕様

Source
Light Source Type
LED
Light Source Quantity
18
Light Source Power
3 W
LED Colour Type
RGB
Refresh Rate
7800 Hz
Illuminance @ 2 m
3112 lx
Luminous Flux (Total)
2323 lm

Optical
Beam Angle (Circular)
28°

Control and Programming
Control Mode
DMX
DMX Channels
1, 3, 4, 6
Protocols
DMX
Display
7-segment

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

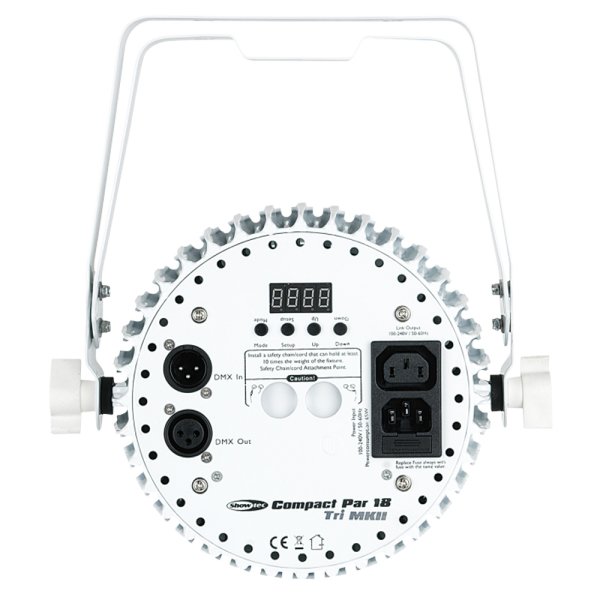

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
60 W
Power Connector In
IEC
Power Connector Out
IEC
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
250 mm
Width (mm)
290 mm
Height (mm)
96 mm
Weight
3 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
White

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
IEC cable
Included Accessories
User Manual
Included Rigging
Bracket
