HIGHLITE Showtec Compact Par 18 Q4 RGBW - Black [42589]

Compact Par 18 Q4. Order code 42589 from Highlite International on Vimeo.

Compact 18x 7 W RGBW LED Par

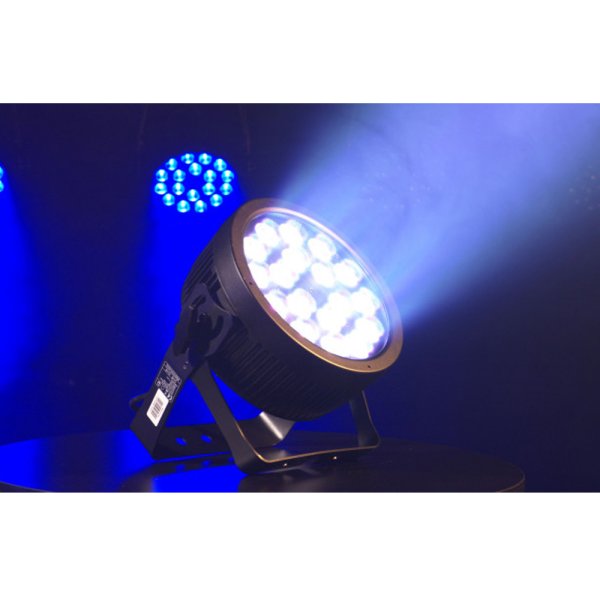

Double bracket for easy floor positioning
Narrow 15° fixed beam angle
Dimmer and strobe function
Manual, DMX and Master/Slave control

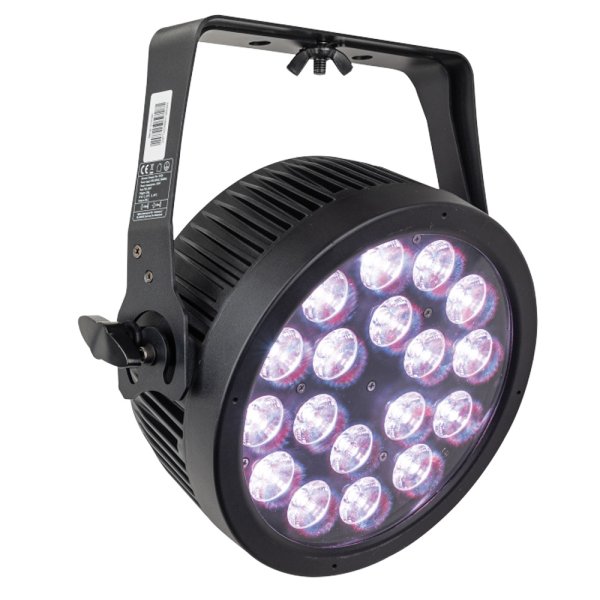

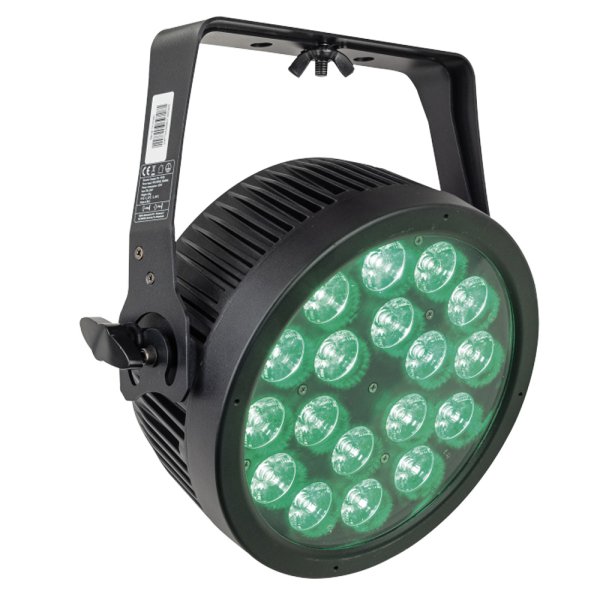

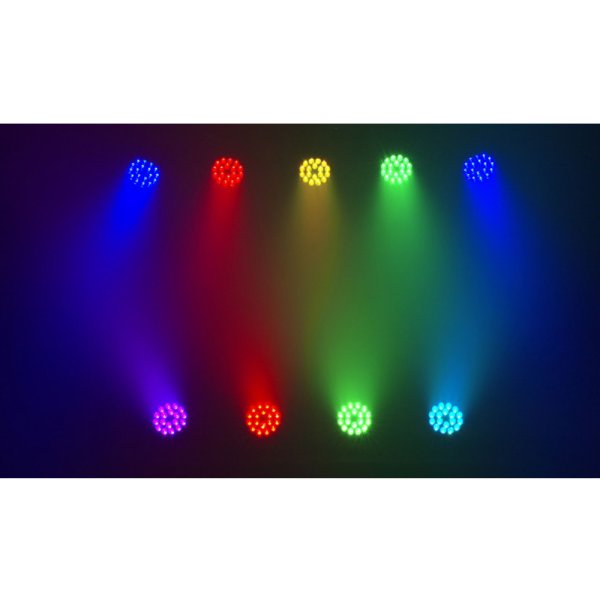

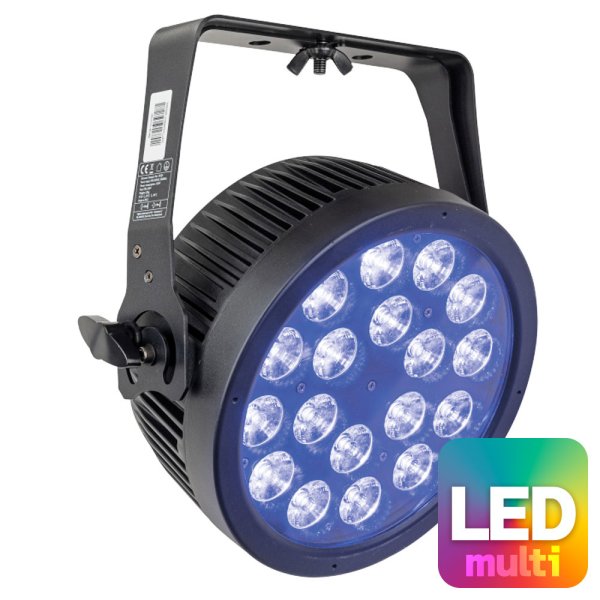

The Showtec Compact Par 18 Q4 is a compact 18x 7 watt RGBW LED Par with double bracket for easy floor positioning, suitable for indoor venues. It has a 15° fixed beam angle and features 0 - 100 % dimmer and 20 Hz strobe effects, perfectly suitable for short-throw colour mixing. The Compact Par 18 Q4 can be controlled manually, via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode with built-in programs. Its design fits in every setting with either black and white housing. A dedicated filter frame holder, filter frame, and power cable are included.

仕様

Source
Light Source Type
LED
Light Source Quantity
18
Light Source Power
7 W
LED Colour Type
RGBW
Refresh Rate
12000 Hz
Illuminance @ 2 m
10000 lx
Luminous Flux (Total)
4997 lm

Optical
Beam Angle (Circular)
15°

Control and Programming
Control Mode
Auto, DMX, Manual
DMX Channels
4, 6, 10
Protocols
DMX
Display
LCD

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

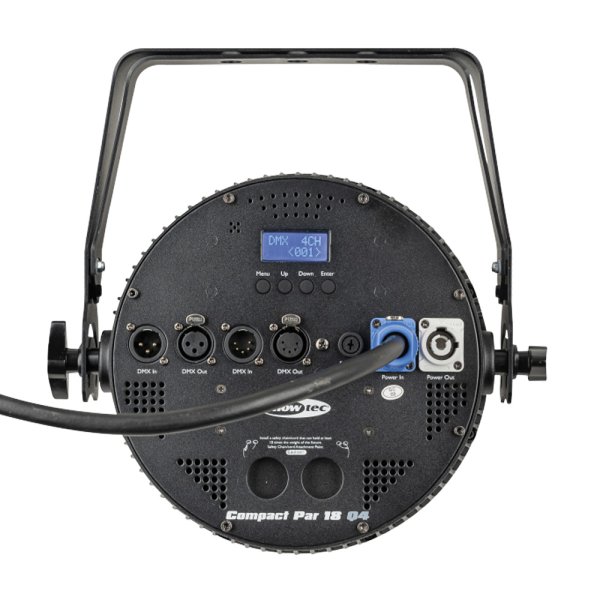

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
132 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
300 mm
Width (mm)
131 mm
Height (mm)
313 mm
Weight
5.2 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
powerCON cable
Included Accessories
User Manual
Included Rigging
Bracket
