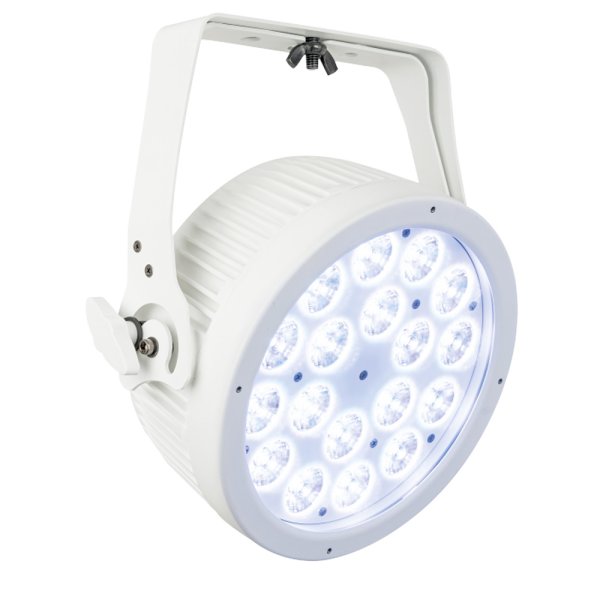

HIGHLITE Showtec Compact Par 18 Q4 RGBW - White [42588t]

Compact Par 18 Q4. Order code 42589 from Highlite International on Vimeo.

Compact 18x 7 W RGBW LED Par
Double bracket for easy floor positioning
Narrow 15° fixed beam angle
Dimmer and strobe function
Manual, DMX and Master/Slave control
The Showtec Compact Par 18 Q4 is a powerful Parcan equipped with 18x 7 W RGBW LEDs. Due to its optimized lenses, it produces a bright beam of nice whites and vivid colours for excellent colour mixing capabilities. Its fixed 15° beam angle, dimmer, strobe and common connectors enable a perfect fit in any gig on tour. The Compact Par 18 Q4 is controllable either manually and via DMX through a 3 and 5-pin XLR. A dedicated filter frame holder, filter frame and power cable are included.

Please note that there is only a suitable barndoor available in black.

仕様

Source
Light Source Type
LED
Light Source Quantity
18
Light Source Power
7 W
LED Colour Type
RGBW
Refresh Rate
12000 Hz
Illuminance @ 2 m
10000 lx
Luminous Flux (Total)
4997 lm

Optical
Beam Angle (Circular)
15°

Control and Programming
Control Mode
Auto, DMX, Manual
DMX Channels
4, 6, 10
Protocols
DMX
Display
LCD

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
132 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
300 mm
Width (mm)
131 mm
Height (mm)
313 mm
Weight
5.2 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
White

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
Power Pro Cable
Included Accessories
User Manual
Included Rigging
Bracket

参照

■メーカーサイト
https://www.highlite.com/en/products/entertainment-lighting/spots/spots-indoor/42588-compact-par-18-q4.html
