HIGHLITE Showtec Luna Par 60 Q4 RGBW [43321]

The Power Of Entertainment - Showtec Luna Par 60 and 120 Q4. Order Codes 43321 and 43322 from Highlite International on Vimeo.

60 W RGBW COB LED Spot
Stylish design with flat backside for uplighting position
90° beam angle and included 25° diffuser
Dimmer and strobe function
Controllable via DMX and Master/Slave

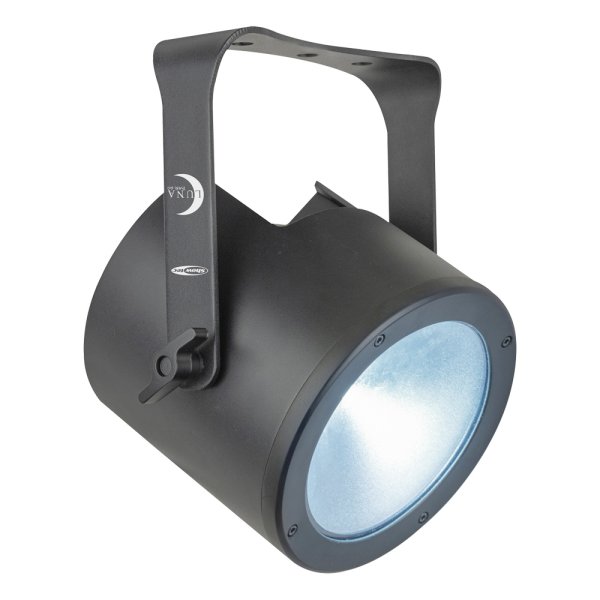

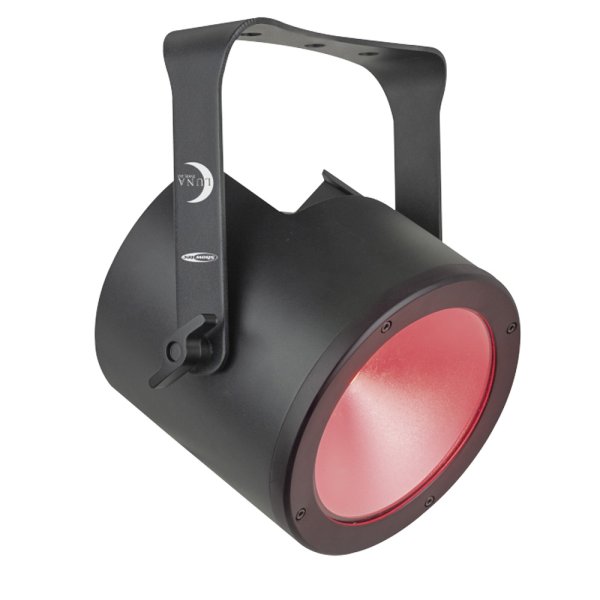

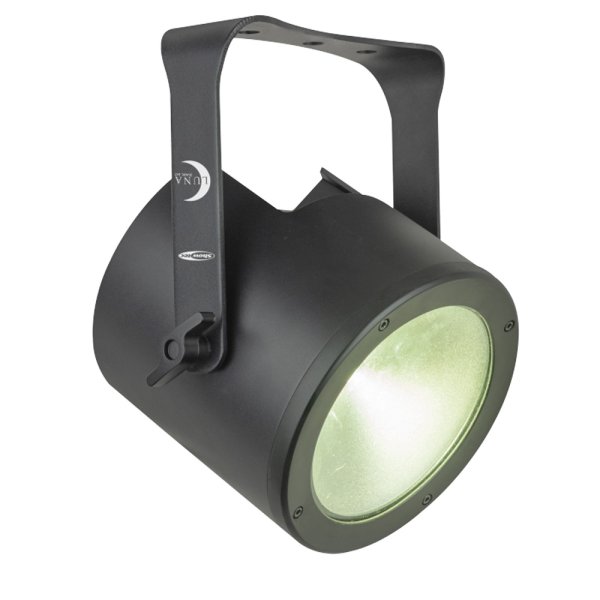

The Showtec Luna Par 60 Q4 is a stylish 60 watt RGBW COB LED Spot with a wide 90° beam angle, suitable as washlight and spotlight for indoor applications. A diffusor is included for narrowing its beam angle to a 25° spotlight. The Luna Par 60 Q4 can be controlled manually, via DMX and Master/Slave in Manual, Auto run and Sound-controlled mode with many built-in programs. Equipped with a Red, Green, Blue and White colour engine, 0 - 100 % dimmer and 0 - 20 Hz strobe function, you can create vivid colourful effects, from subtle pastels to punchy saturates, perfectly suitable for colour mixing on stage or for lighting objects.

仕様

Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
60 W
LED Colour Type
RGBW
Refresh Rate
1000 Hz
Luminous Flux (Total)
3700 lm
Luminous Flux (Red)
1085 lm
Luminous Flux (Green)
1390 lm
Luminous Flux (Blue)
435 lm
Luminous Flux (White)
1535 lm
CCT
8000 K

Optical
Beam Angle (Circular)
90°

Control and Programming
Control Mode
DMX, Manual, Sound, Stand Alone
DMX Channels
4, 6, 11
Protocols
DMX

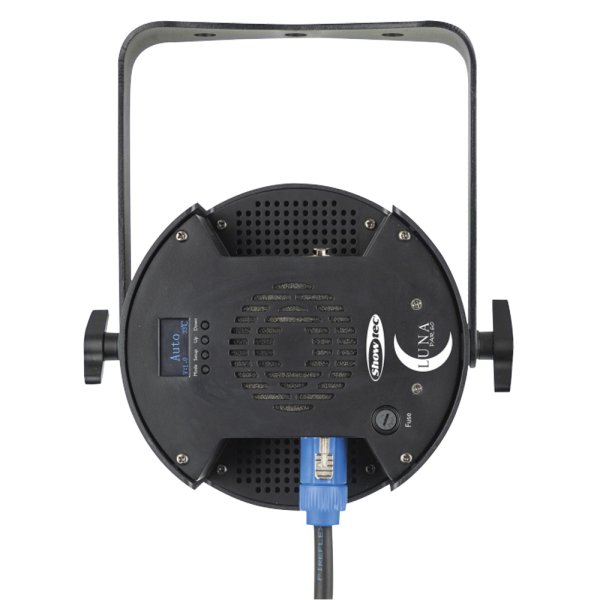

Display
LCD

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
65 W

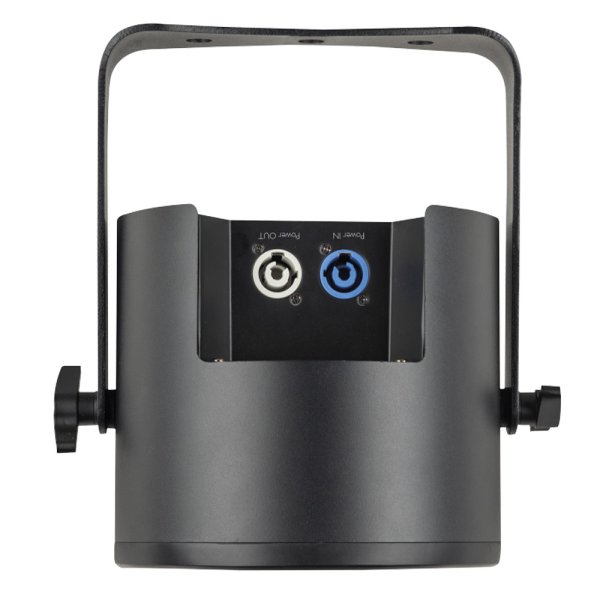

Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
1254 mm
Width (mm)
229 mm
Height (mm)
152 mm
Weight
2.1 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black

Product Properties
Cooling
Axial fan

Rigging
Mounting Options
Clamp

Thermal Specifications
Maximum Ambient Temperature
40 °C

Included Items
Included Cables
Power Pro Cable
Included Opticals
Diffusers
Included Accessories
User Manual
Included Rigging
Bracket
