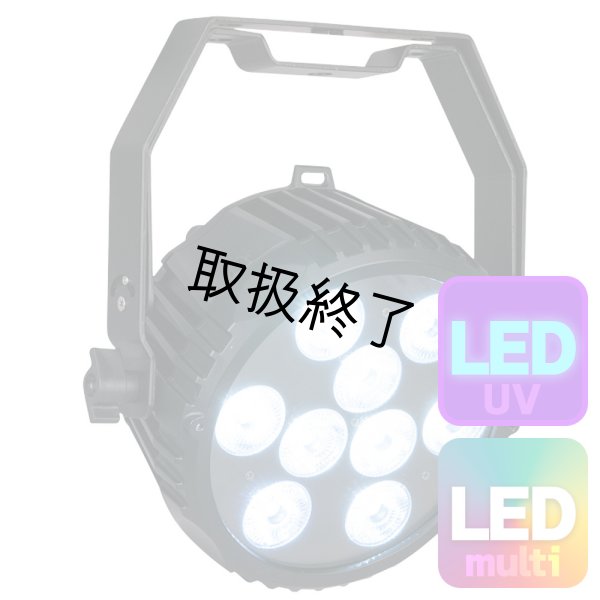

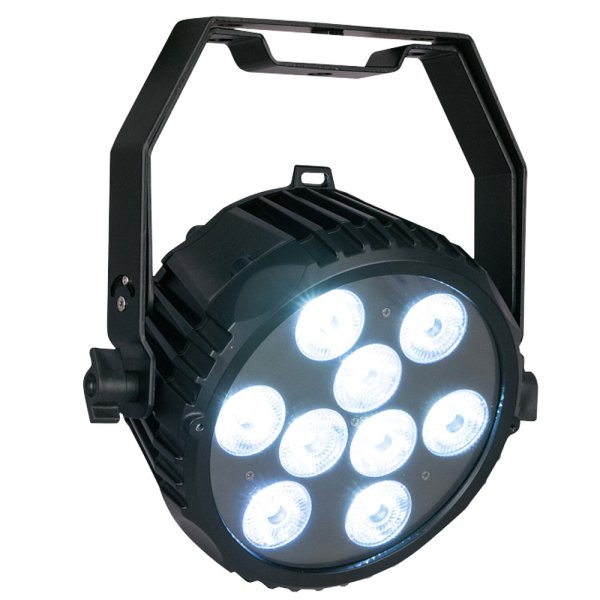

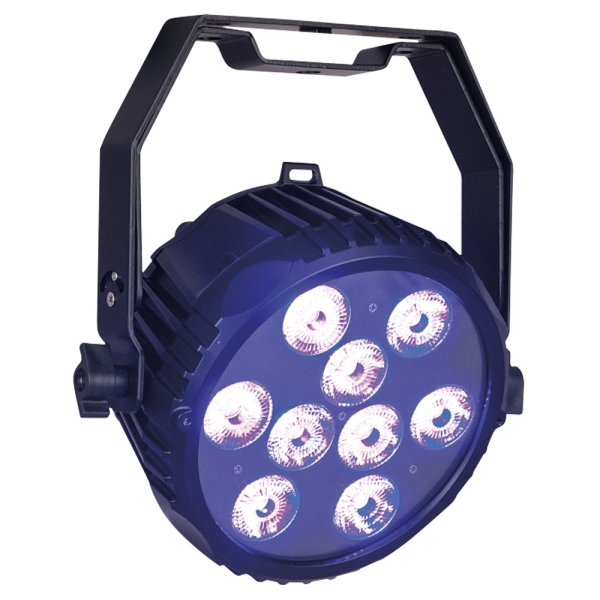

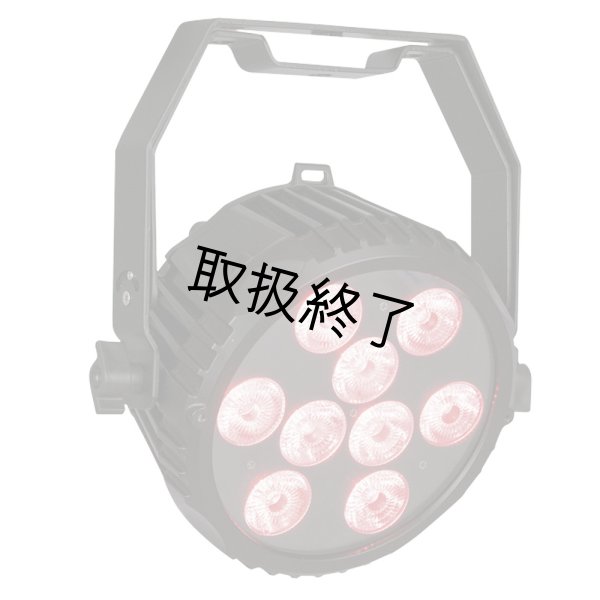

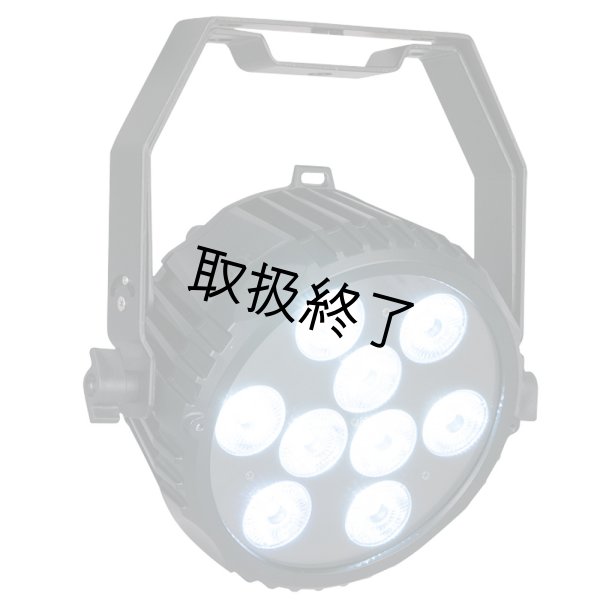

HIGHLITE Showtec Power Spot 9 Q6 Tour RGBW-UV [42576v]

9x 12 W RGBWA-UV LED Spot
Silent, fanless operation

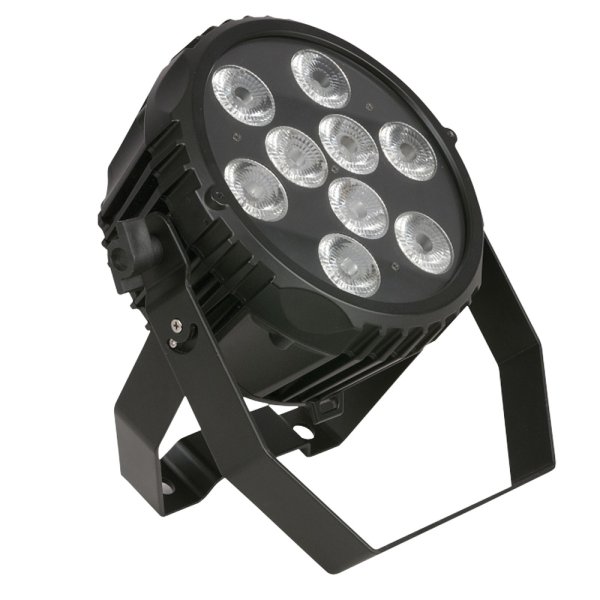

Double bracket for easy floor positioning
Flicker-free
Dimmer and strobe function
The Showtec Power Spot 9 Q6 Tour is a 9x 12 watt RGBWA + UV LED Spot with silent operation and free from flickering, suitable for indoor venues. This fixture has Power Pro and 3- and 5-pin DMX in- and outputs. Its double bracket enables easy floor positioning and makes it fit for both fixed and mobile applications. Equipped with 6 colours (Red, Green, Blue, White, Amber and Blacklight), the Power Spot 9 Q6 creates a beautiful, bright output, from subtle pastels to punchy saturates, blacklight and nearly any temperature of white. Its colour engine, 0 - 100 % dimmer and 0 - 20 Hz strobe functions are controllable via DMX and Master/Slave in either Manual, Auto run, or Sound-controlled mode with many available built-in programs. A 1.5 m power cable is included.

仕様

Source
Light Source Type
LED
Light Source Quantity
9
Light Source Power
12 W
LED Colour Type
RGBWAUV
Refresh Rate
7800 Hz
Illuminance @ 2 m
12050 lx
Luminous Flux (Total)
2346 lm

Optical
Beam Angle (Circular)
18°

Control and Programming
Control Mode
Auto, Built-in Program, DMX, Master Slave, Static Dimmer
DMX Channels
6, 8, 10
Protocols
DMX
Display
LCD

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
68 W

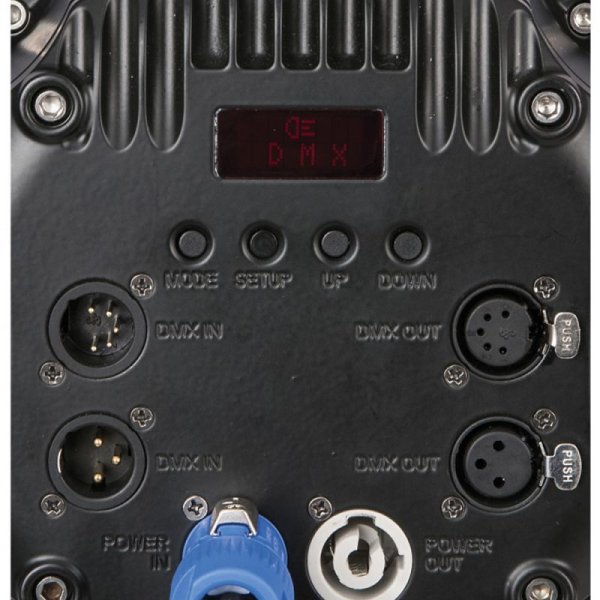

Power Connector In
powerCON Blue
Power Connector Out
powerCON Grey
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
264 mm
Width (mm)
113 mm
Height (mm)
294 mm
Weight
2.84 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
powerCON cable
Included Accessories
User Manual
Included Rigging
Bracket

参照

■メーカーサイト
https://www.highlite.com/en/products/entertainment-lighting/spots/spots-indoor/42576-power-spot-9-q6-tour.html
