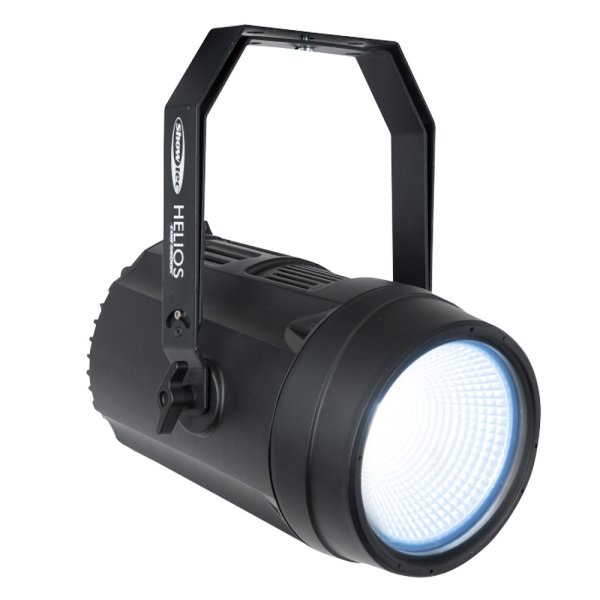

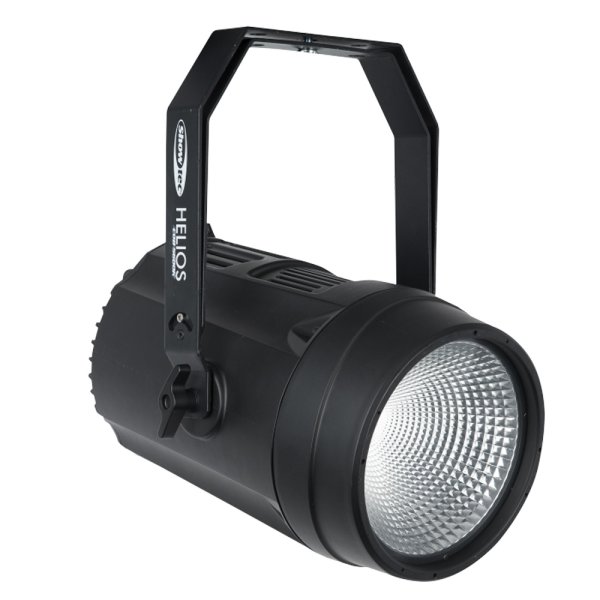

HIGHLITE Showtec Helios 150 COB CW [43723]

Showtec Helios 150 COB 5600K & 4200K. Prodcutcode: 43722 & 43723. from Highlite International on Vimeo.

仕様

DMX Control

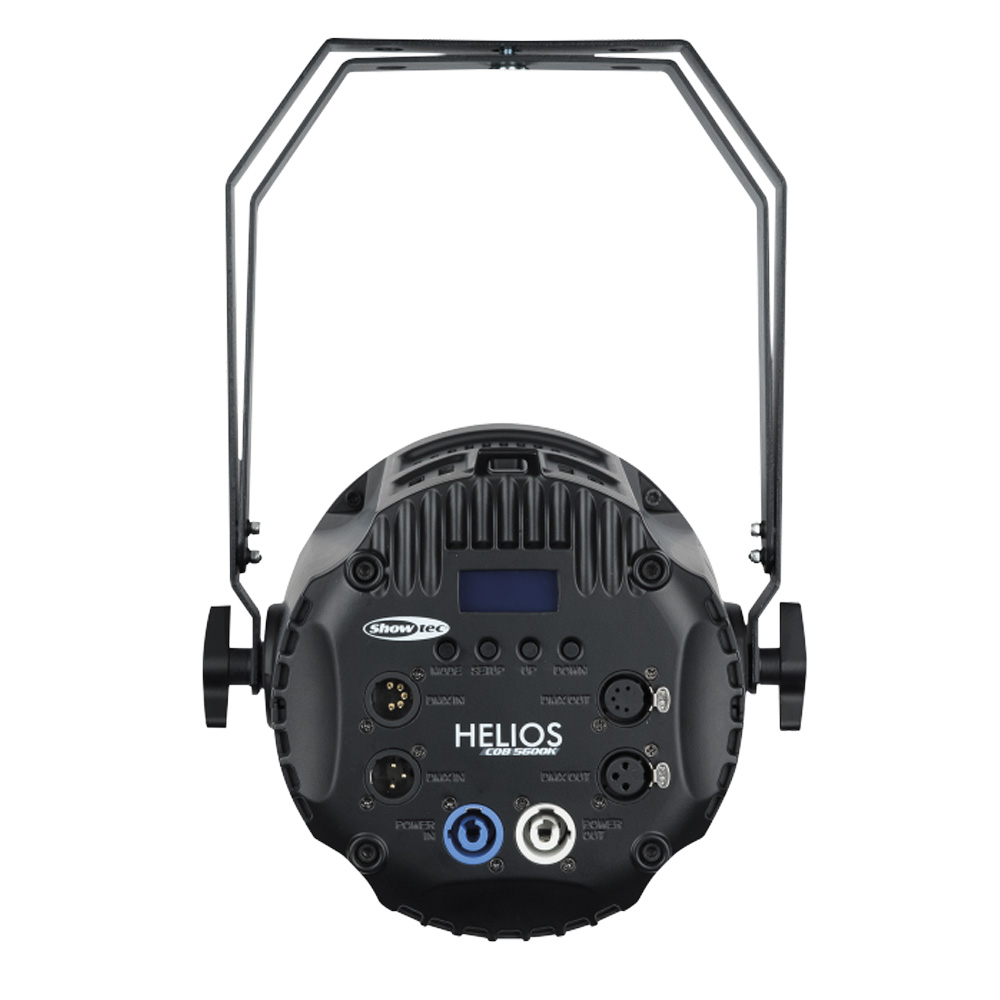

powerCON in and output
3 and 5-pin DMX
CRI >95
The Showtec Helios 150 COB 5600 K is a great replacement for the traditional Ceramic Discharge Metal-halide (CDM) lamp.
The sturdy and roadproof housing contains a high power COB (Chip on Board) LED and provides beautifully bright white light at a colour temperature of 5600 K, ideal for shops, studios and architectural lighting purposes.
Zero to 100 % dimming control as well as full DMX control are standard and for plain setups the Helios COB can operate as a standalone fixture, not requiring DMX. The powerCON in- and output connections allow easy daisy chaining of multiple fixtures. Optional beam filters and barndoors are available too.


Light Source
LED System: 1x 150W COB 5600K
Output: 12850 Lumen
Drive Current: 1000mA
Refresh rate: 12Khz

Electrical
Power Supply: 100-240V AC
Power Consumption: 200W

Control
Control Mode: DMX512
DMX channels: 1, 3

Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Beam Angle: 60°

Physical
Dimensions: 269 x 204 x 437 mm
Weight: 5,2 Kg
Housing: Die cast aluminium
Colour: Black
Power Connectors: Pro Power in- & output
Data Connectors: XLR 3 & 5 pole
Cooling: Fan, Temperature controlled

Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
