HIGHLITE Showtec Cameleon Spot Q4 RGBW [42673]
商品詳細
Showtec Cameleon Spot 1. Ordercode: 42673. from Highlite International on Vimeo.
15 W RGBW LED Spot
IP65 (dust and water resistant, fit for outdoor use)
16° fixed beam angle
Dimmer and strobe function
Manual, DMX, IR and Master/Slave control

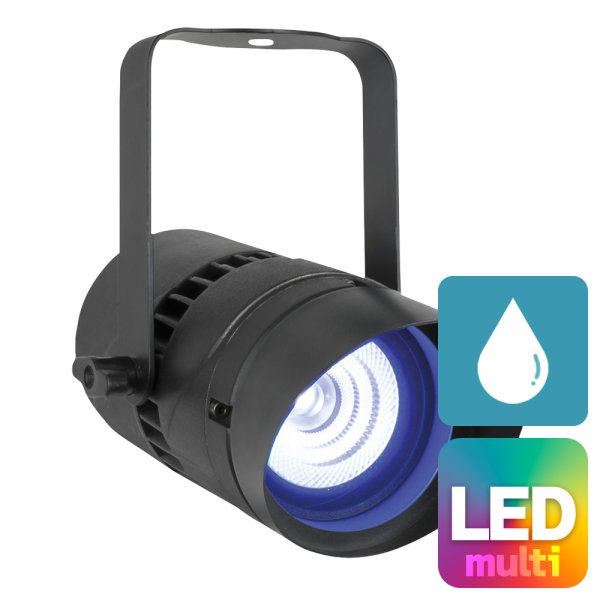

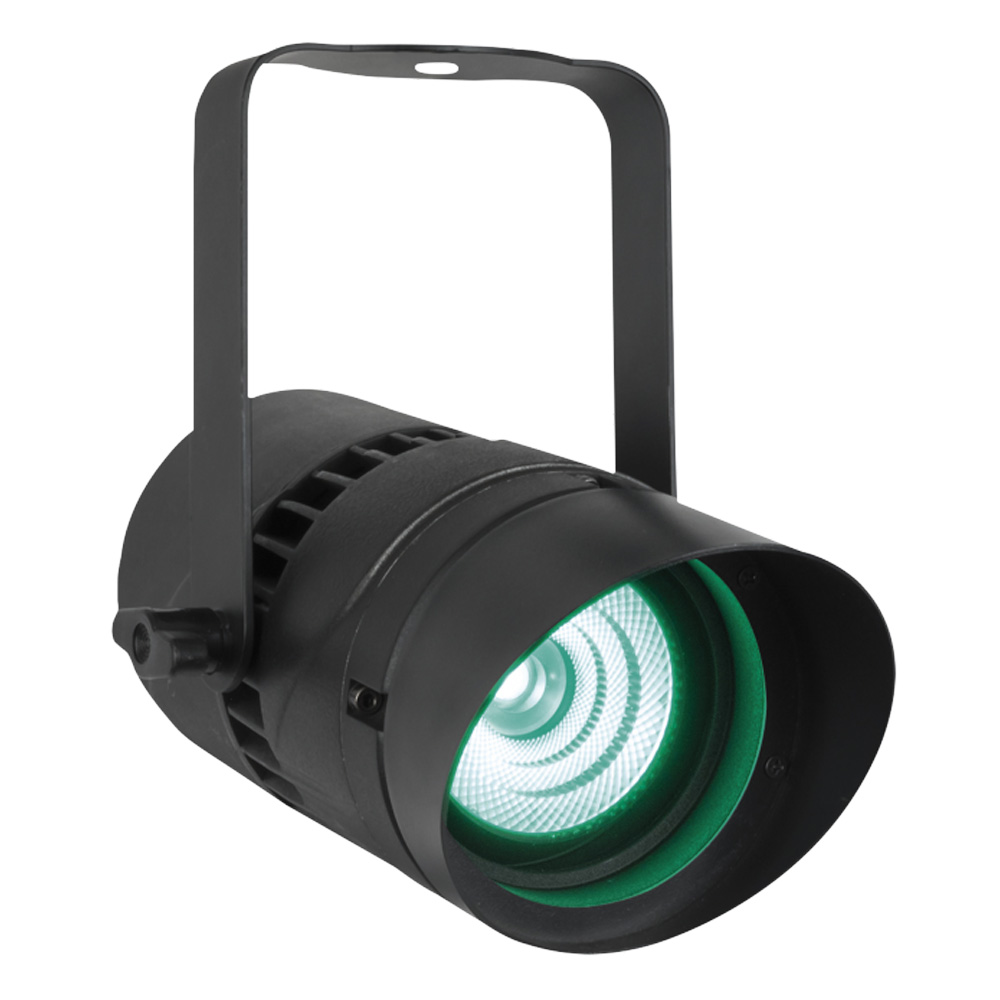

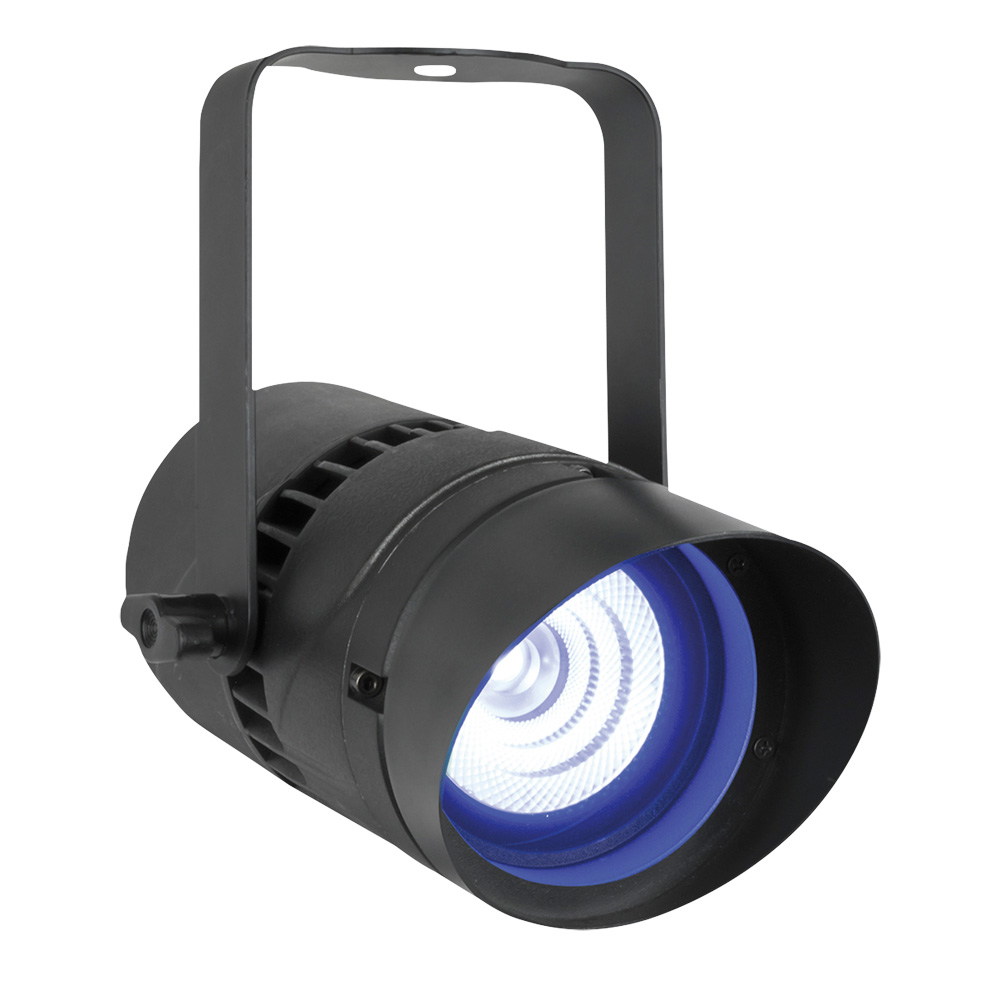

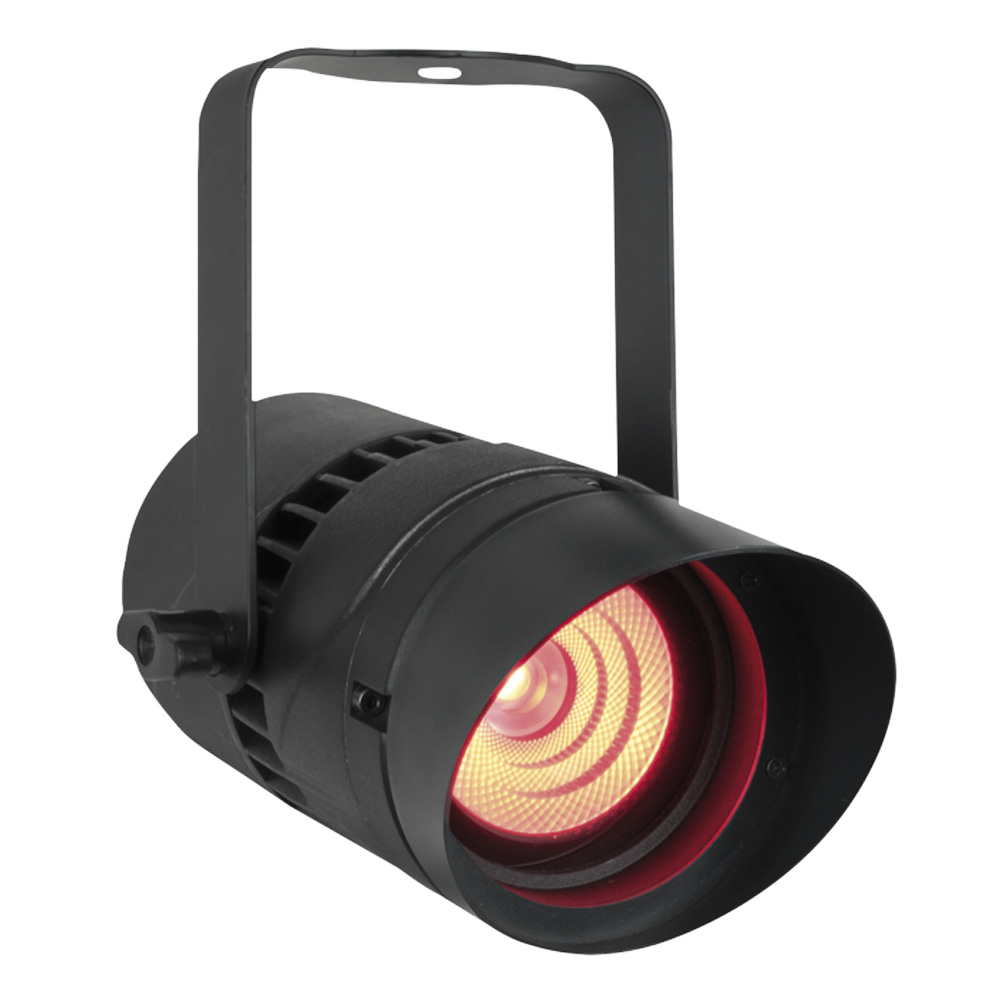

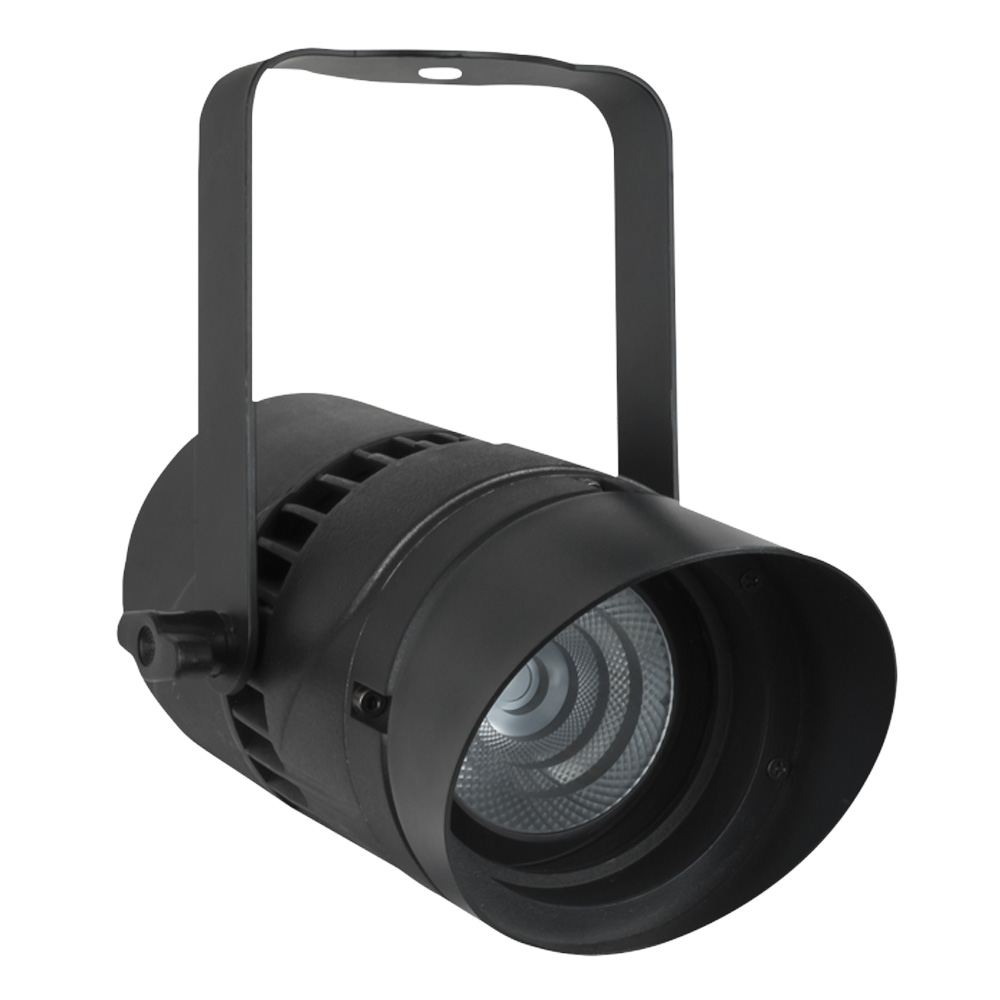

The Showtec Cameleon Spot Q4 is a compact, yet powerful 15 watt RGBW LED Spot with IP65 rating, suitable for indoor and outdoor applications. It has a 16° fixed beam angle and features 0 - 100 % dimmer and 0 - 20 Hz strobe effects. The Cameleon Spot Q4 can be controlled manually, via DMX, IR and Master/Slave in either Manual or Auto run mode with many available built-in programs. It comes with a dedicated IP65 power connector and bracket. An infrared remote is optional.
仕様
SourceLight Source Type
LED
Light Source Quantity
1
Light Source Power
15 W
LED Colour Type
RGBW
Refresh Rate (Min.)
3000 Hz
Refresh Rate (Max.)
12 kHz
Luminous Flux (Total)
570 lm
Optical
Beam Angle (Circular)
16°
Control and Programming
Control Mode
Auto, DMX, Master Slave
DMX Channels
4, 6, 10
Protocols
DMX, RDM
Display
OLED
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
20 W
Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection

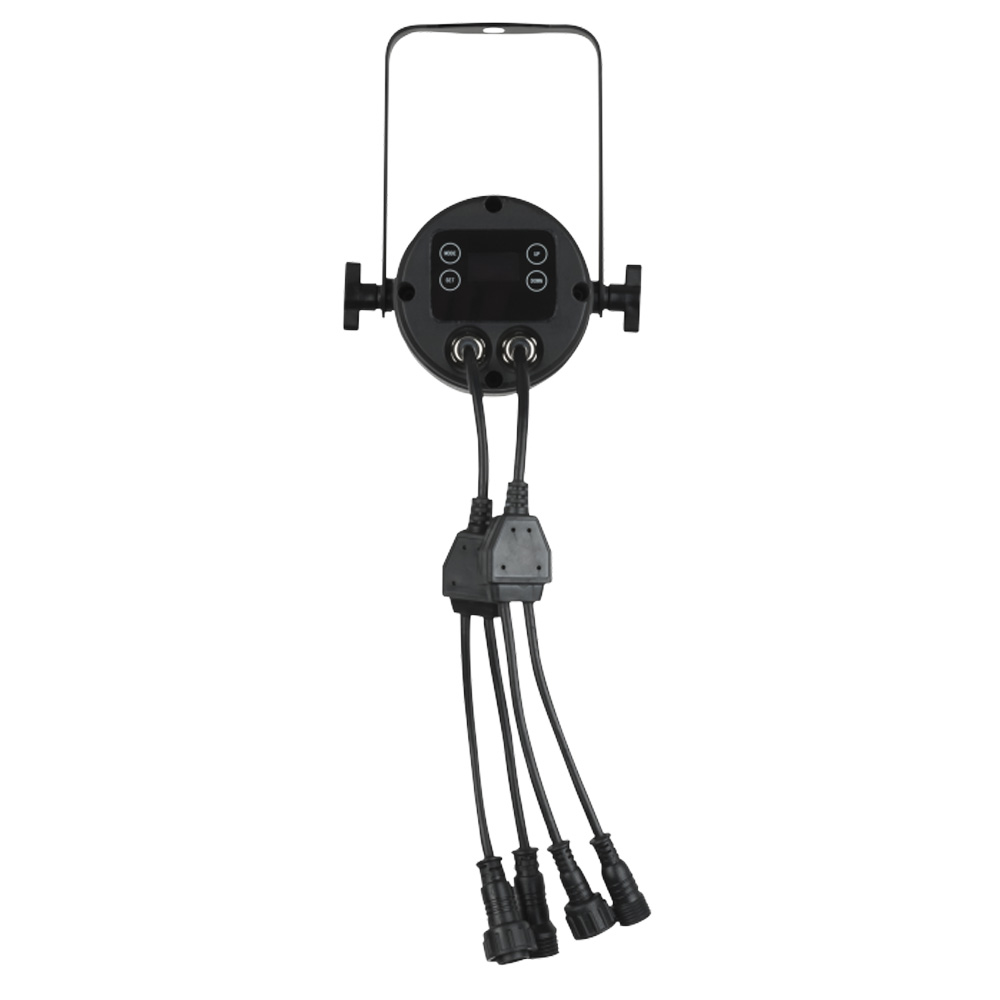

DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
Cable Length
1.5 m
サイズ
Mechanical SpecificationsLength (mm)
155 mm
Width (mm)
235 mm
Height (mm)
195 mm
Weight
2 kg
IP Rating
IP65
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Clamp
Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-5 °C
Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
User Manual
Included Rigging
Bracket
