HIGHLITE Showtec Cameleon Spot 7Q6 Tour RGBWA-UV [42665v]
商品詳細
7x 12 W RGBWA-UV LED Spot
IP65 (dust and water resistant, fit for outdoor use)
15° fixed beam angle
Dimmer and strobe function
Manual, DMX, IR and Master/Slave control

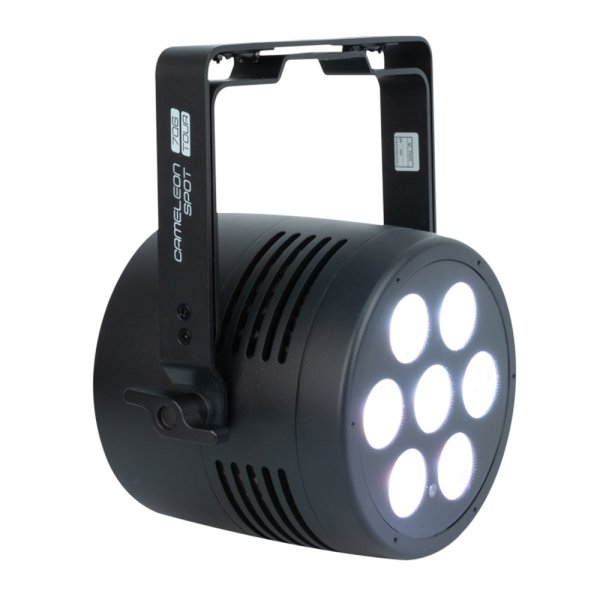

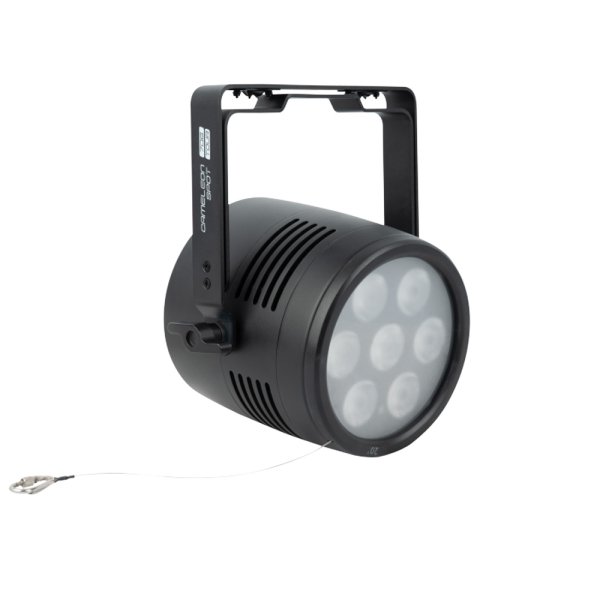

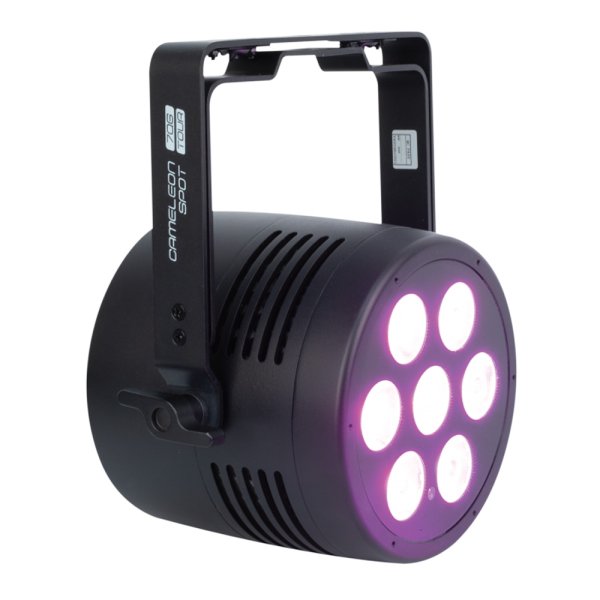

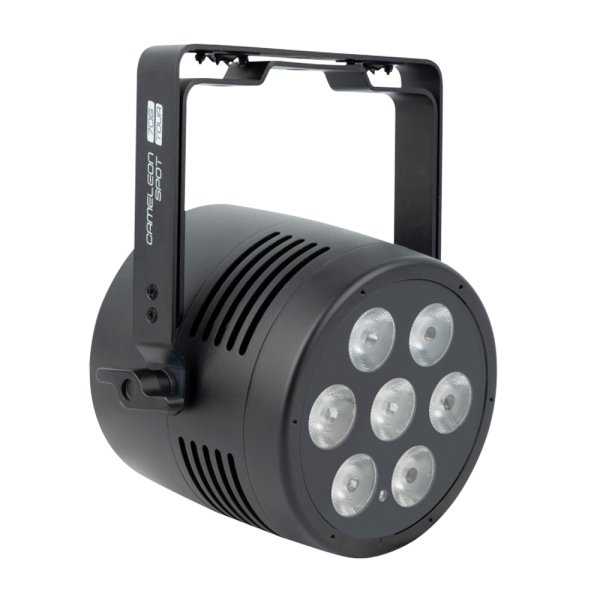

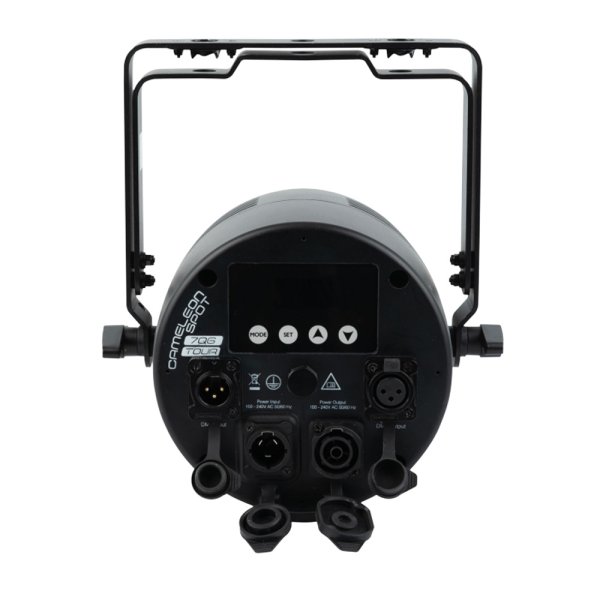

The Showtec Cameleon Spot 7Q6 Tour is a compact 7x 12 watt RGBWA-UV LED spot with IP65 rating, suitable for indoor and outdoor applications. It is small enough to position inside a square truss as an up/down light, has a fixed 15° beam angle and features 0-100 % dimmer and 0-20 Hz strobe effects. The Cameleon Spot 7Q6 Tour can be controlled manually via its OLED display with touch buttons, via DMX, Master/Slave and IR Remote in either Manual or Auto run mode with many available built-in programs. It has IP65-rated Seetronic Power Pro True and 3-pin XLR connectors and a bracket. An infrared remote and 40° beam shaper are optionally available.
Light Source Type
LED
Light Source Quantity
7
Light Source Power
12 W
LED Colour Type
RGBWAUV
Refresh Rate
3000 Hz
Luminous Flux (Total)
1850 lm
Luminous Flux (Red)
500 lm
Luminous Flux (Green)
800 lm
Luminous Flux (Blue)
195 lm
Luminous Flux (White)
725 lm
Luminous Flux (Amber)
575 lm
Luminous Flux (UV)
55 lm
Optical
Beam Angle (Circular)
15°
Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave, Remote
DMX Channels
6, 8, 13
Protocols
DMX, RDM
Display
OLED
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
65 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Length (mm)
225 mm
Width (mm)
160 mm
Height (mm)
242 mm
Weight
3.3 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-5 °C
Included Items
Included Cables
Power Pro True Cable
■メーカーサイト
https://www.highlite.com/en/42665-cameleon-spot-7q6-tour.html
IP65 (dust and water resistant, fit for outdoor use)
15° fixed beam angle
Dimmer and strobe function
Manual, DMX, IR and Master/Slave control
The Showtec Cameleon Spot 7Q6 Tour is a compact 7x 12 watt RGBWA-UV LED spot with IP65 rating, suitable for indoor and outdoor applications. It is small enough to position inside a square truss as an up/down light, has a fixed 15° beam angle and features 0-100 % dimmer and 0-20 Hz strobe effects. The Cameleon Spot 7Q6 Tour can be controlled manually via its OLED display with touch buttons, via DMX, Master/Slave and IR Remote in either Manual or Auto run mode with many available built-in programs. It has IP65-rated Seetronic Power Pro True and 3-pin XLR connectors and a bracket. An infrared remote and 40° beam shaper are optionally available.
仕様
SourceLight Source Type
LED
Light Source Quantity
7
Light Source Power
12 W
LED Colour Type
RGBWAUV
Refresh Rate
3000 Hz
Luminous Flux (Total)
1850 lm
Luminous Flux (Red)
500 lm
Luminous Flux (Green)
800 lm
Luminous Flux (Blue)
195 lm
Luminous Flux (White)
725 lm
Luminous Flux (Amber)
575 lm
Luminous Flux (UV)
55 lm
Optical
Beam Angle (Circular)
15°
Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave, Remote
DMX Channels
6, 8, 13
Protocols
DMX, RDM
Display
OLED
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
65 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
サイズ
Mechanical SpecificationsLength (mm)
225 mm
Width (mm)
160 mm
Height (mm)
242 mm
Weight
3.3 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-5 °C
Included Items
Included Cables
Power Pro True Cable
参照
■メーカーサイト
https://www.highlite.com/en/42665-cameleon-spot-7q6-tour.html
