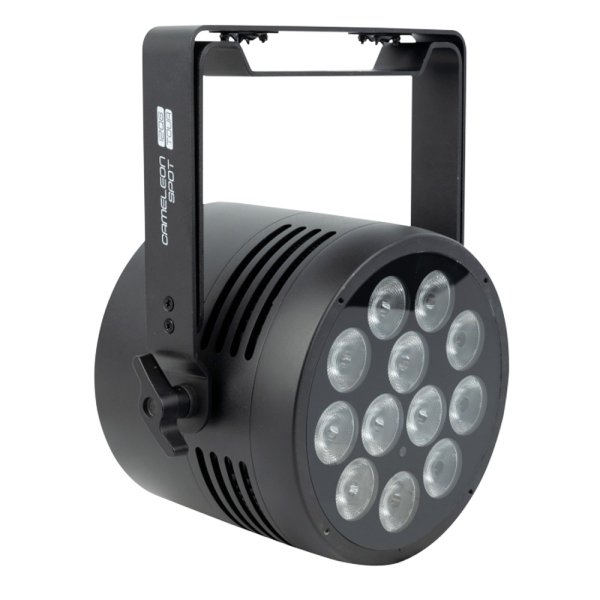

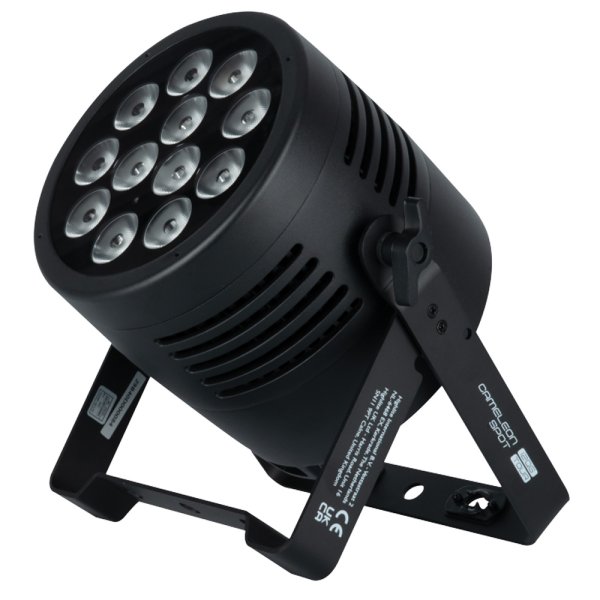

HIGHLITE Showtec Cameleon Spot 12Q6 Tour RGBWA-UV [42666v]

12x 12 W RGBWA-UV LED Spot
IP65 (dust and water resistant, fit for outdoor use)
15° fixed beam angle
Dimmer and strobe function
Manual, DMX, IR and Master/Slave control

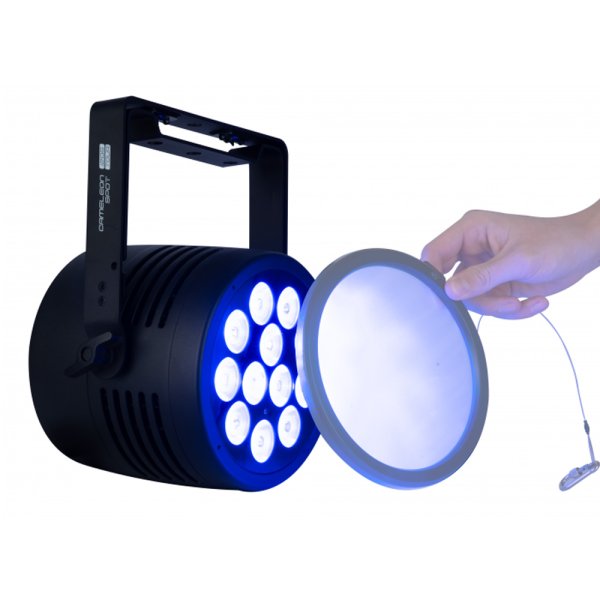

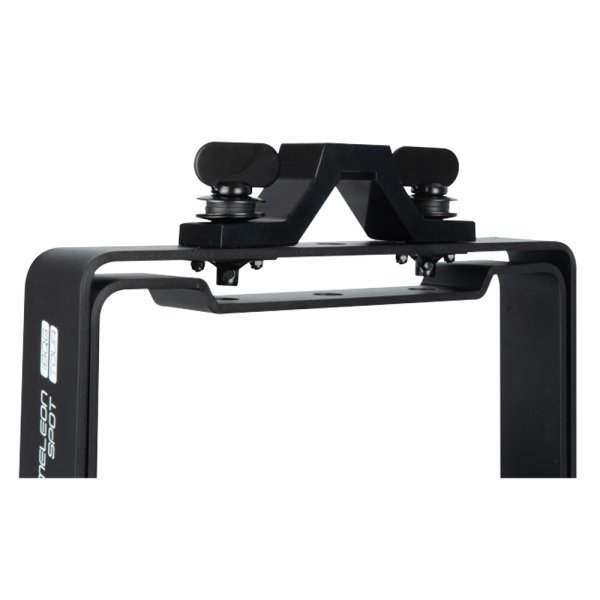

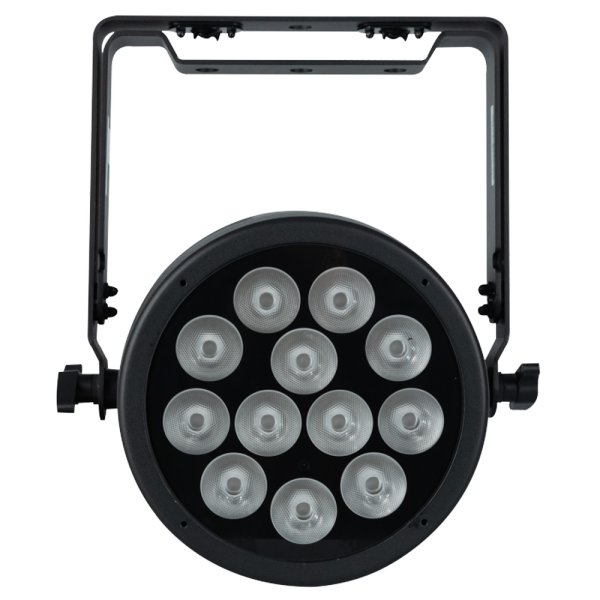

The Showtec Cameleon Spot 12Q6 Tour is a medium-sized 12x 12 watt RGBWA-UV LED spot with IP65 rating, suitable for indoor and outdoor applications. It has a fixed 15° beam angle and features 0-100 % dimmer and 0-20 Hz strobe effects. The Cameleon Spot 12Q6 Tour can be controlled manually via its OLED display with touch buttons, via DMX, Master/Slave and IR Remote in either Manual or Auto run mode with many available built-in programs. It has IP65-rated Seetronic Power Pro True and 3-pin XLR connectors and a bracket. An infrared remote and 40° beam shaper are optionally available.

仕様

Source
Light Source Type
LED
Light Source Quantity
12
Light Source Power
12 W
LED Colour Type
RGBWAUV
Refresh Rate
3000 Hz
Luminous Flux (Total)
3100 lm
Luminous Flux (Red)
700 lm
Luminous Flux (Green)
1300 lm
Luminous Flux (Blue)
300 lm
Luminous Flux (White)
1150 lm
Luminous Flux (Amber)
885 lm
Luminous Flux (UV)
86 lm

Optical
Beam Angle (Circular)
15°

Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave, Remote
DMX Channels
6, 8, 12
Protocols
DMX, RDM
Display
OLED

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

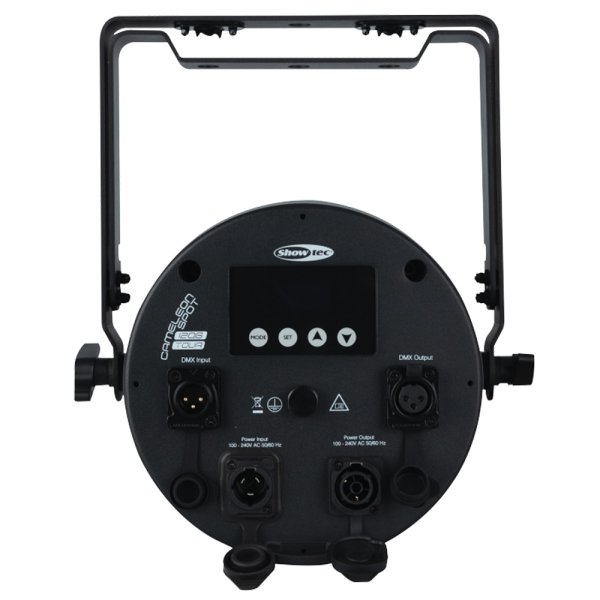

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
110 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Length (mm)
252 mm
Width (mm)
184 mm
Height (mm)
264 mm
Weight
4.3 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-5 °C

Included Items
Included Cables
Power Pro True Cable
