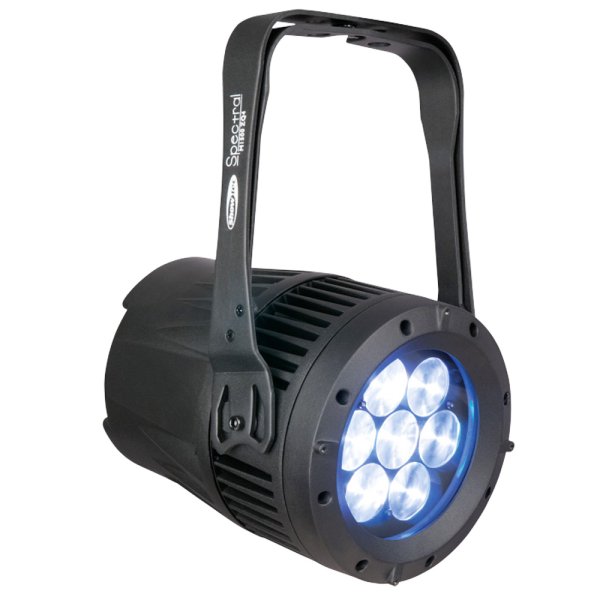

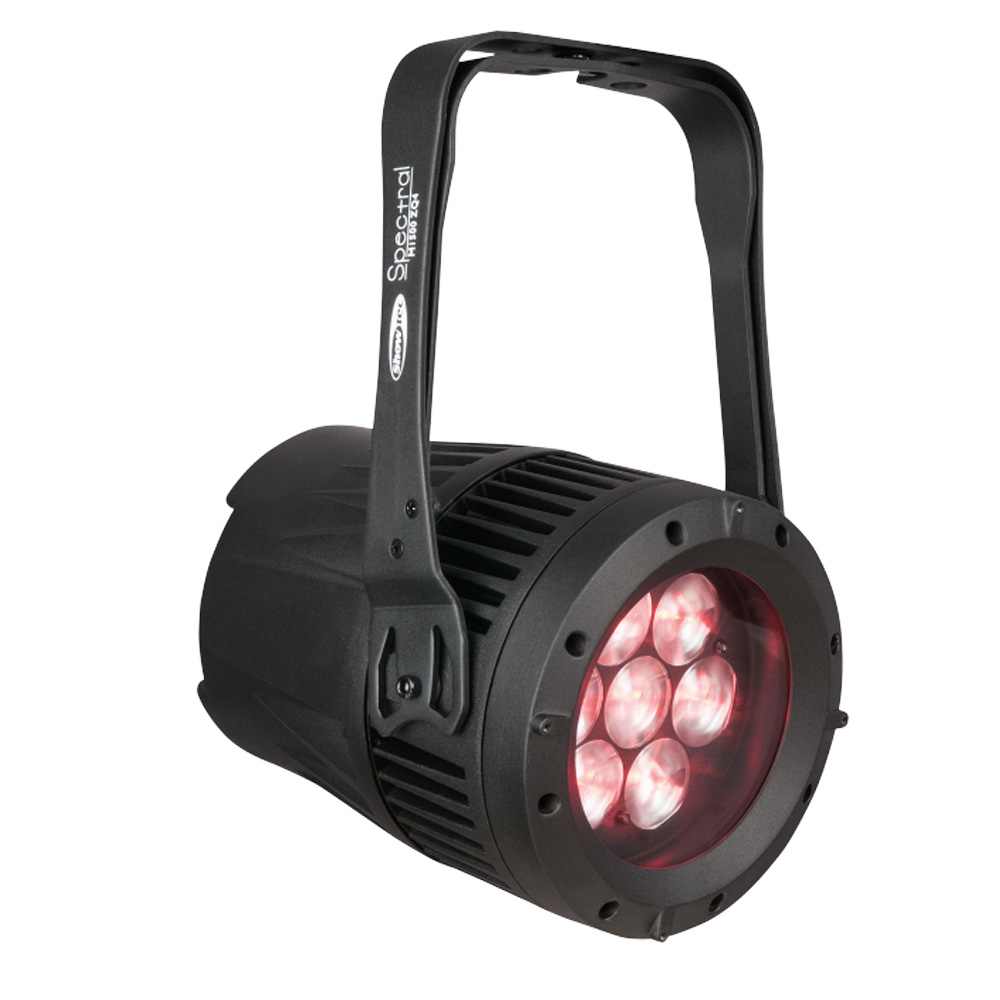

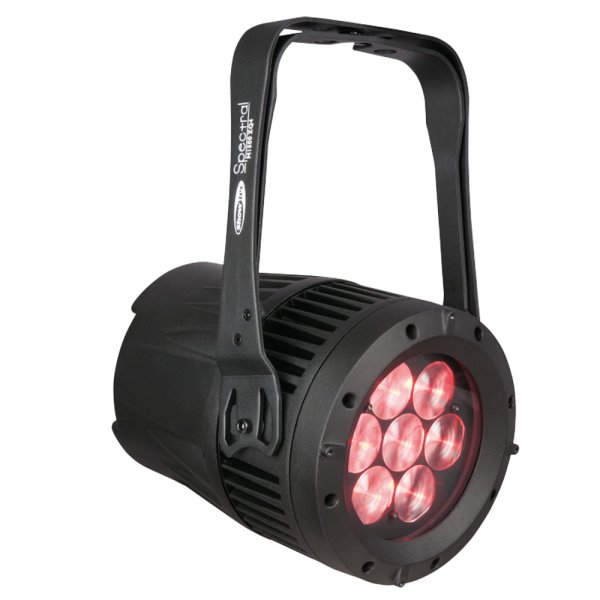

HIGHLITE Showtec Spectral M1500 Zoom Q4 MKIII RGBW [43549v]
商品詳細
7x 20 W RGBW Osram LED Spot
Wide motorised zoom range (pin spot to wash)
2 controllable sections (centre and surrounding spots)
IP65 (dust and water resistant, fit for outdoor use)
Dimmer and strobe function
The Showtec Spectral M1500 Zoom Q4 MKIII is a 7x 20 watt RGBW LED spot to wash Parcan, with a wide 8° - 40° motorised zoom range and high CRI, suitable for in- and outdoor applications. Each function, including its 2-section LED control, 0 - 100 % dimmer, 0 - 20 Hz strobe and colour mixing engine, is controllable via DMX and Master/Slave in either Manual and Auto run mode. The compact and lightweight 7 kg design, with IP65 rating and -10~40 °C operating temperature range, makes the Spectral M1500 Zoom MKIII fit for almost any environment.
Light Source Type
LED
Light Source Quantity
7
Light Source Power
20 W
LED Colour Type
RGBW
Refresh Rate
1200 Hz
Illuminance @ 2 m
17936 lx
Illuminance @ 3 m
7972 lx
Illuminance @ 5 m
2870 lx
Luminous Flux (Total)
2696 lm
Luminous Flux (Red)
532 lm
Luminous Flux (Green)
1028 lm
Luminous Flux (Blue)
341 lm
Luminous Flux (White)
1246 lm
CRI
85
Optical
Beam Angle Min. (Circular)
8°
Beam Angle Max. (Circular)
40°
Zoom Type
Motorised
Zoom Minimum
8°
Zoom Maximum
40°
Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave
DMX Channels
3, 4, 5, 6, 7, 12, 17, 25
Protocols
DMX, RDM
Display
4-segment, LED
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
128 W
Power Connector In
powerCON TRUE1
Power Connector Out
powerCON TRUE1

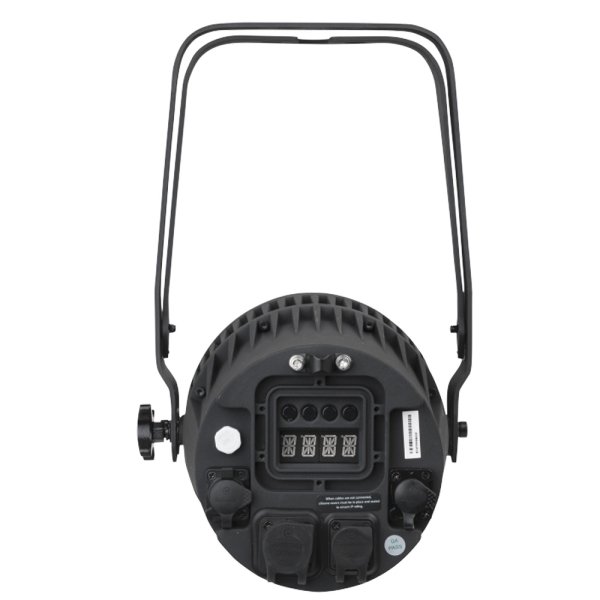

DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
Cable Length
1.5 m
Length (mm)
255 mm
Width (mm)
225 mm
Height (mm)
360 mm
Weight
7 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
Safety cable, powerCON TRUE1 cable
Included Accessories
User Manual
Included Rigging
Bracket
■メーカーサイト
https://www.highlite.com/en/43549-spectral-m1500-zoom-q4-mkiii.html
