HIGHLITE Showtec Spectral M3000 Zoom Q4 MKII RGBW [43548]

Showtec Spectral M3000 Zoom Q4 MKII. Productcode: 43548. from Highlite International on Vimeo.

14x 12 W RGBW Osram LED Spot
Wide motorised zoom range (pin spot to wash)
IP65 (dust and water resistant, fit for outdoor use)
Dimmer and strobe function
DMX and Master/Slave control

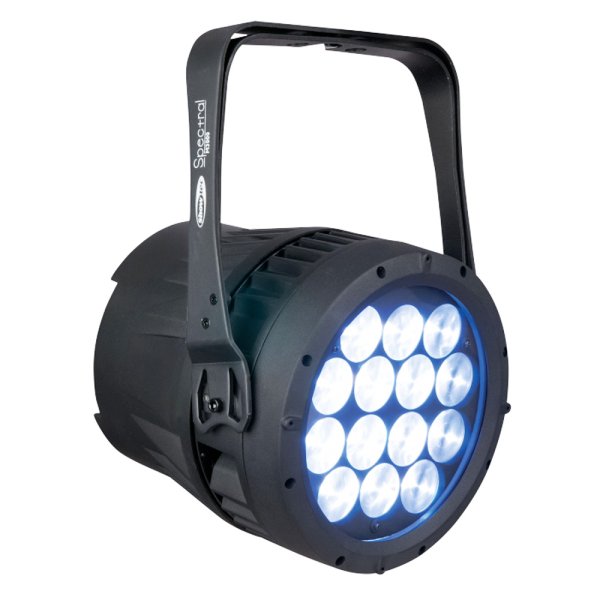

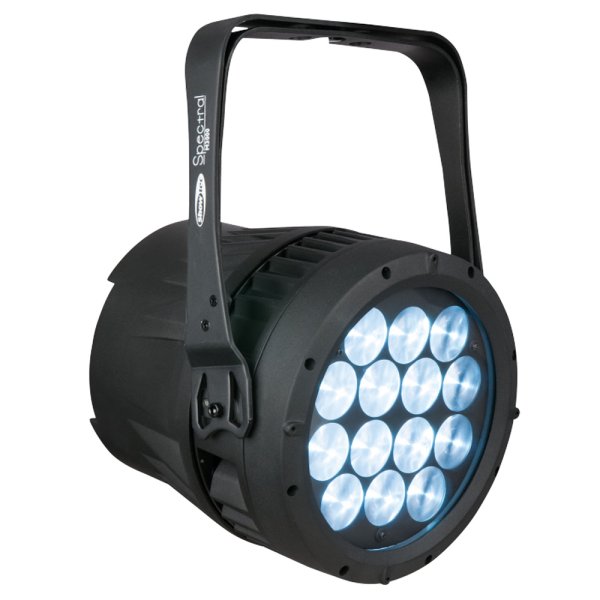

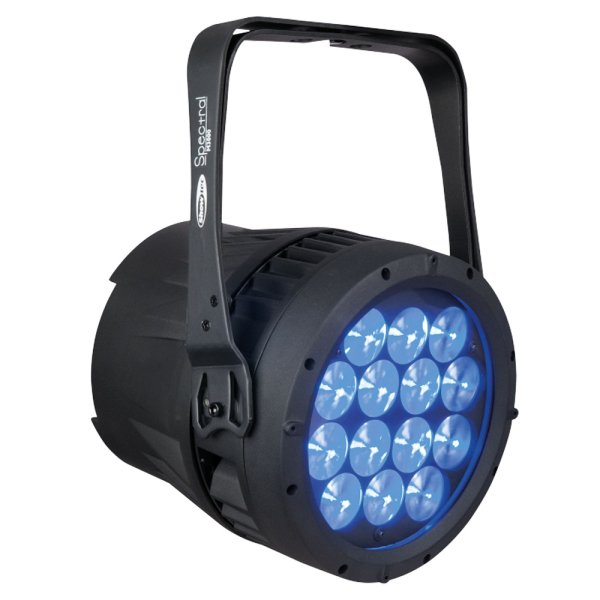

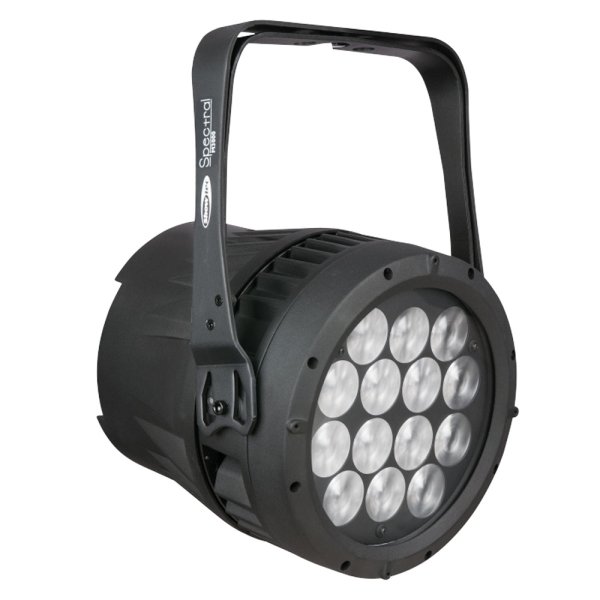

The Showtec Spectral M3000 Zoom Q4 MKII is a bright 14x 12 watt RGBW LED spot to wash Parcan, with a wide 8° - 40° motorised zoom range, suitable for in- and outdoor applications. Each function, including its 0 - 100 % dimmer, 0 - 20 Hz strobe and colour mixing engine, is controllable via DMX and Master/Slave in either Manual and Auto run mode. A compact and lightweight 8.4 kg design with IP65 rating, makes the Spectral M3000 Q4 MKII fit for almost any environment.

仕様

Source
Light Source Type
LED
Light Source Quantity
14
Light Source Power
12 W
LED Colour Type
RGBW
Refresh Rate
900 Hz
Refresh Rate (Min.)
900 Hz
Refresh Rate (Max.)
9 kHz
Luminous Flux (Total)
3900 lm

Optical
Beam Angle Min. (Circular)
8°
Beam Angle Max. (Circular)
40°
Zoom Type
Motorised
Zoom Minimum
8°
Zoom Maximum
40°

Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave
DMX Channels
3, 4, 5, 6, 7, 12, 17
Protocols
DMX
Display
7-segment

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
200 W

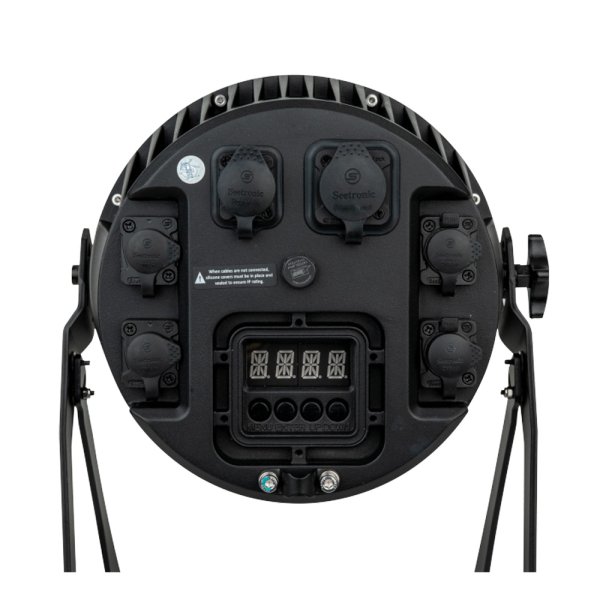

Power Connector In
powerCON TRUE1
Power Connector Out
powerCON TRUE1
DMX Connector

Dedicated 3P IP65 In/Out, Dedicated 5P IP65 In/Out
DMX Connector In
Dedicated 3P IP65, Dedicated 5P IP65
DMX Connector Out
Dedicated 3P IP65, Dedicated 5P IP65
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
250 mm
Width (mm)
275 mm
Height (mm)
375 mm
Weight
8.4 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
powerCON TRUE1 cable
Included Accessories
User Manual
Included Rigging
Bracket, Safety Cable

参照

■メーカーサイト
https://www.highlite.com/en/43548-spectral-m3000-zoom-q4-mkii.html
