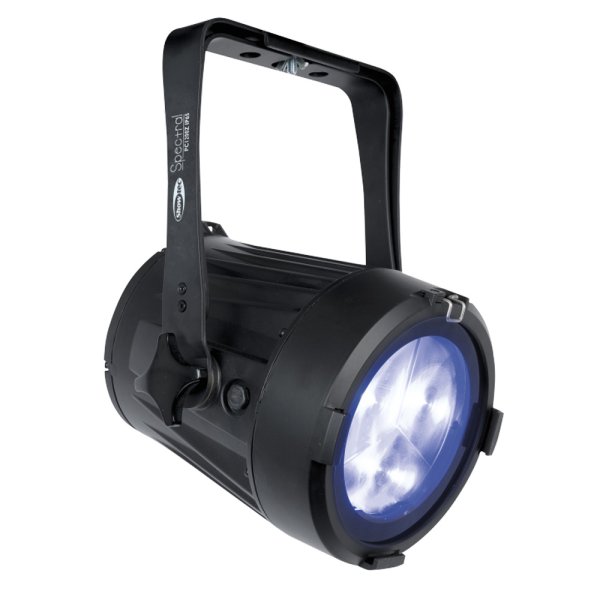

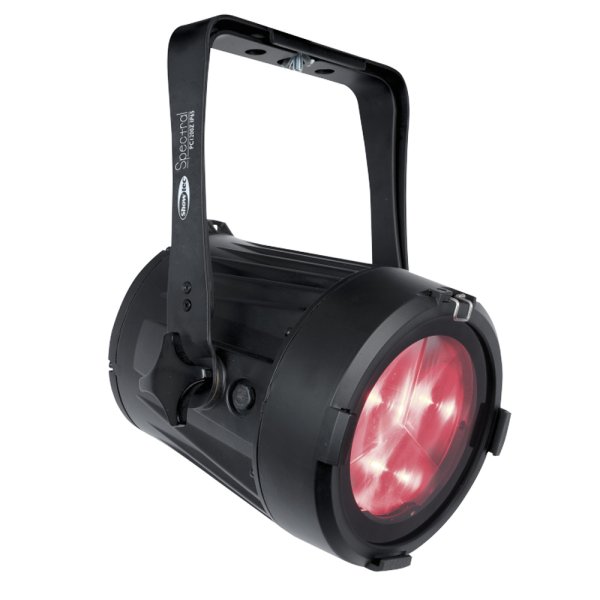

HIGHLITE Showtec Spectral PC 1200Z RGBW [43552]

Showtec Spectral PC 1200Z. Productcode: 43552. from Highlite International on Vimeo.

120 W RGBW LED Array Par
Wide and fast motorised zoom range (pin spot to wash)
IP65 (dust and water resistant, fit for outdoor use)
PC Lens optics for a homogeneous output
Dimmer and strobe function

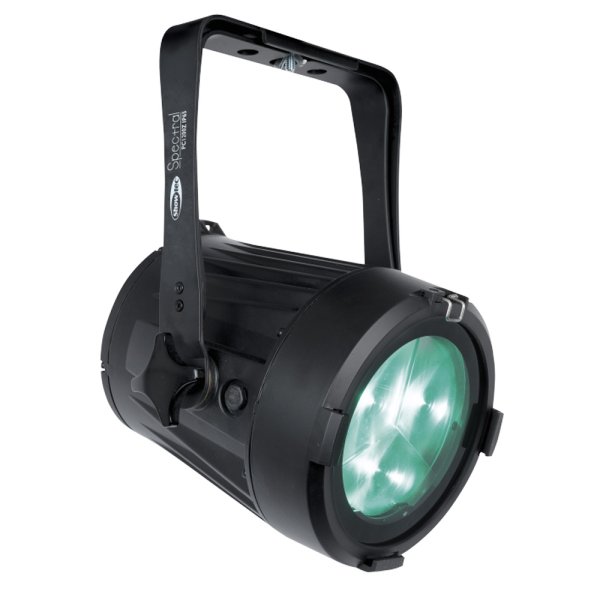

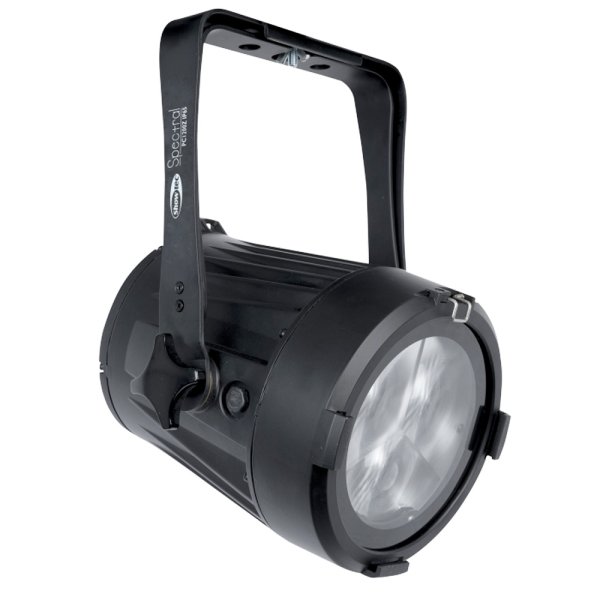

The Showtec Spectral PC 1200Z is a 120 watt RGBW LED Array spot to wash Parcan with a fast and wide 4.5° - 36° motorised zoom range, suitable for in- and outdoor applications. Each function, including its 0 - 100 % dimmer, 0 - 25 Hz strobe and colour mixing engine, is controllable via DMX and Master/Slave in either Manual and Auto run mode. The compact and lightweight 7.5 kg design, with IP65 rating and -10~40 °C operating temperature range, makes the Spectral PC 1200Z fit for almost any environment.

仕様

Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
120 W
LED Colour Type
RGBW
Drive Current
2.5 A
Refresh Rate (Min.)
600 Hz
Refresh Rate (Max.)
25000 kHz
Luminous Flux (Total)
1693 lm
Luminous Flux (Red)
351 lm
Luminous Flux (Green)
524 lm
Luminous Flux (Blue)
200 lm
Luminous Flux (White)
853 lm
Minimum CCT
2700 K
Maximum CCT
10000 K

Optical
Beam Angle Min. (Circular)
4.5°
Beam Angle Max. (Circular)
36°
Zoom Type
Motorised
Zoom Ratio
1:10
Zoom Minimum
4.5°
Zoom Maximum
36°

Control and Programming
Control Mode
Auto, Built-in Program, DMX, Manual
DMX Channels
9, 12, 17
Protocols
DMX, RDM
Display
LCD

Dynamic Effects
Dimmer
0-100 %
Strobe
0-25 Hz

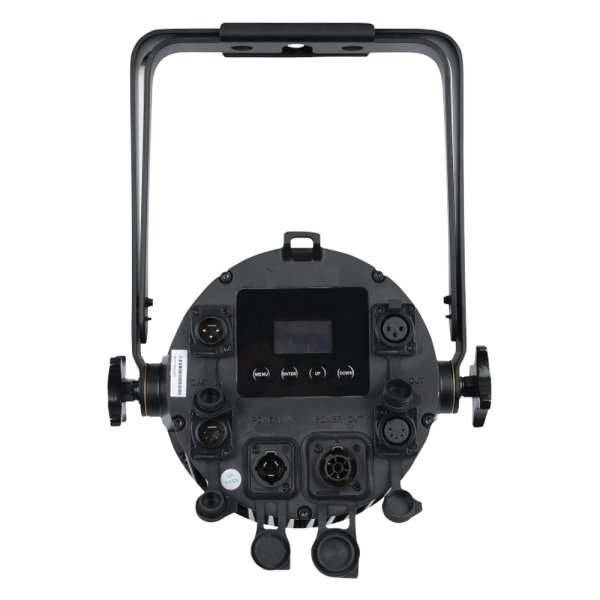

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
130 W
Power Connector In
powerCON TRUE1
Power Connector Out
powerCON TRUE1
DMX Connector
Dedicated 3P IP65 In/Out, Dedicated 5P IP65 In/Out
DMX Connector In
Dedicated 3P IP65, Dedicated 5P IP65
DMX Connector Out
Dedicated 3P IP65, Dedicated 5P IP65
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
265 mm
Width (mm)
200 mm
Height (mm)
385 mm
Weight
7.3 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
powerCON TRUE1 cable
Included Accessories
User Manual
Included Rigging
Bracket, Safety Cable
