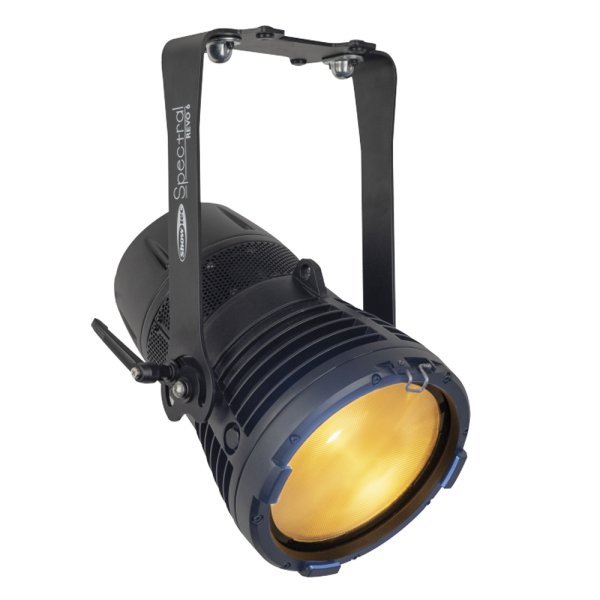

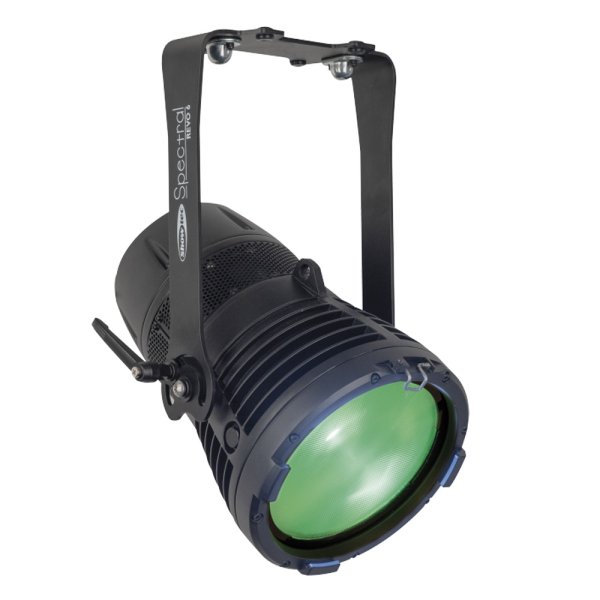

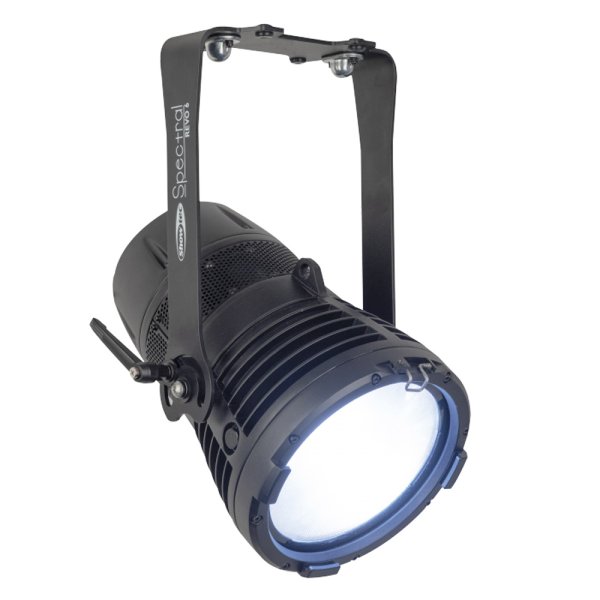

HIGHLITE Showtec Spectral Revo 6 RGBALC [43640]

SHOWTEC SPECTRAL REVO 6. Oder code 43640 from Highlite International on Vimeo.

Strong 120 W RGBALC LED Array Parcan
17° fixed beam angle
IP65 (dust and water resistant, fit for outdoor use)
PC Lens optics for a homogeneous output
12 step CCT colour temperature range of 1800 K - 8000 K

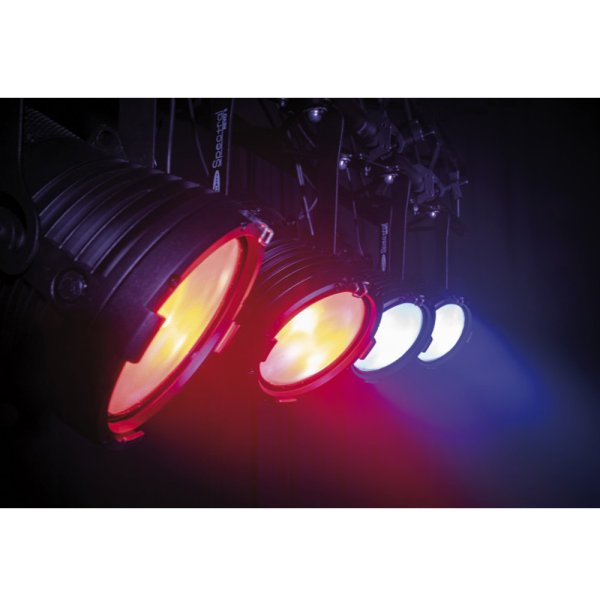

The Showtec Spectral Revo 6 is a 120 watt 6-colour RGBALC LED Array Parcan with PC lens, for a strong, homogenous output, suitable for in- and outdoor venues. Each function, including 0–100 % dimmer, 0–20 Hz strobe and colour mixing engine with full saturation, is controllable via DMX and Master/Slave in either Manual and Auto run mode. The Spectral Revo 6 projects a bright, homogeneous field of coloured light with a 17° fixed beam angle. Its compact and lightweight 6.1 kg design, with IP65 rating, -10~40 °C operating temperature range and Forced Convection cooling, fits at almost any environment.

仕様

Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
125 W
LED Colour Type
RGBALC
Luminous Flux (Total)
3051 lm
Minimum CCT
1800 K
Maximum CCT
8000 K

Optical
Beam Angle (Circular)
17°

Control and Programming
Control Mode
Auto, Built-in Program, DMX, Manual
DMX Channels
3, 6, 7, 9, 13, 20
Protocols
DMX, RDM
Display
OLED

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
145 W

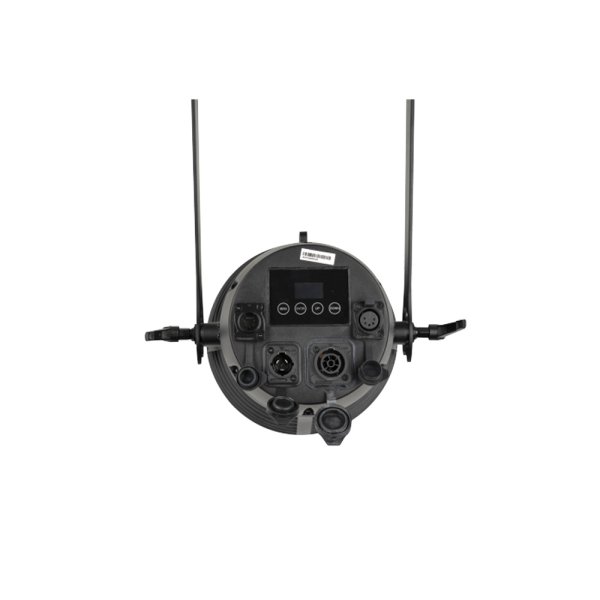

Power Connector In
powerCON TRUE1
Power Connector Out
powerCON TRUE1
DMX Connector
Dedicated 5P IP65 In/Out
DMX Connector In
Dedicated 5P IP65
DMX Connector Out
Dedicated 5P IP65
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
425 mm
Width (mm)
320 mm
Height (mm)
219 mm
Weight
6.1 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Forced Convection
Rigging
Mounting Options
Clamp, Quick-Lock, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
powerCON TRUE1 cable
Included Accessories
User Manual
Included Rigging
Bracket, Safety Cable
