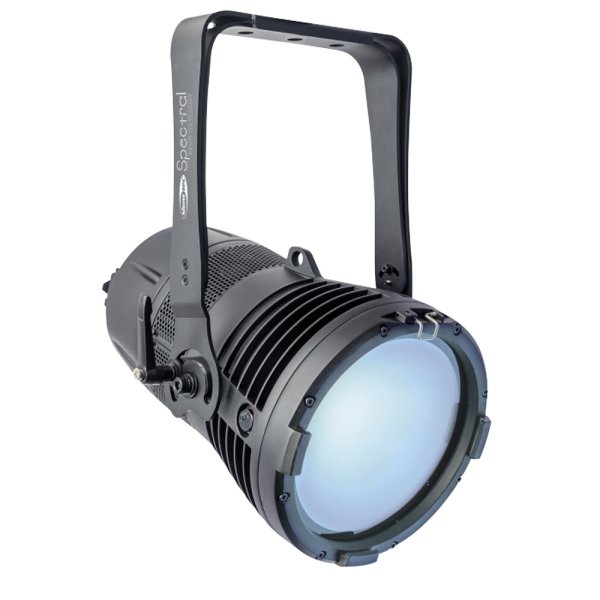

HIGHLITE Showtec Spectral Revo Daylight CW [43643]

The Power Of Entertainment - Showtec Spectral Revo 6, UV, Daylight and Tungsten. Order Codes 43640, 43641, 43642 and 43643 from Highlite International on Vimeo.

Reliable 140 W Daylight White LED Par
16° fixed beam angle
IP65 (dust and water resistant, fit for outdoor use)
High CRI for accurate colour rendering
Tunable 4000 K–6500 K DW colour temperature
The Showtec Spectral Revo Daylight is a reliable 140 watt 4000 K-6500 K tunable Daylight White LED Wash fixture with high CRI and IP65 rating, suitable for indoor and outdoor theatre and studio applications. Each function, including its 0–100 % dimmer, 0–25 Hz strobe and tunable DW engine, is controllable via DMX and Master/Slave in either Manual and Auto run mode. The Spectral Revo Daylight IP65 projects a soft field of light with a 16° fixed beam angle. Its compact and lightweight 6.5 kg design, with IP65 rating, -10~40 °C operating temperature range and Forced Convection cooling, fits at almost any environment.

仕様

Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
143 W
LED Colour Type
CW, NW
Luminous Flux (Total)
8838 lm
CRI
95
Minimum CCT
4000 K
Maximum CCT
6500 K

Optical
Beam Angle (Circular)
16°

Control and Programming
Control Mode
Auto, Built-in Program, DMX, Manual
DMX Channels
1, 2, 3, 6, 8
Protocols
DMX, RDM
Display
OLED

Dynamic Effects
Dimmer
0-100 %
Strobe
0-25 Hz

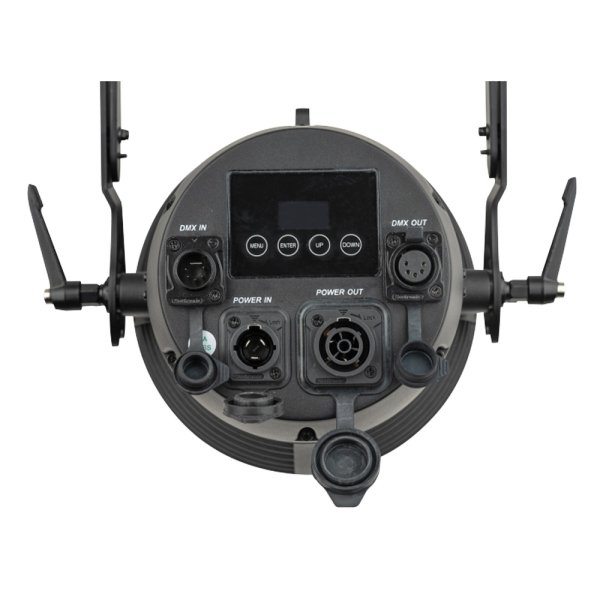

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
145 W
Power Connector In
powerCON TRUE1
Power Connector Out
powerCON TRUE1
DMX Connector
Dedicated 5P IP65 In/Out
DMX Connector In
Dedicated 5P IP65
DMX Connector Out
Dedicated 5P IP65

サイズ

Mechanical Specifications
Length (mm)
425 mm
Width (mm)
320 mm
Height (mm)
219 mm
Weight
6.5 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Forced Convection

Rigging
Mounting Options
Clamp, Quick-Lock, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
powerCON TRUE1 cable
Included Accessories
User Manual
Included Rigging
Bracket, Safety Cable
