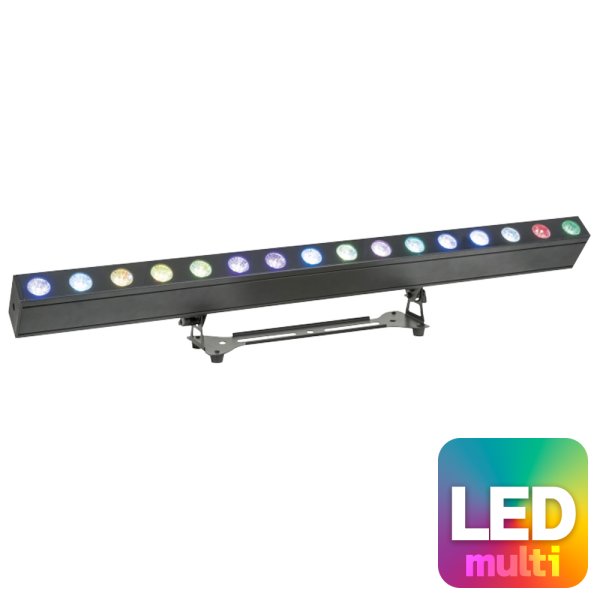

HIGHLITE Showtec Pulse Pixel Bar 16 Q4 RGBW [41305]

Showtec Pulse Pixel Bar 16 Q4. Ordercode: 41305. from Highlite International on Vimeo.

RGBW Prolight Opto LEDs
Individual Pixel Control
Versatile rigging possibilities
Power and data daisy chain

仕様

Source
Light Source Type
LED
Light Source Quantity
16
Light Source Power
5 W
LED Colour Type
RGBW
Refresh Rate
2000 Hz
Illuminance @ 2 m
2405 lx
Luminous Flux (Total)
2405 lm

Optical
Beam Angle (Horizontal)
20°
Beam Angle (Vertical)
20°

Control and Programming
Control Mode
Built-in Program, DMX, Master Slave, Stand Alone
DMX Channels
4, 6, 10, 64
Protocols
DMX
Display
OLED

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
58 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Length (mm)
960 mm
Width (mm)
130 mm
Height (mm)
185 mm
Weight
4.8 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Bracket, Clamp, Floor, Wall
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C

Included Items
Included Cables
powerCON cable
Included Accessories
User Manual
Included Rigging
Bracket
