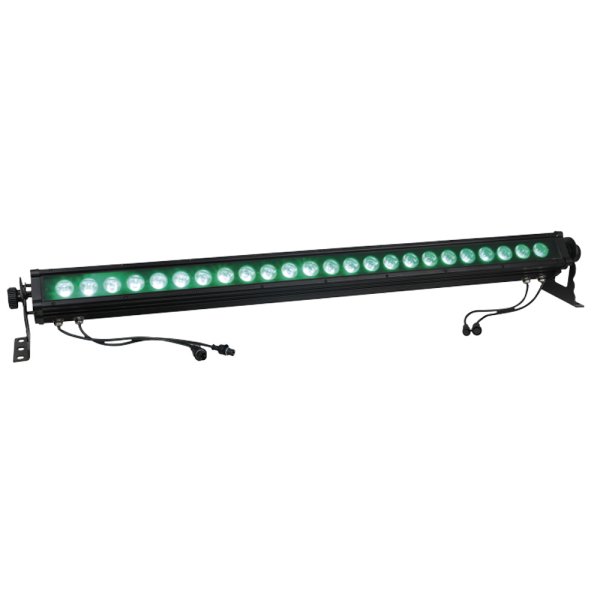

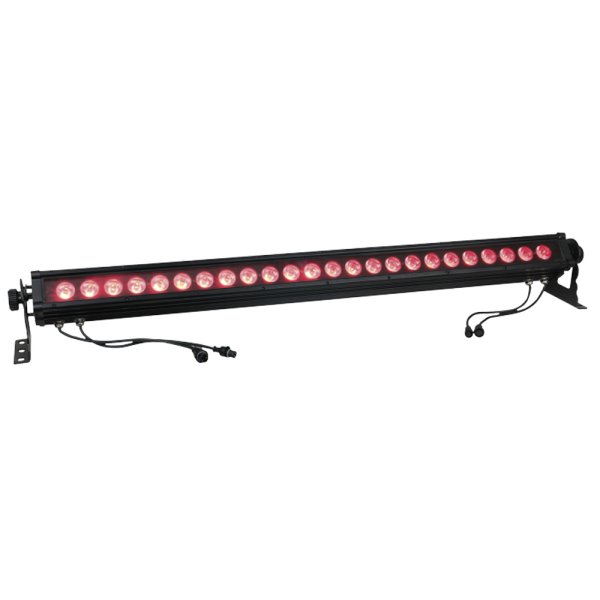

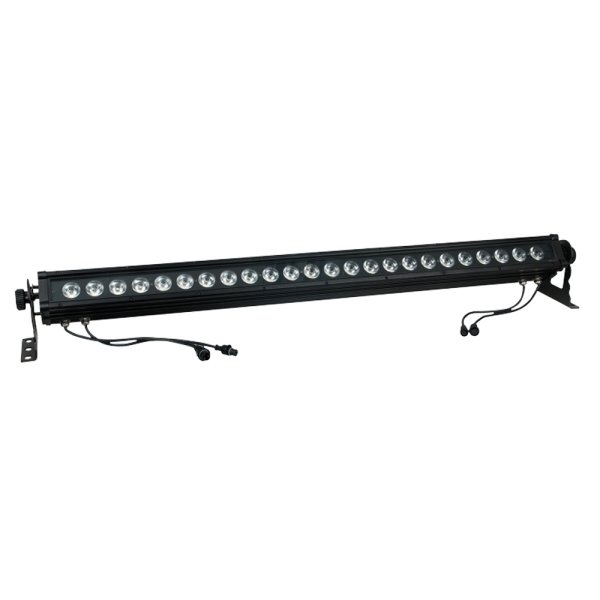

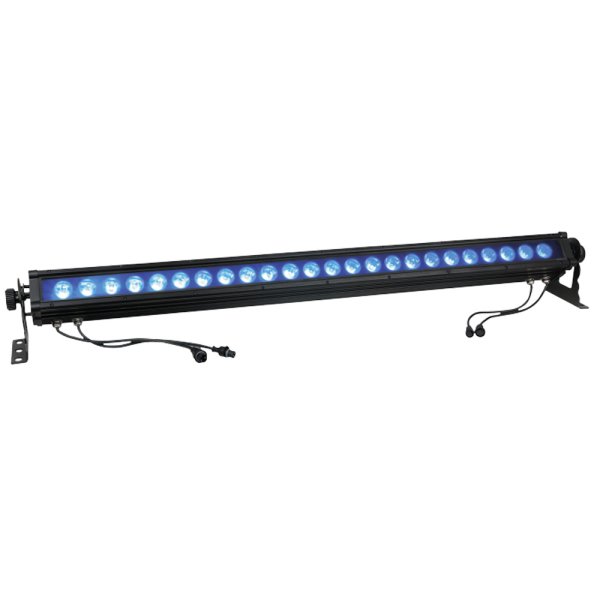

HIGHLITE Showtec Cameleon Bar 24/3 RGB LED(固定型) HIGHLITE(ハイライト)
03-5843-4354
受付時間 10:00-18:00(定休日:土日祝)
HIGHLITE Showtec Cameleon Bar 24/3 RGB [42695v]
商品詳細
Powerful 24x 3 W RGB LED Flood
Silent, fanless operations
IP65 (dust and water resistant, fit for outdoor use)
Multivoltage power supply
40° fixed beam angle
Light Source Type
LED
Light Source Quantity
24
Light Source Power
3 W
LED Colour Type
RGB
Drive Current
3.5 A
Refresh Rate
7800 Hz
Illuminance @ 2 m
3180 lx
Luminous Flux (Total)
3180 lm
Luminous Flux (Red)
730 lm
Luminous Flux (Green)
1135 lm
Luminous Flux (Blue)
1435 lm
Optical
Beam Angle (Horizontal)
40°
Beam Angle (Vertical)
40°
Control and Programming
Control Mode
Auto, DMX, Master Slave
DMX Channels
3, 5
Protocols
DMX
Display
7-segment
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
80 W
Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection
DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
Length (mm)
1025 mm
Width (mm)
88 mm
Height (mm)
77 mm
Weight
6.7 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Bracket
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
80 °C
Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
User Manual
Included Rigging
Bracket
■メーカーサイト
https://www.highlite.com/en/42695-cameleon-bar-24-3.html
Silent, fanless operations
IP65 (dust and water resistant, fit for outdoor use)
Multivoltage power supply
40° fixed beam angle
仕様
SourceLight Source Type
LED
Light Source Quantity
24
Light Source Power
3 W
LED Colour Type
RGB
Drive Current
3.5 A
Refresh Rate
7800 Hz
Illuminance @ 2 m
3180 lx
Luminous Flux (Total)
3180 lm
Luminous Flux (Red)
730 lm
Luminous Flux (Green)
1135 lm
Luminous Flux (Blue)
1435 lm
Optical
Beam Angle (Horizontal)
40°
Beam Angle (Vertical)
40°
Control and Programming
Control Mode
Auto, DMX, Master Slave
DMX Channels
3, 5
Protocols
DMX
Display
7-segment
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
80 W
Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection
DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
サイズ
Mechanical SpecificationsLength (mm)
1025 mm
Width (mm)
88 mm
Height (mm)
77 mm
Weight
6.7 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Bracket
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
80 °C
Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
User Manual
Included Rigging
Bracket
参照
■メーカーサイト
https://www.highlite.com/en/42695-cameleon-bar-24-3.html
