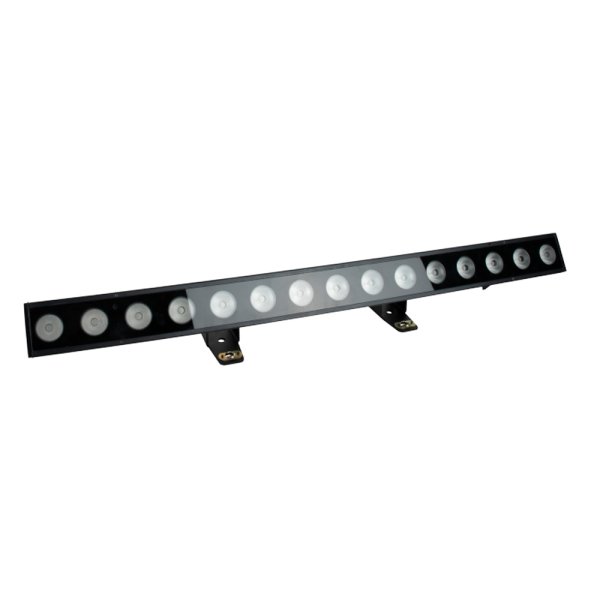

HIGHLITE Showtec Cameleon PixelBar 15 Q6 Tour RGBWA-UV [42669]

Showtec - Cameleon PixelBar 15 Q6 Tour. Product Code 42669 from Highlite International on Vimeo.

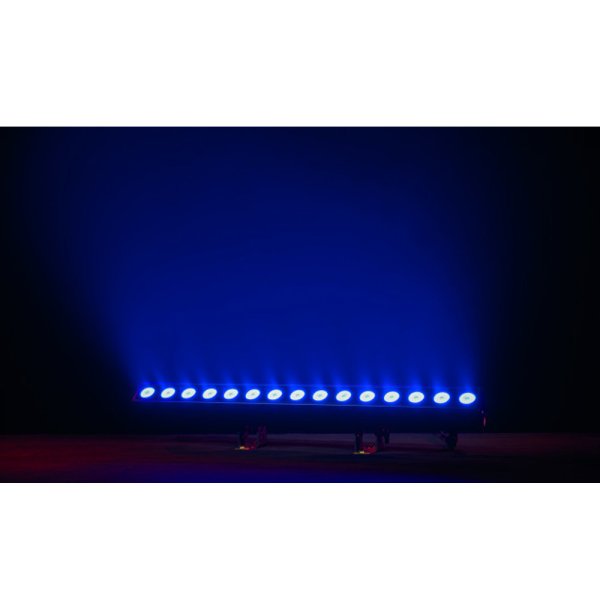

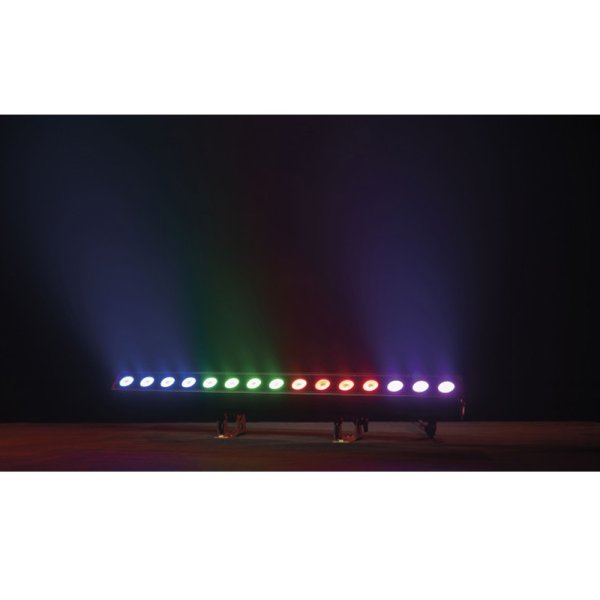

15 individually controllable 10 W RGBWA-UV LEDs

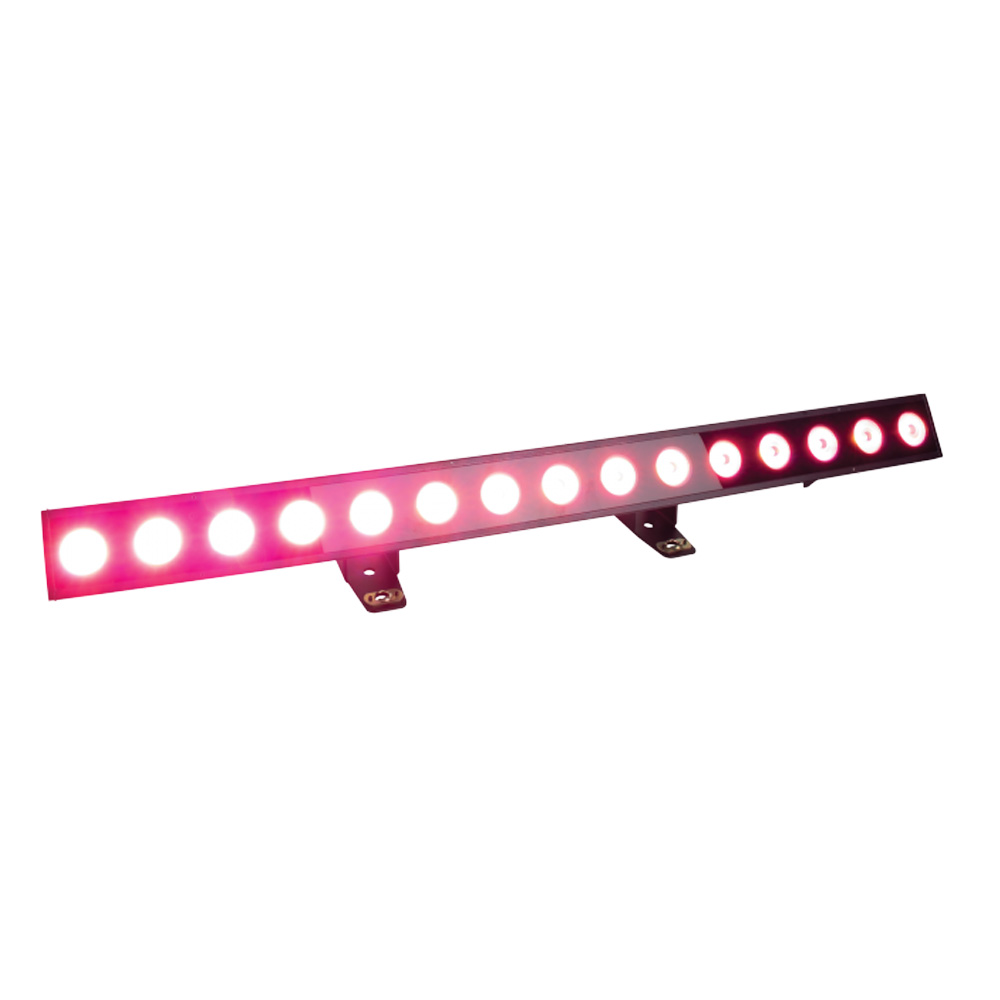

Perfect for colour mixing on stage

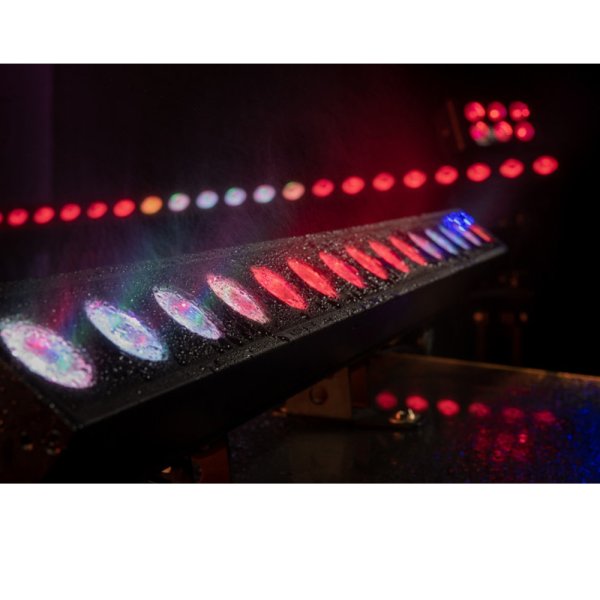

IP65 (dust and water resistant, fit for outdoor use)
33°x 22° fixed beam angle
Power Pro True connectors

仕様

Source
Light Source Type
LED
Light Source Quantity
15
Light Source Power
10 W
LED Colour Type
RGBWAUV
Refresh Rate
4200 Hz
Luminous Flux (Total)
3600 lm

Optical
Beam Angle (Horizontal)
33°
Beam Angle (Vertical)
22°

Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave, Remote
DMX Channels
6, 8, 11, 90, 95
Protocols
DMX, RDM

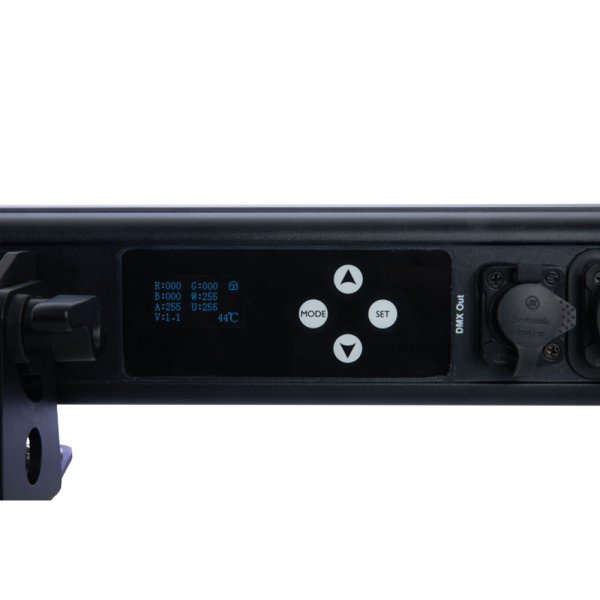

Display
OLED

Dynamic Effects
Dimmer
0-100 %
Strobe
0-18 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
136 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Length (mm)
995 mm
Width (mm)
80 mm
Height (mm)
190 mm
Weight
7.7 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

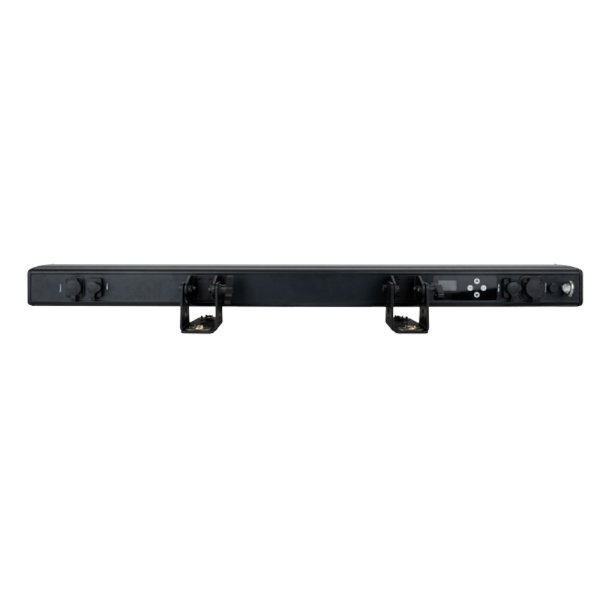

Rigging
Mounting Options
Bracket

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-5 °C

Included Items
Included Cables
Power Pro True Cable
