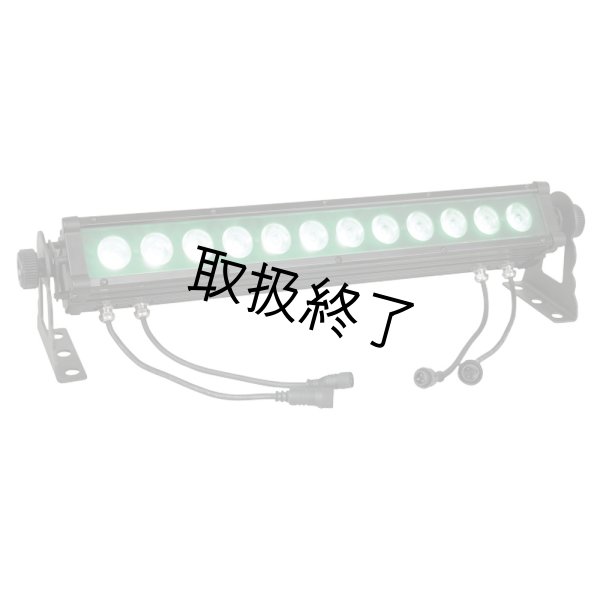

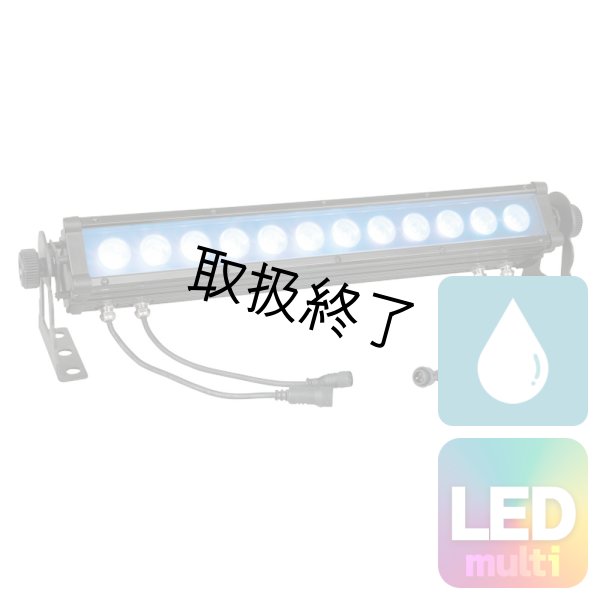

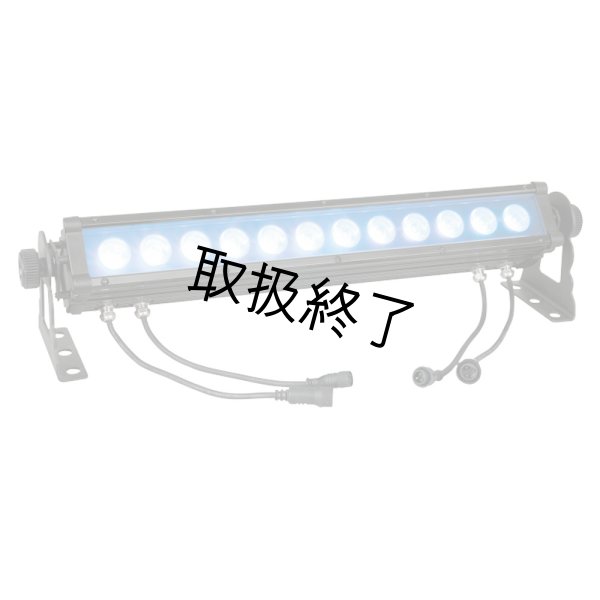

HIGHLITE Showtec Cameleon Bar 12/3 RGB [42694v]
商品詳細
Compact, yet powerful 12x 3 W RGB LED Bar
IP65 (dust and water resistant, fit for outdoor use)
Wide 45° fixed beam angle
Dimmer and strobe function
Manual, DMX and Master/Slave control
Light Source Type
LED
Light Source Quantity
12
Light Source Power
3 W
LED Colour Type
RGB
Drive Current
3.5 A
Refresh Rate
7800 Hz
Illuminance @ 2 m
1600 lx
Luminous Flux (Total)
1600 lm
Luminous Flux (Red)
365 lm
Luminous Flux (Green)
560 lm
Luminous Flux (Blue)
715 lm
Optical
Beam Angle (Horizontal)
45°
Beam Angle (Vertical)
45°
Control and Programming
Control Mode
Auto, DMX, Master Slave
DMX Channels
3, 5
Protocols
DMX
Display
7-segment
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
45 W
Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection
DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
Length (mm)
525 mm
Width (mm)
88 mm
Height (mm)
80 mm
Weight
2.6 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Bracket
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
80 °C
Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
User Manual
Included Rigging
Bracket
■メーカーサイト
https://www.highlite.com/en/42694-cameleon-bar-12-3.html
IP65 (dust and water resistant, fit for outdoor use)
Wide 45° fixed beam angle
Dimmer and strobe function
Manual, DMX and Master/Slave control
仕様
SourceLight Source Type
LED
Light Source Quantity
12
Light Source Power
3 W
LED Colour Type
RGB
Drive Current
3.5 A
Refresh Rate
7800 Hz
Illuminance @ 2 m
1600 lx
Luminous Flux (Total)
1600 lm
Luminous Flux (Red)
365 lm
Luminous Flux (Green)
560 lm
Luminous Flux (Blue)
715 lm
Optical
Beam Angle (Horizontal)
45°
Beam Angle (Vertical)
45°
Control and Programming
Control Mode
Auto, DMX, Master Slave
DMX Channels
3, 5
Protocols
DMX
Display
7-segment
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
45 W
Power Connector In
Dedicated IP65 Powerconnection
Power Connector Out
Dedicated IP65 Powerconnection
DMX Connector
Dedicated 3P IP65 In/Out
DMX Connector In
Dedicated 3P IP65
DMX Connector Out
Dedicated 3P IP65
サイズ
Mechanical SpecificationsLength (mm)
525 mm
Width (mm)
88 mm
Height (mm)
80 mm
Weight
2.6 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Bracket
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
80 °C
Included Items
Included Cables
Dedicated IP65 Powerconnection
Included Accessories
User Manual
Included Rigging
Bracket
参照
■メーカーサイト
https://www.highlite.com/en/42694-cameleon-bar-12-3.html
