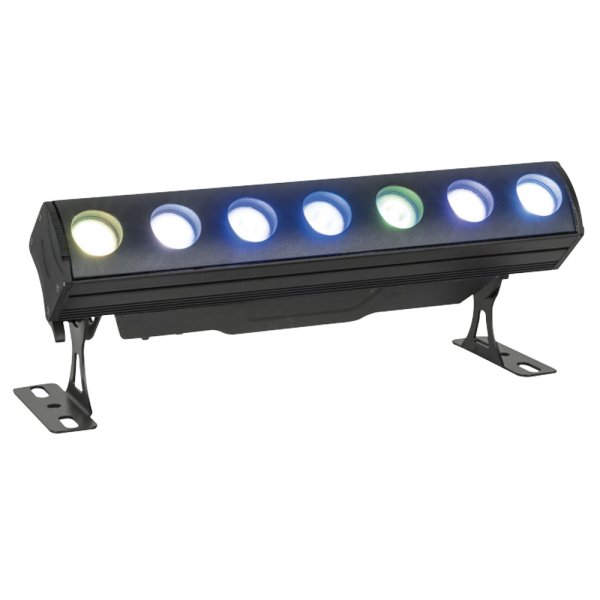

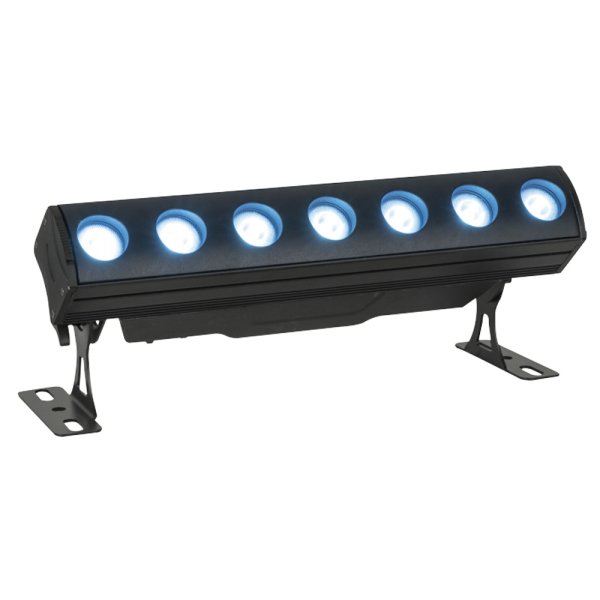

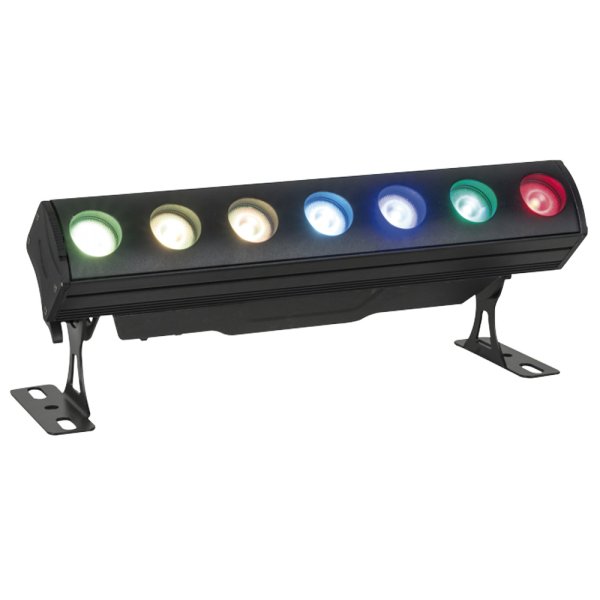

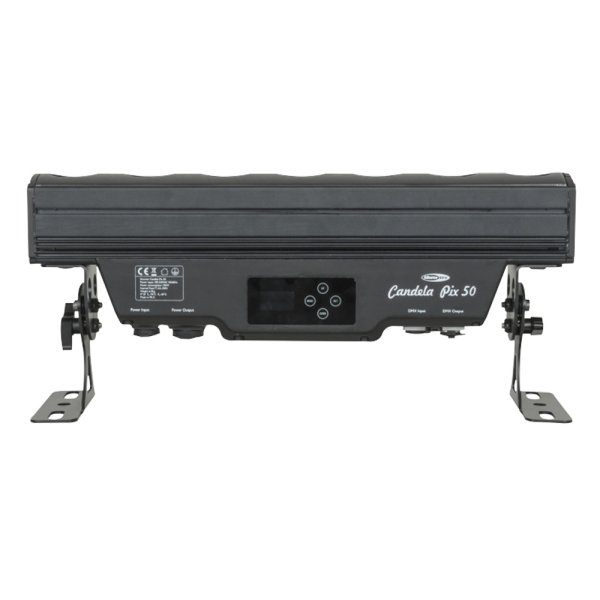

HIGHLITE Showtec Candela Pix 50 RGBW [41280]

Showtec Candela Pix 50 (IP-65). Ordercode: 41280. from Highlite International on Vimeo.

powerCON TRUE1 in & out
IP65 (dust and water resistant, fit for outdoor use)
Exceptionally smooth RGBW Colour mixing
Individual pixel control

仕様

Source
Light Source Type
LED
Light Source Quantity
7
Light Source Power
15 W
LED Colour Type
RGBW
Drive Current
1 A
Refresh Rate
16000 Hz
Refresh Rate (Min.)
250 Hz
Refresh Rate (Max.)
16 kHz
Illuminance @ 2 m
15242 lx
Luminous Flux (Total)
15242 lm
Luminous Flux (Red)
3862 lm
Luminous Flux (Green)
7355 lm
Luminous Flux (Blue)
1780 lm
Luminous Flux (White)
8273 lm

Optical
Beam Angle (Horizontal)
10°
Beam Angle (Vertical)
10°

Control and Programming
Control Mode
Auto, DMX, Master Slave
DMX Channels
4, 6, 9, 28
Protocols
DMX
Display
OLED

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

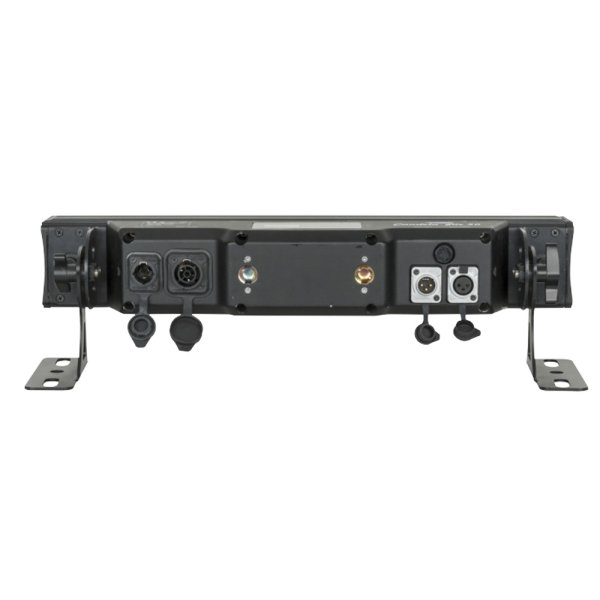

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
105 W
Power Connector In
powerCON TRUE1
Power Connector Out
powerCON TRUE1
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Length (mm)
515 mm
Width (mm)
150 mm
Height (mm)
240 mm
Weight
6.5 kg
IP Rating
IP65
Housing
Aluminium
Colour
Black

Product Properties
Cooling
Convection
Rigging
Mounting Options
Bracket
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-5 °C

Included Items
Included Cables
powerCON TRUE1 cable
Included Accessories
User Manual
Included Rigging
Bracket
