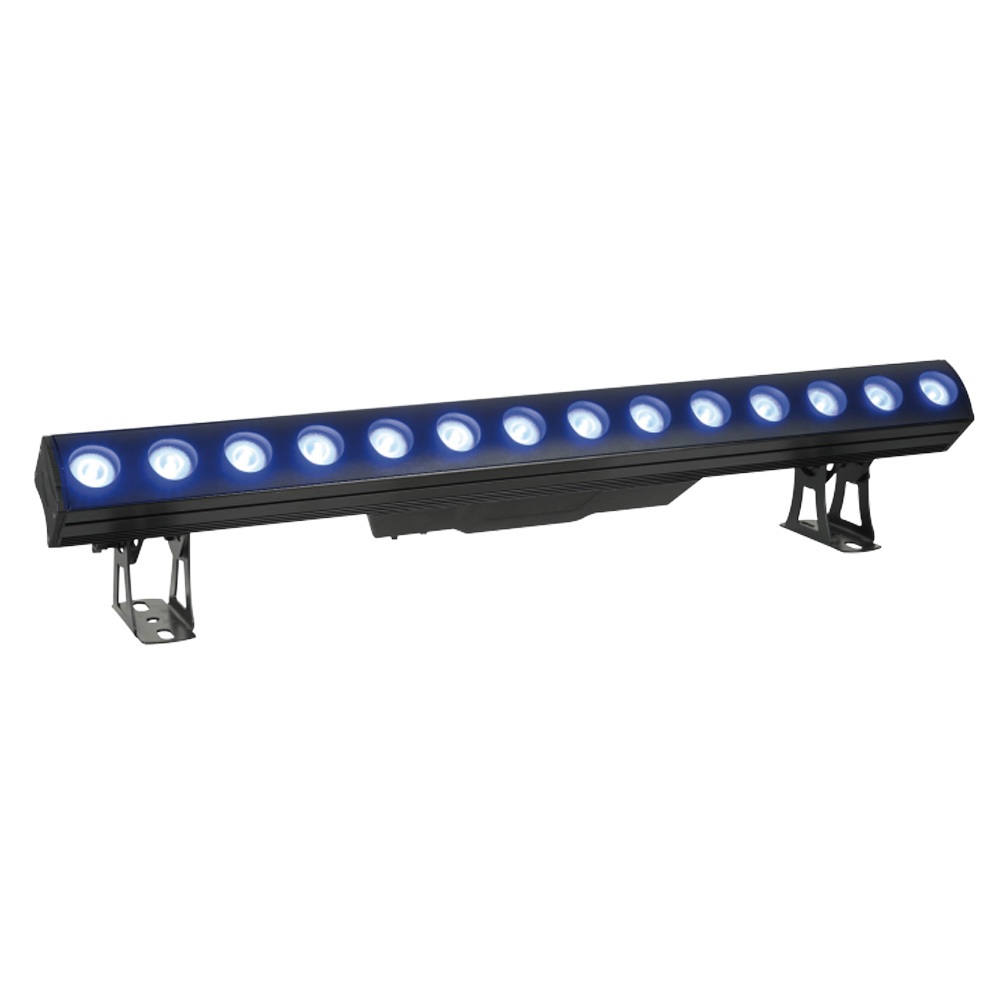

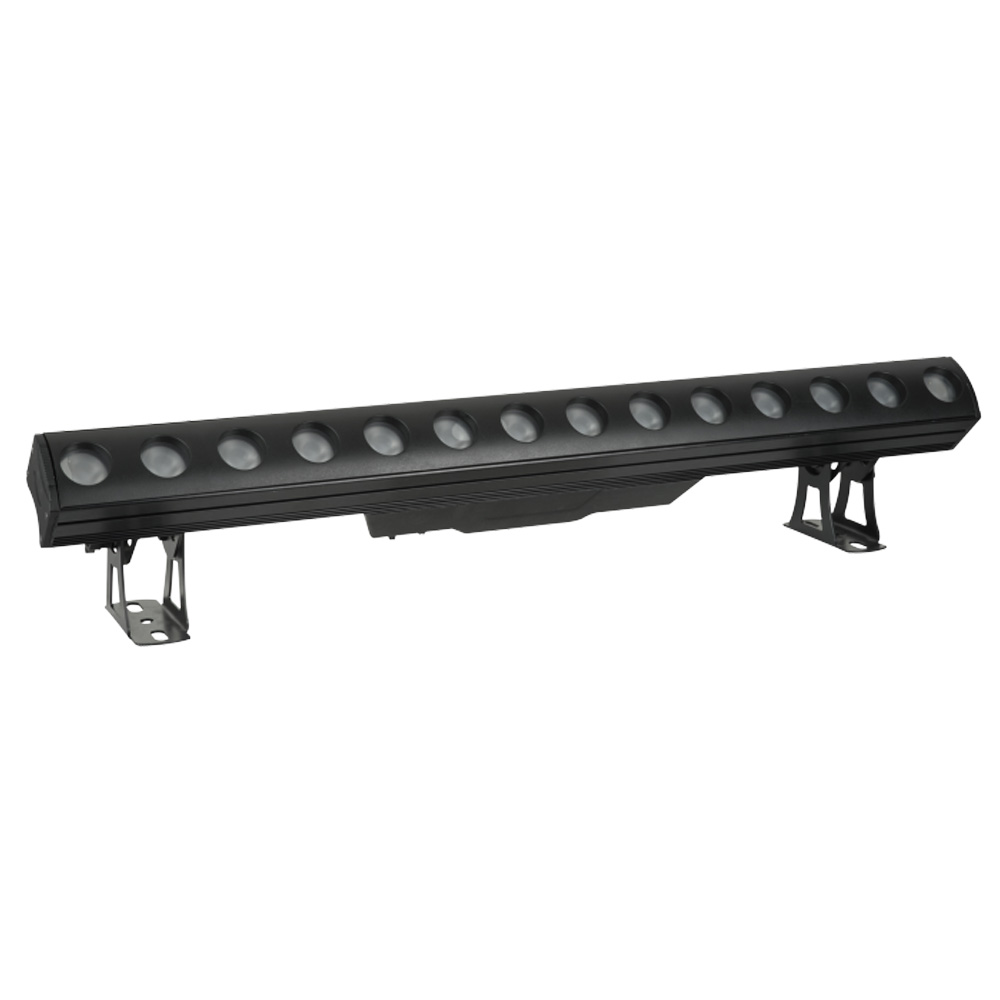

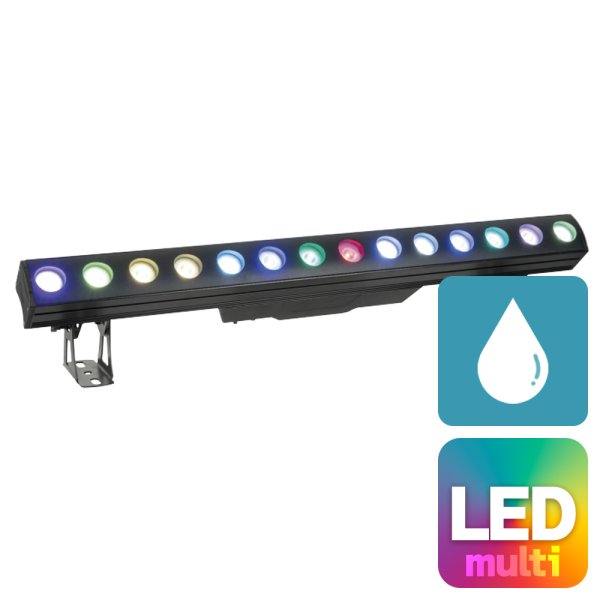

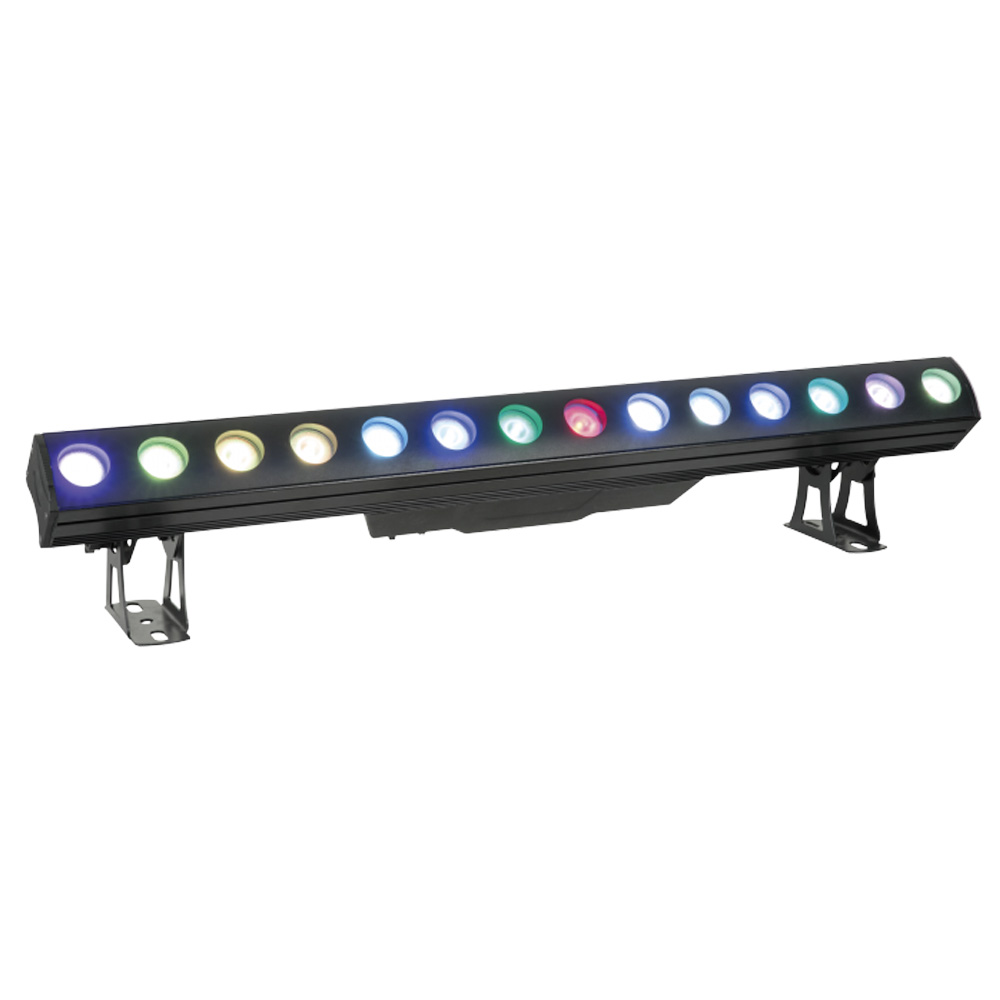

HIGHLITE Showtec Candela Pix 100 RGBW [41281v]

powerCON TRUE1 in & out
IP65 (dust and water resistant, fit for outdoor use)
15 W RGBW Prolight opto LEDs
Individual pixel control

仕様

Source
Light Source Type
LED
Light Source Quantity
14
Light Source Power
15 W
LED Colour Type
RGBW
Drive Current
1 A
Refresh Rate
16000 Hz
Refresh Rate (Min.)
250 Hz
Refresh Rate (Max.)
16 kHz
Illuminance @ 2 m
11000 lx
Luminous Flux (Total)
11000 lm
Luminous Flux (Red)
1900 lm
Luminous Flux (Green)
5372 lm
Luminous Flux (Blue)
890 lm
Luminous Flux (White)
6289 lm

Optical
Beam Angle (Horizontal)
8°
Beam Angle (Vertical)
8°

Control and Programming
Control Mode
Auto, DMX, Master Slave
DMX Channels
4, 6, 9, 56
Protocols
DMX

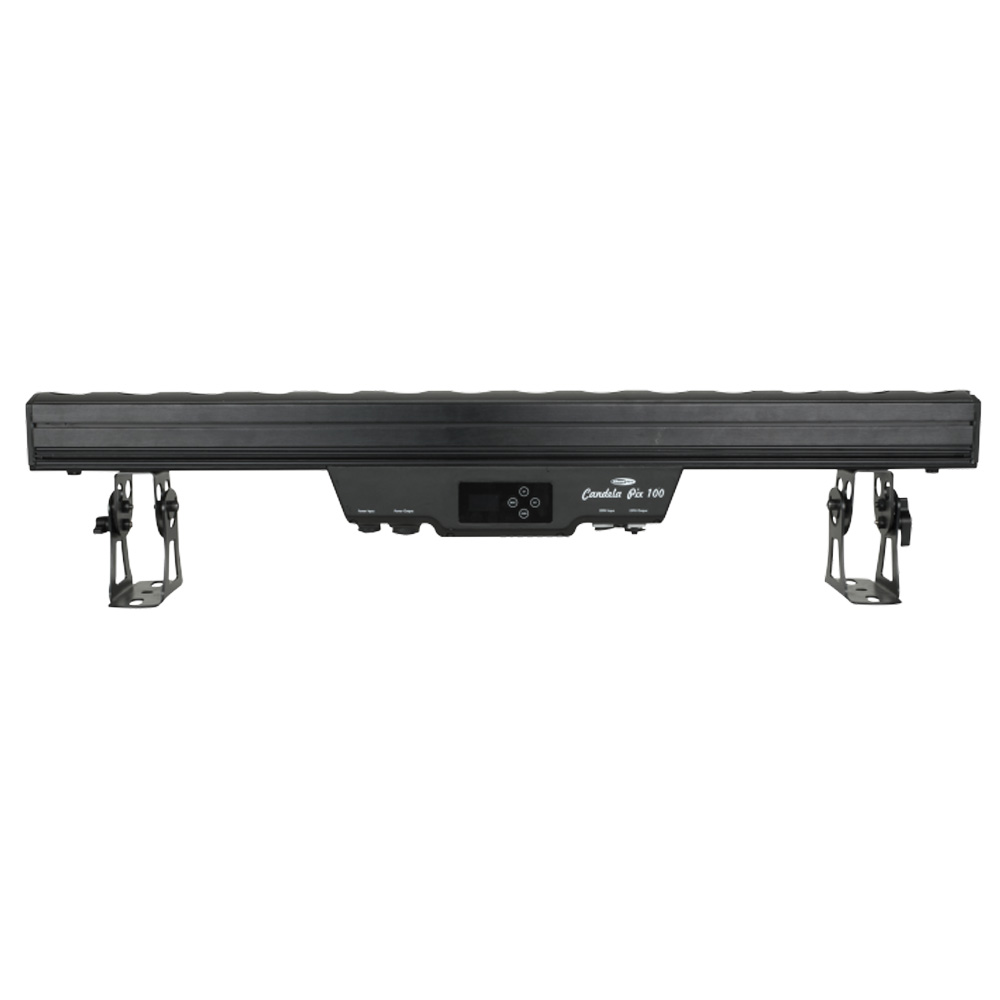

Display
OLED

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
212 W

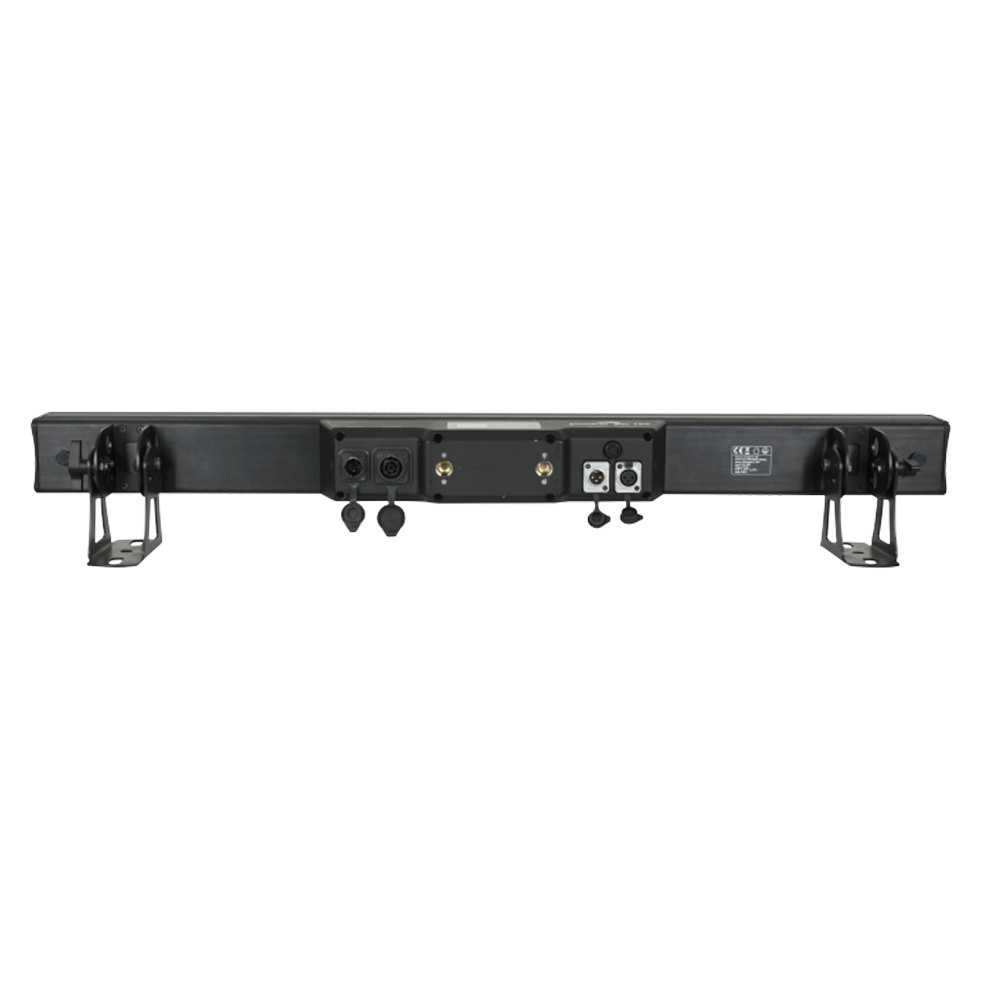

Power Connector In
powerCON TRUE1
Power Connector Out
powerCON TRUE1
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Length (mm)
1024 mm
Width (mm)
150 mm
Height (mm)
235 mm
Weight
10.2 kg
IP Rating
IP65
Housing
Aluminium
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Bracket
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-5 °C

Included Items
Included Cables
powerCON TRUE1 cable
Included Accessories
User Manual
Included Rigging
Bracket
