HIGHLITE Showtec Stage Blinder FLEX Blaze Controller [30786]
商品詳細

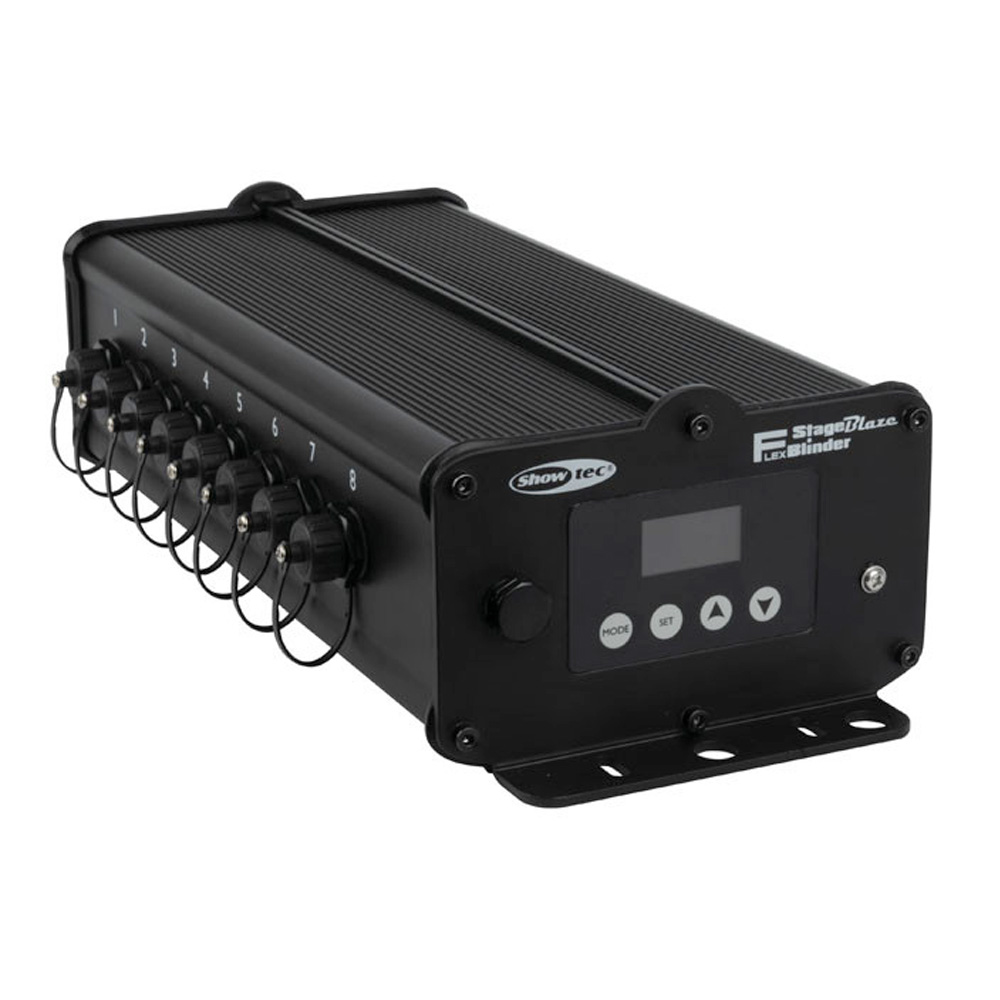

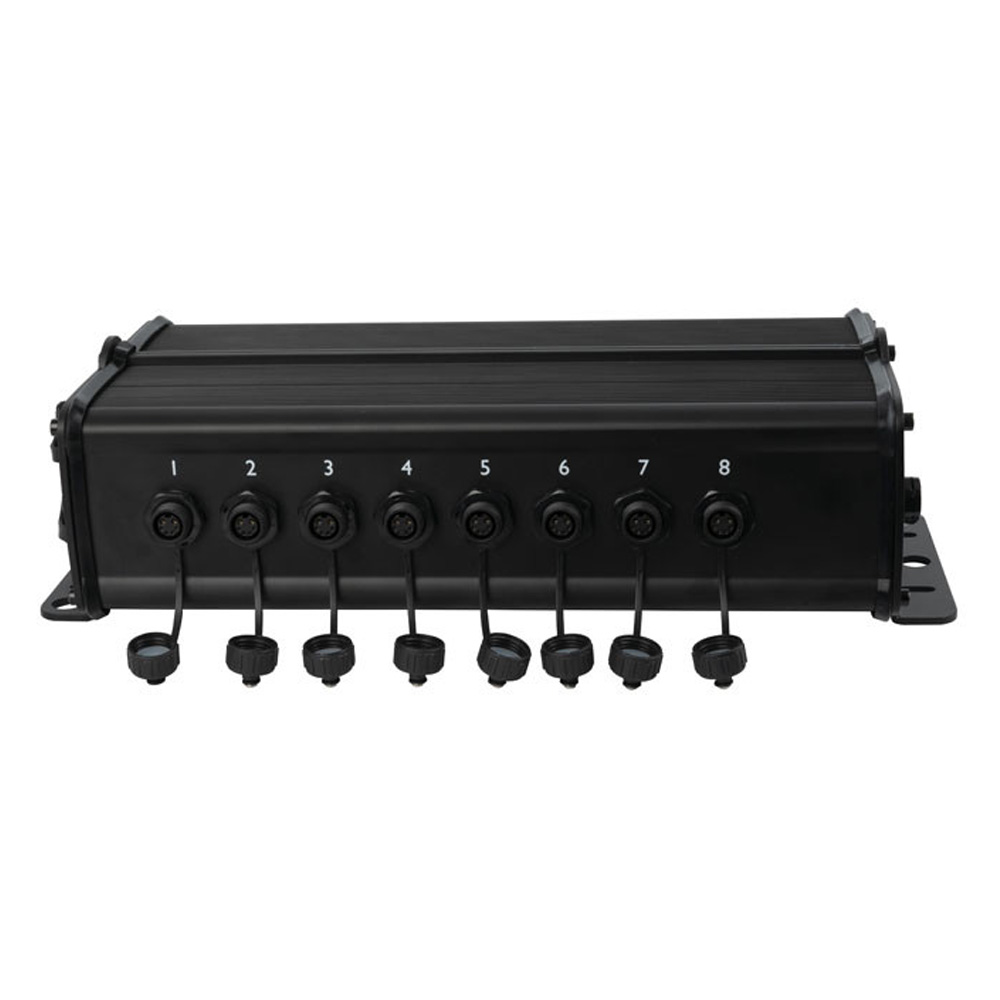

Controls up to 8 individual pods of the Stage Blinder FLEX Blaze
DMX/RDM, Master/Slave and stand-alone modes
IP65-rated enclosure
Control Mode
Built-in Program, DMX, Manual, Master Slave, Stand Alone
DMX Channels
4, 5, 8, 32, 33, 40
Protocols
DMX, RDM
Zone Control (Sections)
8
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
700 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True

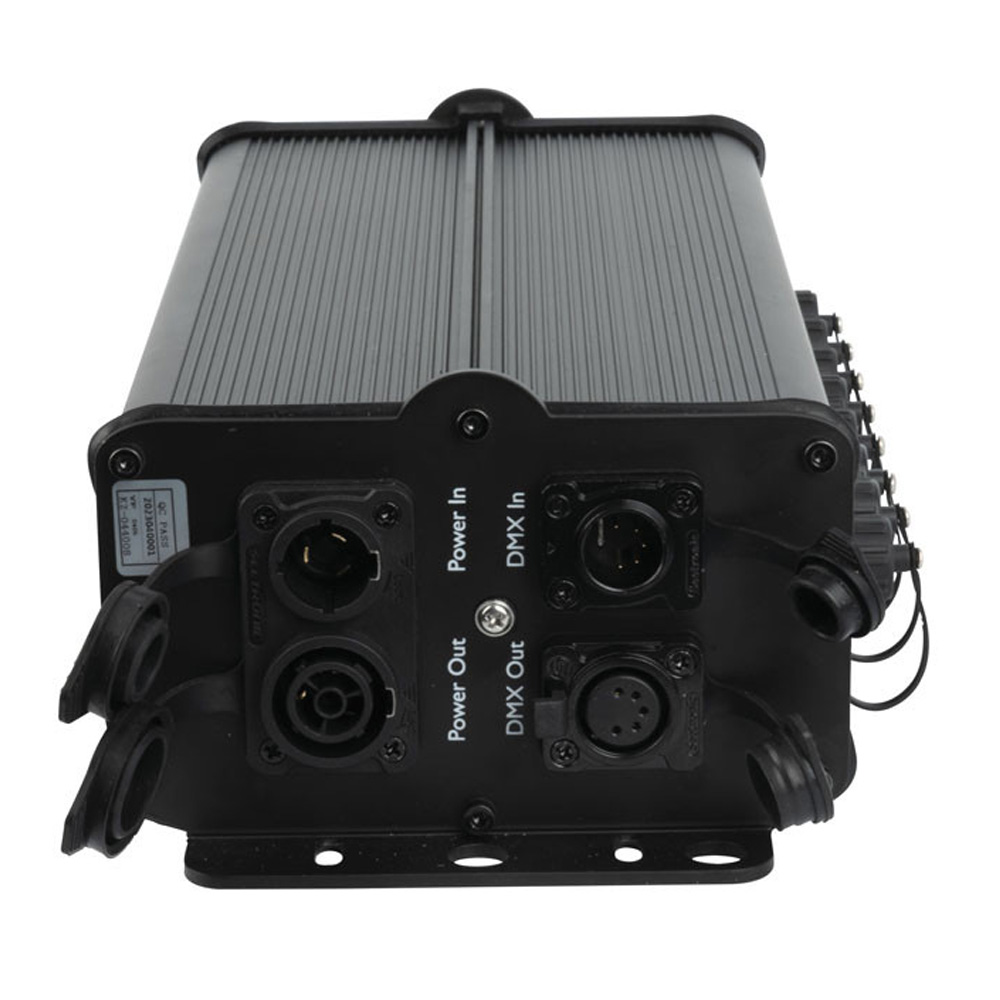

DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Length (mm)
372 mm
Width (mm)
171 mm
Height (mm)
103 mm
Weight
3.65 kg
IP Rating
IP65
Material
Aluminium, Metal
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Forced Convection
Rigging
Mounting Options
Clamp, Quick-Lock
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-20 °C
Included Items
Included Cables
Power Pro Cable
https://www.highlite.com/en/30786-stage-blinder-flex-blaze-controller.html
DMX/RDM, Master/Slave and stand-alone modes
IP65-rated enclosure
仕様
Control and ProgrammingControl Mode
Built-in Program, DMX, Manual, Master Slave, Stand Alone
DMX Channels
4, 5, 8, 32, 33, 40
Protocols
DMX, RDM
Zone Control (Sections)
8
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
700 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
仕様
Mechanical SpecificationsLength (mm)
372 mm
Width (mm)
171 mm
Height (mm)
103 mm
Weight
3.65 kg
IP Rating
IP65
Material
Aluminium, Metal
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Forced Convection
Rigging
Mounting Options
Clamp, Quick-Lock
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-20 °C
Included Items
Included Cables
Power Pro Cable
参照
■メーカーサイトhttps://www.highlite.com/en/30786-stage-blinder-flex-blaze-controller.html
