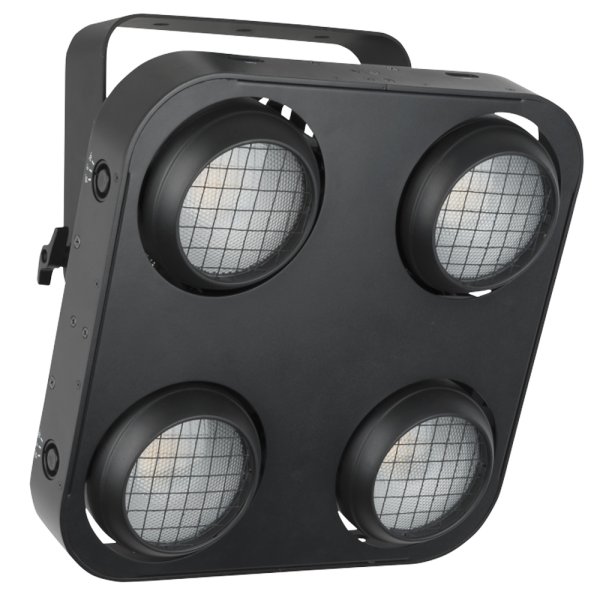

HIGHLITE Showtec Stage Blinder 4 Blaze [30781]

Showtec Stage Blinder 4 Blaze. Ordercode: 30781. from Highlite International on Vimeo.

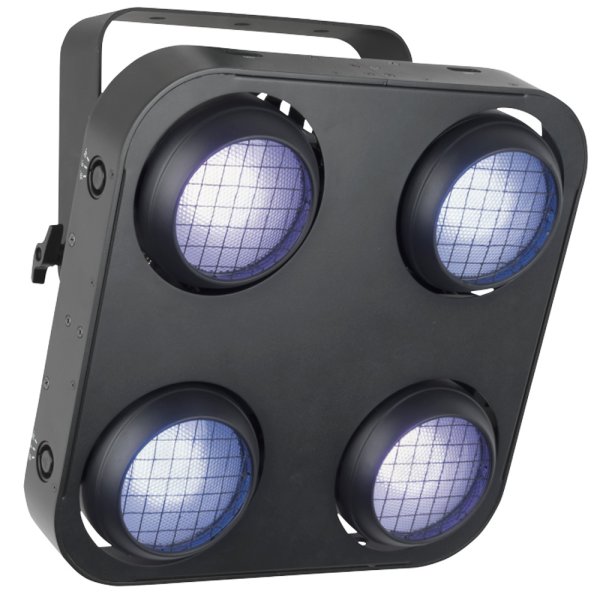

Very punchy 4 head blinder

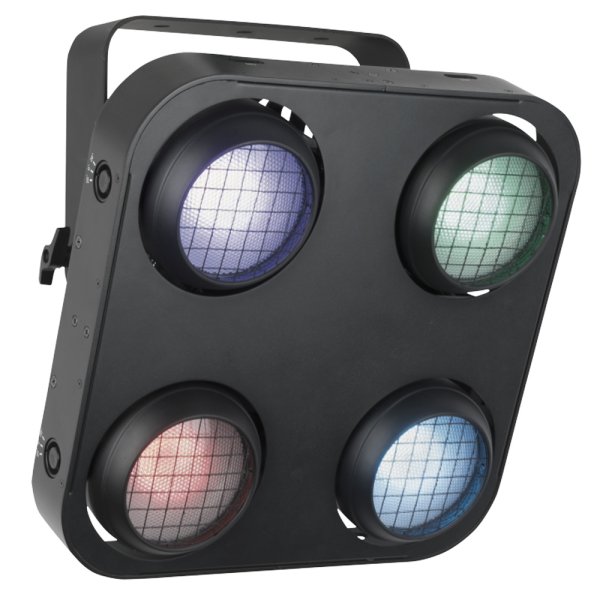

RGB Blaze effect

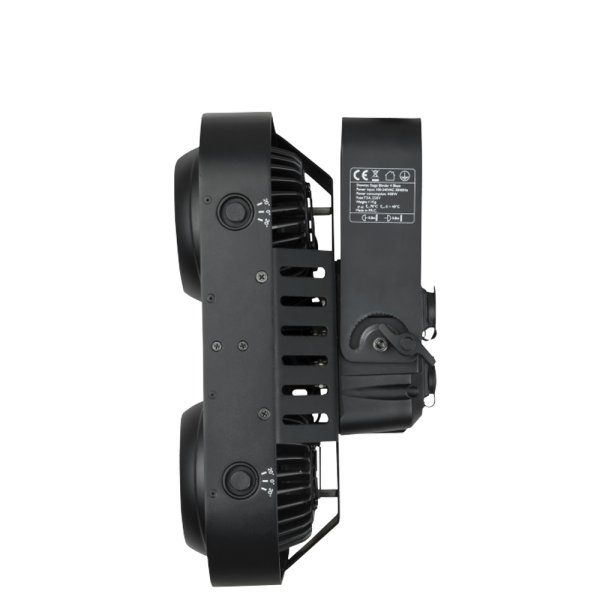

Manual Pan and Tilt adjustment of each head

仕様

Source
Light Source Type
LED
Light Source Quantity
4
Light Source Power
100 W
LED Colour Type
A, WW, RGB
Refresh Rate
4000 Hz
Luminous Flux (Total)
18500 lm

Optical
Beam Angle (Horizontal)
39°
Beam Angle (Vertical)
39°

Control and Programming
Control Mode
Auto, Built-in Program, DMX, Manual, Master Slave
DMX Channels
1, 4, 13, 16
Protocols
DMX
Display
OLED, Touch
Dim Curve
Linear, Square, I-Square, S-Curve

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

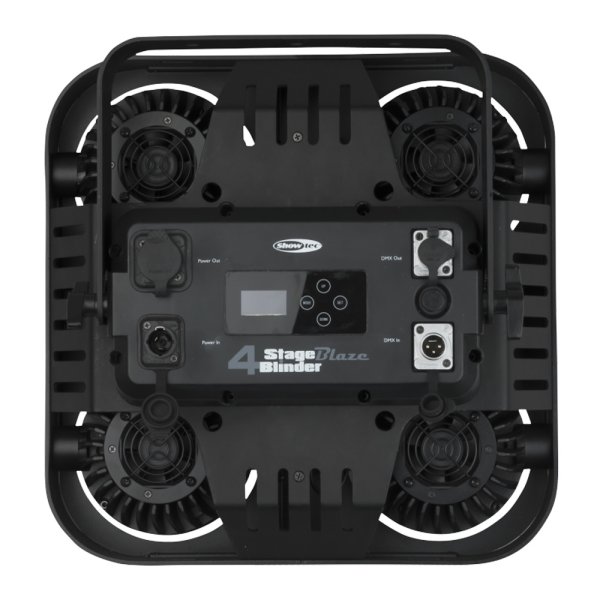

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
415 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
400 mm
Width (mm)
400 mm
Height (mm)
200 mm
Weight
11.2 kg
IP Rating
IP65
Material
Metal
Housing
Metal
Colour
Black

Product Properties
Cooling
Axial fan

Rigging
Mounting Options
Clamp

Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
70 °C
Minimum Operating Temperature
-5 °C

Included Items
Included Cables
powerCON TRUE1 cable
Included Accessories
User Manual
Included Rigging
Bracket
