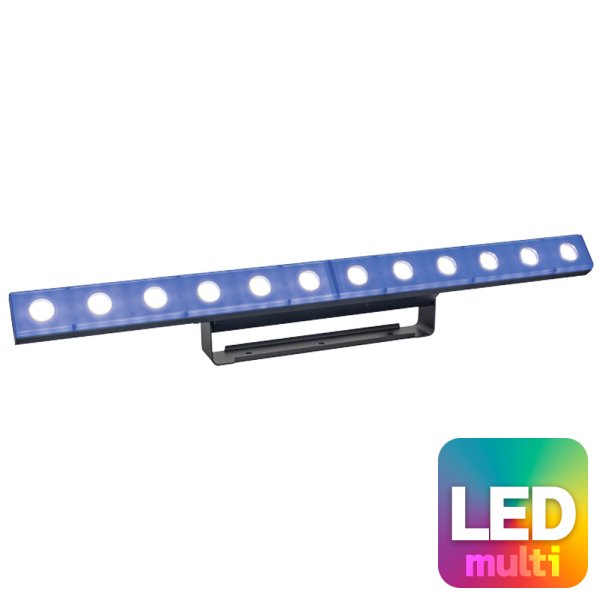

HIGHLITE Showtec Razor Blaze 12 [44550]

SHOWTEC Razor Blaze 12. Order code 44550. (& Razor Blaze 10. Order code 30746) from Highlite International on Vimeo.

12x 5 W Warm White High power LEDs
4° Beam Angle
96 x SMD5050 RGB LED
DMX, Art-Net and Kling-Net controllable
Individual Pixel Control

仕様

Source
Light Source Type
LED
Light Source Quantity
12
Light Source Power
5 W
LED Colour Type
WW, RGB
Refresh Rate
1000 Hz
Luminous Flux (Total)
1800 lm

Optical
Beam Angle (Horizontal)
4°
Beam Angle (Vertical)
4°

Control and Programming
Control Mode
Art-Net, Auto, DMX, Kling-Net, Master Slave, Sound
DMX Channels
4, 9, 48, 300
Protocols
Art-Net, DMX, Kling-Net
Display
OLED

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
64 W
Power Connector In
powerCON Blue
Power Connector Out
powerCON Grey
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Data Connector In
ProCat
Data Connector Out
ProCat
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
1000 mm
Width (mm)
74 mm
Height (mm)
158 mm
Weight
2.95 kg
IP Rating
IP20 (indoor use only)
Material
Metal
Housing
Plastic
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes
Safety Eyes
1

Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
70 °C

Included Items
Included Cables
CAT-5 Cable, powerCON cable
Included Accessories
User Manual
Included Rigging
Bracket
