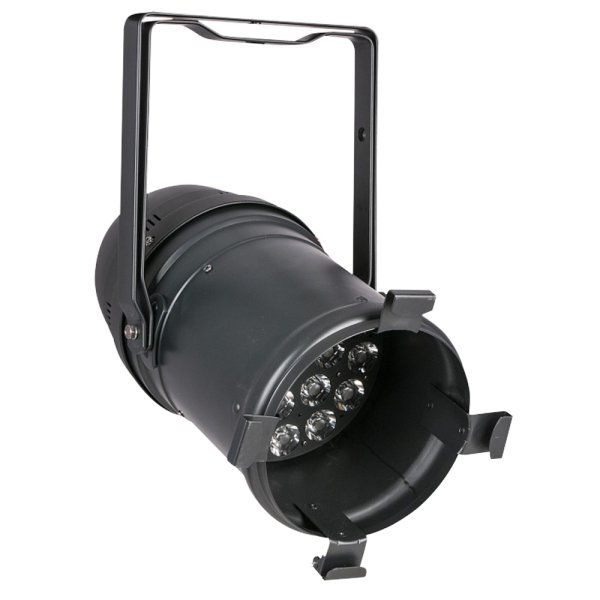

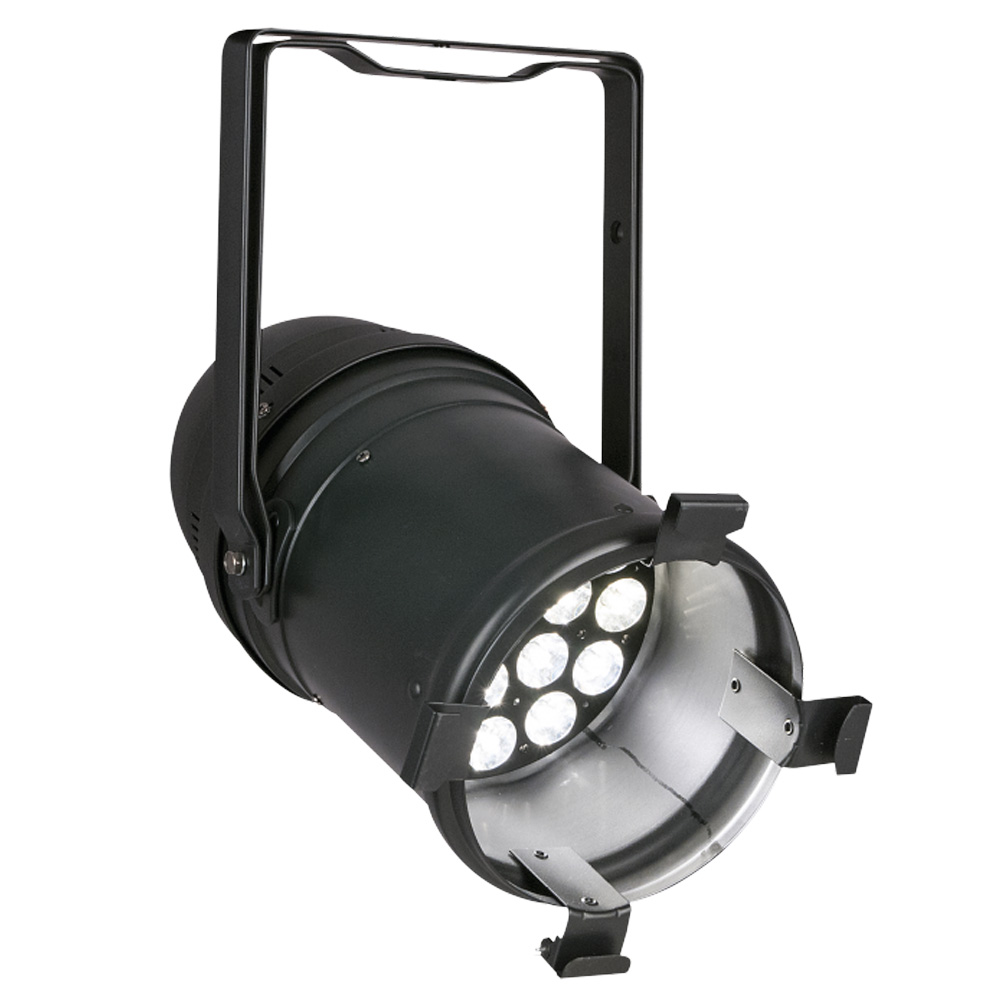

HIGHLITE Showtec LED Par 64 Aircraft DMX [30745v]
商品詳細
18 x 4 W WW LEDs
powerCON in- & output
Double Bracket
Light Source Type
LED
Light Source Quantity
18
Light Source Power
4 W
LED Colour Type
WW
Refresh Rate
400 Hz
Luminous Flux (Total)
1393 lm
Optical
Beam Angle (Horizontal)
4°
Beam Angle (Vertical)
4°
Control and Programming
Control Mode
Auto, DMX, Manual
DMX Channels
1, 2
Protocols
DMX
Display
LCD
Dynamic Effects
Dimmer
0-100 %
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
85 W

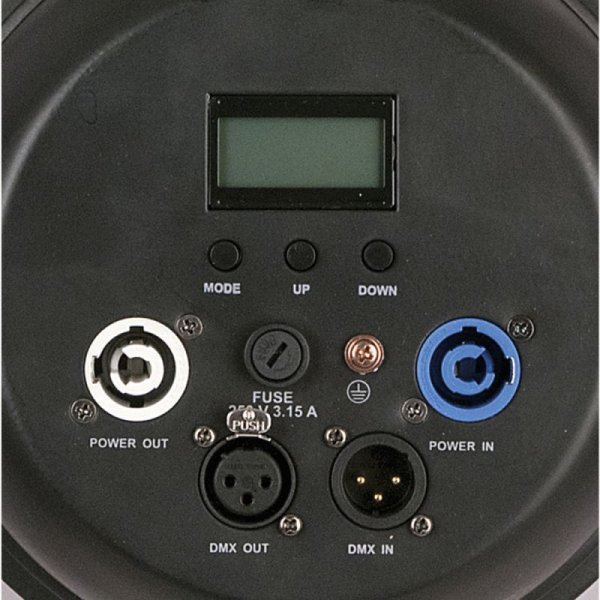

Power Connector In
powerCON Blue
Power Connector Out
powerCON Grey
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Length (mm)
430 mm
Width (mm)
275 mm
Height (mm)
280 mm
Weight
3.5 kg
IP Rating
IP20 (indoor use only)
Material
Metal
Housing
Metal
Colour
Black
Product Properties
Cooling
Convection/Axial fan
Rigging
Mounting Options
Clamp, Surface
Thermal Specifications
Maximum Ambient Temperature
40 °C
Included Items
Included Cables
powerCON cable
Included Accessories
User Manual
Included Rigging
Bracket
■メーカーサイト
https://www.highlite.com/en/products/entertainment-lighting/blinders/blinders-dmx/30745-led-par-64-aircraft-dmx.html
powerCON in- & output
Double Bracket
仕様
SourceLight Source Type
LED
Light Source Quantity
18
Light Source Power
4 W
LED Colour Type
WW
Refresh Rate
400 Hz
Luminous Flux (Total)
1393 lm
Optical
Beam Angle (Horizontal)
4°
Beam Angle (Vertical)
4°
Control and Programming
Control Mode
Auto, DMX, Manual
DMX Channels
1, 2
Protocols
DMX
Display
LCD
Dynamic Effects
Dimmer
0-100 %
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
85 W
Power Connector In
powerCON Blue
Power Connector Out
powerCON Grey
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
サイズ
Mechanical SpecificationsLength (mm)
430 mm
Width (mm)
275 mm
Height (mm)
280 mm
Weight
3.5 kg
IP Rating
IP20 (indoor use only)
Material
Metal
Housing
Metal
Colour
Black
Product Properties
Cooling
Convection/Axial fan
Rigging
Mounting Options
Clamp, Surface
Thermal Specifications
Maximum Ambient Temperature
40 °C
Included Items
Included Cables
powerCON cable
Included Accessories
User Manual
Included Rigging
Bracket
