HIGHLITE Showtec Stage Blinder FLEX Blaze x8 + Controller x 1 Set [30785]

Showtec - Stage Blinder FLEX Blaze. Product Code 30785 from Highlite International on Vimeo.

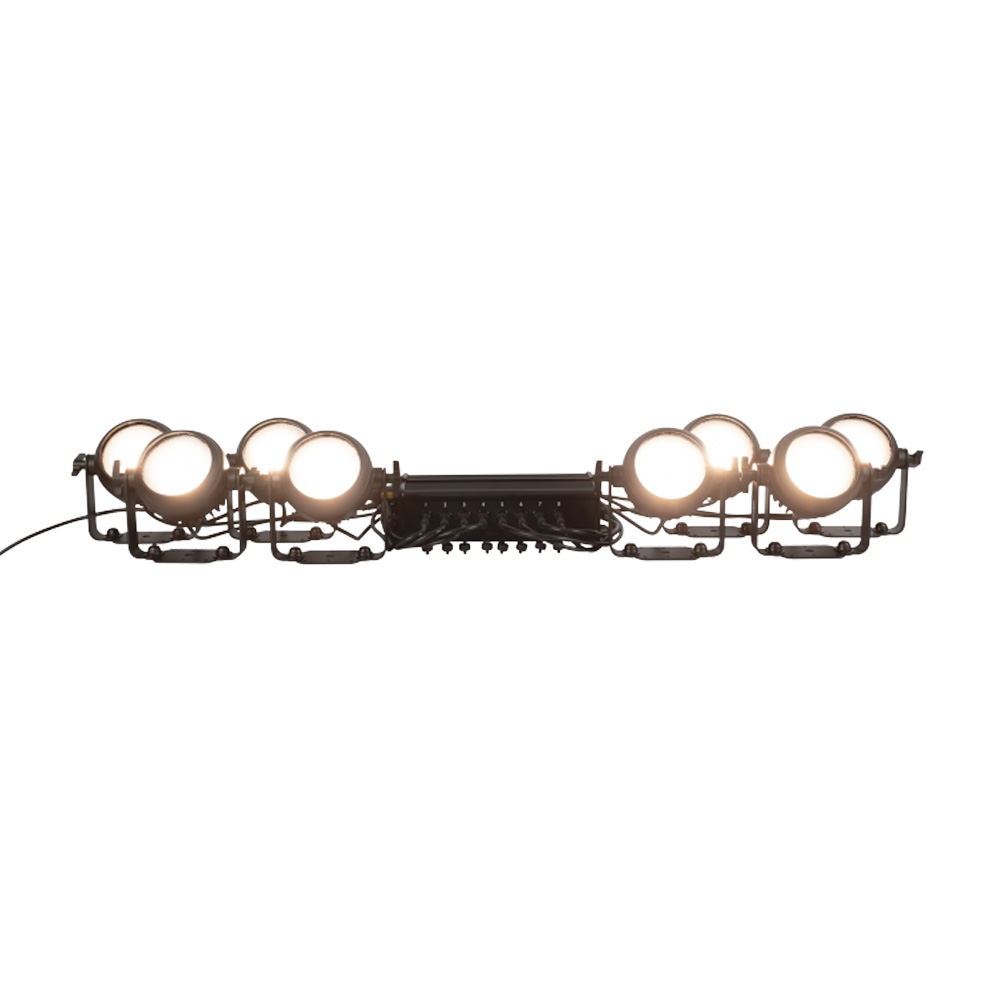

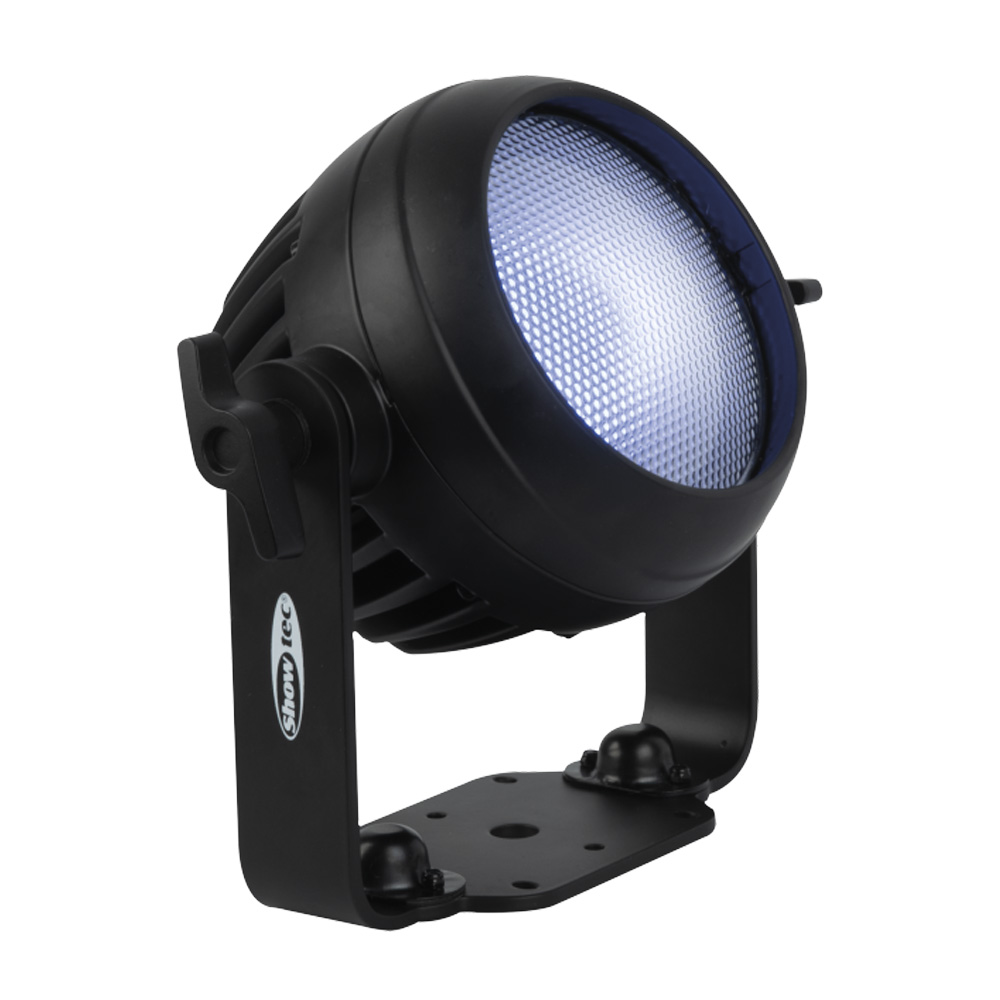

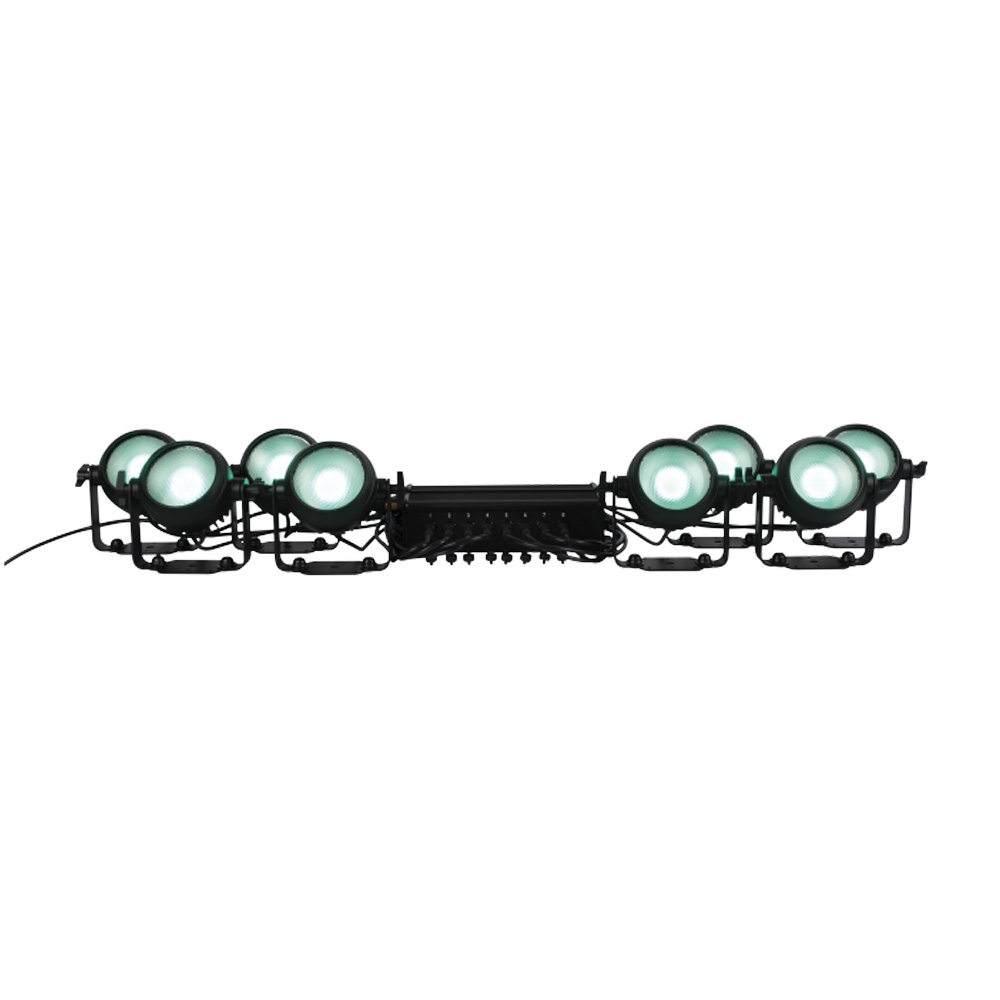

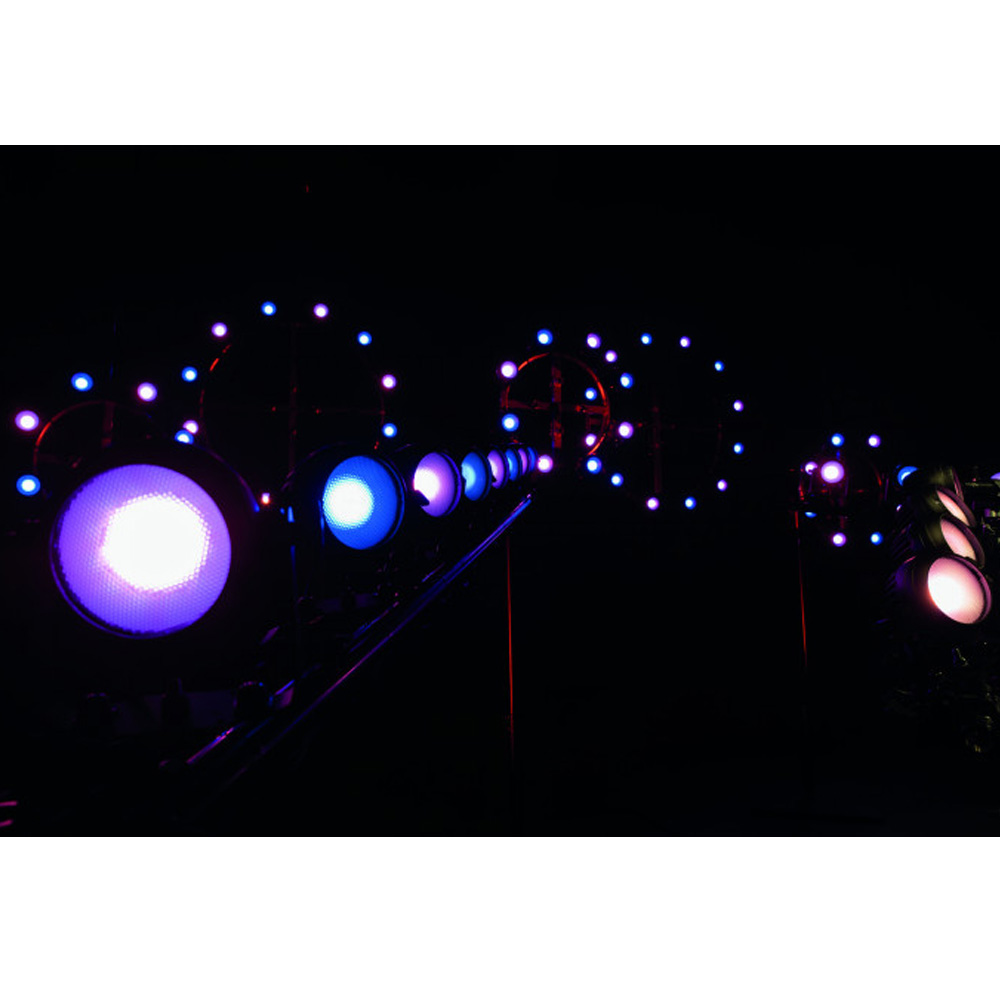

8x 100 W LED blinders

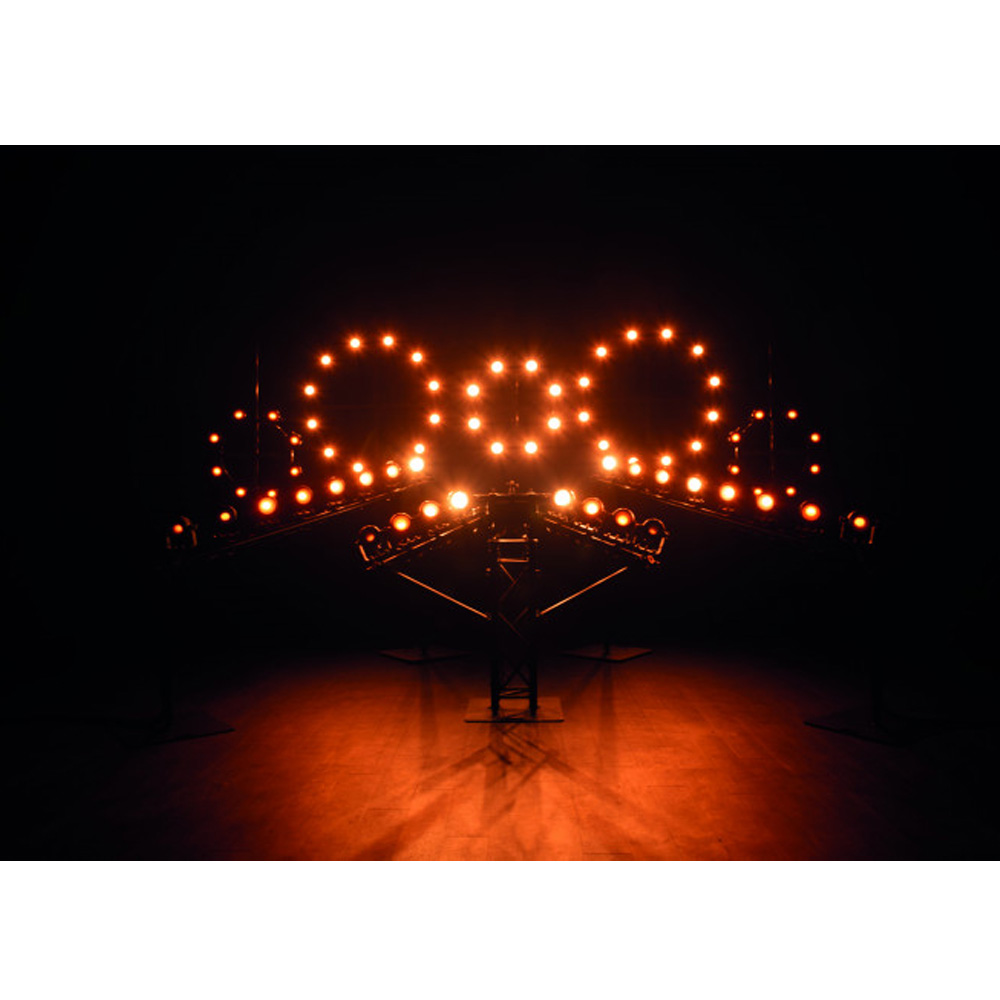

Tungsten dimming simulation

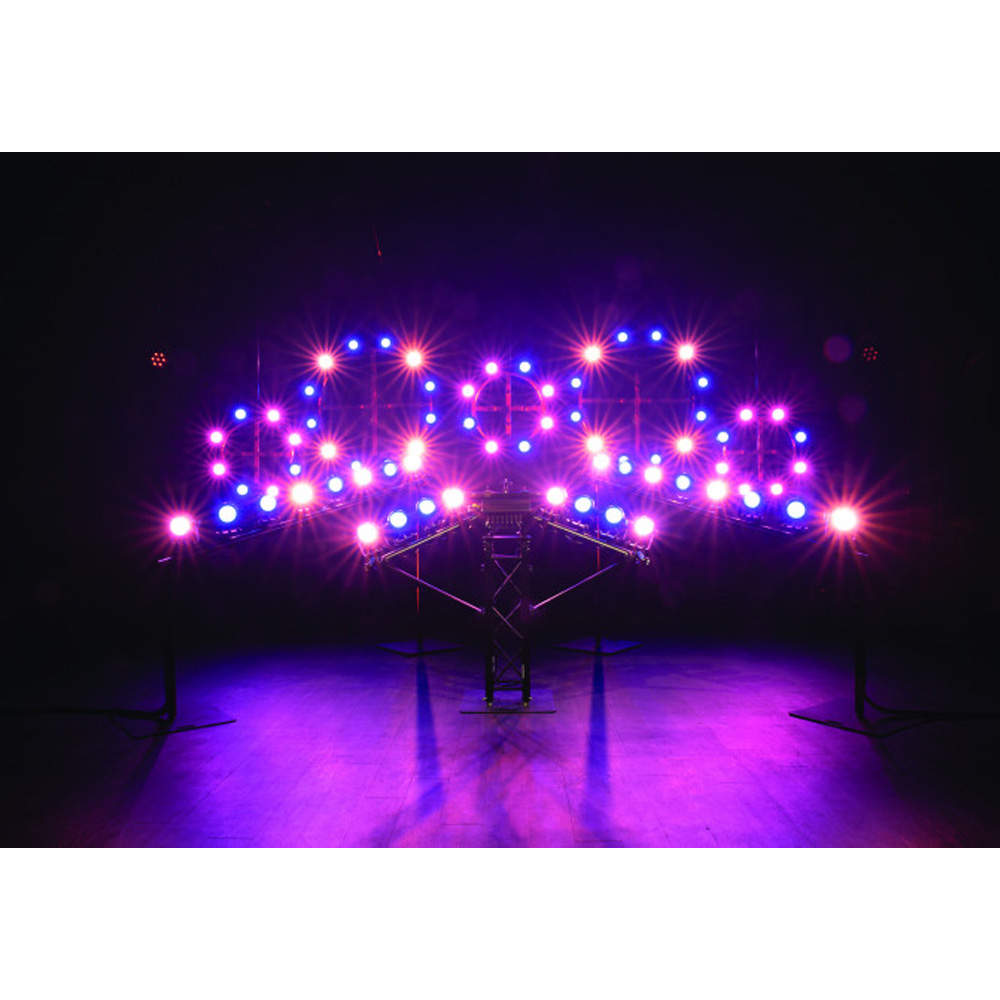

RGB blaze effects

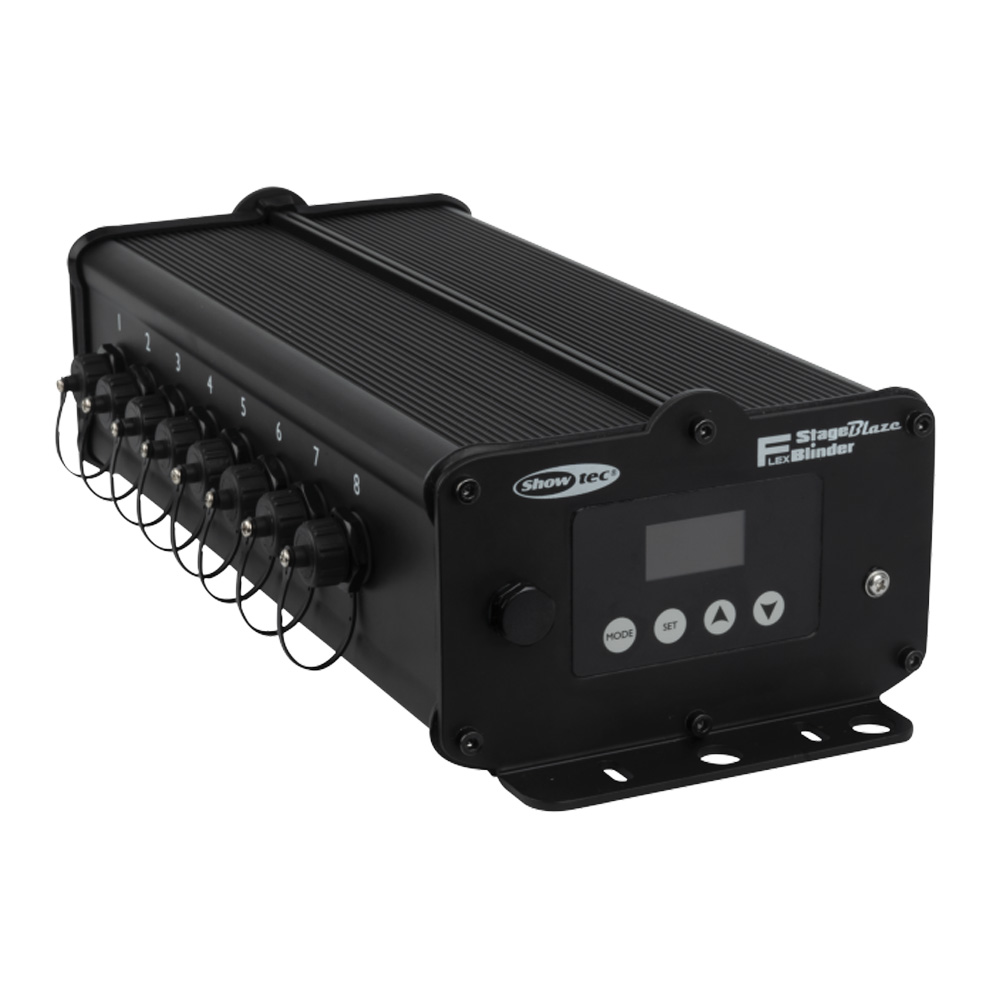

Dedicated controller
Warm white (3000 K)

仕様

Source
Light Source Type
LED
Light Source Quantity
8
Light Source Power
100 W
LED Colour Type
A, WW, RGB
Luminous Flux (Total)
5229 lm
CRI
92

Optical
Beam Angle (Horizontal)
45°
Beam Angle (Vertical)
45°

Control and Programming
Control Mode
Built-in Program, DMX, Master Slave, Stand Alone, Static Dimmer
DMX Channels
4, 5, 8, 32, 33, 40
Protocols
DMX, RDM
Zone Control (Sections)
8

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

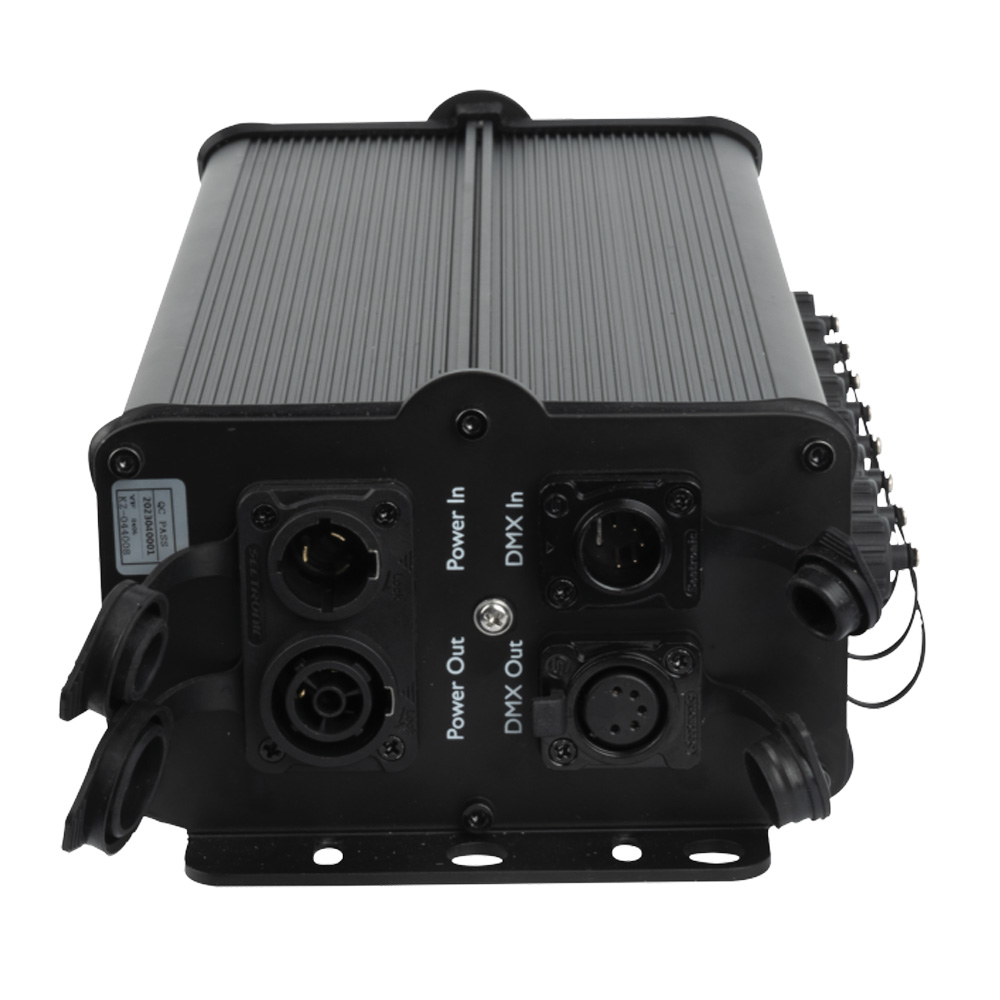

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
700 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P

サイズ

Mechanical Specifications
Length (mm)
216 mm
Width (mm)
115 mm
Height (mm)
195 mm
Controller Length
372 mm
Controller Width
171 mm
Controller Height
103 mm
Weight
1.47 kg
Controller Weight
3.65 kg
IP Rating
IP65
Material
Aluminium, Metal
Housing
Aluminium die-cast
Colour
Black

Product Properties

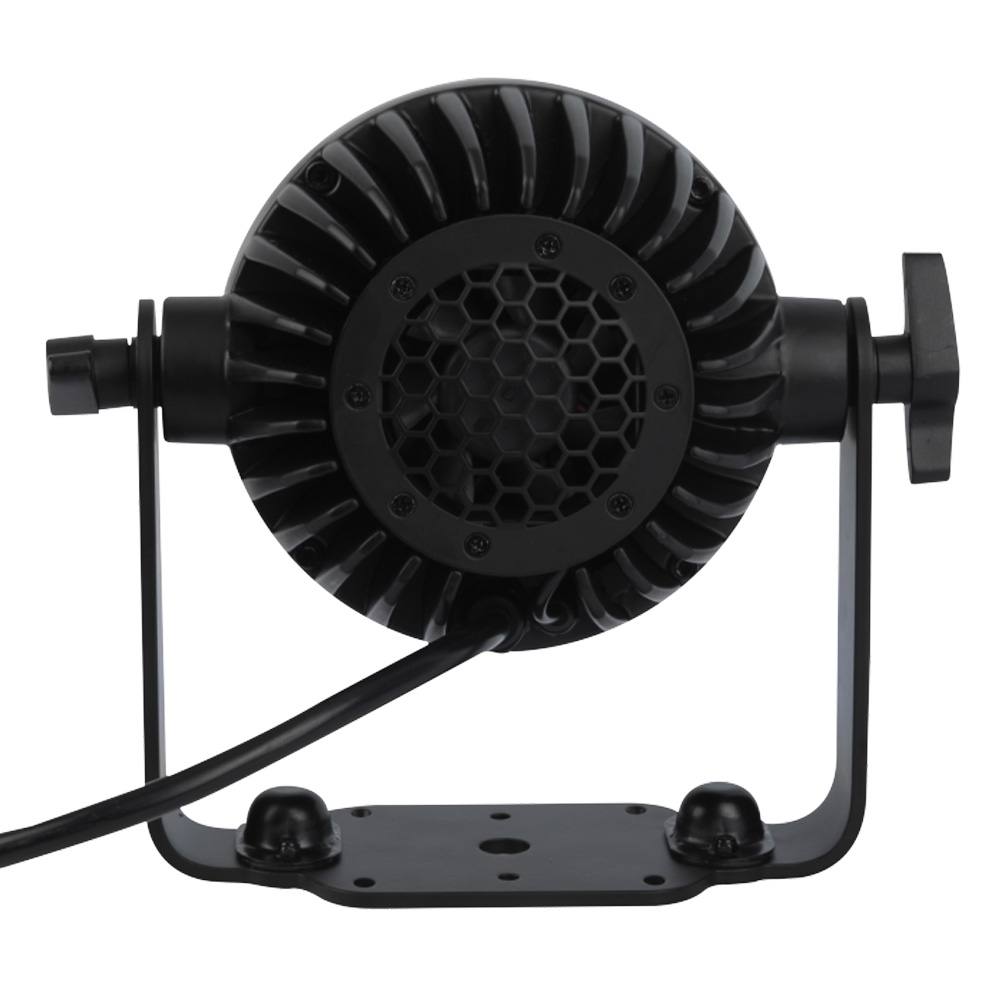

Cooling
Forced Convection

Rigging
Mounting Options
Clamp, Quick-Lock
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-20 °C

Included Items
Included Cables
Dedicated IP65 Dataconnection, Power Pro True Cable
Included Accessories
Controller
Included Rigging
Quick-Lock Bracket
